ost your stereo (head unit) install pics.....
#1
TACOCAT
Thread Starter
ost your stereo (head unit) install pics.....
I havent seen this thread for our generation of 7's (i have for the 2nd gens) but anyways...you read it people...POST EM'!!!!
#4
Heck Yes!
Join Date: Apr 2003
Location: Chatham, Ontario, Canada
Posts: 1,075
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Rx7carl
I dont have a radio in either of my 7's, other than the portable communications radio in teh racecar.

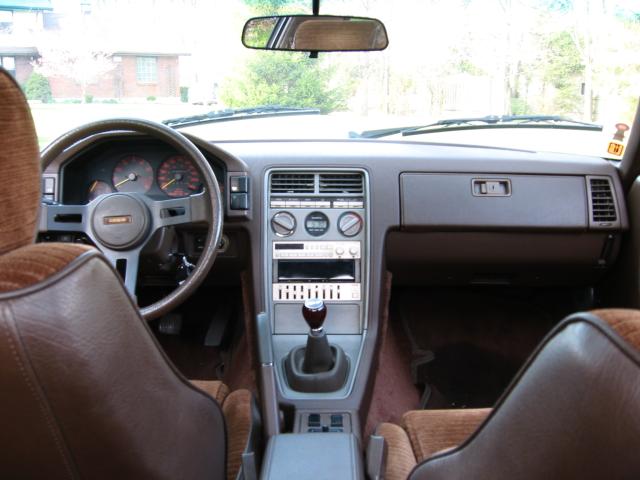

Here take a look at this...

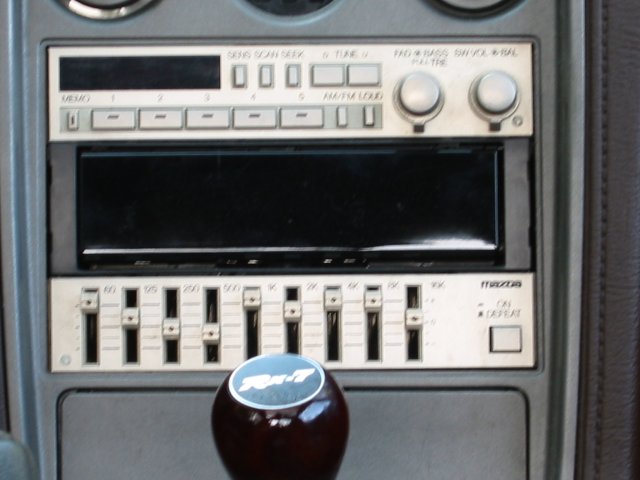

The close up ones are blurry for some reason, but I can't take new ones right now so thoes will have to do.

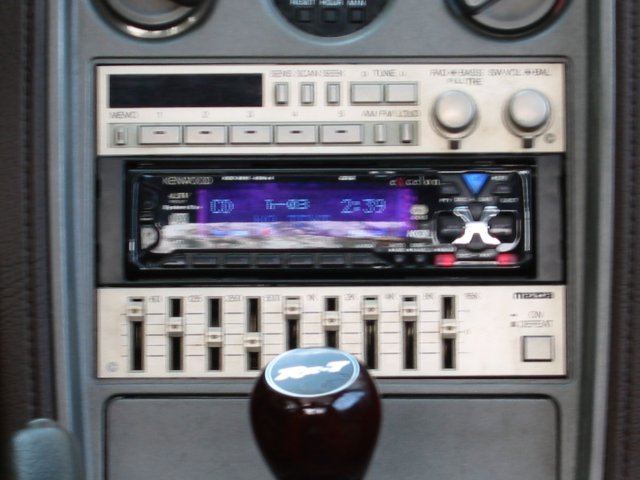

I installed the system so I can go back to stock in 10 min, just remove the CD player and put the tape deck back in.
Every thing is Quick disconnect.
The Amp unplugs and the subs come right out.
Makes it easy when you want to show the car...
Last edited by anthrax; 09-02-04 at 08:30 AM.
#6
Airflow is my life
LOL, not hardcore, just havent had time to put in a sound system. I like music, but the rotary singing to me makes it bearable till I can get a stereo installed.
#7
SA all the Way!
Pioneer DEH7500MP
Infinity Kappa 4" 2ways (stock locations)
Infinity Kappa 6x9 3ways (Under rear deck in boxes)
(2) Infinity Kappa Perfect 10's (in temporary box til i get off my *** and make a custom fit one)
75w RMS x4 Amp for the Seperates
250w RMS x2 Amp for the Subs
hours and hours of tuning the crossovers so it sounds perfect. And for those of you that wonder, my bass EQ is at 1, and i never use loudness... the subs are there to play the frequencies that the other speakers cant, not to show off to the world that i have subwoofers.
It's mostly tuned for Classic Rock/Reggae/ Sublime-RHCP type stuff, but still sounds wicked for System of A Down, Rage Against the Machine, and Hip-Hop/Rap... allthough some music requires tweaking of the sub pre-out level to make it sound right. I really hate loud booming subs
Trending Topics
#8
Heck Yes!
Join Date: Apr 2003
Location: Chatham, Ontario, Canada
Posts: 1,075
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by jutny
hours and hours of tuning the crossovers so it sounds perfect. And for those of you that wonder, my bass EQ is at 1, and i never use loudness... the subs are there to play the frequencies that the other speakers cant, not to show off to the world that i have subwoofers.
I really hate loud booming subs
That is the way I feel about it too. Very nicely put...
#9
SA all the Way!
Originally Posted by anthrax
That is the way I feel about it too. Very nicely put...
*bows*
#11
Heck Yes!
Join Date: Apr 2003
Location: Chatham, Ontario, Canada
Posts: 1,075
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by smnc

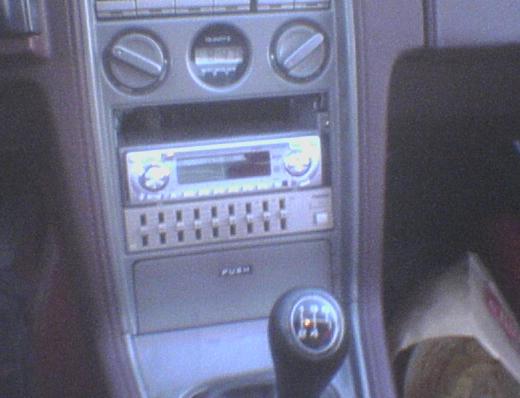

Here's my temp "ghetto" install...

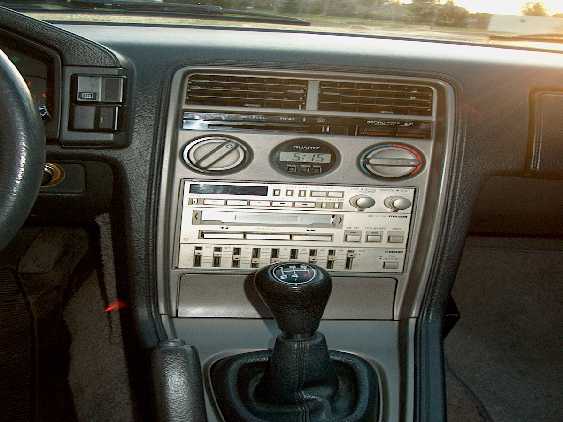

Can you not just put the Tunner back in to fill the hole?
That is how mine is done, works great.
#13
Senior Member
Join Date: Nov 2003
Location: Calgary, AB
Posts: 457
Likes: 0
Received 0 Likes
on
0 Posts
Awesome idea to put guages there Max - looks great! Except I prefer the stock shift **** but who's nit-picking... What's the trigger in front of the console for? (If it's what I think it is that's is fricken awesome!)
Jutny - is that compartment stock (I'm not very familiar with the pre-84 dash)? The border matches the grey perfectly... About the "sound" I completely agree - flat frequency response is the ideal being targetted. I bet I spent about as much time setting up my HT SW. Too bad you're not in the Calgary area - I'm considering doing to a pure SQ install with mainly fronts to try seting up a front sound-stage but I'm not sure that it can be done in a car - I'd love to hear one done up like that to see how close you can get.
Jutny - is that compartment stock (I'm not very familiar with the pre-84 dash)? The border matches the grey perfectly... About the "sound" I completely agree - flat frequency response is the ideal being targetted. I bet I spent about as much time setting up my HT SW. Too bad you're not in the Calgary area - I'm considering doing to a pure SQ install with mainly fronts to try seting up a front sound-stage but I'm not sure that it can be done in a car - I'd love to hear one done up like that to see how close you can get.
Last edited by Felgar; 09-02-04 at 04:38 PM.
#14
EliteHardcoreCannuckSquad
Join Date: May 2001
Location: Acton, Ontario, Canada
Posts: 4,126
Likes: 0
Received 4 Likes
on
4 Posts
Originally Posted by anthrax
Can you not just put the Tunner back in to fill the hole?
That is how mine is done, works great.
That is how mine is done, works great.
But the longer tem plans involve replacing the cassette deck witha CD/DVD player and using the stock tuner and EQ...
#16
SA all the Way!
Originally Posted by Felgar
Awesome idea to put guages there Max - looks great! Except I prefer the stock shift **** but who's nit-picking... What's the trigger in front of the console for? (If it's what I think it is that's is fricken awesome!)
Jutny - is that compartment stock (I'm not very familiar with the pre-84 dash)? The border matches the grey perfectly... About the "sound" I completely agree - flat frequency response is the ideal being targetted. I bet I spent about as much time setting up my HT SW. Too bad you're not in the Calgary area - I'm considering doing to a pure SQ install with mainly fronts to try seting up a front sound-stage but I'm not sure that it can be done in a car - I'd love to hear one done up like that to see how close you can get.
Jutny - is that compartment stock (I'm not very familiar with the pre-84 dash)? The border matches the grey perfectly... About the "sound" I completely agree - flat frequency response is the ideal being targetted. I bet I spent about as much time setting up my HT SW. Too bad you're not in the Calgary area - I'm considering doing to a pure SQ install with mainly fronts to try seting up a front sound-stage but I'm not sure that it can be done in a car - I'd love to hear one done up like that to see how close you can get.
#19
Senior Member
Join Date: Nov 2003
Location: Calgary, AB
Posts: 457
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by jutny
My front soundstage isnt bad, i'll eventually put some tweeters into the right and left air vents to bring the soundstage up from the floor a little, but for now its not bad, i have my rear 6x9's playing only midrange and lows, even though they're 3 ways because i hated hearing the vocals from the back of the damn car.
Think it'll work? My main concern is the image... Does a singer really sound like she's standing in the middle of the car, or does it sound like 2 people singing from each side? I've been told to consider a passive center channel which I could fit below the deck right in the console???
#22
SA all the Way!
personally, i'd stay away from ported, especially since you're working with such small drivers at that point. Cant really go wrong with the infinity kappa components, i've yet to find any speakers that are as well matched to each other component to component, their responses just seem like they were made to go with eachother (probably because they were...lol )
i'll have a good listen tomorrow to see what i can see about my soundstage, i've never had any complaints about it, but then again i wasnt specifically trying to set a perfect soundstage, allthough it is a nice thing to have. I'll get back to you on that center vs. both sides kind of deal.
my bet is that at lower volumes, you kind of get it from both sides, but at higher volumes, since technically the tweeters on the 4" in the kick panels are pointed at eachother and then deflect off the center console, i'd imagine it starts to center out. I've never paid close enough attention to that, but i will .
as for an amp, anything more than 100wRMS X 4 is overkill, with my 75wRMS x 4 amp (a OLD Jensen, back when the didnt suck AS much, i love this one because of the very comprehensive crossover settings, i can set HPF and LPF for either set of channels... you'd be surprised how many 4 channel amps dont let you do that) i cant even turn them up all the way cause it makes my ears hurt, with no sign of distortion or muddying of the sound, crystal clear all the way up (and my gains arent even maxed out... well they are on the 6x9's not on the 4"ers).
even for a sub box, i'd shy away from ported, i dont think anything sounds as tight and clean as an acoustic suspension (sealed) box that is the proper size for the subs, which mine happened to be (certianly hadnt researched it before i bought it at Best Buy at a nice employee discount). I'd go with 10's rather than 8's because even though 8's will give you the frequencies that you want down low, the 10's will allow them to have some kick, so you can feel it in your chest and things of that nature if you want them too, i doubt you'd get that with (2) 8"s... i had thought about doing something custom in the rear deck with (4) 8" Rockford HE subs, but to amp that properly would cost to damn much. As said, my Rockford 1500w amp (250RMSx2 @ 4 ohms) is more than enough for my 2 Perfect 10's in my world, i really cant listen to them at full volume either, its just painful.
good luck with your system man, the only problem with mine is that at 80mph on the freeway, its hard to hear without cranking it up pretty high... i need to insulate my car better, cause there's no insulation now.
-Kurt
edit: as for a Headunit, i cant reccomend the Pioneer 7500MP enough, aside from bieng an MP3 deck, which means i only need to have 3 cd's in the car with me... it has wonderful adjustibility. And pre-outs for all channels and the sub. Plus it's easy to use, good looking, and not TOO Expensive anymore.
EQ: Low/Mid/High from -6 to +6
Sub: Inverse or Normal, On or Off
Sub Crossover: 50,80,125hz from -6 to +6
HPF: 50, 80, 125hz (HPF is only for R/L F/B)
Loudness: On/Off.. low, mid, high
it's nice to be able to turn your subs on and off from the deck, so you can tune only your seperates, and the inverse is great because if you wired something backwards and your Bass is canceling, you can flip the polarity of the subs.
my settings now for just the hu are:
EQ: Low 1, Mid 6, High, 5
Sub: On, Normal, 80hz, +3
HPF: 80hz
Loudness: Off (**** loudness.. makes music sound like ****)
and then on the 4ch amp, i cut off the 4"ers at around 220hz and the 6x9's have a LPF on them around 240hz IIRC.
i'll have a good listen tomorrow to see what i can see about my soundstage, i've never had any complaints about it, but then again i wasnt specifically trying to set a perfect soundstage, allthough it is a nice thing to have. I'll get back to you on that center vs. both sides kind of deal.
my bet is that at lower volumes, you kind of get it from both sides, but at higher volumes, since technically the tweeters on the 4" in the kick panels are pointed at eachother and then deflect off the center console, i'd imagine it starts to center out. I've never paid close enough attention to that, but i will .
as for an amp, anything more than 100wRMS X 4 is overkill, with my 75wRMS x 4 amp (a OLD Jensen, back when the didnt suck AS much, i love this one because of the very comprehensive crossover settings, i can set HPF and LPF for either set of channels... you'd be surprised how many 4 channel amps dont let you do that) i cant even turn them up all the way cause it makes my ears hurt, with no sign of distortion or muddying of the sound, crystal clear all the way up (and my gains arent even maxed out... well they are on the 6x9's not on the 4"ers).
even for a sub box, i'd shy away from ported, i dont think anything sounds as tight and clean as an acoustic suspension (sealed) box that is the proper size for the subs, which mine happened to be (certianly hadnt researched it before i bought it at Best Buy at a nice employee discount). I'd go with 10's rather than 8's because even though 8's will give you the frequencies that you want down low, the 10's will allow them to have some kick, so you can feel it in your chest and things of that nature if you want them too, i doubt you'd get that with (2) 8"s... i had thought about doing something custom in the rear deck with (4) 8" Rockford HE subs, but to amp that properly would cost to damn much. As said, my Rockford 1500w amp (250RMSx2 @ 4 ohms) is more than enough for my 2 Perfect 10's in my world, i really cant listen to them at full volume either, its just painful.
good luck with your system man, the only problem with mine is that at 80mph on the freeway, its hard to hear without cranking it up pretty high... i need to insulate my car better, cause there's no insulation now.
-Kurt
edit: as for a Headunit, i cant reccomend the Pioneer 7500MP enough, aside from bieng an MP3 deck, which means i only need to have 3 cd's in the car with me... it has wonderful adjustibility. And pre-outs for all channels and the sub. Plus it's easy to use, good looking, and not TOO Expensive anymore.
EQ: Low/Mid/High from -6 to +6
Sub: Inverse or Normal, On or Off
Sub Crossover: 50,80,125hz from -6 to +6
HPF: 50, 80, 125hz (HPF is only for R/L F/B)
Loudness: On/Off.. low, mid, high
it's nice to be able to turn your subs on and off from the deck, so you can tune only your seperates, and the inverse is great because if you wired something backwards and your Bass is canceling, you can flip the polarity of the subs.
my settings now for just the hu are:
EQ: Low 1, Mid 6, High, 5
Sub: On, Normal, 80hz, +3
HPF: 80hz
Loudness: Off (**** loudness.. makes music sound like ****)
and then on the 4ch amp, i cut off the 4"ers at around 220hz and the 6x9's have a LPF on them around 240hz IIRC.
Last edited by jutny; 09-02-04 at 07:51 PM.
#23
Admitted Sevenaholic
Join Date: Feb 2001
Location: Ashland, OH
Posts: 1,910
Likes: 0
Received 0 Likes
on
0 Posts
It controls the head unit, one of the big reasons I love my Sony
Originally Posted by Felgar
....What's the trigger in front of the console for? (If it's what I think it is that's is fricken awesome!)
#24
SA all the Way!
Originally Posted by Max7
It controls the head unit, one of the big reasons I love my Sony
on a more serious note: Max, where'd you get those Kick panels, they look like 5.5" no?
#25
Admitted Sevenaholic
Join Date: Feb 2001
Location: Ashland, OH
Posts: 1,910
Likes: 0
Received 0 Likes
on
0 Posts
they are 6.5" Qform kickpanels, from a early 90's golf. And they fit quite well after I chopped the end off.
someday I plan to cover them and actualy finish blending them in, but they work well
you lose the dead pedal (never use em anyways) but it still clears boots with the clutch.
the sound improvment is much better, only thing I will have to move my tweeters now that
the rollcage blocks them, another one of those, someday projects......
someday I plan to cover them and actualy finish blending them in, but they work well
you lose the dead pedal (never use em anyways) but it still clears boots with the clutch.
the sound improvment is much better, only thing I will have to move my tweeters now that
the rollcage blocks them, another one of those, someday projects......
