Oil Pan Gasket - Idler Arm maintenance
#1
Full Member
Thread Starter
Oil Pan Gasket - Idler Arm maintenance
I am going to replace the oil pan gasket as it is currently leaking. I notice that you need to unhook the idler arm in order to get to it.
I have a 79 SA and mostly all the rubber is shot in the suspensions and steering components. If i want to service the idler arm while I am down there how would I do it? I go to RockAuto and I see pitman arm, but no idler arm is listed. Am I able to replace just the rubber on it? Where wold I find such components.
Anything else I should service while I am down there and have the oil pan off?
I'll be using back an OEM gasket from Mazda and will use a very thin layer of gasket sealer on both top and bottom.
I have a 79 SA and mostly all the rubber is shot in the suspensions and steering components. If i want to service the idler arm while I am down there how would I do it? I go to RockAuto and I see pitman arm, but no idler arm is listed. Am I able to replace just the rubber on it? Where wold I find such components.
Anything else I should service while I am down there and have the oil pan off?
I'll be using back an OEM gasket from Mazda and will use a very thin layer of gasket sealer on both top and bottom.
#2
Rotary Enthusiast
They seem to have them on Amazon. They do make rebuild kits, but I wouldn't go that route.
I'd skip the gasket on the oil pan. I used gasket stuff in a tube for oil contact. I put on and let it dry for 3 days before adding oil. It's been dry ever since. Also I learned from someone here that getting a couple studs to use as a guide when putting the pan back on really helps. Made a huge difference from the first time I did the pan.
I'd skip the gasket on the oil pan. I used gasket stuff in a tube for oil contact. I put on and let it dry for 3 days before adding oil. It's been dry ever since. Also I learned from someone here that getting a couple studs to use as a guide when putting the pan back on really helps. Made a huge difference from the first time I did the pan.
#3
Senior Member
iTrader: (4)
Yes strange that Rockauto doesn't even show the category.
I think the idler arm is the same across all 79-85, but should be confirmed.
Not sure if Moog is still making one, but that would be a good way to go.
As for oil pan, as Cforker says, its best to use just RTV. Permatex "The Right Stuff" is a good way to go. Just spend time to clean and prep both surfaces carefully. And torque the bolts up slowly and evenly, and do not need to get them extremely tight.
I can imagine its a bit of a pain to do from under the car.
I think the idler arm is the same across all 79-85, but should be confirmed.
Not sure if Moog is still making one, but that would be a good way to go.
As for oil pan, as Cforker says, its best to use just RTV. Permatex "The Right Stuff" is a good way to go. Just spend time to clean and prep both surfaces carefully. And torque the bolts up slowly and evenly, and do not need to get them extremely tight.
I can imagine its a bit of a pain to do from under the car.
#4
Have RX-7, will restore
iTrader: (91)
Mazda never installed an oil pan gasket on the engine originally. They used a Grey RTV type sealer.
Both mating surfaces must be clean and dry before applying gasket sealer. The seer is applied to the pan and not the engine. Install the pan and tighten the bolts evenly and then apply the final torque to each bolt. If you need the torque spec I can provide it. Its not much. Wait 24 hours before adding oil to ensure the sealer has set up and cured properly. The set up time will likely bless than 24 hours but I feel as though its best to be safe as this isn't a job you'll want to do twice.
The idler arm can be found on www.rockauto.com. You'll want the Moog brand as these seem to be the best aftermarket idler arm for our cars. They require a break in period, as you'll notice the steering is a bit stiffer.
Both mating surfaces must be clean and dry before applying gasket sealer. The seer is applied to the pan and not the engine. Install the pan and tighten the bolts evenly and then apply the final torque to each bolt. If you need the torque spec I can provide it. Its not much. Wait 24 hours before adding oil to ensure the sealer has set up and cured properly. The set up time will likely bless than 24 hours but I feel as though its best to be safe as this isn't a job you'll want to do twice.
The idler arm can be found on www.rockauto.com. You'll want the Moog brand as these seem to be the best aftermarket idler arm for our cars. They require a break in period, as you'll notice the steering is a bit stiffer.
The following users liked this post:
Rx7fb spirit r (07-31-21)
#5
seattle seven
I used a pan gasket on my last rebuild, no extra gasket maker. As long as the crankcase ventilation system is working, they don't leak!
Last edited by lwrobins; 07-27-21 at 08:20 AM.
#6
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,827
Received 2,595 Likes
on
1,843 Posts
i'm in the minority, i just replace the bushings, they are cheap and it takes like 5 minutes. the Mazda last forever too
#7
Full Member
Thread Starter
Trending Topics
#8
Happy Rotoring!
iTrader: (13)
The factory Idler Arm (P/N 8871-32-320A) has been NLA for awhile now. The Moog arm (P/N K9369) is still listed on the Moog site but hasn't been available for over a year. Unless you can run across one somewhere, rebuilding your existing arm with the replacement bushings is your best option. At least its fairly simple. Aren't old cars fun?
#9
Censored
iTrader: (14)
It looks like neither the moog idler arm or the replacement bushing are now available on Rockauto, darn.
But you can still get the replacement bushing from Atkins:
https://www.atkinsrotary.com/store/7...4-32-329B.html
And I agree with J9, even if the moog unit is still available I'd recommend just replacing the bushings, cheap and easy.
But you can still get the replacement bushing from Atkins:
https://www.atkinsrotary.com/store/7...4-32-329B.html
And I agree with J9, even if the moog unit is still available I'd recommend just replacing the bushings, cheap and easy.
#10
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,827
Received 2,595 Likes
on
1,843 Posts
Based on the FSM that isn't true, and I can source a Mazda made oil pan gasket for my model and year. Let me know you're thoughts or if I am misunderstanding. I'll admit I am not the biggest fan of the idea of "gluing" something up, or scraping "glue" off at a later date.
if you use permatex, use the newer formulas, like the right stuff, or the optimum. the old stuff, the blue, orange, red isn't good enough for the oil pan on these cars
#11
Rotary Enthusiast
Mazdatrix has them too, ~$19 shipped using USPS
https://mazdatrix.com/product/bushin...arm-79-85-all/
#12
acdelco d1906 Nkg 49034
Thanks for the tip!
Mazdatrix has them too, ~$19 shipped using USPS
https://mazdatrix.com/product/bushin...arm-79-85-all/
Mazdatrix has them too, ~$19 shipped using USPS
https://mazdatrix.com/product/bushin...arm-79-85-all/
#13
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,827
Received 2,595 Likes
on
1,843 Posts
Bushings! replaced them at ages 7 and 23 years. Takes 5 minutes. Jack up passenger side, open hood, remove carter pin, remove nut, drop pivot out, REPLACE lower BUSHING, align and insert pivot, insert top BUSJING , throw everything back together. Auto Repair shop wanted +$300 labor.
#14
Senior Member
I think I got the last Moog Idler arm in existence.....and a pitman arm also😎....bought them from a friend that bought two of each a while back ....
#15
84SE-EGI helpy-helperton
That was a good purchase for future parts replacement. Like you, I enjoy the thought of having NLA parts around so I can keep my car up and running for as long as I intend to use it, and still have parts to pass onto the next owner to be sure he can keep it running, too.
Hopefully, we're just custodians of these cars we love to drive, until the next generation gets a chance to enjoy them.
Hopefully, we're just custodians of these cars we love to drive, until the next generation gets a chance to enjoy them.
The following users liked this post:
raven12aFB (07-28-21)
#16
acdelco d1906 Nkg 49034
Hopefully, we're just custodians of these cars we love to drive, until the next generation gets a chance to enjoy them. <---<<<LongDuck
WOW ! you sure are an optimist. I just try to keep mine rolling day to day. And do you really think the next gen will appreciate driving a sportscar?
WOW ! you sure are an optimist. I just try to keep mine rolling day to day. And do you really think the next gen will appreciate driving a sportscar?
#17
Rotary Enthusiast
There's always people that will enjoy and respect these cars for what they are. Yes, there's also people that don't, but I believe there's more of the former.
#18
RX HVN
iTrader: (2)
Following with great interest! Bit daunted by having to detach /drop some fr suspension bits to pull leaky pan. plan on installing a stainless steel STUD KIT for the pan, that I bought on-line. Plse keep the updates coming!
Stu A
80GS (with original front suspension and pan)
AZ
Stu A
80GS (with original front suspension and pan)
AZ
#19
Senior Member
Following with great interest! Bit daunted by having to detach /drop some fr suspension bits to pull leaky pan. plan on installing a stainless steel STUD KIT for the pan, that I bought on-line. Plse keep the updates coming!
Stu A
80GS (with original front suspension and pan)
AZ
Stu A
80GS (with original front suspension and pan)
AZ
Just loosen the motor mounts a bit and jack it up by the transmission until you get the clearance to pull out the oil pan....
The following 2 users liked this post by raven12aFB:
7aull (07-31-21),
Rx7fb spirit r (07-31-21)
The following users liked this post:
j9fd3s (07-31-21)
#21
Senior Member
#22
Happy Rotoring!
iTrader: (13)

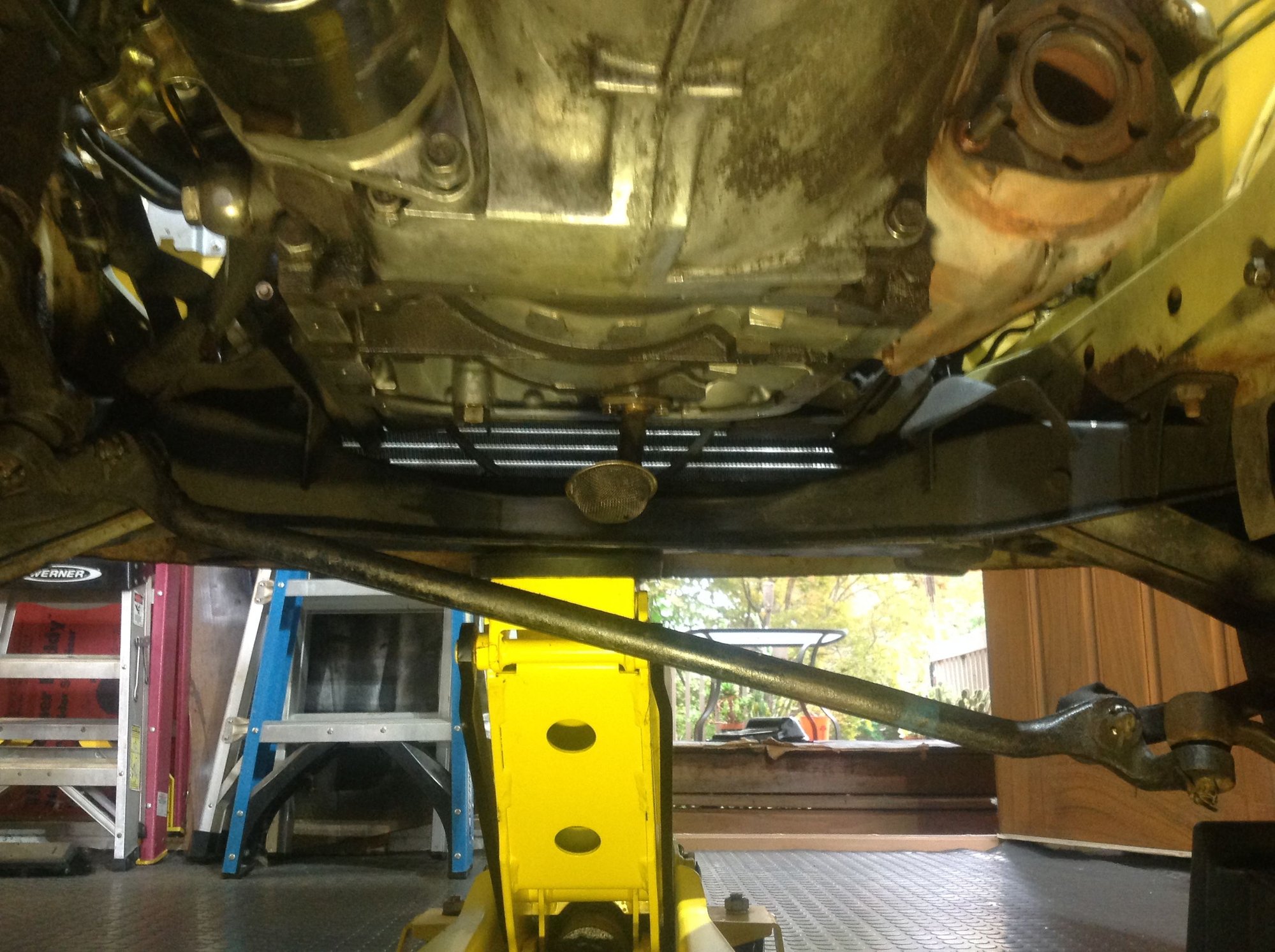

I've been working under a car for a few weeks now, cleaning and fixing various things to include a new oil pan gasket. I have the car up on ramps and can confirm that you can remove the pan by dropping the idler arm (2 nuts) then jacking the front end up 10 / 12 inches at the front crossmember, just using the suspension travel (the wheels are still on the ramps) to create enough clearance.
This provides enough room to get the pan past the center link. You still have to finagle (turn) the pan to get it past the oil pickup tube and screen. This doesn't give you any more access to the pan bolts like lifting the engine would. There are a couple at the front corners that are hard to get to. Had to use a wrench instead of a socket. Going to try a 1/4 drive wobble extension for the re-install.
This provides enough room to get the pan past the center link. You still have to finagle (turn) the pan to get it past the oil pickup tube and screen. This doesn't give you any more access to the pan bolts like lifting the engine would. There are a couple at the front corners that are hard to get to. Had to use a wrench instead of a socket. Going to try a 1/4 drive wobble extension for the re-install.
The following 3 users liked this post by Banzai:
The following users liked this post:
mazdaverx713b (07-12-22)
#24
Senior Newbie Member
The only regret I have from my rebuild was not having a stud kit with the re enforced brace installed.
My oil pan doesn't leak but it is always damp to the touch around the edges. Never had a drop of oil hit the driveway in the 2 years since the rebuild but that stud kit is just good stuff.
All my car needs now is new bushings all around ( the current ones are very hard but not crumbling yet ) new wheel bearings ( nothing wrong with mine but they are reaching their end ) and new tires. My trans also has two tiny leaks but both are O rings . Oh and the long oil cooler line needs replaced just to prevent any surprises.
My oil pan doesn't leak but it is always damp to the touch around the edges. Never had a drop of oil hit the driveway in the 2 years since the rebuild but that stud kit is just good stuff.
All my car needs now is new bushings all around ( the current ones are very hard but not crumbling yet ) new wheel bearings ( nothing wrong with mine but they are reaching their end ) and new tires. My trans also has two tiny leaks but both are O rings . Oh and the long oil cooler line needs replaced just to prevent any surprises.
