Oil Cooler Stainless Steel Braided Hose
08-26-02, 02:58 PM
#1
Banned. I got OWNED!!!
Thread Starter
Join Date: Mar 2002
Location: Las Vegas, NV
Posts: 4,236
Likes: 0
Received 0 Likes
on
0 Posts
Oil Cooler Stainless Steel Braided Hose
Anyone got any on a 80 RX-7? Can i get them made or do i need to order from RB? Anyone have any of these? Let me know which way i should go..
Thanks, Steve
Thanks, Steve
08-26-02, 03:24 PM
#2
Re: Oil Cooler Stainless Steel Braided Hose
Originally posted by gonzz
Anyone got any on a 80 RX-7? Can i get them made or do i need to order from RB? Anyone have any of these? Let me know which way i should go..
Thanks, Steve
Anyone got any on a 80 RX-7? Can i get them made or do i need to order from RB? Anyone have any of these? Let me know which way i should go..
Thanks, Steve
08-26-02, 03:53 PM
#3
08-26-02, 08:09 PM
#4
sold the FD...kept the FB
The mazdatrix ones are better. They simply bolt on.
The RB ones look cool but, you have to buy all the adapters to go from regular threads to -AN.
http://www.mazdatrix.com/b6.htm
The RB ones look cool but, you have to buy all the adapters to go from regular threads to -AN.
http://www.mazdatrix.com/b6.htm
Last edited by FD Racer; 08-26-02 at 08:12 PM.
08-26-02, 08:30 PM
#5
Originally posted by FD Racer
The mazdatrix ones are better. They simply bolt on.
The RB ones look cool but, you have to buy all the adapters to go from regular threads to -AN.
http://www.mazdatrix.com/b6.htm
The mazdatrix ones are better. They simply bolt on.
The RB ones look cool but, you have to buy all the adapters to go from regular threads to -AN.
http://www.mazdatrix.com/b6.htm
BTW, Mazdatrix offers it both ways.
Trending Topics
08-26-02, 10:30 PM
#8
standard combustion
Join Date: Dec 2001
Location: Twin Cities Minnesota
Posts: 1,374
Likes: 0
Received 0 Likes
on
0 Posts
You can make your own A/N lines. You need to buy the hose by 5ft increments if I remember, you won't use all of it, but you can reuse the end fittings in the future and put on new lines on and them and be on your way.
Anyway, I bought some line and the fittings I need to make a 2nd gen cooler work on my car. I did some creative aluminum wielding to the cooler fitting to make it a VERY good fit in the location I have it at, anotherwards, its perfect for any '83-85 12a only. Basically the lines coming out of the cooler have elbows wielded in and the top outlet is aimed towards the 1st gen battery and the line is routed in a curve over to the front cover. Some cutting to the radiator mounting is required to get it to not rub on it. The bottom line coming from the cooler has a elbow on it also that goes straight through under the '85 radiator to the rear of the engine.
After this I did a mock up with heater hose and then cut the lines to fit the fittings at correct length. PERFECT! I will have to put pics sometime. I did this in late march.
I forgot what fittings I used, but its pretty easy for a performance shop to find what you would need to make the lines. However the Oval ends used on a 2nd gen cooler may have to be ordered from Mazdatrix if you choose to use them.
Anyway, I bought some line and the fittings I need to make a 2nd gen cooler work on my car. I did some creative aluminum wielding to the cooler fitting to make it a VERY good fit in the location I have it at, anotherwards, its perfect for any '83-85 12a only. Basically the lines coming out of the cooler have elbows wielded in and the top outlet is aimed towards the 1st gen battery and the line is routed in a curve over to the front cover. Some cutting to the radiator mounting is required to get it to not rub on it. The bottom line coming from the cooler has a elbow on it also that goes straight through under the '85 radiator to the rear of the engine.
After this I did a mock up with heater hose and then cut the lines to fit the fittings at correct length. PERFECT! I will have to put pics sometime. I did this in late march.
I forgot what fittings I used, but its pretty easy for a performance shop to find what you would need to make the lines. However the Oval ends used on a 2nd gen cooler may have to be ordered from Mazdatrix if you choose to use them.
08-26-02, 10:50 PM
#9
Originally posted by Manntis
isn't that the new one?
isn't that the new one?
Originally posted by setzep

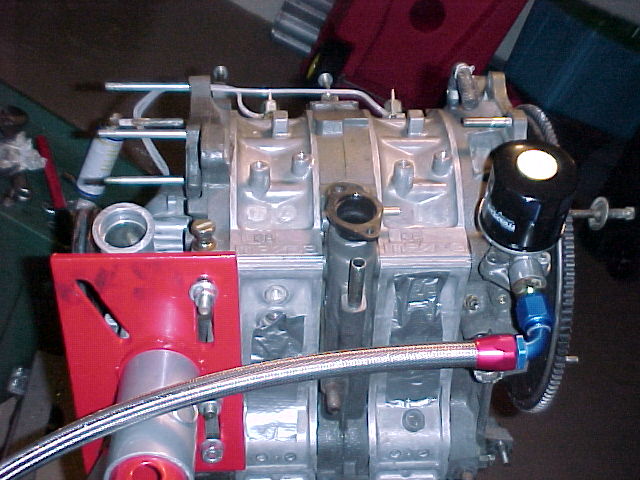

Wow, Alex you got that engine looking good! What did you use to clean it?
Wow, Alex you got that engine looking good! What did you use to clean it?

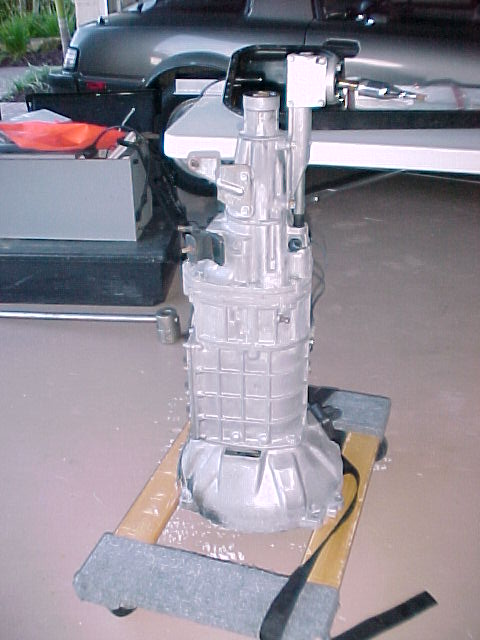

If you think that came out good, check out the Tranny!
That one had the help of a Pressure Cleaner.. It was downright NASTY when I first got it.
.
08-27-02, 12:51 AM
#12
Hey Steve,
www.sevensonly.com is the shop that built that tube frame 3rd gen and the Pro7 1st gen I showed you at LVMS. They just made me some -10 oil cooler lines, with ready to thread in -10 fittings for the oil cooler, and simple weld in brackets to mount my Rx-4 oil cooler for about $200. -10 is NOT cheap! The oil cooler fittings don't use an adaptor, they just thread right in real nice.
-brad-
www.sevensonly.com is the shop that built that tube frame 3rd gen and the Pro7 1st gen I showed you at LVMS. They just made me some -10 oil cooler lines, with ready to thread in -10 fittings for the oil cooler, and simple weld in brackets to mount my Rx-4 oil cooler for about $200. -10 is NOT cheap! The oil cooler fittings don't use an adaptor, they just thread right in real nice.
-brad-
