Hey there, I made one of the worst mistakes of my life awhile back and yanked off my carb linkage without taking pictures! I have struggled for a couple days now to put it back together right and simply can not get it back together properly. So, now I'm asking anyone on this forum to give me some pics....detailed pics...of their carburetor linkage. Thanks very much!



http://www.wankel.net/~krwright/cars/rx7/manuals.html



Kinda late, but if you still need it....



Rogue, you are god. trochoid, thanks for the response with that website but it was very undescriptive on the linkage and did not even have the linkage for my 82 FB. it has proven quite useful in many other instances however...especially in the wiring department.

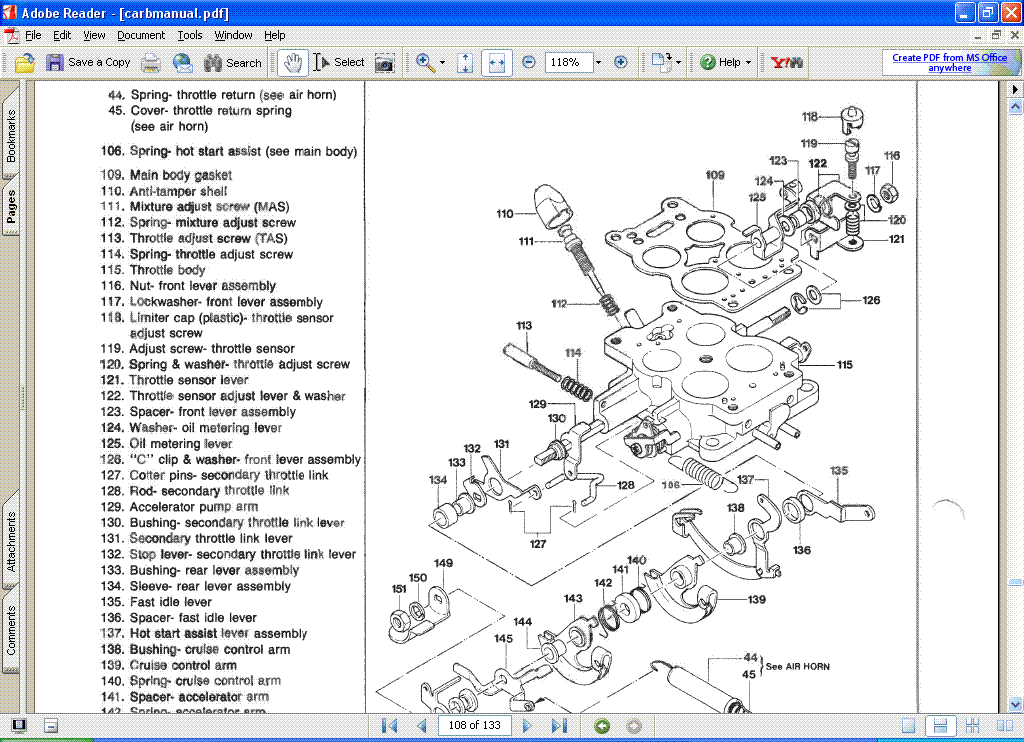

There is a carb manual in the link I posted. Been a while since i have looked at it, but it shouls show the linkage.
