Need help, Push Button light switch
05-04-06, 12:55 PM
#1
Senior Member
Thread Starter
Join Date: Jan 2006
Location: Cali Baby
Posts: 411
Likes: 0
Received 0 Likes
on
0 Posts
Need help, Push Button light switch

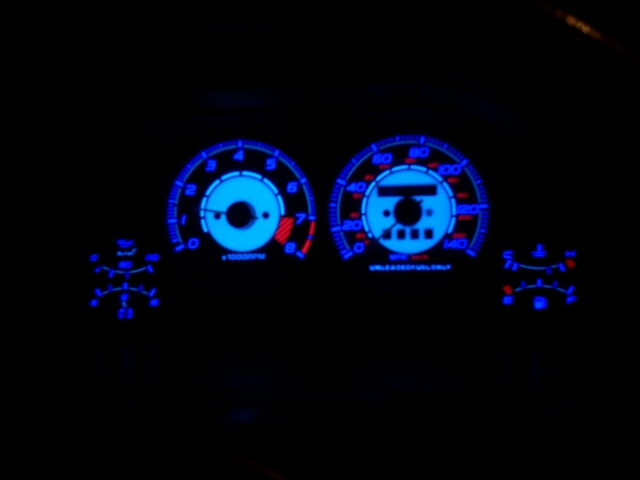

Ok, so i installed the blue indigo gauge lights... i know none of you guys like them, but to each his own.

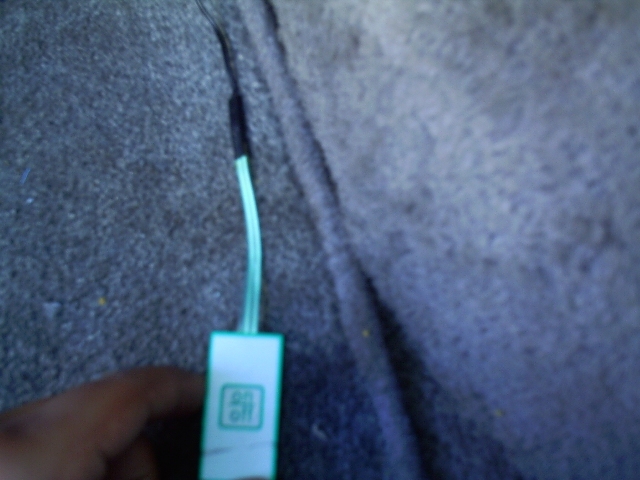

Anyways everything works but the on/off switch is a flimsy piece of material . I was wondering how i could set it up so that i can operate it with a button, preferrably a push button that i could mount where the cruise control thing goes.
My car does not have cruise control so their is an emtpy gap in its place.
I basically need to know how i get a push button to operate the system.
I was looking at maybe some buttons like this.... but i just need general idea of like flow of electricity . http://www.ittcannon.com/products/products.asp?pid=1020

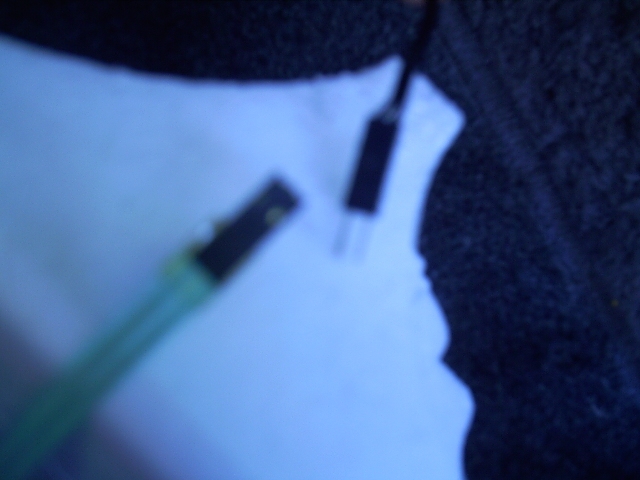

The wire running from the gauges to the on off switch has 2 prongs coming out. But all these buttons have like multiple openings? i know how to solder so connecting is no prob. Thanks!
Anyways everything works but the on/off switch is a flimsy piece of material . I was wondering how i could set it up so that i can operate it with a button, preferrably a push button that i could mount where the cruise control thing goes.
My car does not have cruise control so their is an emtpy gap in its place.
I basically need to know how i get a push button to operate the system.
I was looking at maybe some buttons like this.... but i just need general idea of like flow of electricity . http://www.ittcannon.com/products/products.asp?pid=1020
The wire running from the gauges to the on off switch has 2 prongs coming out. But all these buttons have like multiple openings? i know how to solder so connecting is no prob. Thanks!
05-04-06, 12:56 PM
#2
Senior Member
Thread Starter
Join Date: Jan 2006
Location: Cali Baby
Posts: 411
Likes: 0
Received 0 Likes
on
0 Posts
To make it easier lets say i want button #2. It has 2 prongs coming out but so does the wire i would need to connect it to? do i just solder with extra wire?
05-04-06, 01:02 PM
#3
Now with more 1st Gen!
Join Date: Dec 2001
Location: Ottawa
Posts: 1,534
Likes: 0
Received 0 Likes
on
0 Posts
Uhmm... maybe this is more complicated than i think it is, but take off the switch that is there, and solder in the new switch?
...if you are confused by the back of the switch, bust out a multimeter, and find out which prongs give you continuity....
...if you are confused by the back of the switch, bust out a multimeter, and find out which prongs give you continuity....
Trending Topics
05-04-06, 02:31 PM
#8
Senior Member
Thread Starter
Join Date: Jan 2006
Location: Cali Baby
Posts: 411
Likes: 0
Received 0 Likes
on
0 Posts

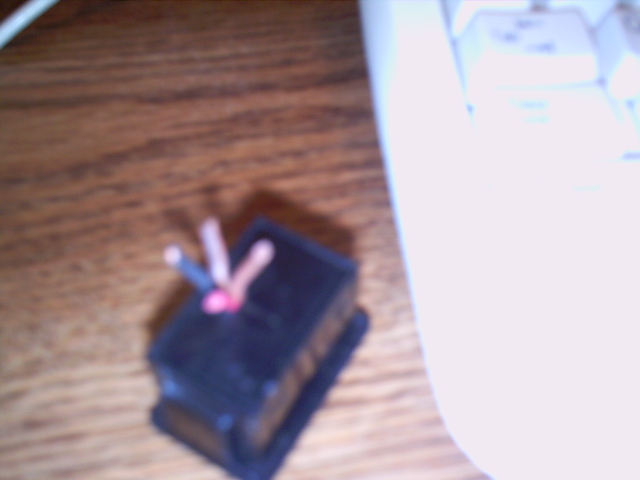

Cruise control and other buttons i have

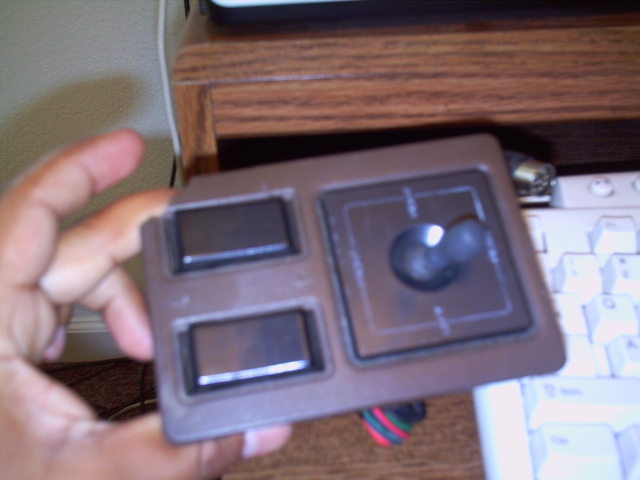

I pulled a cruise control switch off an 85 i think. Also pulled 3 switches that were located just in front of the middle arm rest/ compartment. I think 1 i a speaker fader and the other 2 were like for power windows or somthing.
Problem is the cruise control has 4 wires coming out and each switch on the other cluster has 4 wires coming out?
Do i just randomly check each connection, wont this short out my gauges if im wrong?
In case it matters, the cruise ocntorl has 1 black 1 red and 2 brown wires.
The cluster has 2 blacks 1 red 1 green each.
Problem is the cruise control has 4 wires coming out and each switch on the other cluster has 4 wires coming out?
Do i just randomly check each connection, wont this short out my gauges if im wrong?
In case it matters, the cruise ocntorl has 1 black 1 red and 2 brown wires.
The cluster has 2 blacks 1 red 1 green each.
05-04-06, 02:35 PM
#10
Now with more 1st Gen!
Join Date: Dec 2001
Location: Ottawa
Posts: 1,534
Likes: 0
Received 0 Likes
on
0 Posts
READ!
Bust out a multimeter, with the switch in the ON position, (atleast) a pair of terminals will have continuity, when the switch is off, those terminals will NOT have continuity... solder to those...
...bloody hell...
Bust out a multimeter, with the switch in the ON position, (atleast) a pair of terminals will have continuity, when the switch is off, those terminals will NOT have continuity... solder to those...
...bloody hell...
Last edited by autocrash; 05-04-06 at 02:36 PM. Reason: ...highlighting the check CONTINUITY part...
05-04-06, 02:39 PM
#11
Now with more 1st Gen!
Join Date: Dec 2001
Location: Ottawa
Posts: 1,534
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by resjsu
Sorry multimeter checks current? and how will i differentiate between light and cruise control?
MULTImeter checks more than one thing.... use it to check continuity/resistance (~0 resistance = Continuity... its the omega on the dial in most cases... )
05-04-06, 04:30 PM
#13
It might be even simpler to sit down and read the wiring diagram in the online FSM. That's one reason I don't start many threads, I like to read and research my problems and figure them out myself. Then I get get to be a smart *** and answer everybody elses questions.
