Need to get the low down on turbos and the beehive
I need to know where to tap the beehive for my turbo lines. No bull **** here ppl, i dont want to hear about how i should replace the beehive, i dont care what you say hahaa. Anyways.
Where do i tap?
Is it a hardline?
What kind of T-Fitting should i use?
What kind of hose should i use?
Clamps?
Return line from the turbo?
Where do i tap?
Is it a hardline?
What kind of T-Fitting should i use?
What kind of hose should i use?
Clamps?
Return line from the turbo?
#4
FB+FC=F-ME
True,......
And.............and,...........and...............a nd,although I seem to be the only one with a problem about this, and no one else seems to care when I mention it.....Im still gonna say it for your info....
If you tap your turbo's oil supply from the oil pressure sender location,you will be sending UNFILTERED oil to the turbo bearings.Last I checked,turbo bearings are close tolerance,and I wouldnt trust the stainer in the oilpan to get enough of the crud out.Thats why TII's tap off the front iron for their turbo oil.
And.............and,...........and...............a nd,although I seem to be the only one with a problem about this, and no one else seems to care when I mention it.....Im still gonna say it for your info....
If you tap your turbo's oil supply from the oil pressure sender location,you will be sending UNFILTERED oil to the turbo bearings.Last I checked,turbo bearings are close tolerance,and I wouldnt trust the stainer in the oilpan to get enough of the crud out.Thats why TII's tap off the front iron for their turbo oil.
#5
Rotary Enthusiast
Originally Posted by steve84GS TII
If you tap your turbo's oil supply from the oil pressure sender location,you will be sending UNFILTERED oil to the turbo bearings.Last I checked,turbo bearings are close tolerance,and I wouldnt trust the stainer in the oilpan to get enough of the crud out.Thats why TII's tap off the front iron for their turbo oil.
As an alternative, many have used the oil filter adapter block as a source of oil for the turbo. If going that route, be sure to check that the source used is post-filter. I found with my adapter block (Racing Beat IIRC), the available ports were on the pre-filter side, indended for oil pressure gauge purposes, not as an turbo oil source. Drill and tap a new hole on the post-filter side if one doesn't already exist.

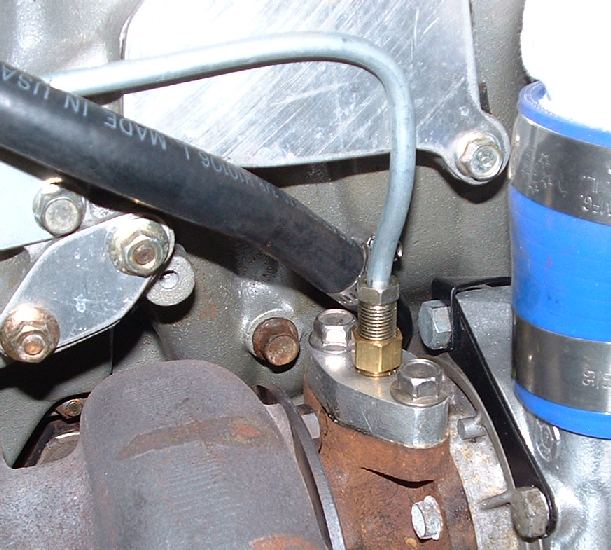

EDIT: To address some of your other questions, I used 1/8" NPT to brake line adapters, and ran a 1/4" steel hard-line from the adapter block down to the turbo, clamped in a couple spots to prevent vibration problems. At the turbo, buy or fab up an aluminum adapter plate that converts to two-bolt flange to 1/8" NPT. Total cost is about $10 at your friendly NAPA store. No bling factor here, but way above AN fittings and braided lines in the cost/performance comparison.
EDIT2: And for return line, tap the front cover 1/2" NPT, and use a 1/2" NPT to 3/4" hose adapter. The front cover wall thickness is pretty thin, so use some sealant, and don't over tighten the adapter. To connect to an S4 TII return line, cut the flange off the return line, and slip a piece of 3/4" silicone hose over top. Clamp it to the return line and the hose adapter.
Last edited by renns; 12-21-06 at 10:15 PM.
#6
Senior Member
Thread Starter
Join Date: Mar 2006
Location: Canada
Posts: 634
Likes: 0
Received 0 Likes
on
0 Posts
Links to the adapter?
As far as i remember, the last time i posted about turbos, i had three ppl tell me that you can tap the oil line where i said. Anyways, source for a oil cooler? would the one work on the bottom of my radiator where my auto trans cooler used to be?
As far as i remember, the last time i posted about turbos, i had three ppl tell me that you can tap the oil line where i said. Anyways, source for a oil cooler? would the one work on the bottom of my radiator where my auto trans cooler used to be?
#7
Rotary Enthusiast
No links. It's a chunk of aluminum with two thru-holes and a 1/8NPT tapped hole in the middle. In the time it takes to find a link you could have made one!
Trending Topics
#9
RTFFAQ
Join Date: Jun 2003
Location: Olathe, KS USA
Posts: 1,049
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by chedda_j
I ment for the oil filter adapter, so that i can get rid of the beehive
#10
Senior Member
Thread Starter
Join Date: Mar 2006
Location: Canada
Posts: 634
Likes: 0
Received 0 Likes
on
0 Posts
I thought racing beat sold one....
Anyways, btw, would a 12x 12x 2 oil cooler be sufficient for my turbo and my car?
I do have new one sitting on my old GMC
Anyways, btw, would a 12x 12x 2 oil cooler be sufficient for my turbo and my car?
I do have new one sitting on my old GMC
#12
Rotary Enthusiast
Here's the Racing Beat Oil Pressure and Temperature Adapter.
http://www.racingbeat.com/resultset....rtNumber=11802
http://www.racingbeat.com/resultset....rtNumber=11802
