Need advice on installing a holley
#1
Junior Member
Thread Starter
Join Date: Feb 2006
Location: Hawaii, Oahu
Posts: 11
Likes: 0
Received 0 Likes
on
0 Posts
Need advice on installing a holley
I just recieved my holley 4150hp and have two questions. First off this holley doesnt come with the high speed air bleeds, does it not need them or will I have to buy some?
Also how will I be hooking up the throttle cable? Im not sure where I can get one to fit the mazda sytle cable. Do I have to use the old nikki and fabricate one from it? Or if someone knows a part number or someone that sells a kit i'd appreciate the info. My car's at the body shop getting a new pant job atm so im not able to study the nikki.
Thanks for the help anyone
Also how will I be hooking up the throttle cable? Im not sure where I can get one to fit the mazda sytle cable. Do I have to use the old nikki and fabricate one from it? Or if someone knows a part number or someone that sells a kit i'd appreciate the info. My car's at the body shop getting a new pant job atm so im not able to study the nikki.
Thanks for the help anyone
#3
Junior Member
Thread Starter
Join Date: Feb 2006
Location: Hawaii, Oahu
Posts: 11
Likes: 0
Received 0 Likes
on
0 Posts
It's a standard holley, from summit, not racingbeat. Also, it's going into a 1980 RX-7 (not sure how much the throttle linkage differs year to year)
#4
Go Hawks!
iTrader: (1)
Join Date: May 2004
Location: Cedar Rapids, Iowa
Posts: 1,933
Likes: 0
Received 0 Likes
on
0 Posts
I have a Holley 4150 (650 double pumper) sitting on top of my blower. I bought a throttle cable mounting plate that bolts on under the carb, then made an adapter to connect the cable to the linkage...I'll try to find some pictures later.
Rich
Rich
#5
Go Hawks!
iTrader: (1)
Join Date: May 2004
Location: Cedar Rapids, Iowa
Posts: 1,933
Likes: 0
Received 0 Likes
on
0 Posts

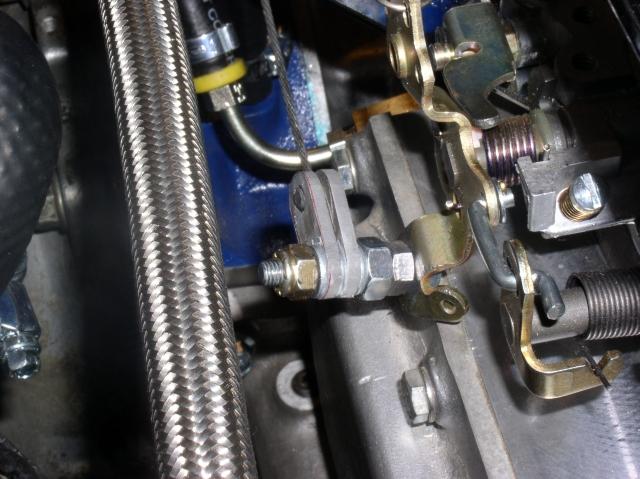

OK...here's a picture of how I connected the cable to the carb linkage:
I made two links out of think aluminum, with holes at each end, then sandwiched the end of the cable between the holes in one end of them, and ran a bolt throught the holes at the other end and through a hole in the carb linkage. I used a nyloc nut on the end of the bolt, so that it could be left a little loose to allow them to rotate. Make sense? I'll look for a good picture of the bracket later...I think that'll have to wait until tonight after I get home.
Rich
I made two links out of think aluminum, with holes at each end, then sandwiched the end of the cable between the holes in one end of them, and ran a bolt throught the holes at the other end and through a hole in the carb linkage. I used a nyloc nut on the end of the bolt, so that it could be left a little loose to allow them to rotate. Make sense? I'll look for a good picture of the bracket later...I think that'll have to wait until tonight after I get home.
Rich
#7
Junior Member
Thread Starter
Join Date: Feb 2006
Location: Hawaii, Oahu
Posts: 11
Likes: 0
Received 0 Likes
on
0 Posts
Great picture! that was pretty much what I was looking for, Im pretty sure I can fabricate that pretty easily. I saw the bracket on Racing Beat, I may purchase that, but i'll still need to make what he made in that picture. Thanks for the info there! I'll be using mine on a blower as well
Im still a little curious about the 'high speed air bleeds'. Let me go take a quick picture of that...
Im still a little curious about the 'high speed air bleeds'. Let me go take a quick picture of that...
Last edited by ender008; 02-09-06 at 12:04 PM.
Trending Topics
#9
Junior Member
Thread Starter
Join Date: Feb 2006
Location: Hawaii, Oahu
Posts: 11
Likes: 0
Received 0 Likes
on
0 Posts

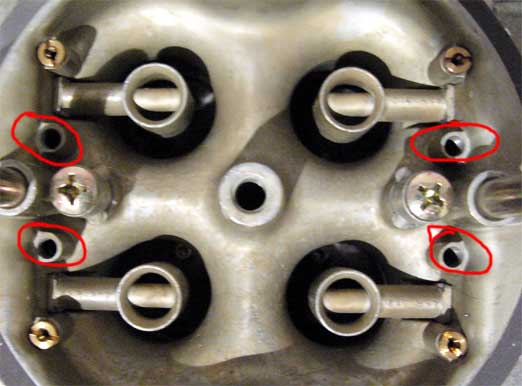

Here is the second half of my two part question:
Should there be something installed here?? I belive it's the location for the high speed air bleeds, again it's a holley 4150 HP carb.
Should there be something installed here?? I belive it's the location for the high speed air bleeds, again it's a holley 4150 HP carb.
Last edited by ender008; 02-09-06 at 12:27 PM.
#10
Old Fart Young at Heart
iTrader: (6)
Originally Posted by 64mgb
OK...here's a picture of how I connected the cable to the carb linkage:
I made two links out of think aluminum, with holes at each end, then sandwiched the end of the cable between the holes in one end of them, and ran a bolt throught the holes at the other end and through a hole in the carb linkage. I used a nyloc nut on the end of the bolt, so that it could be left a little loose to allow them to rotate. Make sense? I'll look for a good picture of the bracket later...I think that'll have to wait until tonight after I get home.
Rich
I made two links out of think aluminum, with holes at each end, then sandwiched the end of the cable between the holes in one end of them, and ran a bolt throught the holes at the other end and through a hole in the carb linkage. I used a nyloc nut on the end of the bolt, so that it could be left a little loose to allow them to rotate. Make sense? I'll look for a good picture of the bracket later...I think that'll have to wait until tonight after I get home.
Rich
#11
Go Hawks!
iTrader: (1)
Join Date: May 2004
Location: Cedar Rapids, Iowa
Posts: 1,933
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by trochoid
Rich, nice work, now I know how to fix the Holly linkage problem I've had. Thanks. What fuel hose did you use and where did you get it?
http://store.summitracing.com/largei...?part=EDL-8101
Rich
#12
Go Hawks!
iTrader: (1)
Join Date: May 2004
Location: Cedar Rapids, Iowa
Posts: 1,933
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by trochoid
Rich, nice work, now I know how to fix the Holly linkage problem I've had. Thanks. What fuel hose did you use and where did you get it?
http://store.summitracing.com/largeimage.asp?part=EDL-8101
Rich
#13
Go Hawks!
iTrader: (1)
Join Date: May 2004
Location: Cedar Rapids, Iowa
Posts: 1,933
Likes: 0
Received 0 Likes
on
0 Posts

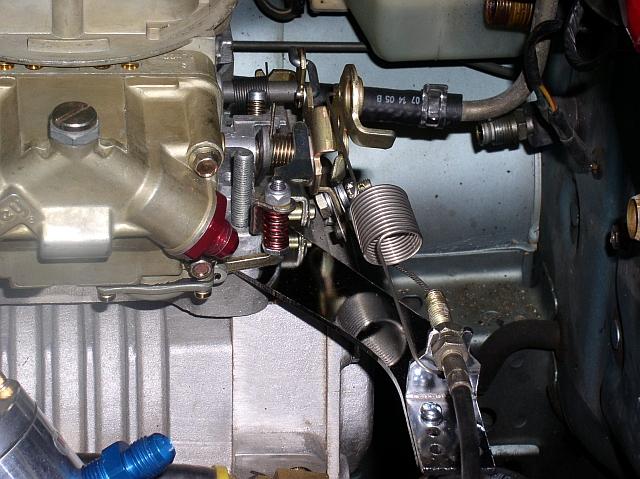

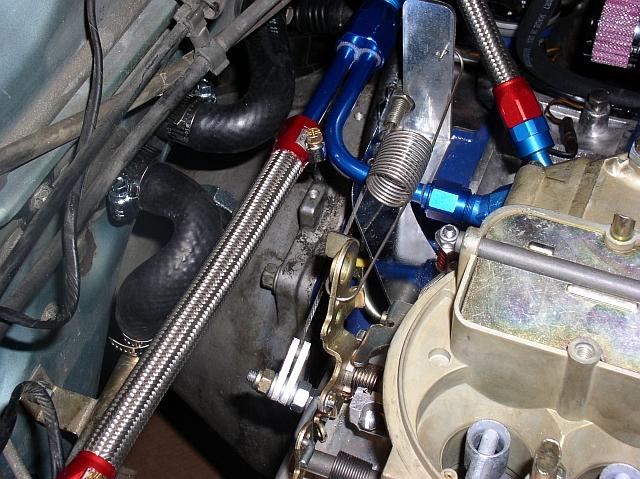

Oops...sorry about the double-post above. Anyway, here are some more pictures of my setup....one more of the links connecting the cable end to the carb linkage, and a couple of the bracket. I had to build an extension onto the bracket to provide a mounting point for the return spring. The bracket mounts under the carb and has an arm that comes out with a cable mount on it. I got mine from Camden, but this is the same one:
http://static.summitracing.com/globa.../sum-g1419.jpg
Summit part number SUM-G1419
Let me know if there is anything in particular you want to see.
Rich
http://static.summitracing.com/globa.../sum-g1419.jpg
Summit part number SUM-G1419
Let me know if there is anything in particular you want to see.
Rich
