my rats nest vac line diagram
#1
Rotary traitor
Thread Starter
Join Date: Dec 2007
Location: Brookings SD
Posts: 291
Likes: 0
Received 0 Likes
on
0 Posts
#3
Rotary traitor
Thread Starter
Join Date: Dec 2007
Location: Brookings SD
Posts: 291
Likes: 0
Received 0 Likes
on
0 Posts

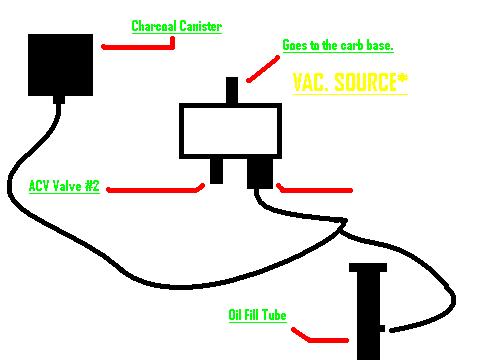

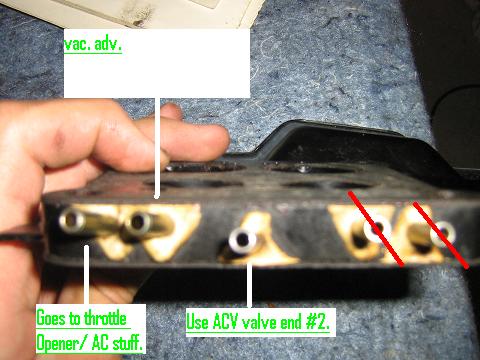

ok, can yo shed some light on what im looking for as far as the fuel tank vent? also i thought the top of the black purge valve went to hole 4, the bottom small one on the valve went to 3, and the big one went out, T'd, then one side went to the oil tube and the other to the carb vent. i think i have the top of the white solinoid pluged into the oil vent hose on the firewall, where is it supposed to plug to, and then where does the oil vent hose go?
could someone please just draw me a paint diagram, it would be worth archiving.
could someone please just draw me a paint diagram, it would be worth archiving.
#4
Old Fart Young at Heart
iTrader: (6)
Ok, I thought you were doing the rats nest removal. I didn't realise you still had the solenoids and didn't understand that the large metal tube was the vent line from the fuel tank, you shuld be more specific. What did you do with the charcoal canister?
From where did you pull the information for what you've done so far?
From where did you pull the information for what you've done so far?
#5
Currently Rotarded
Join Date: Jan 2007
Location: Las Vegas, NV
Posts: 203
Likes: 0
Received 0 Likes
on
0 Posts
That's how mine is setup. Minus the A/C solenoid and i took off the throttle opener as well. I didn't run a T though to the bottom of the charcoal canister. I believe that's correct.
Trending Topics
#8
Rotary traitor
Thread Starter
Join Date: Dec 2007
Location: Brookings SD
Posts: 291
Likes: 0
Received 0 Likes
on
0 Posts
i just wanted to check since i have the "won't idle below 1k" problem and i just wanted to make sure i had it all hooked up right before i started tearing everything apart for a vac leak. i used that rx7carls write up to the t.
#9
Have RX-7, will restore
iTrader: (91)
slate, check out ray's rats nest. i followed his advice and love the setup!
https://www.rx7club.com/1st-generation-specific-1979-1985-18/my-new-rats-nest-662907/
https://www.rx7club.com/1st-generation-specific-1979-1985-18/my-new-rats-nest-662907/
#10
Rotary traitor
Thread Starter
Join Date: Dec 2007
Location: Brookings SD
Posts: 291
Likes: 0
Received 0 Likes
on
0 Posts
where does the vac line from the top of the white solinoid plug into and could you give me an idea of what it looks like a picture would also be extemely help full.
#12
Currently Rotarded
Join Date: Jan 2007
Location: Las Vegas, NV
Posts: 203
Likes: 0
Received 0 Likes
on
0 Posts
And also are you running AC even? If you're not i suggest just scrapping the throttle opener and blocking off the hole on the carb base for the sake of simplicity.
IMO anyways. =]
IMO anyways. =]
#13
Rotary traitor
Thread Starter
Join Date: Dec 2007
Location: Brookings SD
Posts: 291
Likes: 0
Received 0 Likes
on
0 Posts
ok, if i could just get the anwsers where the one off the top of the solinoid goes to and where the two T'd apart hoses go to, that would be great.
#15
Rotary traitor
Thread Starter
Join Date: Dec 2007
Location: Brookings SD
Posts: 291
Likes: 0
Received 0 Likes
on
0 Posts
Ok. car runs perfect. just wont idle below 1k. all the powers there while taking it through the gears, but i think it has something to do with me not knowing where the throttle opener is, or if i have anything plugged into it.
#16
Currently Rotarded
Join Date: Jan 2007
Location: Las Vegas, NV
Posts: 203
Likes: 0
Received 0 Likes
on
0 Posts
I believe the oother thread you posted on the throttle opener has the throttle opener pointed out for you in Stevan's post.
It's not neccasary if you don't have AC btw. No AC: just plug the first vacuum hole from the left if your looking from the driver's side.
It's not neccasary if you don't have AC btw. No AC: just plug the first vacuum hole from the left if your looking from the driver's side.
Thread
Thread Starter
Forum
Replies
Last Post
Nosferatu
2nd Generation Specific (1986-1992)
7
09-05-15 02:13 PM
