Mikuni 44PHH Jettings "straight from the horses mouth"
Mikuni 44PHH Jettings "straight from the horses mouth"
I wasn't sure if this was already out there but I'm certain this is useful information:

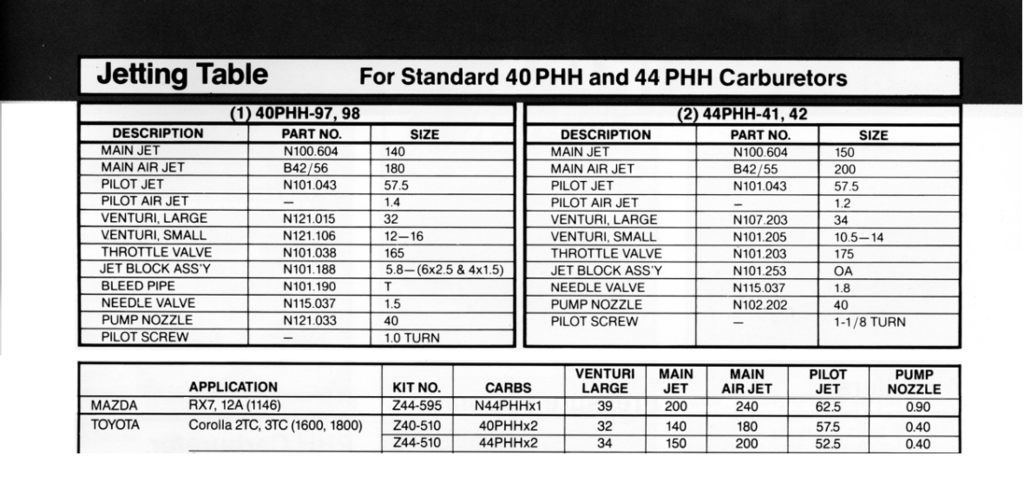

Data I've had for a bit from an old Mikuni catalog. This is for a stock 12A mind you.
I've included the jettings for Toyota's 2/3TC motor to illustrate the stark difference of air/fuel consumption between just a stock 12A rotary and say a 1.6/1.8 4 cyl, reciprocating motor using the same carburetor.
No, Mikuni does not include a jetting kit for the 12A employing their 40PHH carb. If you're wondering why then you'll have to read between the lines for the answer
.
It all the more shows how the rotary is "taxed" incorrectly when classifying it's displacement with traditional reciprocating plants.
Enjoy!
Data I've had for a bit from an old Mikuni catalog. This is for a stock 12A mind you.
I've included the jettings for Toyota's 2/3TC motor to illustrate the stark difference of air/fuel consumption between just a stock 12A rotary and say a 1.6/1.8 4 cyl, reciprocating motor using the same carburetor.
No, Mikuni does not include a jetting kit for the 12A employing their 40PHH carb. If you're wondering why then you'll have to read between the lines for the answer
.It all the more shows how the rotary is "taxed" incorrectly when classifying it's displacement with traditional reciprocating plants.
Enjoy!
