Dan_s_young

iTrader: (1)

Well im running out of ideas to make my engine bay look as clean as possible, I have the emissions removed. So I don't have any of the rats nest, I have no a/c and no air pump. I installed a second generation fuse box, and redid the battery cables, one question I have is: where is a different place I can hook an Alternative Battery ground to? I had to wired to the alternator bracket but It looked too ugly crossing with the spark plug wires...

Anyone have other tips to make my engine bay look the best as possible?

IanS

iTrader: (4)

I am working on removing all the excess wires from the engine wiring harness. This way you wont have the rats nest plugs and other misc carb plugs no longer used hanging there.

Elysian

i put a ground on the motor mount on the left hand side... but thats because i lost the stock ground strap lol, so it was easier to do that...

Midwest 7's

iTrader: (4)

electric fan? with shorter bolts you can take that shitty piece of aluminum that holds the fan on the water pump off. remove fan shroud in the process.

RUBY7

Yeah, get rid of that ugly old clutch fan and shroud. Cleans up the bay no end.

Regards Sue

Dan_s_young

iTrader: (1)

^^^ ya that looks nice, how much did you pay for the rad? And what about the fan? What brand is it? Are you happy with it?

rxseven07

also interested in the radiator... ill post my clean engine bay tomorrw

RUBY7

More than happy with it. Think the radiator was about $800 AUD custom, the fan is 16inch Davis Craig, got it on the cheap from a friend but think its about $300-$350.

Wait till you see the next step in the process Injection Perfection throttle bodies, now that should really tidy up that bay.

Midwest 7's

iTrader: (4)

i got a real nice 12in electric fan from the auto swap meet for $10 and it works great with the stock radiator. my **** is too cool, i never even turn it on except when i am waiting in the drive through.

Dan_s_young

iTrader: (1)

wow so that radiator is worth $750 canadian, (i used a currency converter) how did you justify spending so much on a rad?

RUBY7

I didnt, got a bit of a deal, shhh! but thats how much custom radiators are here. More depending who makes it for you.
Re-core a stock one is about $400AUD.
You can get thermo fans at the local Auto mart for $50 bucks, but Davis Craig are considered to be Quality,reliable and heavy duty,

Dan_s_young

iTrader: (1)

well that thing must not heat up at all, what are the operating temperatures like?

RUBY7

Not sure what the actual temp is but on the little guage it sits at about 1/3 of the way most of the time, maybe a little higher sometimes. the fan comes on only in excessive traffic delays or hot hot days.

Iam tickled pink with the set up. Its only has two cores but they are whoppers.

drunkclever

I got 2 small elictric fans for the junk yard. they came off a 2004 hundai. They are very clean, they cost me only 20 buks. All I have to do now is strap them in and wire them up. But before I do that I have to remove that clutch fan.

Hades12

I take out the Cold Start bottle, and the Washer fluild bottle.

I removed all the wiring from the emissions stuff, Back to the big black connecter.


I also want to move to Direct fire ignition and just put 4 coils on top of the motor, To clean up that wiring.

And maybe some one will make an Alt relocation kit to move the Alt to the AC position. I think that makes it look really nice.

7aull

iTrader: (2)

Pulling out the extra hardware or adding some schwanky new part is pointless if the basic engine is a mess! My engine is D-E-A-D stock, but here's what I did to bring it back to life:
-I pulled the rad and oil cooler and had them cleaned and re-painted (powdercoat for the oil cooler, which also must be cleaned sonically - you can't chem-dunk it!!)
-mazdatrix stainless steel oil cooler lines (Ok so I'm not quite stock )
-pulled the battery tray shelf, POR-15 'd the rusty are under there and powdercoated the tray
-dissassembled the headlight motors and ye-e-e-es I powder coated those.
-like wise the main body of the water pump (can't powder coat the impeller portion while assembled cause the oven will cook the seals)
-POR-15'd the w/p impeller section
-POR-15'd the steering box (cleaned it first of course - and plenty of masking!!)
-removed all the hardware brackets and powder coated all them (obviously this is all more cost effective if done in one shot)
-with all the hardware pulled off the sides of the engine compartment I steam cleaned then, with a toothbrush (swear-to-gawd) I used Simple Green and a LOT of elbow grease to get into every nook and cranny, including around the engine block. Real stubborn stuff (not painted surfaces, I would use good old SOS pads.
-then I went over the now-clean paint with heavy duty paint polish to bring out the paint (red)
-followed by 2 coats of carnuba wax- paint looks like its a re-spray!
-then put the whole damn thing back together again and clean the motor off (light hose and a towel-down does it) every few weeks.

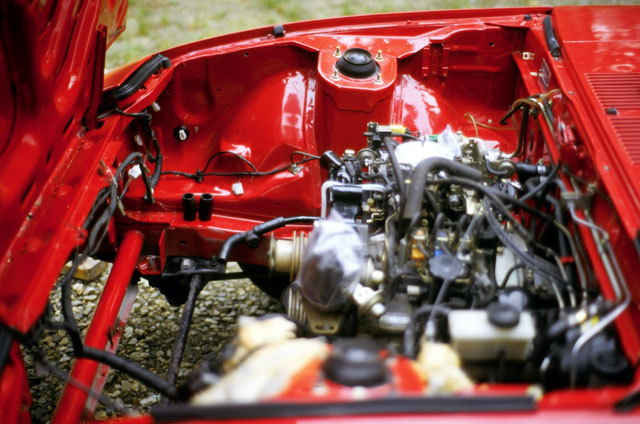

Attached pic show's her buck-naked in the middle of my cleaning frenzy, but looky at the glow on the paint in there! Not bad for a 25 yr old paint job
Oh - it took me about 2 weeks to get this done (in spare time, I should add)
Stu Aull
80GS
Alaska

virfighter

Wow Stu, that sounds like a hell of a job but well worth it. Any pics of the final job? What color did you go with for the power coating of everything?

Zach

ftlaud

Damn Stu!! You did a great job, that looks great!!!

Siraniko

iTrader: (13)

ftlaud

What kind of set up is this ^^ is that a 12a is looks much differant then mine, ( not just that is super clean)

rxseven07

^ thats because its not a 12a, its a 13b 6 port if im not mistaken... i got a question, how come you only have 3 spark plug wires hookedup?

DAVID GRIMES

Dlidfis

Paradox

iTrader: (1)

nice engine bays *drools*

Siraniko

iTrader: (13)

its a GSL-SE block with 12-A plates -= 4port 13-B big streetport. its direct fire using MSD 6A which is mounted in front of the radiator support and with fiero fan

rxseven07

^ wow ive never heard of that... maybe i should search more often, if you could just tell me here, but what does that improve? start up? no "misses"? just curious
