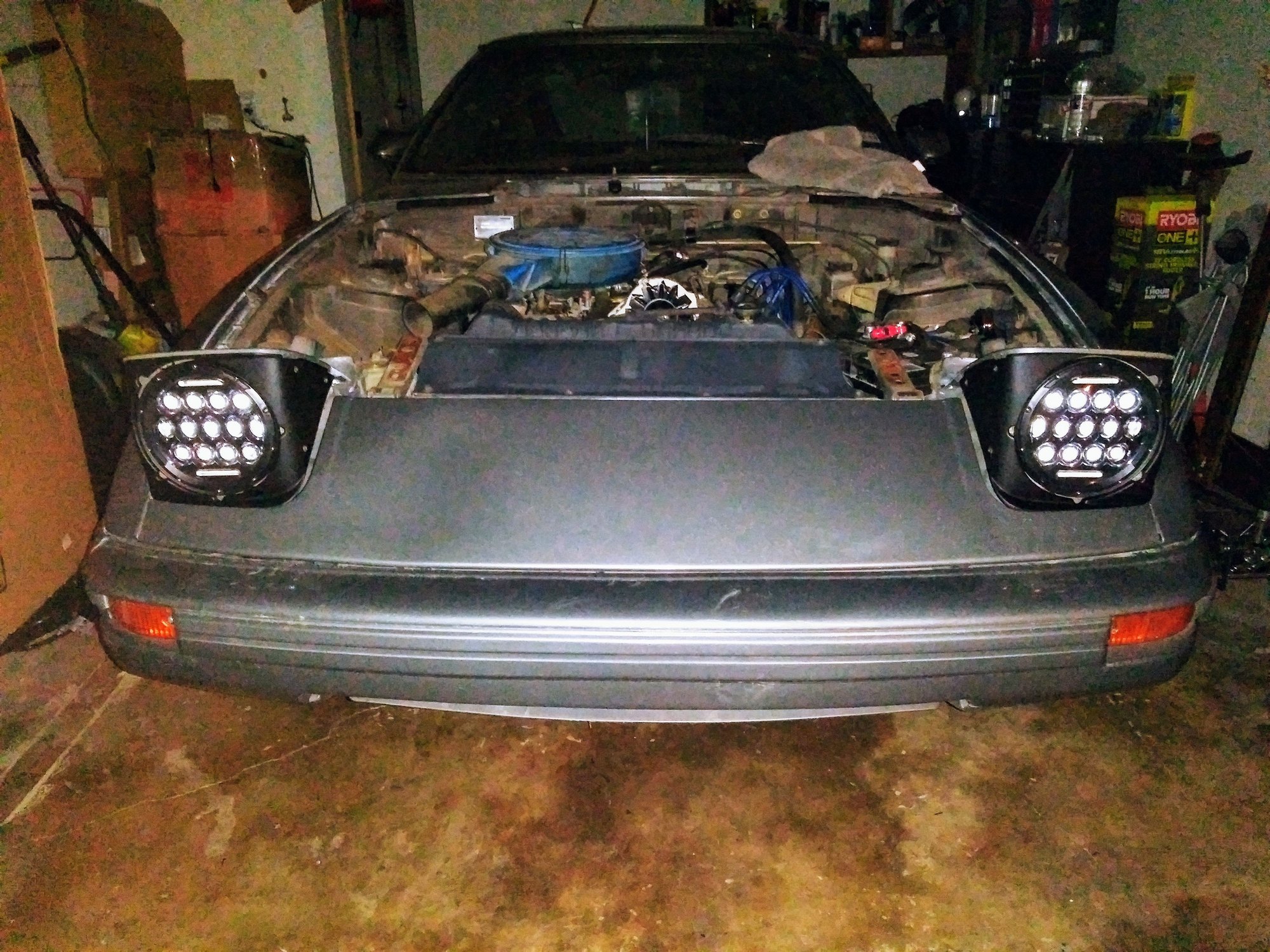

The connection is an H4. As long as you have the conversion pigtail it will work. Word of advice, don't do the conversion without doing a Putco headlight wiring harness conversion also. It switches the system to use relays and not run the high current through the ignition switch.
I have not put the electrical system on a test load yet with everything on but mathematically the amp draw should be 12.5 amps per headlight. That is with everything on, including the DRL.
I am assuming that's with all LEDs lit,sum total of LEDs that represent lo beam and hi beam. 25 amp total of both lamps..the oe or halogen capsule sealed beam-both on high beam pull a little over half that. Would need to put those LEDs on a relayed harness as they draw a fair amount more current than oe setup.
12.5 amps! or watts? seems high. A 55w halogen at 12v draws theoretical maybe 4 amps . Those things draw 3 times that and given that leds are about 3x more efficient than halogen they must be absolutely nuclear bright. Do you have a link to where you bought them?
Last edited by WANKfactor; Nov 4, 2019 at 02:45 PM.
