I guess my thread got deleted, but here are the pics:

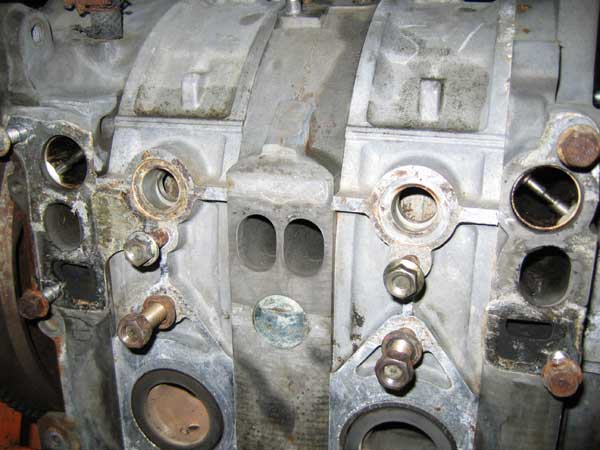

1) The intake ports. Hard to tell without another plate next to it, but they're smaller (here, anyway).

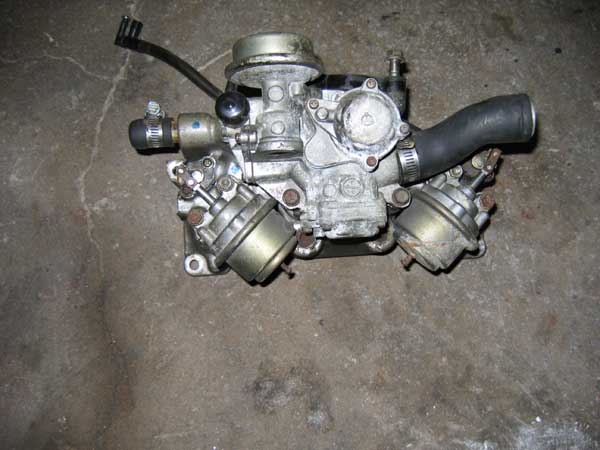

2) The intake itself. The two blobs on either side go into the port with the little dealy across it (those are technical terms, BTW).

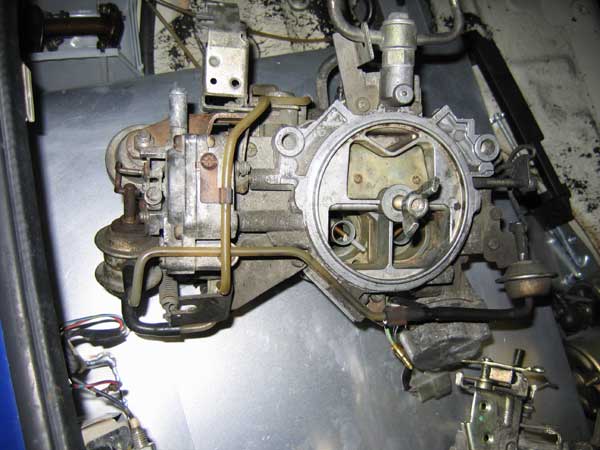

3) The carb.

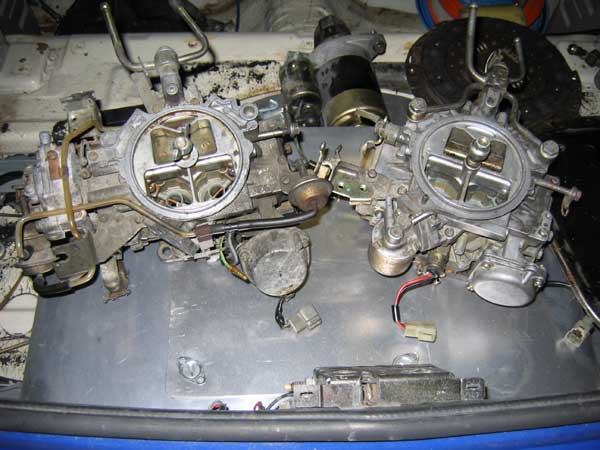

4) JDM vs. US-spec (slightly stripped).

I'm awesome.


EDIT: HAHA! My reputation points are almost as awesome as I.



Now for pics of the internals of this bitch...

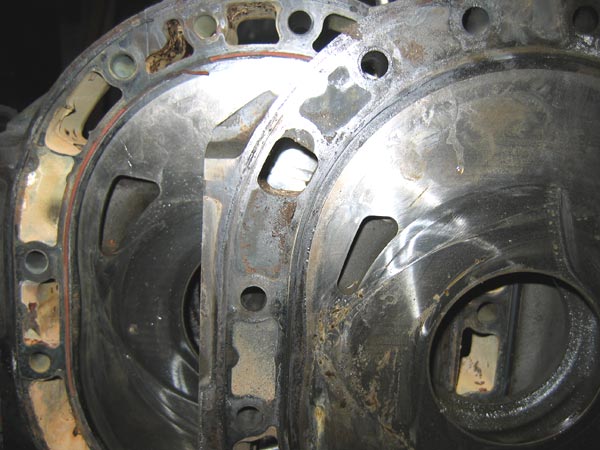

1) The ports in the center plate. USDM left, JDM right. Look at the difference in water passages !

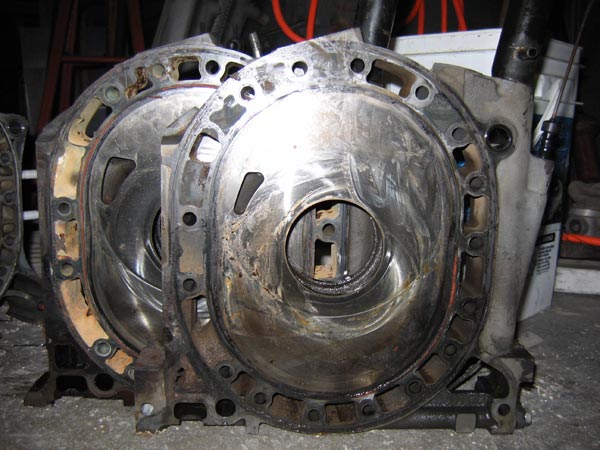

2) The two center's.

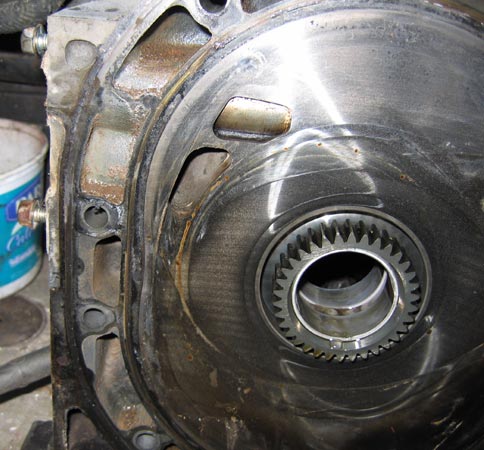

3) The rear plate ports. Same setup on the front plate, too.



Anybody know what the output specs are USDM v. JDM? The port setup is pretty funky, as is the intake/carb setup.

I love my job.



USDM is rated at 105bhp ... jdm if my memory serves me right is 115~120bhp
