Jackpot crazy FB suspension!
#1
Rotary Freak
Thread Starter
Jackpot crazy FB suspension!

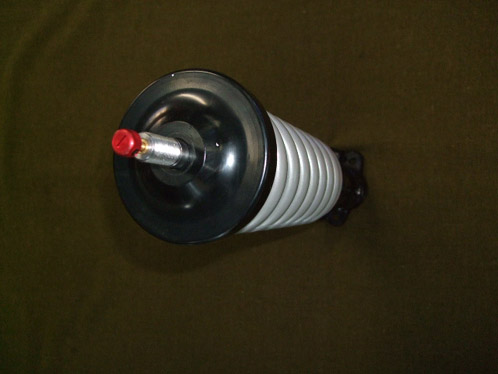

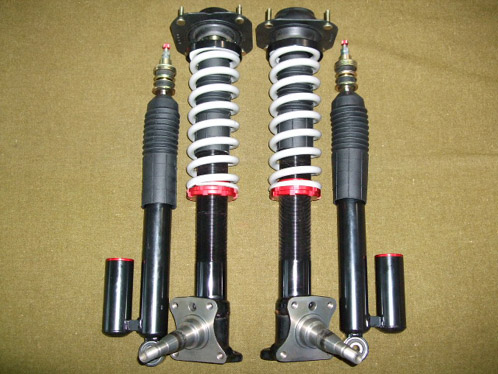

DAM, Check out these parts available for the FB in Japan! I'll let the pictures do the talking. If you click on suspension, you will get 3 pages of pics.
http://translate.google.com/translat...p-japan.com%2F
original non-translated link here:
http://www.jp-japan.com/forsale.html
http://translate.google.com/translat...p-japan.com%2F
original non-translated link here:
http://www.jp-japan.com/forsale.html
#2
My 7 is my girlfriend.
iTrader: (5)
Join Date: Feb 2006
Location: London, Ontario, Canada
Posts: 3,162
Likes: 0
Received 1 Like
on
1 Post
You can get that stuff here from RE-Speed. Not quite the same as those are full coilovers in the front whereas RE-Speed's are just coilover sleeves that go on the stock shock body. Pretty much the same thing though. The rear dampers with external reservoir are pretty neat though, I doubt you can get anything like for our cars here.
#3
Senior Member
iTrader: (8)
the stuff looks nice. I like the complete strut replacement. but the damper are only single adjustment, you can get single adjustment dampers here from Koni, Tokico. they have dampers from Advanced Design for rx7's that are adjustable for compression and rebound there avilable from Ground Control.
#4
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,826
Received 2,594 Likes
on
1,842 Posts
You can get that stuff here from RE-Speed. Not quite the same as those are full coilovers in the front whereas RE-Speed's are just coilover sleeves that go on the stock shock body. Pretty much the same thing though. The rear dampers with external reservoir are pretty neat though, I doubt you can get anything like for our cars here.
#7
Savanna Rx-7
kenn
Last edited by Sgt Fox; 04-15-10 at 10:10 PM.
Trending Topics
#8
Knucklehead
iTrader: (2)
Join Date: Nov 2002
Location: Fife, WA
Posts: 920
Likes: 0
Received 0 Likes
on
0 Posts
It's not even exciting seeing skylines in Japan. I see more of those than rx-7s, thats for sure. Been there 3 or 4 times, only seen 2 FD's, 1 FC. See like 2 Skylines a day.
Last edited by Sgt Fox; 04-15-10 at 10:10 PM.
#10
Savanna Rx-7
Hell a skyline is at best a grand touring car IE GT. not a sports car, but you would think that its god's gift to the motoring world to here these turds talk.
kenn
#11
Rotary Freak
Thread Starter
the stuff looks nice. I like the complete strut replacement. but the damper are only single adjustment, you can get single adjustment dampers here from Koni, Tokico. they have dampers from Advanced Design for rx7's that are adjustable for compression and rebound there avilable from Ground Control.
I currently have ground control front struts (very similar to RE speed). I just thought it was cool to see a bolt up option with what looks like a ton of height adjustment. I don't think you can get dampers here for the RX-7 that adjust from the top like those pictured. My koni's have to be basically out of the car to adjust, or at least disconnected from the strut tower. That suspension set up sold in Japan is expensive though....... about 2k usd if you wanted everything. Looks like they do sell it piece by piece though. You will get much more bang for your buck with the RE speed kit
#12
Rotary Freak
Thread Starter
I just got back from Hong Kong last month. I saw a skyline on my first day. It appeared to be stock though. I was still excited.....hehe Here's a pic of it.
edit: Looks like my pic is too big to upload.
#13
Senior Member
iTrader: (3)
I currently have ground control front struts (very similar to RE speed). I just thought it was cool to see a bolt up option with what looks like a ton of height adjustment. I don't think you can get dampers here for the RX-7 that adjust from the top like those pictured. My koni's have to be basically out of the car to adjust, or at least disconnected from the strut tower. That suspension set up sold in Japan is expensive though....... about 2k usd if you wanted everything. Looks like they do sell it piece by piece though. You will get much more bang for your buck with the RE speed kit
i have a set of koni yellows with the **** on top in my 83
same trick respeed uses for there "race" illuminas, out of the rear of an MR2
#15
Rotary Freak
Thread Starter
Cool! That's good to know. Can you specify, are you just putting MR2 rears in the front of your fb? Did you have to cut the strut housing down and re-thread it? If I remember correctly, you need to be using camber plates to put mr2 shocks up front right? since the rod diameter is smaller?
#17
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,826
Received 2,594 Likes
on
1,842 Posts
Cool! That's good to know. Can you specify, are you just putting MR2 rears in the front of your fb? Did you have to cut the strut housing down and re-thread it? If I remember correctly, you need to be using camber plates to put mr2 shocks up front right? since the rod diameter is smaller?
i think the part where it sits on the camber plate bearing is different from the FB illumina, but you can make/buy a bushing that fixes it, or change bearings.
actually the GC bearing is SAE, and the shock is metric, so you need the bushing either way with the GC stuff.
#18
Rotary Freak
Thread Starter
the strut size is the same, insert drops right into an FB strut housing like its made to go there.
i think the part where it sits on the camber plate bearing is different from the FB illumina, but you can make/buy a bushing that fixes it, or change bearings.
actually the GC bearing is SAE, and the shock is metric, so you need the bushing either way with the GC stuff.
i think the part where it sits on the camber plate bearing is different from the FB illumina, but you can make/buy a bushing that fixes it, or change bearings.
actually the GC bearing is SAE, and the shock is metric, so you need the bushing either way with the GC stuff.
#19
Lives on the Forum
MR2 Illuminas + Respeed Camber Plates = Happy Car
I just upgraded from the "standard" Illuminas on the front the day before I left for the Tail of the Dragon. Great shock!
Also, you really can't beat the rest of the Respeed suspension parts for quality/cost/performance.
I took Duffman for a ride through the Dragon while I was down there and I think he was fairly impressed.
.
I just upgraded from the "standard" Illuminas on the front the day before I left for the Tail of the Dragon. Great shock!
Also, you really can't beat the rest of the Respeed suspension parts for quality/cost/performance.
I took Duffman for a ride through the Dragon while I was down there and I think he was fairly impressed.
.
#20
Rotary Freak
Thread Starter
MR2 Illuminas + Respeed Camber Plates = Happy Car
I just upgraded from the "standard" Illuminas on the front the day before I left for the Tail of the Dragon. Great shock!
Also, you really can't beat the rest of the Respeed suspension parts for quality/cost/performance.
I took Duffman for a ride through the Dragon while I was down there and I think he was fairly impressed.
.
I just upgraded from the "standard" Illuminas on the front the day before I left for the Tail of the Dragon. Great shock!
Also, you really can't beat the rest of the Respeed suspension parts for quality/cost/performance.
I took Duffman for a ride through the Dragon while I was down there and I think he was fairly impressed.
.
#21
Lives on the Forum
Well, on the "race version" a setting of 3 feels firmer than the 5 on the stock Illumina. I haven't even tried a setting over 3 yet, which is what I ran at the Dragon and it felt great.
#22
Rotary Freak
Thread Starter
