enrique1992

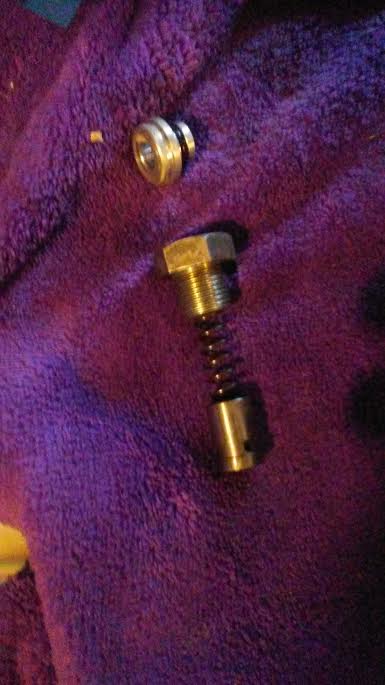

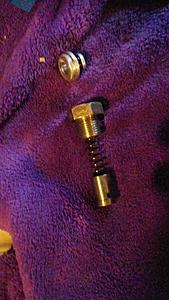

can somebody please tell me where this goes?

lduley

iTrader: (1)

Looks like an oil cooler thermostat

enrique1992

are you talking about the beehive

mazdaverx713b

iTrader: (91)

Where did you find it?

j9fd3s

iTrader: (3)

i would say its the front oil pressure regulator in the front cover

enrique1992

i was painting alot of the engine parts so i took everithing out. i tought it was for the front cover but it already has one in it. does the the rear iron have anything like this. i cant remember its been a really long time since i took them apart. i wass also mesing with the omp could it be from there

82transam

iTrader: (18)

The small round aluminum part on the top of the pic looks like it goes in the OMP, been a while since I rebuilt one, but I'm pretty sure that's where it's from.

The part on bottom, I would agree with the others, looks like the pressure regulator out of the front cover. The regulator in the rear iron doesn't look like that.. Not sure where else it could be from

enrique1992

that makes sense i wass working with the omp. could it be posible that i put the oil presure regulator from the rear iron on the front cover. because i know for sure that the front cover has a regulator on it.

TimWilbers

iTrader: (1)

When I rebuilt my 84 12a, I rebuilt the OMP at the same time as it was leaking.

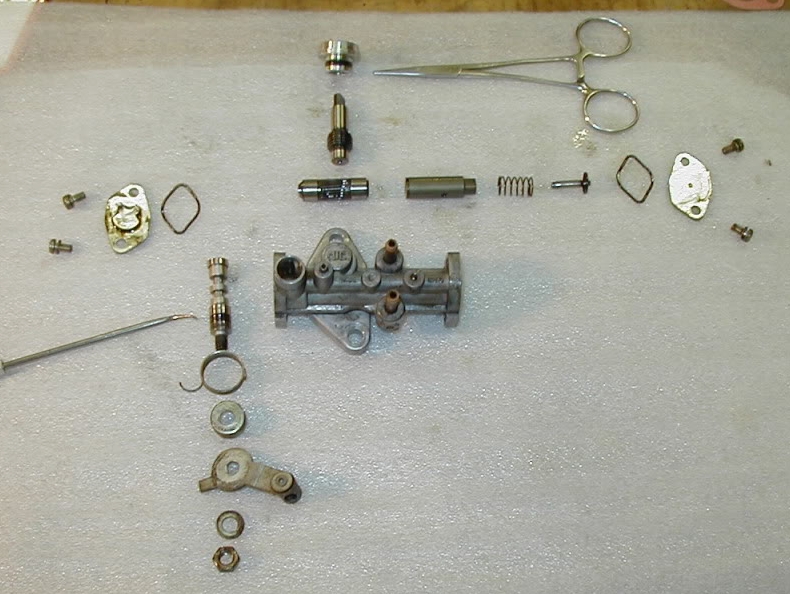

Someone posted this exploded view of the 12a OMP that matched my 84.

enrique1992

thanks tim

mazdaverx713b

iTrader: (91)

Glad you found your answer. There are threads here with links to what's needed for the OMP rebuild. Pretty straightforward.
