I need input my intercooler choice

Thread Tools

Search this Thread

Old 01-19-06, 02:49 PM
  #1
Rotary Freak

Thread Starter

perfect_circle's Avatar

Join Date: Jun 2003
Location: Land Of Confusion southern MI, USA
Posts: 2,604
Likes: 0
Received 1 Like on 1 Post
I need input my intercooler choice

ok, i have found a few intercoolers on ebay,and i need some help deciding on one.

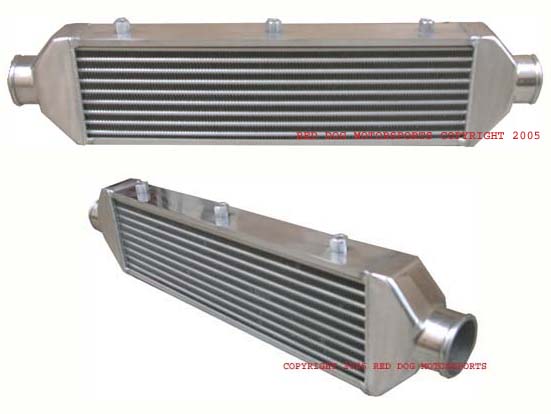

(1) 20.5x6x2 3/8 $97 plus 42 shipping this one seems like the best bet, decent size, and good price Item number: 8030262292

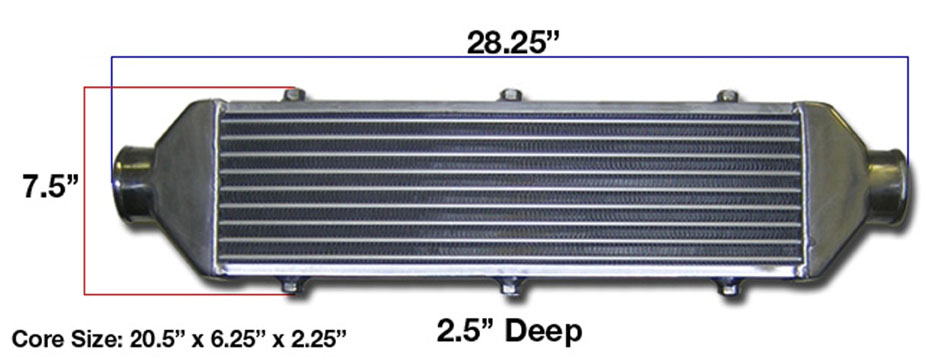

(2) 28.25x7.5x2.5 12 psi only $70 plus 40 shipping this one looks the same as #1 and is alot cheaper, but in the add it says it shouldnt be used for more that 12 psi which i want to exceed. Item number: 8031322225

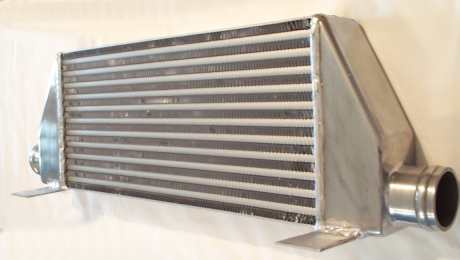

(3) 29x9x2.75 $130 plus 40 shipping this one is a little bigger than #1 but the end tank design worries me a little. i was thinking about maybe moddifying this end tank, and instead of the pipes coming in the side, having them come in from an angle on top. Item number: 8030420215

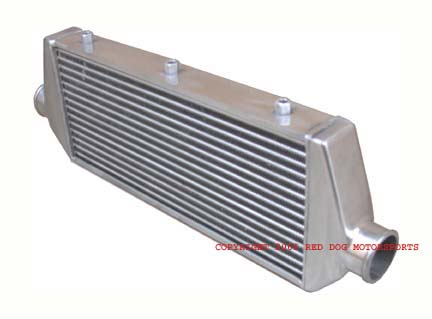

(4) 20.5x9x2 3/8 $129 plus 43 shipping This one was my ideal choice nice size, good price, good endtank design, but i can no longer find this one at this price. i can find it through other dealers, but its like twice as much. Item number: 8022194027 http://cgi.ebay.com/ebaymotors/ws/eB...RK%3AMEWA%3AIT

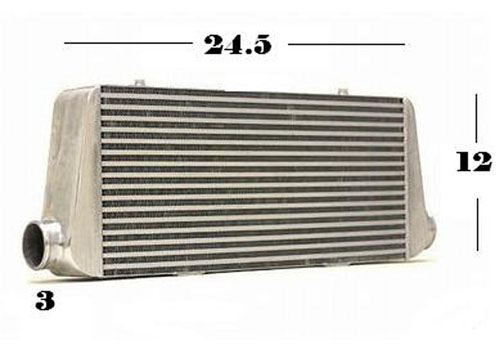

(5) 24x12x3 $100 plus 40 shipping This one i think is just plain to big, and i dont like the end tank design. Item number: 8030262317
Attached Thumbnails I need input my intercooler choice-20.5x6x2-3-8-%2497-plus-42-ship.jpg   I need input my intercooler choice-28.25x7.5x2.5-12-psi-only-%2470-plus-40-ship.jpg   I need input my intercooler choice-29x9x2.75-%24130-plus-40-ship.jpg   I need input my intercooler choice-20.5x9x2-3-8-%24129-plus-43-ship-no-more-ebay.jpg   I need input my intercooler choice-24x12x3-%24100-plus-40-ship.jpg

Old 01-19-06, 08:38 PM
  #2
REW'd FB


z-beater's Avatar

Join Date: Dec 2004
Location: WA
Posts: 2,685
Likes: 0
Received 0 Likes on 0 Posts
I went with the ebay SSautochrome FMIC. Welds are wonderfull as is the overall construction.
Old 01-19-06, 09:03 PM
  #3
8/1 Building/Drive Ratio

iTrader: (1)

82streetracer's Avatar

Join Date: Jan 2002
Location: Orono, MN
Posts: 2,397
Likes: 0
Received 1 Like on 1 Post
I have number 4 for my new intercooler setup,


Really well built, but no testing yet.
Old 01-20-06, 08:44 PM
  #4
Rotary Freak

Thread Starter

perfect_circle's Avatar

Join Date: Jun 2003
Location: Land Of Confusion southern MI, USA
Posts: 2,604
Likes: 0
Received 1 Like on 1 Post
ttt
Old 01-21-06, 06:12 AM
  #5
The Shadetree Project

iTrader: (40)

Hyper4mance2k's Avatar

Join Date: Jul 2002
Location: District of Columbia
Posts: 7,301
Received 3 Likes on 3 Posts
Where did you find all of those I look all the time and never get anything good. what did you search with? I just use "intercooler"....
Old 01-21-06, 12:52 PM
  #6
Senior Member


boriqua51371's Avatar

Join Date: Dec 2005
Location: New Hampshire
Posts: 613
Likes: 0
Received 0 Likes on 0 Posts
he found those on ebay. as far as the #5 a lot people here use it and the swear by it xspower one easy fit on front and good air movent 1-2 psi drop good up to 600hp you can find this one on ebay for as low as 99 xspower one the better one this set ups out there and the vendor ssautochrome good luck with your decision but i would go with #5 infact i ordered that one waiting on delivery.
Old 01-21-06, 01:07 PM
  #7
Banned. I got OWNED!!!

FB II's Avatar

Join Date: Dec 2002
Location: wishing i was back in FL
Posts: 4,192
Likes: 0
Received 0 Likes on 0 Posts
#5 is definately a good i/c as pretty much everyone here uses it as well, but only on the higher hp setups. we put one on a 12aT and it had a pretty bad pressure drop. if your going to be flowing alot of air/volume then that one is a good choice. if not, say just using a stock TII turbo or such, then #1 will be perfect.
Old 01-21-06, 01:15 PM
  #8
Rotary Freak

Thread Starter

perfect_circle's Avatar

Join Date: Jun 2003
Location: Land Of Confusion southern MI, USA
Posts: 2,604
Likes: 0
Received 1 Like on 1 Post
well once i get it running, and get all the bugs out, i want to upgrade to a bnr, or to a differnt turbo. and #5 is only $0.75 more than #1. but #2 is only 70 dollars...but they say yuou can only use that one up to 12 psi so i dont want to break it.
Old 01-21-06, 01:26 PM
  #9
Banned. I got OWNED!!!

FB II's Avatar

Join Date: Dec 2002
Location: wishing i was back in FL
Posts: 4,192
Likes: 0
Received 0 Likes on 0 Posts
a good intercooler should easily handle a pressure test up to aorund 80psi atleast... so for #2... that's just fuggin sad. hahaha

if you really plan on stepping up later then get the #5. it takes up ALOT of room up front on our cars tho, so make sure you set it up that everything else still gets flow.
Old 01-21-06, 01:27 PM
  #10
Rotary Freak

Thread Starter

perfect_circle's Avatar

Join Date: Jun 2003
Location: Land Of Confusion southern MI, USA
Posts: 2,604
Likes: 0
Received 1 Like on 1 Post
willit make a big difference between bar and plate, and tube and fin?
Old 01-21-06, 02:41 PM
  #11
The Shadetree Project

iTrader: (40)

Hyper4mance2k's Avatar

Join Date: Jul 2002
Location: District of Columbia
Posts: 7,301
Received 3 Likes on 3 Posts
The bar and plate design are supposed to have better flow and cool better, but tube and fin is more affordable.

Last edited by Hyper4mance2k; 01-21-06 at 03:09 PM.
