HOWTO: Rebuilding rear brake callipers

Reply




Old 05-21-06, 02:00 AM
  #1
Rotary Enthusiast
10 Year Member
Thread Starter

H4Inf's Avatar

Join Date: Aug 2004
Location: The World
Posts: 1,100
Thanks: 0
Thanked 0 Times in 0 Posts
Smile HOWTO: Rebuilding rear brake callipers

Hi guys,

About a week ago I rebuilt one of my rear brake callipers as it had not been touched in it's lifetime and wasn't working too well - rattling noises when cornering, leaking brake fluid etc.. Yesterday I rebuilt the other one. My handbrake (emergency brake I think you call it in USA.. or park brake?) was also not working well, on sharp inclines my car was rolling away .

So yesterday I attacked my other rear calliper and documented it so maybe this can help others do their own.

I'm not an expert, so if you spot any mistakes or know the real names for things I have made up descriptive names for, let me know Or if theres any important info to add, please tell me and I will update the doc !

RXClub said the file was too big to upload, so you can get it here: (required Adobe Acrobat Reader)
http://www.pw.cx/rx7files/

Cheers,

Paul.
H4Inf is offline
Reply With Quote
Old 05-21-06, 02:18 AM
  #2
Senior Member
10 Year Member

Join Date: Oct 2002
Location: Hampton, VA
Posts: 596
Thanks: 0
Thanked 0 Times in 0 Posts
Looks good man, some nice technical terms in there too.

The one thing I noticed involved the grease. From the Factory Service manual, page 11-15 (Reassembling the Caliper) it specifies which grease goes where.

White Grease: Caliper mounting pin and attaching bolt
Orange Grease: Bearings, adjusting bolt, strut and piston boot
Pink Grease: Piston seal


Now, IIRC the reason certain grease are supposed to be used in certain areas, was because one grease may harm rubber seals, but brake fluid won't effect it, whereas the other may prolong rubber seal life, but shouldn't see contact with brake fluid (probably got that mixed up, but you get the idea). On the same note, from what I have seen, the non-mazda kits come with one type of grease. The consensus was that newer greases are good for all areas, including contact with brake fluid while not causing rubber seals to degrade. Mind you, none of this is personal experience, just things I have read and pieced together from other threads.
mr_ouija is offline
Reply With Quote
Old 05-21-06, 02:33 AM
  #3
Rotary Enthusiast
10 Year Member
Thread Starter

H4Inf's Avatar

Join Date: Aug 2004
Location: The World
Posts: 1,100
Thanks: 0
Thanked 0 Times in 0 Posts
Wink

When I did my first calliper I actually used the red grease on the piston seal - While bleeding the brakes though I found that a lot of this grease came out the bleed nipple, so decided I shouldnt put any in there - a mate of mine who works for Holden says that the seals used are designed to have contact with brake fluid and use that as a lubricant.

I have updated the document with your grease colours info, and recommended to lightly grease the piston seal before putting it in, thanks!

Paul.

Last edited by H4Inf; 05-21-06 at 02:41 AM.
H4Inf is offline
Reply With Quote
Old 05-21-06, 08:40 AM
  #4
Growin' up with 7s.
10 Year Member
iTrader: (1)

$100T2's Avatar

Join Date: Sep 2002
Location: Surrounded by Sebey parts, Rhode Island
Posts: 2,931
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by mr_ouija

White Grease: Caliper mounting pin and attaching bolt
Orange Grease: Bearings, adjusting bolt, strut and piston boot
Pink Grease: Piston seal

According to the Haynes manual, the fronts use red and orange grease. WTF is up with all these grease colors? What's the goddamn difference?
$100T2 is offline
Reply With Quote
Old 05-21-06, 03:19 PM
  #5
Thunder from downunder
10 Year Member
iTrader: (1)

aussiesmg's Avatar

Join Date: Mar 2001
Location: Convoy, Ohio, USA
Posts: 3,843
Thanks: 0
Thanked 0 Times in 0 Posts
Nice detail, I am planning this rebuild soon so a big thanks.
aussiesmg is offline
Reply With Quote
Old 05-21-06, 04:06 PM
  #6
Senior Member
10 Year Member

Join Date: Oct 2002
Location: Hampton, VA
Posts: 596
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by $100T2
According to the Haynes manual, the fronts use red and orange grease.

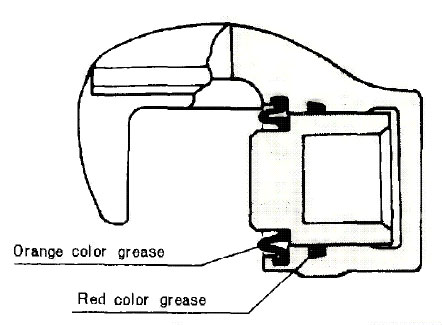

The FSM says the same on page 11-7. Shows a pic to point out the locations to use the grease. I've attached the pic from the FSM showing where the orange/red grease goes on Front calipers. I would imagine they are mostly the same, minus the e-brake cable.

Attached Thumbnails HOWTO: Rebuilding rear brake callipers-caliper_grease.jpg

Last edited by mr_ouija; 05-21-06 at 04:06 PM. Reason: Added image to post.
mr_ouija is offline
Reply With Quote
Old 05-21-06, 09:36 PM
  #7
I read your email
5 Year Member

inittab's Avatar

Join Date: Jan 2002
Location: NW New Jersey
Posts: 2,624
Thanks: 0
Thanked 1 Time in 1 Post
Good stuff, I'll add this to the 1st Gen FAQ.
inittab is offline
Reply With Quote
Old 05-22-06, 10:46 AM
  #8
Post Whore
5 Year Member

_raven2510_'s Avatar

Join Date: Apr 2006
Location: las vegas, nevada
Posts: 77
Thanks: 0
Thanked 0 Times in 0 Posts
get new ones its easier...go to napa or autozone
_raven2510_ is offline
Reply With Quote
Old 06-22-09, 02:57 PM
  #9
Rotary Freak
iTrader: (16)

PvillKnight7's Avatar

Join Date: May 2002
Location: Maryland
Posts: 2,597
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by H4Inf View Post
Hi guys,

About a week ago I rebuilt one of my rear brake callipers as it had not been touched in it's lifetime and wasn't working too well - rattling noises when cornering, leaking brake fluid etc.. Yesterday I rebuilt the other one. My handbrake (emergency brake I think you call it in USA.. or park brake?) was also not working well, on sharp inclines my car was rolling away .

So yesterday I attacked my other rear calliper and documented it so maybe this can help others do their own.

I'm not an expert, so if you spot any mistakes or know the real names for things I have made up descriptive names for, let me know Or if theres any important info to add, please tell me and I will update the doc !

RXClub said the file was too big to upload, so you can get it here: (required Adobe Acrobat Reader)
http://www.pw.cx/rx7files/

link is broke - thread is worthless
Cheers,

Paul.
link is broken - this thread is worthless
PvillKnight7 is offline
Reply With Quote
Old 06-22-09, 03:13 PM
  #10
keep it original!!
10 Year Member
iTrader: (3)

boyee's Avatar

Join Date: Oct 2005
Location: SF Bay Area, California
Posts: 1,276
Thanks: 0
Thanked 0 Times in 0 Posts
haha freakin 3 year old thread thats why

does anybody use all these different color greases?
boyee is offline
Reply With Quote
Old 08-07-09, 04:41 PM
  #11
Full Member
5 Year Member
iTrader: (1)

Join Date: Nov 2006
Location: Deltona, FL
Posts: 97
Thanks: 0
Thanked 0 Times in 0 Posts
Here's a new link for this write up:http://rx7.pw.cx/guides_manuals/mygu...er_rebuild.pdf
iox106 is offline
Reply With Quote
Old 08-07-09, 05:36 PM
  #12
Super Moderator
10 Year Member
iTrader: (3)

gsl-se addict's Avatar

Join Date: Jan 2003
Location: Lynchburg, VA
Posts: 5,096
Thanks: 0
Thanked 2 Times in 2 Posts
Also look in the archives. There is a new thread in there for rebuiilding rear calipers.
