1st Generation Specific (1979-1985) 1979-1985 Discussion including performance modifications and technical support sections

how to remove cowl parts? leaking water!!!

Thread Tools

Search this Thread

Old 03-14-09, 01:26 PM
  #1
Rotary Enthusiast

Thread Starter
iTrader: (1)

Join Date: Aug 2001
Location: Atlanta.Georgia
Posts: 1,271
Likes: 0
Received 0 Likes on 0 Posts
Unhappy how to remove cowl parts? leaking water!!!

Ok i have an annoying water leaks that drips into my driver side by my feet. i have narrowed it down to comeing from the cowl part that house the wiper motor. I was able to reach and stick my finger near where i thought it was coming from and i felt 2 holes or so. The thing is. I tried to get some kind of sealant back in there but i cant get to the hole good enough with just taking the vented part off. i was wondering was it even possible to get the rest of the sounding off that runs under the windshield to each side so i can get a real good look at it and possibly seal it up with something. If you guys have any pics that would help also!!

Thanks
Old 03-14-09, 03:29 PM
  #2
Have RX-7, will restore


iTrader: (91)

mazdaverx713b's Avatar

Join Date: Oct 2003
Location: Ohio
Posts: 21,710
Received 1,051 Likes on 891 Posts
remove the passenger side wiper arm and remove the 4 (i think) screws that hold the metal slotted cover on, slide the cover off and you're in. 5mins max.
Old 03-14-09, 03:31 PM
  #3
Old Fart Young at Heart

iTrader: (6)

trochoid's Avatar

Join Date: Apr 2004
Location: St Joe MO
Posts: 15,145
Likes: 0
Received 7 Likes on 7 Posts
Under the top hood seal, there are chrome headed scres, remove thoses and the rubber gasket, the wiper, then lift up on the front of the cowl and pull. Check deep in the sides/ends of the wiper bay and start pulling the leaves out that are plugging the drain pasages.
Old 03-14-09, 03:35 PM
  #4
Rotary Enthusiast

Thread Starter
iTrader: (1)

Join Date: Aug 2001
Location: Atlanta.Georgia
Posts: 1,271
Likes: 0
Received 0 Likes on 0 Posts
i can get the cover off. i need to get all the way to the fenders. thats where the leak is. in the corner or the windshield. the problem is that i feel holes that arent suppose to be there. there not drain holes
Old 03-14-09, 03:56 PM
  #5
Rotary Enthusiast

iTrader: (17)

Stevan's Avatar

Join Date: Sep 2003
Location: Jax, FL.
Posts: 1,041
Likes: 0
Received 1 Like on 1 Post
You can cut a big hole , or maybe get to it from under the dash and fix it from the inside. Other than that, no access .

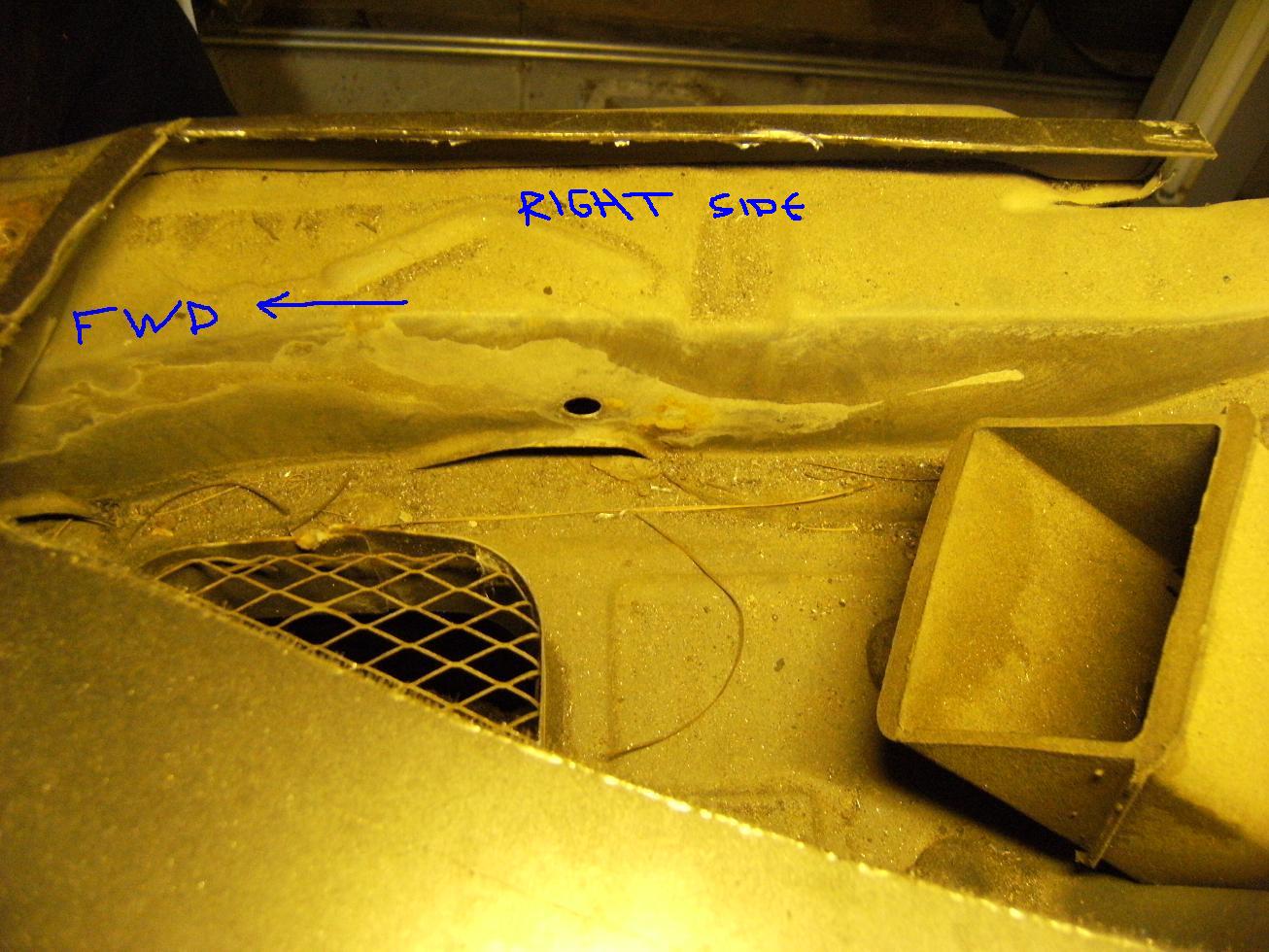

Attached Thumbnails how to remove cowl parts? leaking water!!!-dscf0007.jpg
Old 03-14-09, 04:06 PM
  #6
Rotary Enthusiast

Thread Starter
iTrader: (1)

Join Date: Aug 2001
Location: Atlanta.Georgia
Posts: 1,271
Likes: 0
Received 0 Likes on 0 Posts
i cant get to it from the dash. its so much **** in the way. and its hard to pinpoint it. i guess im screwed then!
Old 03-14-09, 11:50 PM
  #7
motor in pieces

4portgsl's Avatar

Join Date: Jul 2008
Location: Pittsburgh PA
Posts: 164
Likes: 0
Received 1 Like on 1 Post
Make sure your sunroof drains are good too, the run down the a-pillar through that area too. Just thought i throw that out there.
