How hard to remove the intake plenum/dynamic air chamber?
12-26-06, 09:14 AM
#1
7-less
Thread Starter
Join Date: Dec 2005
Location: No. Virginia, USA
Posts: 2,053
Likes: 0
Received 0 Likes
on
0 Posts
How hard to remove the intake plenum/dynamic air chamber?
Okay, seeing as how this is holiday week for me (no pay vacation) I'm bored so I've decided that since I don't have money to afford anodization or powder coating, I'm going to rattle can paint various parts of my engine. I've pretty much gotten my answer from Trochoid,
thank you BTW, but I wanted to ask the rest of you how easy it is to remove the intake plenum/dynamic air chamber from a 13B?
I believe, Trochoid, you said it was 6 bolts that hold that entire thing to the engine? I want to know how much of an ease it is, if any bolts are hidden, if there's a preferred method to remove the bolts, etc etc.

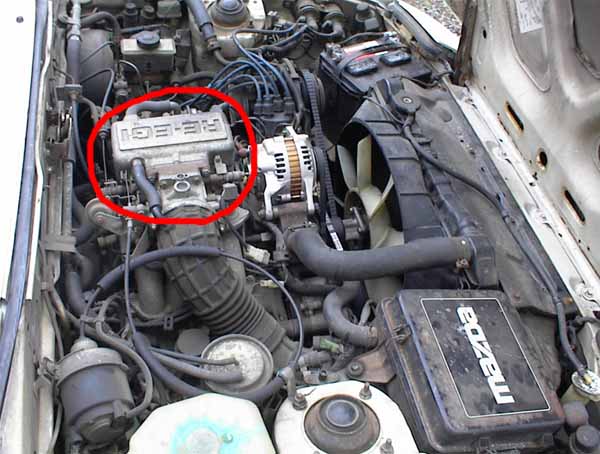

Also, with those multiple mini vacuum lines on the front of it, what's a good way to remove them without tearing them up? Sorry, but this is the best picture that I have. And, this is a very early photo (I have a few other parts cleaned up and painted now) so excuse the mess.
From the looks of it, the DAC isn't on the motor but on top of that plenum piping (or manifold, whichever) and that is bolted onto the rest of the motor?
thank you BTW, but I wanted to ask the rest of you how easy it is to remove the intake plenum/dynamic air chamber from a 13B?I believe, Trochoid, you said it was 6 bolts that hold that entire thing to the engine? I want to know how much of an ease it is, if any bolts are hidden, if there's a preferred method to remove the bolts, etc etc.
Also, with those multiple mini vacuum lines on the front of it, what's a good way to remove them without tearing them up? Sorry, but this is the best picture that I have. And, this is a very early photo (I have a few other parts cleaned up and painted now) so excuse the mess.
From the looks of it, the DAC isn't on the motor but on top of that plenum piping (or manifold, whichever) and that is bolted onto the rest of the motor?
Last edited by 85 FB; 12-26-06 at 09:20 AM.
12-26-06, 12:27 PM
#2
The biggest thing to do before starting is to take pictures of where the vacuum lines go. I leave all of the vacuum lines in place on the rats nest assembly. I usually remove the T/body first because of the water hose that runs underneath it to the back of the water pump housing. Otherwise you have to disconnect the hose from the back of the water pump housing and it's sort of a pain.
Do you plan on removing the lower intake portion and cleaning the 6 port actuator
sleeves?
Do you plan on removing the lower intake portion and cleaning the 6 port actuator
sleeves?
12-26-06, 12:27 PM
#3
I sent you the page # from the FSM for the diagram. That shows the basic configuration. As far as vacuum lines, if they are hard, brittle or breaking, replace them. Disconnect the battery 1st, then the intake duct to the throttle body. That will expose the bolts holding the UIM to the LIM.
While it looks complicated, take it step by step and take pics of each detail. You will need to make a new gasket between the UIM and LIM. Don't forget the center bolt in the UIM, I usually do.
Good point on cleaning the aux ports Doc. Many owners don't notice the slow loss of performance over time as they slowly quit working.
While it looks complicated, take it step by step and take pics of each detail. You will need to make a new gasket between the UIM and LIM. Don't forget the center bolt in the UIM, I usually do.
Good point on cleaning the aux ports Doc. Many owners don't notice the slow loss of performance over time as they slowly quit working.
12-26-06, 12:40 PM
#5
And don't forget the 2 10mm bolts under the DEI chamber near the vent/vac solenoids. They are hard to see unless you are looking for them.
The whole process isn't bad if you take it step by step. Once you have done it once or twice before, you can do the whole thing without any diagrams or anything. There is also a gasket between the UIM and LIM. You may want to either get a new one, a sheet of gasket material to make your own, or maybe some liquid gasket maker. I use the OEM gasket myself.
Good luck.
The whole process isn't bad if you take it step by step. Once you have done it once or twice before, you can do the whole thing without any diagrams or anything. There is also a gasket between the UIM and LIM. You may want to either get a new one, a sheet of gasket material to make your own, or maybe some liquid gasket maker. I use the OEM gasket myself.
Good luck.
12-26-06, 12:41 PM
#6
Originally Posted by Low Impedance
wait are we talking the uim from the lim? or getting the chamber off the runners? because the second one is a pain in the *** for me.
