How do you break small crusty bolts free?
03-12-12, 05:46 PM
#1
How do you break small crusty bolts free?
I've been running into this problem all over the car. All of the large bolts aren't a problem but the small corroded and crusty bolts are getting stripped. What's the easiest way of breaking them free?
I've been using liquid wrench and it works wonders on the larger stuff but when it comes to these little guys they stop me dead in my tracks.
I've been using liquid wrench and it works wonders on the larger stuff but when it comes to these little guys they stop me dead in my tracks.
03-12-12, 09:06 PM
#5
I know the size and tools aren't the problem trust me.

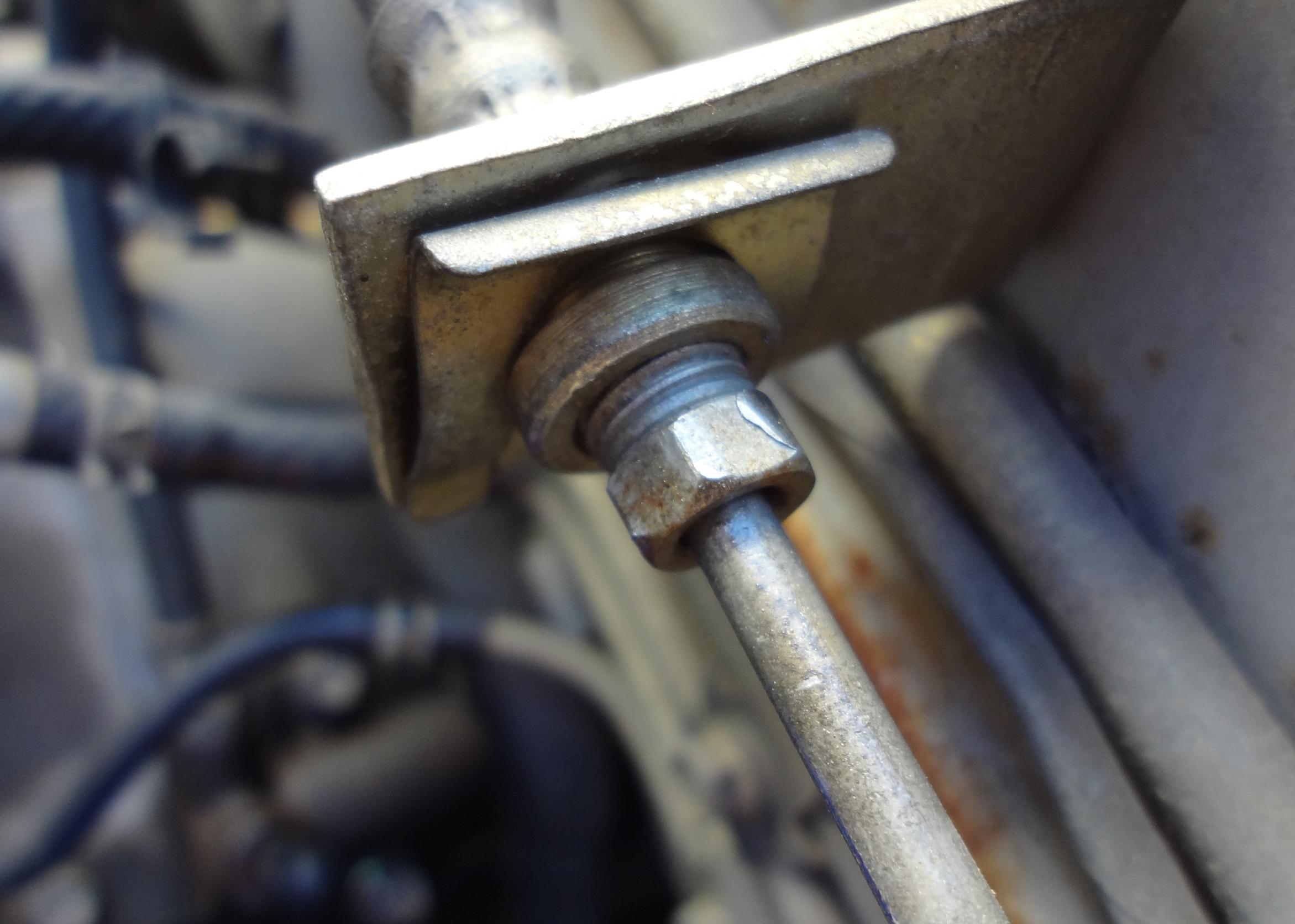

If you look at the picture one of the corners has been rounded off and a 10mm wrench did that.
The system if old (also original) so there is all of this gunk in there corroding and adding crap on the threads making the connections hard as a rock.
Today I was trying to replace the clutch hose and ran into this problem and I didn't want to round off all of the corners.
If you look at the picture one of the corners has been rounded off and a 10mm wrench did that.
The system if old (also original) so there is all of this gunk in there corroding and adding crap on the threads making the connections hard as a rock.
Today I was trying to replace the clutch hose and ran into this problem and I didn't want to round off all of the corners.
03-12-12, 09:15 PM
#6
heat the area surrounding the bolt with a map gas torch. unless of course the bolts are on the interior or near a surface that will not enjoy the heat. i've used heat on the clutch hose's metal fitting. it will take it for a short time. you will need a flare wrench for the steel line's fitting.
Trending Topics
03-12-12, 09:51 PM
#8
Heat works too, as does the two in careful combination - - just don't spray the freeze spray into the flame! Heat it, shut off the torch, then chill it. Thermal shock for the win.
This is true, too; flare wrench supports the fitting all the way around, instead of just two sides. Never use anything else on a flare fitting.
03-12-12, 10:27 PM
#9
No, the 10mm wrench did round off the corner but our flare nut french too didn't help.
Just using the wrenches, they just started bringing the hard line down along with the bracket attached to the fire wall.
I'm going to try the heat method tomorrow, but what ever is stopping me is pretty dang strong.
Just using the wrenches, they just started bringing the hard line down along with the bracket attached to the fire wall.
I'm going to try the heat method tomorrow, but what ever is stopping me is pretty dang strong.
^
03-13-12, 03:34 AM
#15
^ as an in between, from experience, before vice grip and after 10mm flare wrench, try a 3/8" flare wrench. a 3/8" will sometimes be just small enough to take up the gap caused by rounding or heavy oxidation/rust.
at my job i absolutely hate having to replace brake lines, especially for free, and ive found that a oxy/acetaline torch, penatrating oil and a 3/8" have saved my *** numerous times
at my job i absolutely hate having to replace brake lines, especially for free, and ive found that a oxy/acetaline torch, penatrating oil and a 3/8" have saved my *** numerous times
03-13-12, 08:23 AM
#16
Waffles - hmmm good
iTrader: (1)
All good advice in here. My steps are:
1. Penetrating oil
2. Flare nut wrench
3. Heat
4. Repeat 2 & 3 until the rounding starts
5. Vice grips (always works) and a hammer
That cold spray is also sounding good DD. Also if its this hard to get off a brake line,
I usually replace the brake line while I'm there.
1. Penetrating oil
2. Flare nut wrench
3. Heat
4. Repeat 2 & 3 until the rounding starts
5. Vice grips (always works) and a hammer
That cold spray is also sounding good DD. Also if its this hard to get off a brake line,
I usually replace the brake line while I'm there.
03-13-12, 09:39 AM
#17
I've used it several times recently, and it worked like a champ.
Just yesterday, I used it to break the nuts free from the threaded studs that hold the transmission cross member to the frame; you know, the ones that always unscrew out of the frame because the nuts are usually rusted solid to the studs?
Locked the studs' smooth parts in the vice and gave em the PB Blaster. An hour of soaking later they still wouldn't turn - - would rotate in the vice jaws instead.
20 seconds' worth of the cold juice on the junction between the stud and the nut, and they came free easily with a little hammer encouragement on the wrench.
Just yesterday, I used it to break the nuts free from the threaded studs that hold the transmission cross member to the frame; you know, the ones that always unscrew out of the frame because the nuts are usually rusted solid to the studs?
Locked the studs' smooth parts in the vice and gave em the PB Blaster. An hour of soaking later they still wouldn't turn - - would rotate in the vice jaws instead.
20 seconds' worth of the cold juice on the junction between the stud and the nut, and they came free easily with a little hammer encouragement on the wrench.
03-13-12, 12:45 PM
#18
You know it's funny. I've read more times when PB blaster failed than when it actually worked on this forum. As such, I've never bought any. Does it work or is it hype?
I use WD-40 or Valvoline's 1-2-99. And of course heat from propane or MAPP gas.
I use WD-40 or Valvoline's 1-2-99. And of course heat from propane or MAPP gas.
03-13-12, 02:13 PM
#19
No, the 10mm wrench did round off the corner but our flare nut french too didn't help.
Just using the wrenches, they just started bringing the hard line down along with the bracket attached to the fire wall.
I'm going to try the heat method tomorrow, but what ever is stopping me is pretty dang strong.
Just using the wrenches, they just started bringing the hard line down along with the bracket attached to the fire wall.
I'm going to try the heat method tomorrow, but what ever is stopping me is pretty dang strong.
03-13-12, 02:32 PM
#21
I had the steering box off the car and in a bench vise, and got the nut off without too much trouble... but the arm refused to come off even when beating on a 2-ft bar with a 3 lb hammer. Vise was starting to pull out of its mounting, and I was afraid of shock damage to the sector shaft teeth if I used more force.
I shot the junction between the arm and the shaft with PB (just enough to wet and wick it), and let it sit 24 hours.
Next day, with no more than a firm grunt on the bar, the puller slid that sucker off slick as you please.
It's not miraculous but it does seem to work well at breaking down corrosion & getting between pressure-fit parts.
03-13-12, 08:38 PM
#23
My 7 is my girlfriend.
iTrader: (5)
Join Date: Feb 2006
Location: London, Ontario, Canada
Posts: 3,162
Likes: 0
Received 1 Like
on
1 Post
I don't. I give er til they break, curse like the trucker I am then spend hours fixing the problem I created. The good thing is most of the important, prone to corrosion bolts on my car are new at this point. Broke one of the two that holds the trans crossmember to the transmission, finally bought a tap and die kit to fix that mess. Bolt extractors suck, just use a cobalt bit and drill the sucker. In your case, plan to replace both the hard line and the rubber line. Just torch the sucker (shield the area around it unless you like the look of burned paint). Get it hot, let it cool then try it. A slight tightening sometimes helps to break it free, but half the time I just end up breaking them that way too.
03-13-12, 10:08 PM
#24
Work in Progress
iTrader: (9)
Join Date: Aug 2006
Location: Minneapolis
Posts: 569
Likes: 0
Received 0 Likes
on
0 Posts
when using penetrating oil of any kind make sure to tap the bolt/nut with something to work the oil in.
Heat always seems to work the best. The old school farm trick is to use a candle and rub the wax all over the bolt and then apply heat to the nut. Heat will draw the wax toward it, thus into the threads and hopefully help to break loose
Heat always seems to work the best. The old school farm trick is to use a candle and rub the wax all over the bolt and then apply heat to the nut. Heat will draw the wax toward it, thus into the threads and hopefully help to break loose
03-14-12, 01:24 PM
#25
I was looking forward to using the canned air trick. But I was successfully able to get the stud out with the double nut method. Didn't even need heat.
For those wondering, it's the short 10mm x 1.5 stud at the bottom of R5 and 3B front plates. I use this stud in aluminum on aluminum waterpump setups. The stud is usually difficult to remove. Not this time.
For those wondering, it's the short 10mm x 1.5 stud at the bottom of R5 and 3B front plates. I use this stud in aluminum on aluminum waterpump setups. The stud is usually difficult to remove. Not this time.
