Horn relay location in a 79 Rx7

Does anyone know where the horn relay is on a 79 Rx7?

Thanks

Andre

Last edited by andre sinclair; 03-20-05 at 08:04 PM.

Reply Like

03-20-05, 08:39 PM

64mgb

Go Hawks!

iTrader: (1)

Join Date: May 2004

Location: Cedar Rapids, Iowa

Posts: 1,933

Likes: 0

Received 0 Likes on 0 Posts

Hmmm...I didn't think there was a horn relay, so I checked the wiring diagram. No horn relay.

Attached Thumbnails

Horn relay location in a 79 Rx7-horncircuit.jpg

Reply Like

03-21-05, 08:44 AM

shetlen

Air Commando

iTrader: (2)

Join Date: Jan 2004

Location: Cannon AFB, NM and Muskogee, OK

Posts: 247

Likes: 7

Received 1 Like on 1 Post

when I press my horn down it makes a clicking noise under the dash it did used to work not now though

Reply Like

03-21-05, 08:56 AM

64mgb

Go Hawks!

iTrader: (1)

Join Date: May 2004

Location: Cedar Rapids, Iowa

Posts: 1,933

Likes: 0

Received 0 Likes on 0 Posts

Quote:

Originally Posted by shetlen

when I press my horn down it makes a clicking noise under the dash it did used to work not now though

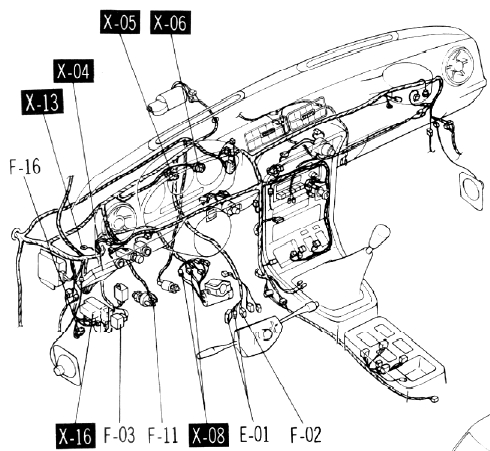

According to the '81 manual, there is a horn relay for the '81. It's F-16 in the dash diagram.

Rich

Attached Thumbnails

Horn relay location in a 79 Rx7-horncircuit_81.jpg

Horn relay location in a 79 Rx7-dashwiring_81.jpg
