help sove my tach issue
05-06-06, 11:49 PM
#1
help sove my tach issue
ok the vid explains whats goin on i dont think its ever worked proplay
well iv checked the wires and im gettin spark from my leading so it all must be in order could the tach just be broken and i need to get me a aftermarket one
http://media.putfile.com/whats-up-with-my-tach
since im posting iv got an oil pan leak can i do a qwick fix and put liquad gasket around the seal or would it be to hard to clean the oil off for it to stick
anyone have any ideas im gettin another motor in a few weeks so i just want a qwick fix
and another refering to welding a diff i know nothing of the sort but have a cousin inlaw that has a welder and as welded other diffs he wanted to know if the 3rd member comes out my expression was
is it easey to do,easey to remove from the axel or do i have to remove the axel then take it out??,easey to muck up as its my only diff? its a tempory till i get a lsd and i dont want 1 wheel spinin
i went to the woodburn drags and i am joining nxt weekend my cars bone stock etc but it looks so fun and i seen some slow cars i could race and have a chance
and i want to see what ill get before i start doin the usall upgrades
any pics,information,threads in your favourites postem up
THE END
well iv checked the wires and im gettin spark from my leading so it all must be in order could the tach just be broken and i need to get me a aftermarket one
http://media.putfile.com/whats-up-with-my-tach
since im posting iv got an oil pan leak can i do a qwick fix and put liquad gasket around the seal or would it be to hard to clean the oil off for it to stick
anyone have any ideas im gettin another motor in a few weeks so i just want a qwick fix
and another refering to welding a diff i know nothing of the sort but have a cousin inlaw that has a welder and as welded other diffs he wanted to know if the 3rd member comes out my expression was
is it easey to do,easey to remove from the axel or do i have to remove the axel then take it out??,easey to muck up as its my only diff? its a tempory till i get a lsd and i dont want 1 wheel spinin
i went to the woodburn drags and i am joining nxt weekend my cars bone stock etc but it looks so fun and i seen some slow cars i could race and have a chance
and i want to see what ill get before i start doin the usall upgrades
any pics,information,threads in your favourites postem up
THE END
05-07-06, 12:21 AM
#2
ok iv done further searching and found this pic is this a good reference for some one thats welded a diff before im assuming its a 12a diff but not sure as this guy has a 13bt
my major q is can i remove it without takin the rear axel out ild like to do it in a day
my major q is can i remove it without takin the rear axel out ild like to do it in a day
05-07-06, 09:45 PM
#6
Tach works off the trailing. If the wires in the bay are good, you may need to pull the cluster and check behind it. There is a single wire with a bullet connector coming off the dizzy, make sure that connection is clean and solid, then trace the wire to the fire wall for any breaks or abrasions.
Trending Topics
05-07-06, 10:54 PM
#8
Retired Moderator, RIP
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts
the little Bullet Thing..is just a One Wire connector,that looks like "a bullet" for the Male end of the connector..goes into the other half of the single wire Connector(female)...An example..the sensor on the bottom of the Rad on an S4..the pins on it ..YOU can use Female type bullet connectors if you break the Wires to the sensor.(overdone,but I think you should get the Picture)
05-07-06, 11:13 PM
#9
Originally Posted by misterstyx69
the little Bullet Thing..is just a One Wire connector,that looks like "a bullet" for the Male end of the connector..goes into the other half of the single wire Connector(female)...An example..the sensor on the bottom of the Rad on an S4..the pins on it ..YOU can use Female type bullet connectors if you break the Wires to the sensor.(overdone,but I think you should get the Picture)
the wire that the bullet connectors on what is this attached to i know where it is and what it looks like but what is it for what does it do
05-07-06, 11:24 PM
#11
well what i think trochoid's refering to is theres a lil capcitor type thing and the right side which has a wire and a bullet like connector but i dont see how this gives signal as it only has 1 connection and screws to the side of the dizzy
05-08-06, 12:25 AM
#15
Senior Member
Join Date: Oct 2002
Location: Hampton, VA
Posts: 596
Likes: 0
Received 0 Likes
on
0 Posts
Well, I went to look and found what you're referring to. Mine is disconnected, along with vacuum advance, and my tach works fine. It was getting jumpy in high RPM, but it was missing up top. Adjusted the timing and it's perfect now
BTW, I still have the stock ignition setup, not Direct Fire yet.
BTW, I still have the stock ignition setup, not Direct Fire yet.
05-11-06, 01:13 AM
#18
completely wankelfied
Join Date: Aug 2002
Location: Bloomington IN
Posts: 195
Likes: 0
Received 0 Likes
on
0 Posts
that capacitor is the condenser it keeps you from hearing engine noise through your stereo (electrical feedback). It's not a necessary part but it does a job. I finished my direct fire wanna see it? It's gonna be a minute dial up sucks.
05-12-06, 07:56 PM
#22

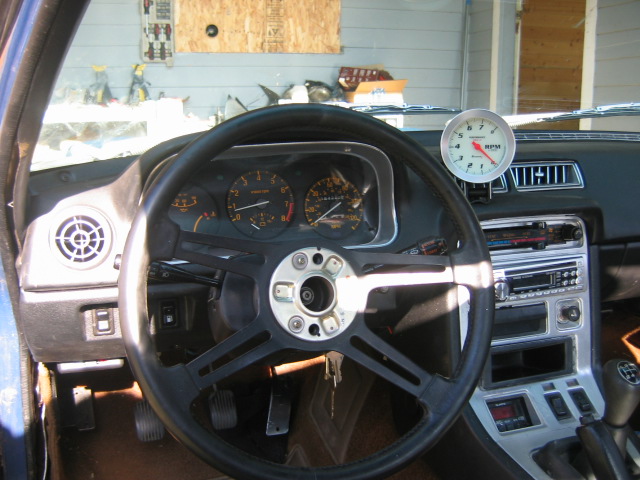

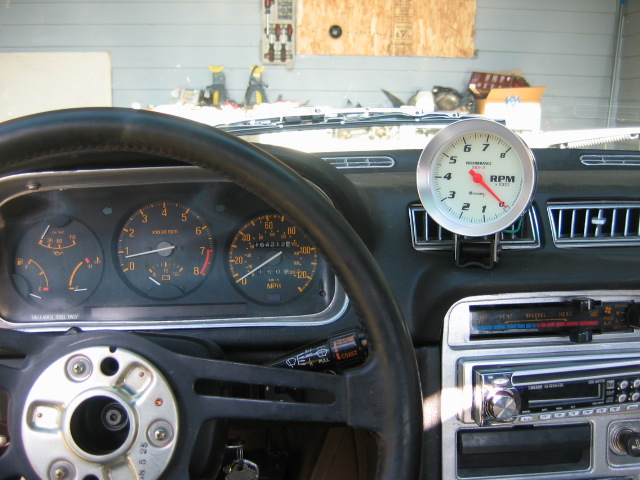

well im just postin a pic of my new tach installed ill improve it later but for now its positioned where i like it and hope others like it aswell
i didnt go for the big tach with shift light because that just looks out of place and really aint nessecary
maybe took 30min-50min to install but wasnt hard and very easey to wire
enjoy
one question does it matter witch coil i hook the signal up to?
i tryed both neg and both worked the same
yay i can see my revs now
i didnt go for the big tach with shift light because that just looks out of place and really aint nessecary
maybe took 30min-50min to install but wasnt hard and very easey to wire
enjoy
one question does it matter witch coil i hook the signal up to?
i tryed both neg and both worked the same
yay i can see my revs now
05-12-06, 08:14 PM
#23
I would have sourced a stock tach, I'm not a fan of aftermarket tachs and you loose the buzzer. If you change your mind, I do believe I have an 83 tach. If you keep it, hook it up to the trailing coil, that way you will know if the trailing side of the ignition goes out.
05-12-06, 09:53 PM
#24
ok well im havin a lil problem somtimes this tach decideds to stop and when i floor it itl go back to zero im positive its wired right
could it maybe not gettin enough power? through the stock harness
or maybe somthin interfering with the signal wire
i swaped amother dizzy in think the weights on the other were jammed but not chage if i rev slowly the tach wil do its job fine
could it maybe not gettin enough power? through the stock harness
or maybe somthin interfering with the signal wire
i swaped amother dizzy in think the weights on the other were jammed but not chage if i rev slowly the tach wil do its job fine
