Kruel13

Hey guys was wondering if anyone else has had this issue and come up with an easy way to get the caliper off without breaking anything.

Thanks
Josh

GSLSEforme

Take a wide face chisel and tap around where the metal cap attaches to back of caliper pivot(lightly) you don't want to distort or destroy it. It's a pressfit and will pop off,you can then spray some PBblaster in and let it soak overnight,for a day,etc. Disconnect parking brake cable and using a large screwdriver,pry bottom of caliper away. Using plastic/rubber face hammer tap caliper back down again. Continue to do this til you can rotate by hand and work caliper off pivot. Some heat can be added using acetylene torch while doing this if necessary. Once apart,pivot bore can be cleaned up with a small hone,like one would use for honing a motorcycle master cylinder bore. Or a drill bit of appropriate size could be worked thru bore by hand to clean out all the gunk and trash in there. the pin can be polished with crocus cloth or light sandpaper. Once both pieces are cleaned up fit them together and make sure they slide smoothly. Take an acid brush and lightly coat the pin and bore with silicone brake grease,lightly tap the sealing cap back on,should be good to go. Done this with several rear disc FB calipers over the years. Good luck,post back with results.

Kruel13

thanks will do this weekend. Hoping to autocross Saturday. Been trying to change the rear brakes for over a month...

Kruel13

the heat worked on them very nicely. Only problem now is I have to find some new guide pin seals. lol

GSLSEforme

Check Mazdatrix website?

Kruel13

they have them the 86-92 rear seal which they use the same pin so maybe the seal will be the same?

GSLSEforme

Believe they will work.

GSLSEforme

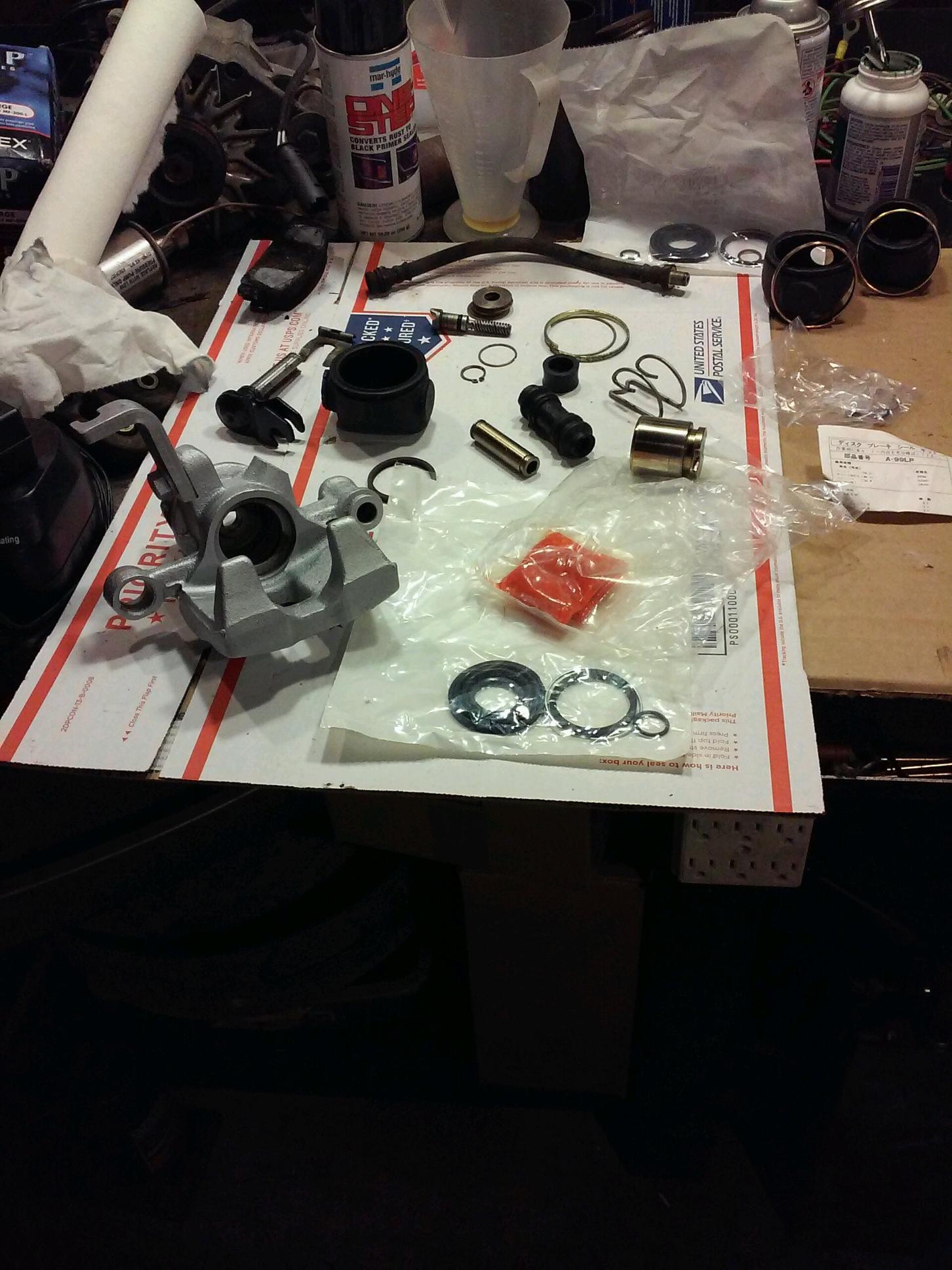

Looked on Mazdatrix'website,look same as in pic of my dissasembled caliper

GSLSEforme

Is that your car in the pic?

Kruel13

Both cars where mine. The red one was the one someone ran a stop sign on me and totaled the car. Is all that stuff shown on the table what comes in a caliper rebuild kit?

I also found the boot kit that looks like it will work. I am hoping I can find it somewhere else so I am not paying 27 bucks for 2 seals...

GSLSEforme

I remember you posting about it now. Something similar happened to an 82 GS i had a long time ago,clean car,having put a lot of work and money in it,i was really upset. That's actually two different kits The one towards the front of the bench is the caliper seals for the front of caliper (piston seal and dust seal) The other kit is for the parking brake section of the caliper,comes with all the seals,boots clamps and grease that gets packed in the housing around the mechanism. I didn't know it but one kit comes with everything to do the parking brake parts of both rear calipers. I bought two thinking each kit only serviced one caliper. All my caliper rebuild parts were wholesale closeout on Rock Auto. Brand name stuff,new caliper pistons too. Kits were like 1.49 each,pistons were 13.00 each.

Kruel13

I take it they aren't on rockauto anymore cause I can't find anything that offers the parking brake stuff on them?

GSLSEforme

Possible i got the last ones. Think i found a kit somewhere else too ,i'll look thru my notes.

GSLSEforme

Possible i got the last ones. Think i found a kit somewhere else too ,i'll look thru my notes.

Kruel13

Off topic...

would you happen to know how the bushing goes on the wiper arm connected to the wiper motor? mine popped off when I was swapping out my wiper motor and now I can't get it back together correctly and there is a lot of slack in the actual wiper arms.

GSLSEforme

Not sure about bushing,knock on wood,my car hasn't had any wiper issues. Maybe put up a pic ,did you have any slack in wiper linkage before disassembly?

Kruel13

no and i know the linkage bushing is apart. I just don't know how put the bushing back together since it is two pieces.

GSLSEforme

Not any help to you,will watch this thread to see if someone with experience with this chimes in.

Kruel13

its alright. thanks for the help with the brakes though.

GSLSEforme

Do you still have it apart? Take some pics may be able to figure it out.

Kruel13

no but it is easy to pull out. only issue is the car is 2 hrs away at the moment. Will be back at my place in May though for the motor swap.
