fuel system updated for the turbo
05-18-06, 01:03 PM
#1
fuel system updated for the turbo

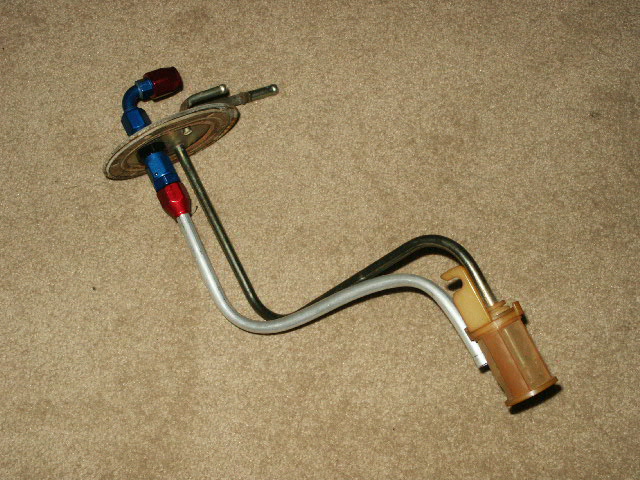

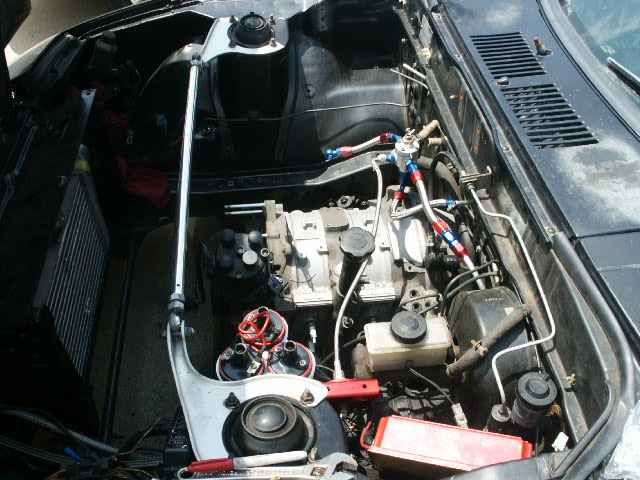

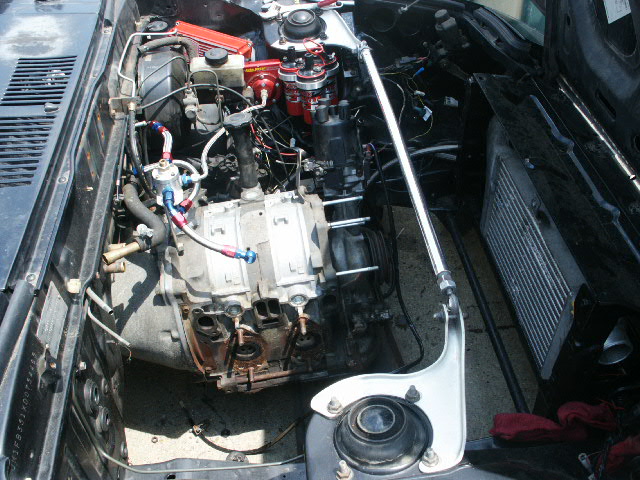

Ok on the original set up my fuel pressure couldnt go below 6-7 psi after changing to the accel fuel pump. With the GSL-SE pump fuel pressure could be adjusted below this point. So the only thing that could possibly make it stay high in my opinion was the really tiny fuel return line. What i did was remove the tiny return line and replaced it with 3/8 aluminum tubing and I will be useing the original 5/16 feed line as the return line. should solve the problem. Yesterday managed to get the stock exhaust off, what a PITA. Also took out the tiny return line in the tank and replaced it with a bulkhead fitting there is actually alot of space on the tank inlets. You could possibly not have to use a fuel cell
Last edited by seanrot; 05-18-06 at 01:14 PM.
05-19-06, 03:46 AM
#3
WOW Very NICE!!! What is the red thing hooked up to the front of your FPR? Is that a electric FP gague? If so what brand I want to move mine in cabin now. I was origionally having the same issue with FP not dropping below 8psi when I first finished the rebuild, but running some 3/8 copper tube allowed the FP to get right where I need it. I only ran it back to the tank and left the stock 1/4" tank fitting. I can get it as low as 3psi with a MSD pump and Mallory FPR.
05-19-06, 10:35 AM
#5
Full Member
Join Date: Oct 2004
Location: Atlanta
Posts: 225
Likes: 0
Received 0 Likes
on
0 Posts
I like the return line in the pickup, very good idea! Likes a little over the top in the engine bay, personally i like the socket less hose, less chances of chaffing, and looks alot cleaner.
05-19-06, 10:47 AM
#7
Originally Posted by Hyper4mance2k
WOW Very NICE!!! What is the red thing hooked up to the front of your FPR? Is that a electric FP gague? If so what brand I want to move mine in cabin now. I was origionally having the same issue with FP not dropping below 8psi when I first finished the rebuild, but running some 3/8 copper tube allowed the FP to get right where I need it. I only ran it back to the tank and left the stock 1/4" tank fitting. I can get it as low as 3psi with a MSD pump and Mallory FPR.
Trending Topics
05-20-06, 01:18 AM
#11
Originally Posted by seanrot
That's an autometer mechanical fuel pressure isolator. There is fuel from the fpr to the isolator then antifreeze and distilled water to the guage inside the car.
05-20-06, 05:50 AM
#12
Originally Posted by Hyper4mance2k
Where'd you get it. I'm looking through my atuo meter dealer cat, and I don't see it...
http://cgi.ebay.com/ebaymotors/AutoM...spagenameZWD1V
05-20-06, 11:11 AM
#13
Bad A55ed Hands
Join Date: Mar 2006
Location: LV
Posts: 301
Likes: 0
Received 0 Likes
on
0 Posts
Good work sean... so you are useing a GSL-SE fuel pump for your 12a turbo? That's in-tank, right? I bought a Mustang Cobra in-tank fuel pump and I'm being told that I MUST run an in-line pump.
How's that working out for you?
How's that working out for you?
05-20-06, 01:59 PM
#15
An inline pump is what you need. Just take out the 12a pump and install a new one. the modification to get a intank pump in my mind would be a sever pain in the ***. I have an extra GSL-SE pump if you need it has an adapter to use it on the stock 12a hoses.
Im using this one, I was able to make it fit in the original mounts without too much trouble. But I did use the braket from the GSL-SE pump to mount the new pump.
ACCEL 74701
Will flow up to 200#/hr @ 45 psi for naturally aspirated engines with 500 HP and forced induction engines with 330 HP. Pump includes fittings and copper gaskets. Includes mounting bracket.
DIMENSIONS: Body Length: 7-1/2". Body Diameter: 2-1/2". Overall Length: 9-1/4".
Im using this one, I was able to make it fit in the original mounts without too much trouble. But I did use the braket from the GSL-SE pump to mount the new pump.
ACCEL 74701
Will flow up to 200#/hr @ 45 psi for naturally aspirated engines with 500 HP and forced induction engines with 330 HP. Pump includes fittings and copper gaskets. Includes mounting bracket.
DIMENSIONS: Body Length: 7-1/2". Body Diameter: 2-1/2". Overall Length: 9-1/4".
Last edited by seanrot; 05-20-06 at 02:02 PM.
05-20-06, 02:14 PM
#16
Bad A55ed Hands
Join Date: Mar 2006
Location: LV
Posts: 301
Likes: 0
Received 0 Likes
on
0 Posts
Thanks robert & sean... maybe I'm confused. Your running an external ACCEL 74701 in-tank? Your statment of "I was able to make it fit in the original mounts" is what's confusing me.
Sorry to be a bother. :/
Sorry to be a bother. :/
I've not tinkered with my fuel system yet. Thanks for not spanking me around like the n00b I am.
05-21-06, 12:38 PM
#19
Senior Member
Join Date: Oct 2002
Location: Chesapeake, Va
Posts: 432
Likes: 0
Received 0 Likes
on
0 Posts
I had some similar issues as you. When I went up to a high volume aeromotive fuel pump, I could hardly keep the fuel pressure below 5psi. When I changed over to a Walbro 255 FI pump, things were much better, and I switched over to a 3/8 hose for my return and I can set the fuel pressure down to about 0psi.
