What ohm is the fuel sender in the tank?

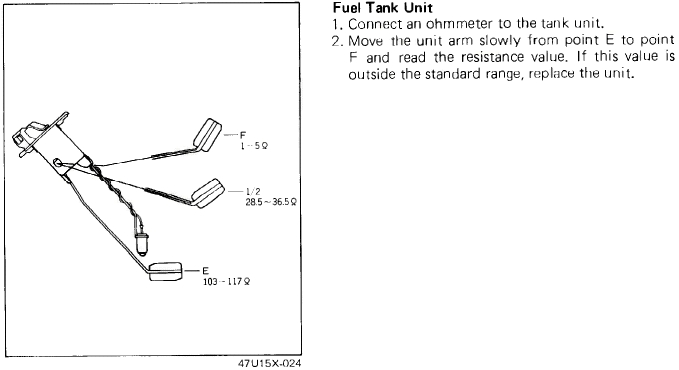

The attachment is straight from the factory service manual.

Rich



I'm putting a fuel cell in my car and I can choose what ohm the fuel sender is. Thats basically it.



as i recall it is 110 ohm... measure the old one to be sure.

or use a 110 ohm resistor and see where the needle rests. should be E.



Easisest way to do this is match an aftermarket sending unit with and aftermarket gauge. None of the aftermarket gauges match the sending units ohm range of our senders. A fuel cell will make the sender install fairly easy. An Autometer sender and fuel gauge is about half the price of a new oem sender.
