Turbo II-FB

Where did you get your fuel pump guys?? I was looking for a walbro but they label for
years like 85-95 ,but they dont have one for my 82 help!

IanS

iTrader: (4)

Just make sure that the pressure and flow are correct for your application. What kind of carb are you running? Is it the stock nikki? Do you plan on getting something else down the road, like an aftermarket or modified carb? This will help us determine what you will need.

Turbo II-FB

my s4 T2 is going in next week

hondah8er

Almost everythign is going to be custom if you have a 13bt in an FB. Why does it matter what years they list the walboros as if its custom anyways?

Turbo II-FB

oh so i just need to buy a 13bt walbro and i should be aLRIGHT

hondah8er

u got it.

trochoid

iTrader: (6)

Are you going internal or external? If internal you have to modify the tank. The TII Walbro is internal, you will probably want to go external for simplicity. Pick an external that has the same flow capacity and is for FI.

hondah8er

Thats a good idea. I'm using a bosch 910 I beleive on mine. External of course for simplicity.

steve84GS TII

If you go external,just be sure you install an SE fuel tank or a baffle box around the fuel pickup, inside a non SE tank.Below 1/3 full the fuel will slosh away from the pickup during lefthand turns.Fuel injectors use pump pressure to fire,and will stop injecting the instant fuel pressure is lost,unlike a low pressure carb setup which can pass some bubbles with no issue since the carb has its own supply of fuel in the float bowl.

If you happen to be boosting at the time,the lean out condition caused by loss of fuel pressure can blow the motor.Even if your not boosting,slamming your head into the steering wheel when the car stops accelerating,is no fun either.

luiml73

iTrader: (1)

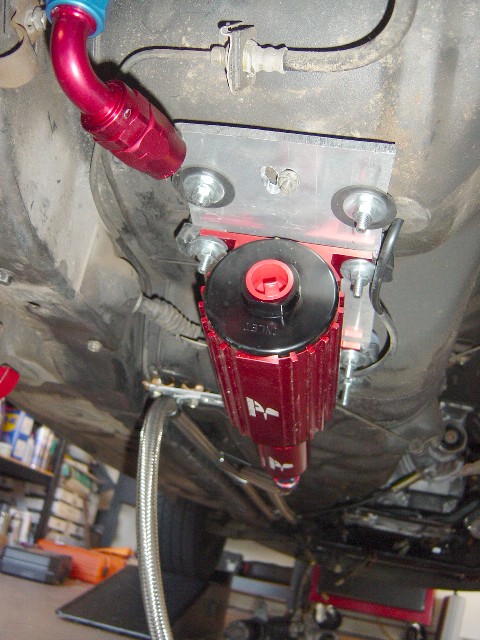

I'm taking the Directfreak route. better safe than sorry!!

His Aeromotive



My SX18201

coldy13

You don't need baffles or anything if your tank has a drain plug. Just plug the stock fuel sump and put a fitting in the drain plug. The stock pickup is just enough to support a blowthrough nikki with a stock ported motor. I know the drain plug is good for at least a weber48 with a large streerport. And that's with the stock hard lines. I never run under 1/3 tank anyway, and I wouldn't suggest doing it with whatever tank you have unless it's a fuel cell.

Turbo II-FB

well heres the thing my s4 is going in and I need the proper fuel pump for it I have a 1982 GS I dont know if it has a internal or external and I need to know If anybody has one please tell me

coldy13

It's external. Don't bother trying to put an internal in, it's not worth the effort. Just either put in a new pickup in the tank or do what I said with the drain plug.

hondah8er

Steve

how do you install a baffle box around the fuel pick up? What did you do for your setup? My car started life out as a GSL so my tank is different then a non se tank right?.

I was thinking of getting my tank sumped since its fairly inexpensive.

rotary emotions

this is what I did: use a pre-pump (low pressure, high flow) to pump fuel into a swirlpotk (example: http://www.tweakit.net/shop/product_...roducts_id=124 ), then use a high volume EFI pump (as luiml73 put it: better safe then sorry!) to feed the engine. I used a SX pump (I believe a 18201 aswell) but just make sure it's a good one. This is a perfectly safe route. But if you have a GSL-SE tank (mind you: it WON'T fit an 1982 without modifications! This is due to the spare wheel carrier being different: the 84-85 models have "fake" spares, to use a larger fuel tank) you can use that, it's baffled and doesn't require a anti-surgetank.
DON''T use a stock gastank without a surgetank: the pump should never suck air, with an EFI engine this will lead to a bad running engine.
Also note you'll need bigger fuel lines. And a good return line.

Turbo II-FB

does the 2 gs model have an internal or external

Turbo II-FB

ans what type of fuel pump is that

coldy13

Your car and all other FB's have an external pump.

Turbo II-FB

now the next question which brand??

red13brx7

I am curious about this as well. I want to go with a fuel cell. That would have a good sponge type thing in the cell that keeps the fuel from sloshing around. I want to run an externam MSD pump. DOes that seem like a decent idea?

Jeff20B

iTrader: (13)

I have the 16 gallon cell from Summit with safety foam and a GM guage sender that I've modded to output a resistance reading my Mazda guage can use. It's simple; you cut a trace or two on the circuit board of the sender and add a jumper which reverses the resistance curve. I had to add a 10 ohm resistor to the S terminal to get a correct empty reading (the full reading isn't as important as the empty reading, if you know what I mean).

I've also installed a Walbro 255 with a Fram G3 in front of it. We all know Fram's oil filters suck, but people here have said their fuel filters are decent.

red13brx7

Nice man, I might have to get ahold of you for the output mod for the sender. I can definitley do it. Just would need some directions.

Jeff20B

iTrader: (13)

I did the mod back in summer of '03. Hmm, what did I do? I studied the traces on the circuit board and then modded it in the only way that made sense to me. I honestly don't remember the exact mods I did.

Centrefuge2

Im new to the group, so please forgive me if i am asking repeated questions. I have an FB with the 12A, fuel pump gave out. I want to replace it with the Carter CRT-P4594 fuel pump and the Holley HLY-12-804 F.P.R. It has a Mikuni carb. If anyone has performed this upgrade, I am in need of some pretty detailed instructions for this mod.

Thanks.

Jeff20B

iTrader: (13)

It's best to mount the Carter with the motor at the bottom and the fuel fittings at the top. I had one connected to my fuel cell for a carb setup before I got the Walbro for an EFI setup. The Carter worked fine when it was in there and made a lot of noise. Yes, Carters are loud fuel pumps. I'd recommend rubber standoffs or something.
