Fuel Level Connector
#1
Full Member
Thread Starter
Fuel Level Connector

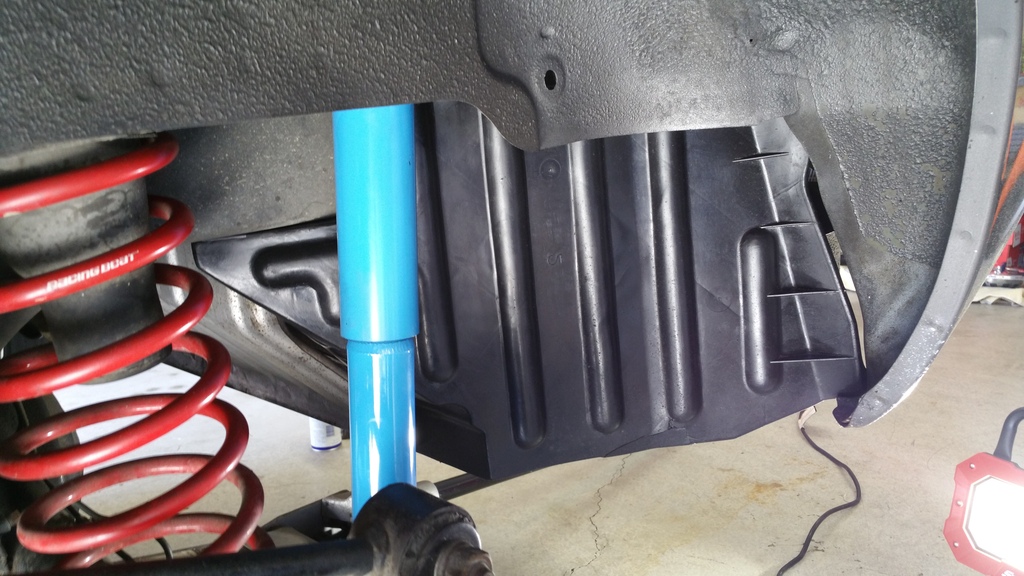

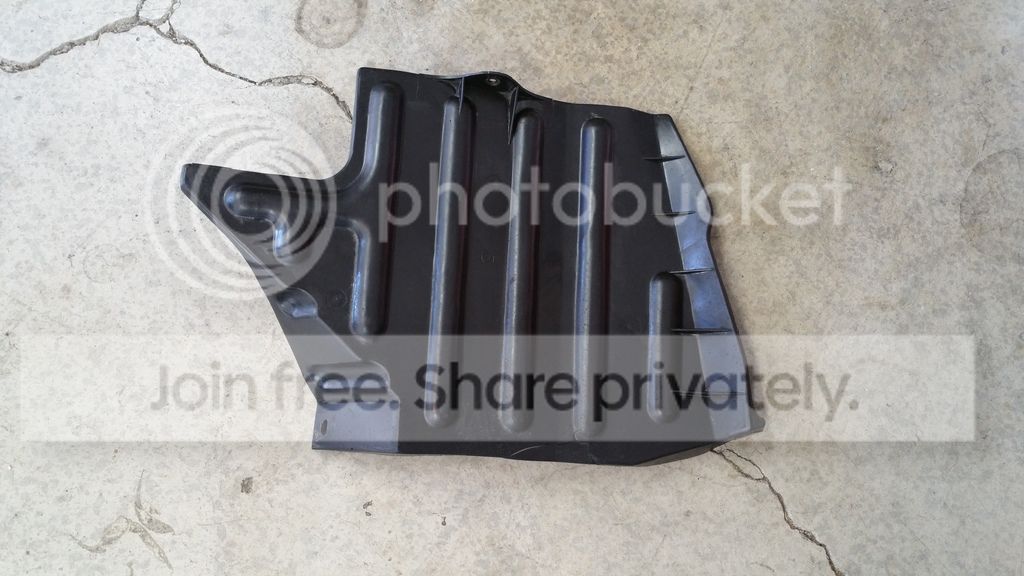

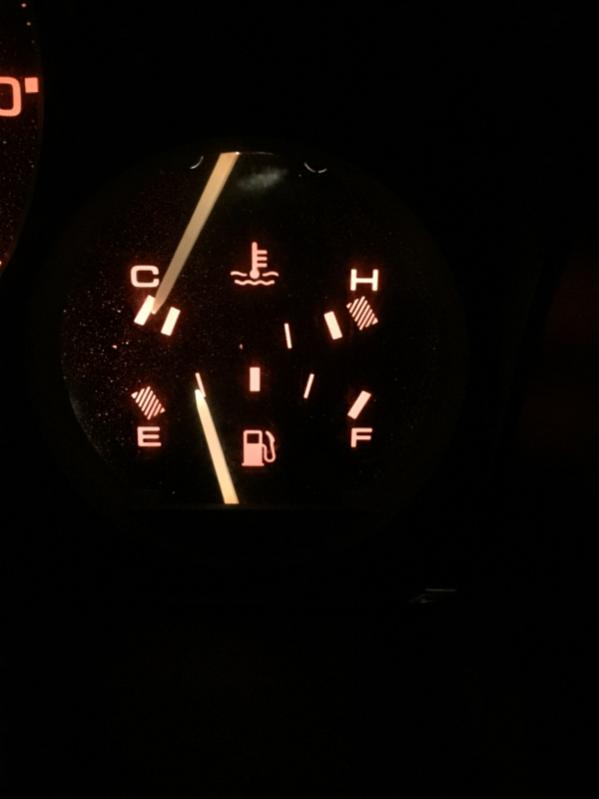

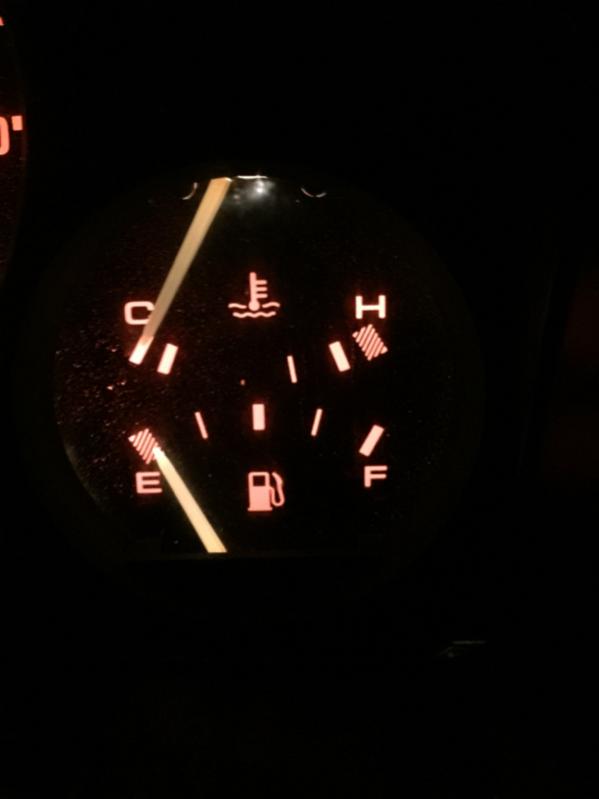

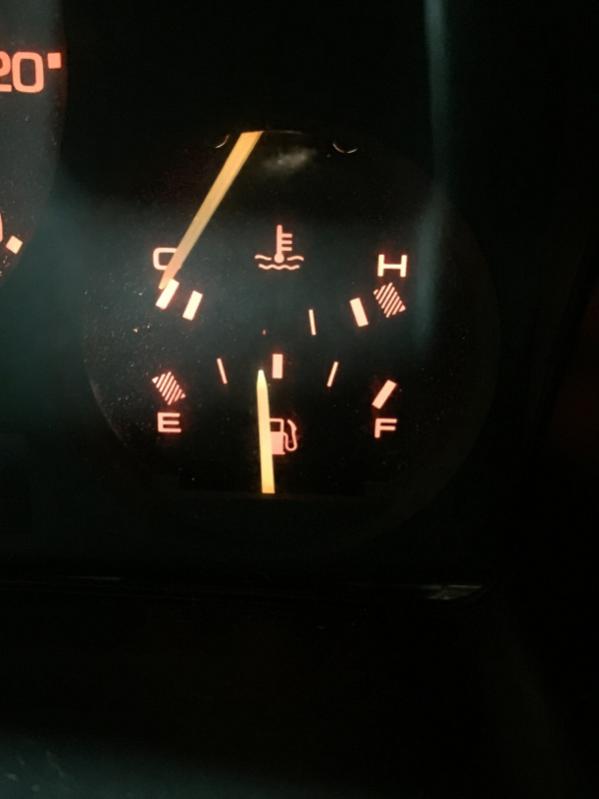

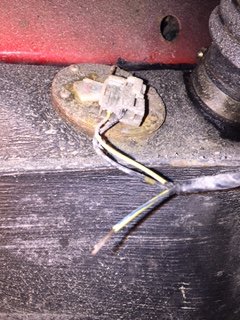

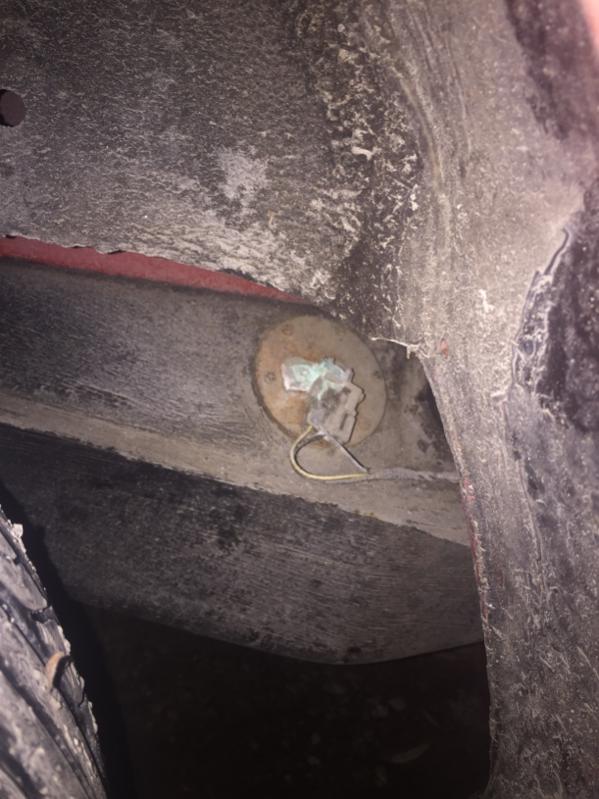

As you can see the connector has corrosion and this is before I cleaned it up pretty good. The corrosion changes the resistance going to the fuel gauge giving me different responses of the fuel level. After I cleaned it up it went back to what it use to be for a while but after I washed my car last night and spraying that area it went back to changing levels and dropping below empty in a matter of minutes.
#5
Full Member
Thread Starter
#6
Waffles - hmmm good
iTrader: (1)
Also, the sensor gets its reference for ground through the round base that it mounts to. Over
time the contact between the base and outside part of the sensor that connects to the base for
that ground gets weak, so the resistance goes up. The way the gauge works is the higher the
resistance value, the more towards empty the needle points.

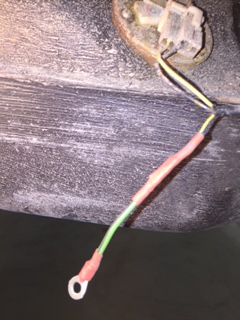

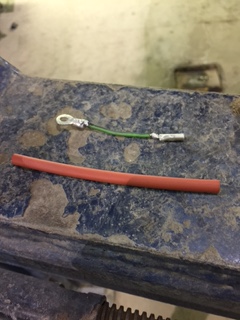

You can fix this without remove the sensor from the tank. You need to ground the base of the
sensor to the round base that bolts the sensor assembly into the tank. I did this by running a
wire from the sensor base and putting it under one of the mounting screws.
time the contact between the base and outside part of the sensor that connects to the base for
that ground gets weak, so the resistance goes up. The way the gauge works is the higher the
resistance value, the more towards empty the needle points.
You can fix this without remove the sensor from the tank. You need to ground the base of the
sensor to the round base that bolts the sensor assembly into the tank. I did this by running a
wire from the sensor base and putting it under one of the mounting screws.
Trending Topics
#8
Full Member
Thread Starter
Also, the sensor gets its reference for ground through the round base that it mounts to. Over time the contact between the base and outside part of the sensor that connects to the base for that ground gets weak, so the resistance goes up. The way the gauge works is the higher the resistance value, the more towards empty the needle points. You can fix this without remove the sensor from the tank. You need to ground the base of the sensor to the round base that bolts the sensor assembly into the tank. I did this by running a wire from the sensor base and putting it under one of the mounting screws.
#10
Full Member
Thread Starter

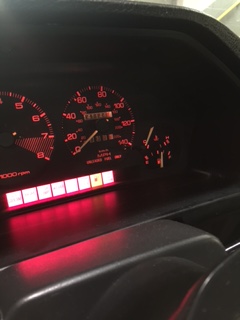

Well got it all working, but two things, it tells my my real fuel amount when the key is turned with the dash lights on but when I start the car the gauge drops down about 1/4 tank of what the real fuel amount is and the fuel light stay on and blinks (from fuel moving around?) Maybe it'll fix itself or something lol but I got it all working just there is a bug to it. Anybody have ideas of what this little bug could be?
Last edited by Jere Urso; 03-26-15 at 08:30 PM.
#11
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,904
Received 2,646 Likes
on
1,874 Posts
#13
Full Member
Thread Starter
#14
Full Member
Thread Starter
Well, found out that my ground caused parasitic load and my battery is now low and won't start my car so I threw it on the charger. Disconnected my ground until I figure out what's going on. Does anybody know how this fuel sending unit is wired or ever looked at the inside of it to help me out because I need it.
#16
Full Member
Thread Starter
#17
Full Member
Thread Starter
But at the same time this doesn't make sense because if it was causing parasitic load wouldn't the gauge be reading with the key off?
Last edited by Jere Urso; 03-29-15 at 09:34 PM.
#19
Full Member
Thread Starter
So while reading that, my ground wire has to be ground to the rivet in the middle of the baseplate and its not. That must be the reason it's all screwy, now I gotta figure how to get a good attachment of my ground on that corroded rivet.
#21
1st-Class Engine Janitor
iTrader: (15)
#22
Waffles - hmmm good
iTrader: (1)
remember now and then tucked the other end under one of the screws holding
the assembly to the tank.
#23
Full Member
Thread Starter

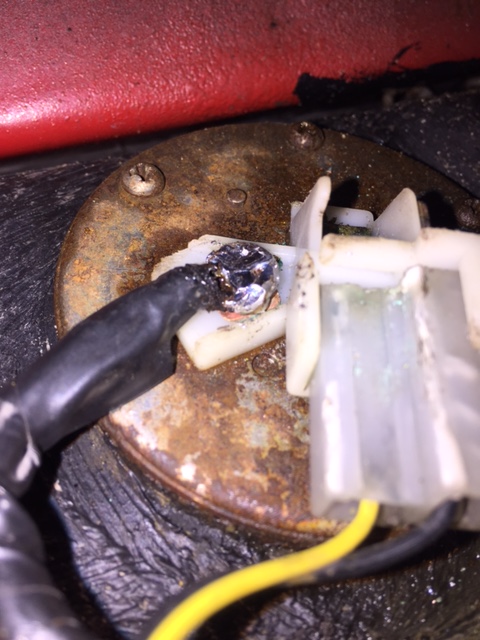

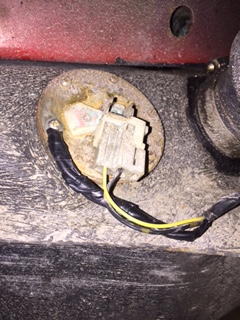

Well, now its actually all working, after cleaning the copper contact where the old ground broke off I basically just dumped solder between the two connections to make sure it wouldn't break free. After I took this picture I heat shrunk electrical tape over the connection. If corrosion ever eats your ground for your fuel level sender, this is something you could do.
Last edited by Jere Urso; 04-08-15 at 09:31 AM.
#24
Full Member
Thread Starter
Would the low fuel light come up if the gauge doesn't work? If the light illuminates with the others before starting means the connection is good? The ground must not be good enough because the gauge on the dash just quit working after a week of working lol Such a pain.
