fmic pictures???
10-04-03, 11:06 AM
#1
i say what i want
Thread Starter
Join Date: Aug 2002
Location: richmond, va
Posts: 1,866
Likes: 0
Received 0 Likes
on
0 Posts
fmic pictures???
im curious to see how other people have mounted them. i have a starion intercooler i mounted with some fabricated supports. its kinda, just there. functionally, i think it will work well, but it looks out of place. either way, i dotn care, im always fuction of looks, but like i said, i wanted to see what yall have done.
.Trending Topics
10-04-03, 06:35 PM
#8

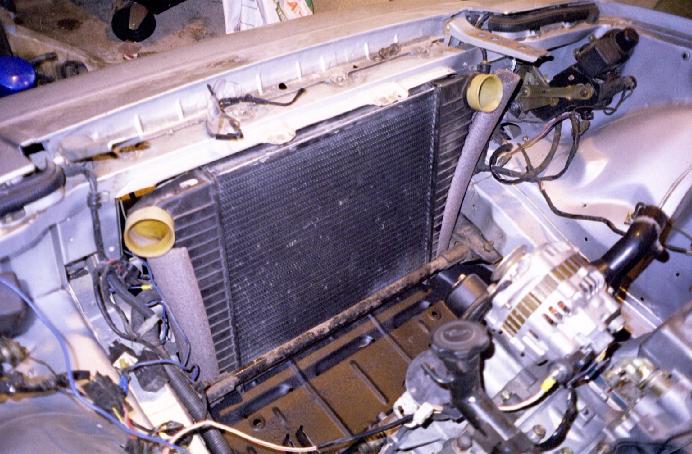

heres a 87 vovlo intercooler.
I got it for 17 BUCKS it is perfect.
Fits perfectly, doesnt even need to be boltedd down, it is just a interference fit between the belly pan and the front hood piece.
I had to trim off this piece of metal on the cooler, but then I just loosened the belly pan bolts alittle and it pops into place, then just tighten the pan agian.
I got it for 17 BUCKS it is perfect.
Fits perfectly, doesnt even need to be boltedd down, it is just a interference fit between the belly pan and the front hood piece.
I had to trim off this piece of metal on the cooler, but then I just loosened the belly pan bolts alittle and it pops into place, then just tighten the pan agian.
10-04-03, 11:39 PM
#12
i say what i want
Thread Starter
Join Date: Aug 2002
Location: richmond, va
Posts: 1,866
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by Viperx7
I've also got a Starion IC. It fit pretty well with the nosepiece on.
I've also got a Starion IC. It fit pretty well with the nosepiece on.
10-06-03, 05:50 AM
#22
i say what i want
Thread Starter
Join Date: Aug 2002
Location: richmond, va
Posts: 1,866
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by web777

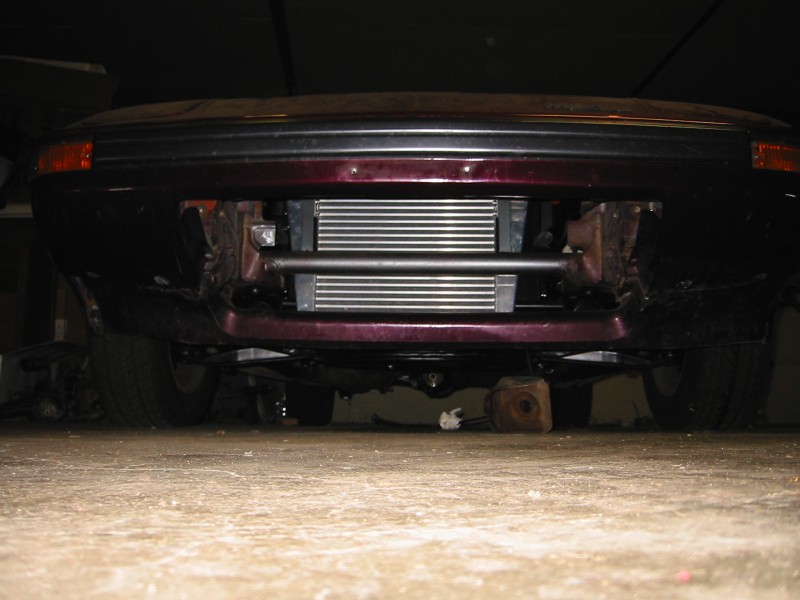

Heres' mine, right behind the grill.
Heres' mine, right behind the grill.
10-06-03, 10:11 AM
#23
Unconfirmed
Join Date: Oct 2002
Location: florida
Posts: 632
Likes: 0
Received 0 Likes
on
0 Posts
onepointone show us how yours is mounted. I used the stock mounting tabs on the starion ic bolted to L brackets I made. I also used the stock t2 rubber washers/mounts to help cushion any shock/shake. I am a little worried about the starion tabs because they where bent by the previous owner and I had to bend them back. I will try to post a better pic latter.
10-06-03, 05:07 PM
#24
Rotary Enthusiast
Join Date: Mar 2003
Location: LOS ANGELES
Posts: 1,228
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by onepointone
thats more of what i wanted. is there anyway i can see how you mounted the intercooler and the radiator. the way mine is mounted right now, im sure something is going to rip it off or damage it hardcore, i just dont see any other way to mount it
thats more of what i wanted. is there anyway i can see how you mounted the intercooler and the radiator. the way mine is mounted right now, im sure something is going to rip it off or damage it hardcore, i just dont see any other way to mount it
I don't know how much you can see from here.
The radiator is stock mounted. I had u brackets (middle of pic) welded to the bottom of the ic and hose clamped it to the front bar. On the top, there is a bracket that is bolted to the bumper. It's slanted the same angle as the grill
10-06-03, 05:14 PM
#25
Rotary Enthusiast
Join Date: Mar 2003
Location: LOS ANGELES
Posts: 1,228
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by RotorMotorDriver
Woah, what are you running under the hood there web?
~T.J.
Woah, what are you running under the hood there web?
~T.J.
Stock engine and EFI!
