FD Racer

check it out you guys....I've been procrastinating on getting this dyno sheet posted, mostly due to no scanner, but here are some crappy pictures:

Paradox

iTrader: (1)

looks pretty good, specially pulling way past 7K!

Hyper4mance2k

iTrader: (40)

damn that's awesome!! What's done to it?

Max7

Read his sig

Nice job by the way, that has to be a blast to drive.

Phiber Optik

iTrader: (2)

At the flywheel? or on a chassis dyno?

d0 Luck

very nice. saw your car @ 7stock this year and it's really remarkable what you've done. no short cuts taken

Rotor13B

But but but, isn't the RB exhaust restrictive?

FD Racer

Thanks you guys. Those numbers are from an engine dyno.....so Flywheel.
some more engine details:
12a side/center 4 port housings streetported with racing beat templates
gsl-se rotor housings
S5 high compression rotors
stock apex seals
50mm throttle body injection, 4 - 550cc injectors

oh and yes it is a blast to drive
I'm going to Willowsprings tomorrow, I can hardly wait....

Blake

I have a question: why does Mazdatrix have one of my photographs on their dyno printouts?! The photograph is copyrighted and was of an engine built at Pineapple Racing.

Hyper4mance2k

iTrader: (40)

did you have the full rb sp exhaust on the engine with those numbers?

rotarygod

iTrader: (1)

I saw this car as well. Very nice. This engine shows exactly how everyone else out there is messing up. Racing Beat streetport template used to get the port sizing. Why people call it conservative and then go larger only to put down less power is beyond me. Racing Beat streetport exhaust. I had one. Nice unit. Some people say Racing Beat mufflers are restricitive. This would seem to say otherwise. This must mean all the "expert" opinions that are so prevalent on the forum that state the opposite of how this is done are actually right and this more conservative route is wrong. Just remember that 1 result is worth more than a thousand expert opinions. This is how to do a motor. Nice job.

Directfreak

iTrader: (2)

Also, is that NET Wheel HP? Or is it Calculated Flywheel HP based off
a wheel Dyno?

I am not used to that kind of dyno sheet, so it's a little confusing for me.

Anyway you look at it, those are awesome numbers..
Please post more pics of your car now.. It really must be fun now..

FB II

now imagine if you had a snail on the side of you engine!!!! MUUHUHAHAHAHAAAAAAA

FD Racer

I have no idea.


Yes. At Mazdatrix they have a full rb sp system just for the dyno...so it matches the one in my car exactly.


Wow. Thank you. I too like the RB system, the only reason I would ever change it is to save weight...that thing weighs a ton.


Thanks. It is calculated flywheel horsepower. It was an engine dyno...meaning engine out of the car bolted directly to the dyno. It still has to "calculate" the horsepower, but it is completely different than a chassis dyno that has to measure threw wheels, axels, diff, trans, etc. limme see if I can muster up some pics

FD Racer

https://www.rx7club.com/forum/attach...hmentid=138702
http://us.f1.yahoofs.com/users/3fad2...w6dVDBHsQyfezl
http://us.f2.yahoofs.com/users/41e19...QgDdDBgSnATuNy
http://us.f2.yahoofs.com/users/41e19...4RXdDB1CoQinPS

Hyper4mance2k

iTrader: (40)

last 3 links do not work!

FB II

hmm, so in driving form you have around 190rwhp. still not bad, how much money you spend on that motor? just curious

FD Racer

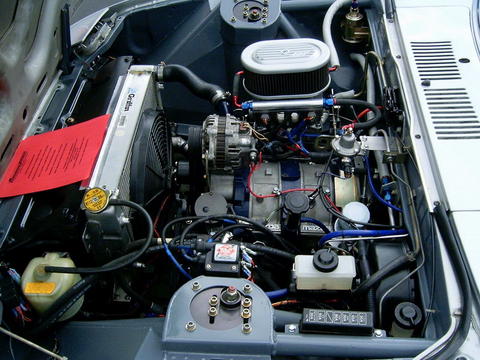

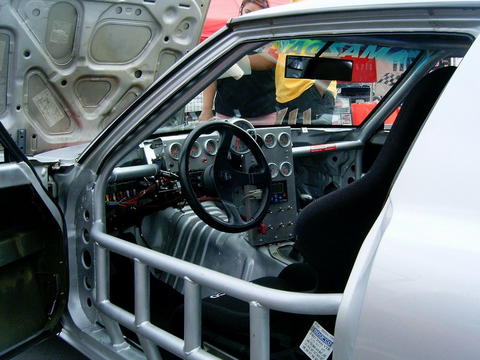

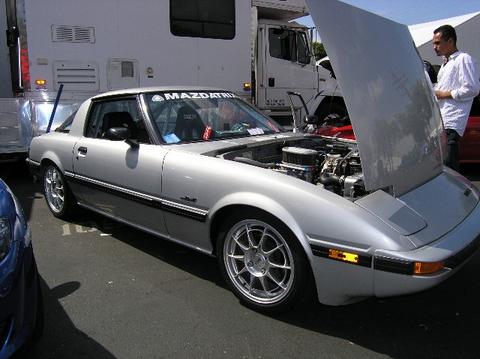

here we go

d0 Luck

that's a winner right there. btw, are you still on the stock mazda recirculating ball steering setup? or have you switched over to rack and pinion?

FD Racer

I think it converts to more than 190rwhp...maybe 205? I want to take it to a chasis dyno to see the differerance between the two.
I didn't keep track of cost very well. Not as much as you might think...I'd say it was pretty average. I did most of the labor, so that really helped.

FD Racer

thanks. I tried the r&p but did'nt like it on the track...it was cool on the street though. So I sold the r&p on eBay and installed full powersteering with a custom adjustable pressure valve to dial in just enough assist...works great.

d0 Luck

custom power steering? or mazda's recirculating ball w/ power steering?

FD Racer

The only thing custom is the adjustable valve and a PS fluid cooler I added. So other than some braided lines and a moog HD idler arm it's all stock mazda PS parts off a gsl-se including the recirculating ball steering box

Pele

iTrader: (28)

Nice numbers out of an N/A... Anything planned to increase those numbers?

It's a far cry from the stock 100 or 135.

d0 Luck

interesting.. my buddy swears that the GSL-SE power steering robs a very significant power. his previous setup was a 12a SP on modified nikki carb w/ other goods done to it. also, you haven't experienced steering play as the days go on?

any link to this moog heavy duty idler arm? if it works for you, i might have to try it out for myself.
