FB factory headunit removal?
Been searching for past hour and cant find a how-to or description on how to remove the stock radio.
Im really more concerned on removing the surrounding panel piece i dont want to break anything i just had to whole interior re-done. any help would be really appreciated.
Im really more concerned on removing the surrounding panel piece i dont want to break anything i just had to whole interior re-done. any help would be really appreciated.
#2
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,780
Received 2,565 Likes
on
1,824 Posts
on and 84-85, you pull the fan and temp ***** off, and there is a 14mm nut behind each one. then you pull the ashtray out and there are two screws. then you need to pop the shifter plate off, and then the center panel can slide out. there are two light bulbs that get twisted off, and then that's it.
then the radio unscrews
then the radio unscrews
#3
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,780
Received 2,565 Likes
on
1,824 Posts
81-83 i think there are two screws on top, vertically. two near the bottom, and then you unscrew the climate control *****, and then it should almost fall off
#5
Full Member
Thread Starter
Join Date: Apr 2012
Location: aurora
Posts: 167
Likes: 0
Received 0 Likes
on
0 Posts
simple enough, i bought a head unit, i noticed they do not make a single din for the the 83's what have you guys seen that work? i was going to get some l brackets and make it myself.
#7
Full Member
Thread Starter
Join Date: Apr 2012
Location: aurora
Posts: 167
Likes: 0
Received 0 Likes
on
0 Posts
ok got it all off, ran into a small problem...i cant find the speaker wires to the front and rears anybody got a pic of what that plug looks like, the one i connected it to wouldnt turn them on or anything....anybody?
Thanks again
Thanks again
Trending Topics
#8
The speaker wires are run from the factory amplifiers in most RX-7s instead of the head unit. Depending on the year of the car, the amps will either be under the drivers seat and left rear bin or one under each rear bin.
#9
It's been a long time since I messed with FB stock stereo stuff, but wasn't there a round DIN cable that ran from the stereo to the fader joystick, from the joystick to the cargo bin amps, then from the amps to the speakers?
Anyway, with an aftermarket head unit you can't use any of that. Run new speaker wire. It's pretty easy to do in these cars.
Anyway, with an aftermarket head unit you can't use any of that. Run new speaker wire. It's pretty easy to do in these cars.
#10
Full Member
Thread Starter
Join Date: Apr 2012
Location: aurora
Posts: 167
Likes: 0
Received 0 Likes
on
0 Posts
OOOO ok so run new speaker wires eh, yea i found the diagram that shows the colors to the speaker wires and i found 2 plugs one for the rear and one for the front, the aftermarket jumper harness doesnt come with 2 just one, so im assuming i am going to have to run separate wires eh?
that does make more sense get some speaker wire and just re-run them.
Anybody running the factory speakers with aftermarket head unit, how are they?
that does make more sense get some speaker wire and just re-run them.
Anybody running the factory speakers with aftermarket head unit, how are they?
#13
Full Member
Thread Starter
Join Date: Apr 2012
Location: aurora
Posts: 167
Likes: 0
Received 0 Likes
on
0 Posts
Ok I got it all working and wired them directly to new headunit. I must say the stock speakers don't sound too shabby at all, once you start going higher in volume they start to show their age. But I was able to trim the factory face plate to mount my single din 7" stereo and its herrafrush and came out very clean, pics to come, thanks to m boy israel for all his smart ideas (driftinmyfc)
#14
Full Member
Thread Starter
Join Date: Apr 2012
Location: aurora
Posts: 167
Likes: 0
Received 0 Likes
on
0 Posts

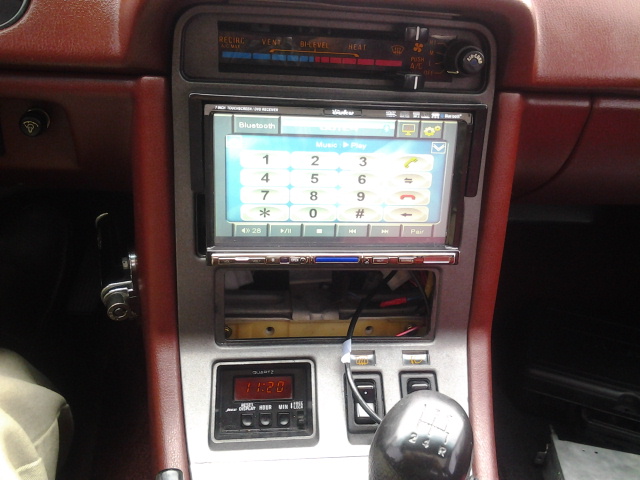

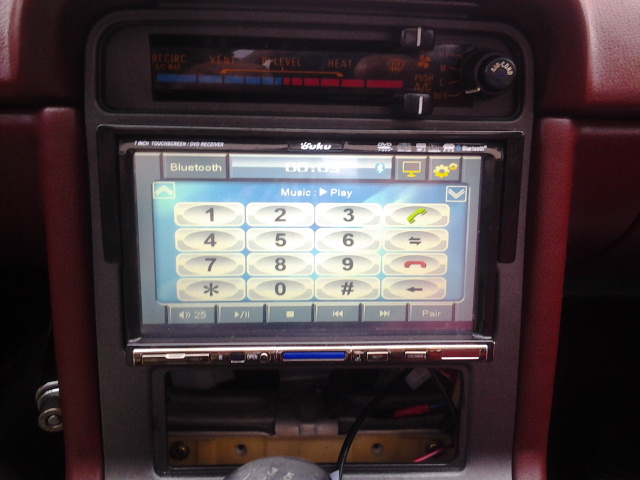

After quite a bit of trimming to the factory opening for stock stereo i was able to flushly fit my new head unit. works/fit's like a glove, i love it. head unit does no retract it so it will cover the ash try location.
the bottom where the equalizer is will have 3 gauges for my nitrous setup.
the bottom where the equalizer is will have 3 gauges for my nitrous setup.
