engine uneven?
#1
wheres the water goin?
Thread Starter
iTrader: (9)
Join Date: May 2005
Location: Nor Cal
Posts: 1,586
Likes: 0
Received 0 Likes
on
0 Posts
engine uneven?

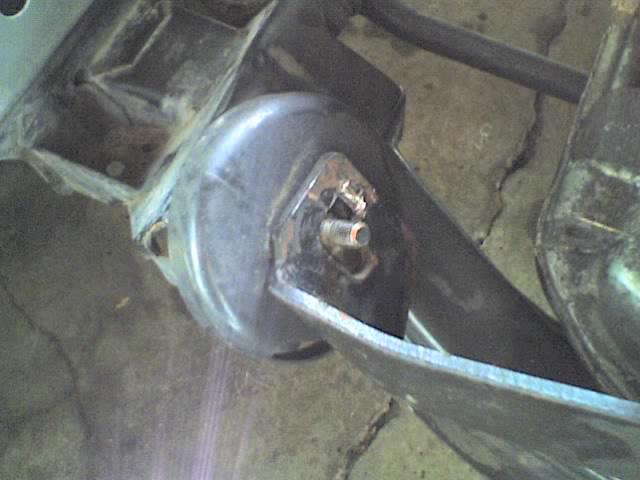

im installing my 85 SE engine into my S and it doesnt seem to look right it looks like its cocked to the driver side of the engine bay. can some one confirm this? i have a pic of how it sits and one also of the passenger side of the bay with the front mount the attachs to the oil cover. i notched that mount and you ll notice that its not even filling the notched part of the braket. someone please help. oh and on the driver side where i notched it its fully in the notched portion.
#2
Rotary Enthusiast
iTrader: (1)
Join Date: Jul 2004
Location: Rocket City, Alabama
Posts: 1,035
Likes: 0
Received 2 Likes
on
2 Posts
The stock engine mount puts the centerline of the front pulley offset about 2" to the driver's side.
Unless something is messed up in the back, at the tranny mount, you should not need to notch the front mounts. Try rotating the front mounts; some of them have off-centric studs and rotating will make them move around.
Unless something is messed up in the back, at the tranny mount, you should not need to notch the front mounts. Try rotating the front mounts; some of them have off-centric studs and rotating will make them move around.
#5
Full Member
Join Date: Sep 2006
Location: Hickville, Oregon
Posts: 177
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Midwest 7's
lol, alex 7 was worried over this same problem when we installed his engine.
as long as the engine and tranny are bolted down and splined together you have nothing to worry about.
as long as the engine and tranny are bolted down and splined together you have nothing to worry about.
#6
sellout
iTrader: (4)
Join Date: Jan 2005
Location: Lawrence KS
Posts: 3,078
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by -=DanK=-
Im no engine swap guru but it seems like that if the engine and tranny are at the wrong angle, you could start either going through U-joints or tear up your rear transmission seal, or both.....
like on off road rigs when you lift it you can change the angle quite a bit before you run into problems.
plus im sure his isnt off by very much if any, the engine does sit in there a tiny bit sideways.
#7
wheres the water goin?
Thread Starter
iTrader: (9)
Join Date: May 2005
Location: Nor Cal
Posts: 1,586
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Midwest 7's
lol, alex 7 was worried over this same problem when we installed his engine.
as long as the engine and tranny are bolted down and splined together you have nothing to worry about.
as long as the engine and tranny are bolted down and splined together you have nothing to worry about.
thanks for the input, im not as worryd about it as b4 but is there a way to correct it. i just dropped the engine today i do have the SE cross member but its still on the other car and i dont want to pull it unless i have too!
edit: the tranny and engine are mated flush!
Trending Topics
#9
wheres the water goin?
Thread Starter
iTrader: (9)
Join Date: May 2005
Location: Nor Cal
Posts: 1,586
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Midwest 7's
you should just be able to notch the engine mount bar as you did.

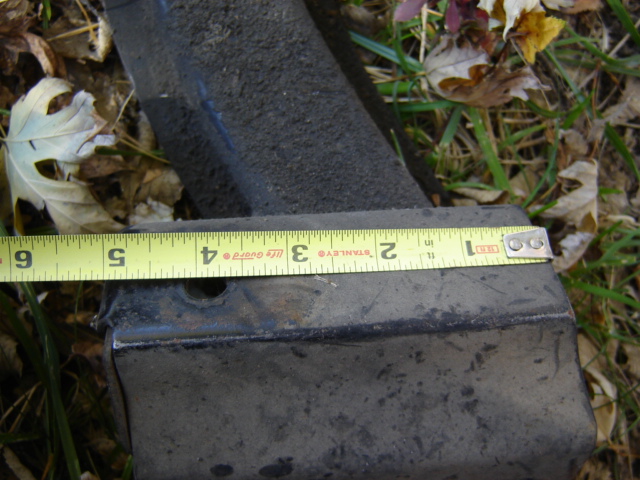

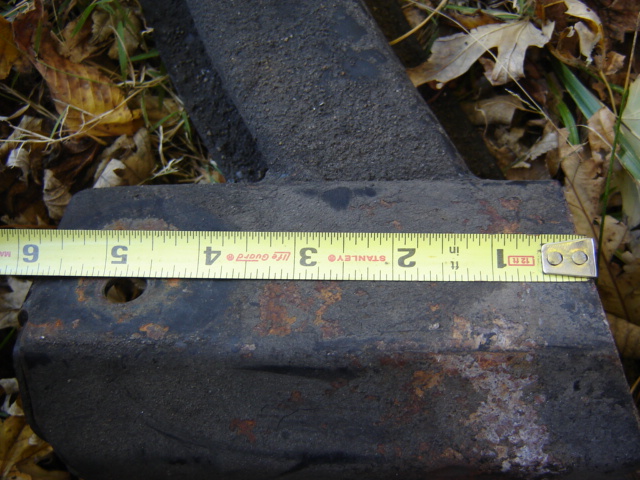

heres the difference in the crossmember for anyone else interested in a 13b swap.
heres the difference in the crossmember for anyone else interested in a 13b swap.
is it me or on the SE CM it brings the engine to the left alil more?
i just got done pulling the SE CM and im going to put it in tomorrow. im just going to lift the car and the engine at the same time, do a quick swap and be done with it!
#10
FB+FC=F-ME
All my engines have sat this way too.Ive never lost a Ujoint or had any undue failures because of it.
This was discussed a while back,but Im not sure if a conclusion was reached as to why they sit crooked......
This was discussed a while back,but Im not sure if a conclusion was reached as to why they sit crooked......
#15
Lapping = Fapping
iTrader: (13)
Originally Posted by speedturn
Unless something is messed up in the back, at the tranny mount, you should not need to notch the front mounts. Try rotating the front mounts; some of them have off-centric studs and rotating will make them move around.
I have seen a difference of about 10mm between an '83 and '84 front cover mount. Both from 12As. The '84 unit did not fit in an '83 chassis correctly. You can ask PercentSevenC about this as it was his car in which I first noticed this peculiarity.
#16
wheres the water goin?
Thread Starter
iTrader: (9)
Join Date: May 2005
Location: Nor Cal
Posts: 1,586
Likes: 0
Received 0 Likes
on
0 Posts
well the thing is that they both are 85 cars!i did change the CM and it looks like it did change alil but it could be the power of the mind in wanting to be better. i ll take a pic of it!
