Is An Electric Fan That Much Better Then The Original Belt Fan
01-28-08, 10:24 AM
#77
Jeff's point behind this statement was how are you going to drive a mechanical fan facing the radiator when the majority of cars being churned out by the OEM's are front wheel drive. The engine is facing the wrong way to use a mecahnical fan. They could do it, but I don't think they would get much cooling out of pulling air off the fender:P The engine placement leaves them no choice but to use an e-fan.
01-28-08, 11:47 AM
#79
What!? Red leather IS the besT!
-GSL-SEX2
I agree completely.
In fact, for the best all around performance, you want a healthy stock efan coupled to a pristine stock red leather interior.
Good for at least and extra 10-15 HP. I know, I have this set up in all my GSLs.
Here's some documentation:
http://youtube.com/watch?v=Oi7BANPkh-Y
-GSL-SEX2
I agree completely.
In fact, for the best all around performance, you want a healthy stock efan coupled to a pristine stock red leather interior.
Good for at least and extra 10-15 HP. I know, I have this set up in all my GSLs.
Here's some documentation:
http://youtube.com/watch?v=Oi7BANPkh-Y
01-28-08, 02:43 PM
#80
My 7 is my girlfriend.
iTrader: (5)
Join Date: Feb 2006
Location: London, Ontario, Canada
Posts: 3,162
Likes: 0
Received 1 Like
on
1 Post
Sure they COULD. But most people forget, OEM's don't want to build a car that is difficult or time consuming to manufacture. Why do you think 85% of all modern cars are FWD? Packaging. They can install the entire drivetrain and front subframe all in one go, instead of bolting little pieces on. On top of that, we're talking about a fan driven by the pulleys. That's an awful lot of linkage to run a fan when e-fans are available and take up less space.
Last edited by orion84gsl; 01-28-08 at 02:51 PM.
01-28-08, 04:01 PM
#81
I love RX-7s
iTrader: (1)
Join Date: Jul 2007
Location: Sydney
Posts: 238
Likes: 0
Received 0 Likes
on
0 Posts
Interesting discussion, its amazing how much passion there is about the subject
Thats exactly what mine is like. Can anyone recommend which fan clutch I should be ordering from that Dayco part list?
Thats exactly what mine is like. Can anyone recommend which fan clutch I should be ordering from that Dayco part list?
01-28-08, 05:01 PM
#83
Hey, check this out, mechanical vs electrical fans for RX-7's.
For the S4, but still a 7
http://howto.globalvicinity.com/gv_w...=149&co=1&vi=1
For the S4, but still a 7
http://howto.globalvicinity.com/gv_w...=149&co=1&vi=1
01-29-08, 12:06 AM
#84
Lives on the Forum
Wow, big argument over little upgrade!
I installed the twin efans from a 1st gen MR2 a couple years ago. I did it properly, with an adjustable thermostat controller that only runs the fans when the coolant reaches a certain temp.
I paid 15 bucks for the fans, and 18 bucks for the controller. I stayed with the stock alternator because I've never seen a lack of voltage under any conditions to date.
The fans were perfectly capable of keeping things cool. In fact, when I switched to a 2nd gen radiator I had problems re-mounting the fans and ended up only using one of the twins as a "short term" solution. 18 months later I still haven't put the other fan back on, and I'm still running cool, even during races on the hottest days. Cooling power to spare, in my opinion and as observed in real life.
The car definitely feels like it has a lot more "zip" in 1st and 2nd gears. And it removes a lot of clutter from the engine bay.
All I can say is, I did the mod and I'm happy with the results. If you want pics, they are all over this site so just search MR2 efans and I'm sure you'll find one of them.
I installed the twin efans from a 1st gen MR2 a couple years ago. I did it properly, with an adjustable thermostat controller that only runs the fans when the coolant reaches a certain temp.
I paid 15 bucks for the fans, and 18 bucks for the controller. I stayed with the stock alternator because I've never seen a lack of voltage under any conditions to date.
The fans were perfectly capable of keeping things cool. In fact, when I switched to a 2nd gen radiator I had problems re-mounting the fans and ended up only using one of the twins as a "short term" solution. 18 months later I still haven't put the other fan back on, and I'm still running cool, even during races on the hottest days. Cooling power to spare, in my opinion and as observed in real life.
The car definitely feels like it has a lot more "zip" in 1st and 2nd gears. And it removes a lot of clutter from the engine bay.
All I can say is, I did the mod and I'm happy with the results. If you want pics, they are all over this site so just search MR2 efans and I'm sure you'll find one of them.
01-29-08, 02:04 AM
#85
Hunting Skylines
Join Date: Apr 2001
Location: Brisbane, Queensland, Australia.
Posts: 3,431
Likes: 0
Received 2 Likes
on
2 Posts
I've used both the stock fan and then a 16" electric on my 13BT. The clutch fan does seem to keep the engine ever so slightly cooler. With the clutch fan the temp was a solid 88*C according to the Microtech. With the electric fan it hovers at about 90*- 92* when cruising so I've set the Microtech to turn it on at 93*. It only ever comes on when stationary or when I'm pushing it very hard. In the end it's personal preference. Both do the job if set up correctly.
01-29-08, 02:33 AM
#86
Registered Offender
Join Date: Jul 2006
Location: Bishopville, SC
Posts: 689
Likes: 0
Received 0 Likes
on
0 Posts
I don't think that adequate cooling is at question here, its whether or not there is additional hp gained by utilizing an efan over the stocker. There are numerous posts here with dyno results showing that additonal hp is gained with an efan. Why is this thread still around?
01-29-08, 02:38 AM
#87
Hunting Skylines
Join Date: Apr 2001
Location: Brisbane, Queensland, Australia.
Posts: 3,431
Likes: 0
Received 2 Likes
on
2 Posts
I don't think that adequate cooling is at question here, its whether or not there is additional hp gained by utilizing an efan over the stocker. There are numerous posts here with dyno results showing that additonal hp is gained with an efan. Why is this thread still around?
01-30-08, 12:56 PM
#88
Administrator
iTrader: (8)
Join Date: Nov 1998
Location: So. Arlington, TX!!!
Posts: 12,974
Likes: 0
Received 59 Likes
on
36 Posts
Originally posted by REVHED
I've used both the stock fan and then a 16" electric on my 13BT. The clutch fan does seem to keep the engine ever so slightly cooler. With the clutch fan the temp was a solid 190*Fahrenheit according to the Microtech. With the electric fan it hovers at about 194*- 198*Fahrenheit when cruising so I've set the Microtech to turn it on at 199*Fahrenheit. It only ever comes on when stationary or when I'm pushing it very hard. In the end it's personal preference. Both do the job if set up correctly.
I've used both the stock fan and then a 16" electric on my 13BT. The clutch fan does seem to keep the engine ever so slightly cooler. With the clutch fan the temp was a solid 190*Fahrenheit according to the Microtech. With the electric fan it hovers at about 194*- 198*Fahrenheit when cruising so I've set the Microtech to turn it on at 199*Fahrenheit. It only ever comes on when stationary or when I'm pushing it very hard. In the end it's personal preference. Both do the job if set up correctly.
01-30-08, 10:34 PM
#90
Lives on the Forum
I don't recommend going with an electric fan.
I switch to electric in my 5.0 and have nothing but problems since. Fuses blowing, overheating, wiring problems, fitment, blah blah blah. Save yourself the headache and stick with what Mazda and it's millions of dollars in research and design did. Factory is almost always superior (in quality, fit, finish, duability) than aftermarket.
I switch to electric in my 5.0 and have nothing but problems since. Fuses blowing, overheating, wiring problems, fitment, blah blah blah. Save yourself the headache and stick with what Mazda and it's millions of dollars in research and design did. Factory is almost always superior (in quality, fit, finish, duability) than aftermarket.
01-31-08, 02:22 AM
#92
Rotary Freak
Join Date: Sep 2002
Location: SF BayArea
Posts: 2,815
Likes: 0
Received 0 Likes
on
0 Posts
Plenty of guys around the forum have spares. Even I have one. I bet you can get it for near shipping cost. If you lived near me you could come by and pick up my spare.
01-31-08, 02:32 AM
#93
Lives on the Forum
Since the MR2 was/is a mid engine car (supercharged, no less), with a front radiator, I think Toyota really went overboard with their cooling to avoid Fiero-like issues of overheating.
01-31-08, 02:44 AM
#94
Lives on the Forum

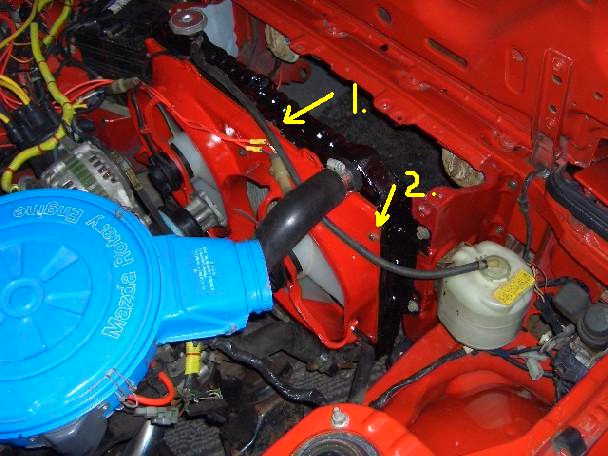

Here, I'll go ahead and post this picture again.
1. Shows where the "hook" on the fans hangs from the "lip" on the radiator.
2. Shows where you drill a hole and use one of the original (rx7) fan shroud bolts to complete the attachment (one hole/bolt per side).
Pretty simple. Mounting the unit itself took about five minutes.
1. Shows where the "hook" on the fans hangs from the "lip" on the radiator.
2. Shows where you drill a hole and use one of the original (rx7) fan shroud bolts to complete the attachment (one hole/bolt per side).
Pretty simple. Mounting the unit itself took about five minutes.
01-31-08, 11:06 AM
#95
CPS Motorsport
iTrader: (1)
Join Date: Oct 2005
Location: Fremont, CA
Posts: 1,358
Likes: 0
Received 0 Likes
on
0 Posts
Here, I'll go ahead and post this picture again.
1. Shows where the "hook" on the fans hangs from the "lip" on the radiator.
2. Shows where you drill a hole and use one of the original (rx7) fan shroud bolts to complete the attachment (one hole/bolt per side).
Pretty simple. Mounting the unit itself took about five minutes.
1. Shows where the "hook" on the fans hangs from the "lip" on the radiator.
2. Shows where you drill a hole and use one of the original (rx7) fan shroud bolts to complete the attachment (one hole/bolt per side).
Pretty simple. Mounting the unit itself took about five minutes.
01-31-08, 01:40 PM
#96
Administrator
iTrader: (8)
Join Date: Nov 1998
Location: So. Arlington, TX!!!
Posts: 12,974
Likes: 0
Received 59 Likes
on
36 Posts
Very nice install...it does look factory...the only thing I'd change would be to cut the bolts down that go into the waterpump so you can ditch the fan clutch stand/adaptor altogether...just remember to paint the water pump snout since it will now be sticking out for all to see from the water pump pulley itself, which I'd powdercoat...
01-31-08, 03:27 PM
#98
Waffles - hmmm good
iTrader: (1)
It is easy. I grabbed one from a 1st gen MR2 at pullapart for $20.00. Took most of my time cleaning it up and painting it. The installation was pretty easy. Mines similiar, the upper lip of the fan overlaps the lip on the radiator and then I have two bolts that screw into the original upper shrouds mounting points on the radiator mount.
I like the dual fans because I wired each fan on independent circuits so if one fan or relay blows the other fan will keep on working.
I'm not even getting into this debate :-)
I like the dual fans because I wired each fan on independent circuits so if one fan or relay blows the other fan will keep on working.
I'm not even getting into this debate :-)
01-31-08, 04:07 PM
#99
The main point i made that no one seems to be getting is that the clutch fan DOES ENGAGE TOO EARLY, optimal running temp would at LEAST 90degC ~ ~240degF, but the clutch fan fights to keep the coolant around 78degC ~172 degF, which is unnecessary energy expenditure, and also the coolant is cooler than you want it because atomization improves with higher temperature!
