Dual feed carb question
#1
Dual feed carb question
Ok so I know I have a dual feed carb. I'm going to install a carter fuel pump and holley FPR. I was looking at the install figure for the FPR and they suggest to use the second outlet to feed the the dual feed carb. See figure. Is this a good idea? I kind of wanted to use that port for a gauge. Or maybe just get a inline gauge? PDF of FPR 12-803 http://www.holley.com/data/Products/...199R7914-3.pdf
#3
Right now their is one fuel line coming up and their is a brass tee that goes to both sides of the carb. So it wouldn't help if both sides of the carb were feed off different sides of the FPR. I just want it kind of explained to me. I don't know much about carbs.
#5
blown up motors
iTrader: (1)
holly FPR suck get an aeromotive they are not much more money they have dual feed and a gauge port
here is a link to the site for the 1 you would need...http://www.aeromotiveinc.com/pdetail.php?prod=17
here is a link to the site for the 1 you would need...http://www.aeromotiveinc.com/pdetail.php?prod=17
#7
Senior Member
Join Date: Oct 2002
Location: Eugene, Oregon
Posts: 501
Likes: 0
Received 0 Likes
on
0 Posts

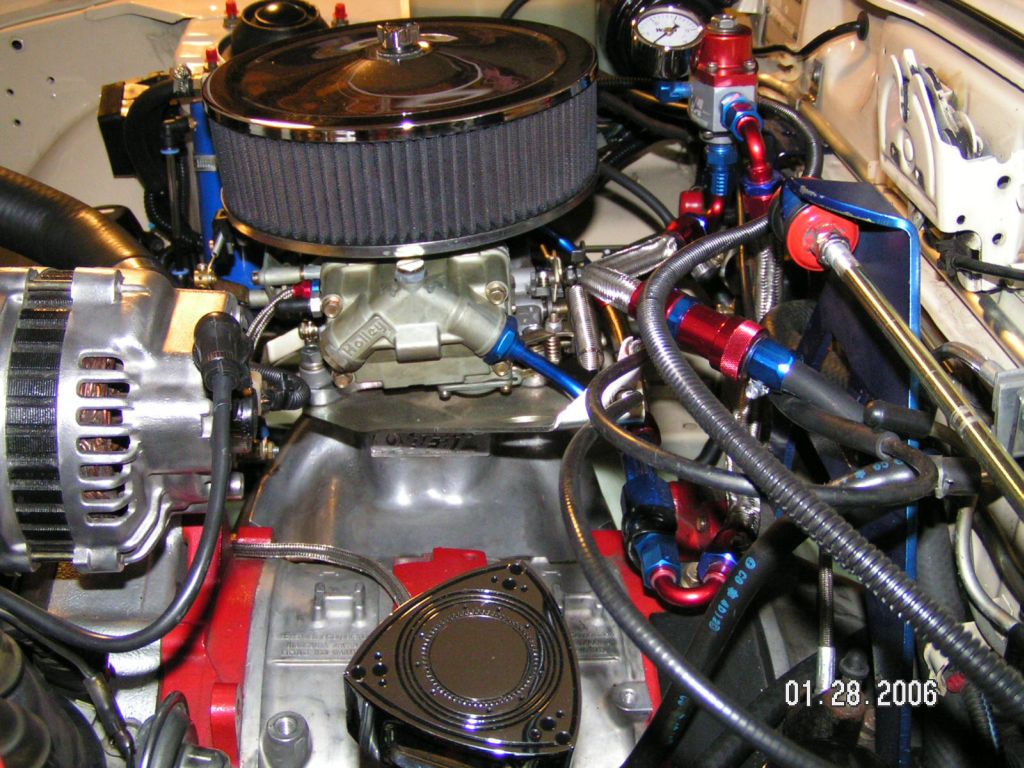

Holley Dual Feed steup.
Aeromotive FPR sinlge outlet to -Single inlet Dual Russel Inlet to
-Dual lines feeding the Holley Carb.
Hopefully this will help ya.
sgieldon
steve
Aeromotive FPR sinlge outlet to -Single inlet Dual Russel Inlet to
-Dual lines feeding the Holley Carb.
Hopefully this will help ya.
sgieldon
steve
