350xfire

iTrader: (1)

Hi guys, I just picked up a reasonably priced Dellorto 48 and was wondering if anyone could post some pics with their install as a side draft? I am interested in throttle bracket and OMP installation. I believe this one came from racing beat. Also, where to install the brake and distributor vacuum sources.
Thanks

t_g_farrell

iTrader: (1)

Heres some old pics of my dell setup. I have a T on threaded into the manfold on the side to
take off vacuum for the brakes and also from a PVC vaolve connected to the middle iron vent
near the base of the oil fill tube.

350xfire

iTrader: (1)

Great thanks, I guess my Dellorto is the Racing Beat prepped one as it has a couple of small long hose fittings coming out of the body for the OMP.
By any chance do you know which jets and needle you were running? Or which ones I need for non-ported 12A?
Thanks

t_g_farrell

iTrader: (1)

You should consult this site Gruntled.com - Dellorto Intake System. He has documented a lot about
the RB Dell setup, installation and jetting for various configurations.

350xfire

iTrader: (1)

Thanks...
Just one more request, how is the OMP connected to the carb? Can you post a pic?

350xfire

iTrader: (1)

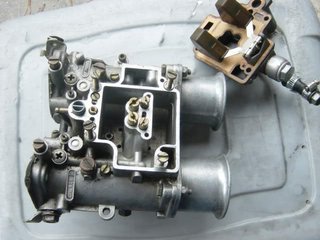

Can someone ID the following jets? I am waiting for a manual but figured I'd ask.
Thanks
[IMG][/IMG]

[IMG][/IMG]

[IMG][/IMG]

pinoyremix

I have a thread where we installed my dell, you can see barbs that were pressed into my manifold for omp lines

t_g_farrell

iTrader: (1)

If you look at my first pic you will see the OMP come up on the front side of the
carb and then plug into two nipples that should be on a RB prepped nikki.

350xfire

iTrader: (1)

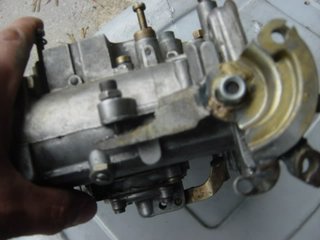

I meant the OMP shaft not the lines... My carb actually has two small barbs that were pressed in on top of it. I assume Racing Beat carb.
Thanks

Siraniko

iTrader: (13)

dellorto for 12-a has a nipple on the carb body. The OMP lines are connected there like the pix below. The omp rod is on throttle shaft facing the alternator.

t_g_farrell

iTrader: (1)

RB provided one for the Dell as it is a bit different from the stock rod in both the
bends and the connection at the carb.

350xfire

iTrader: (1)

Anyone know if the linkage parts are still available? I need the throttle cable bracket and possibly the OMP rod connector.
Thanks

Siraniko

iTrader: (13)

Make your own OMP rod using welding rod or similar. i believe the linkage is NLA but its not hard to fabricate

350xfire

iTrader: (1)

Thanks again... I'll see if I can strip it off the Nikki and adapt.

Starfox07

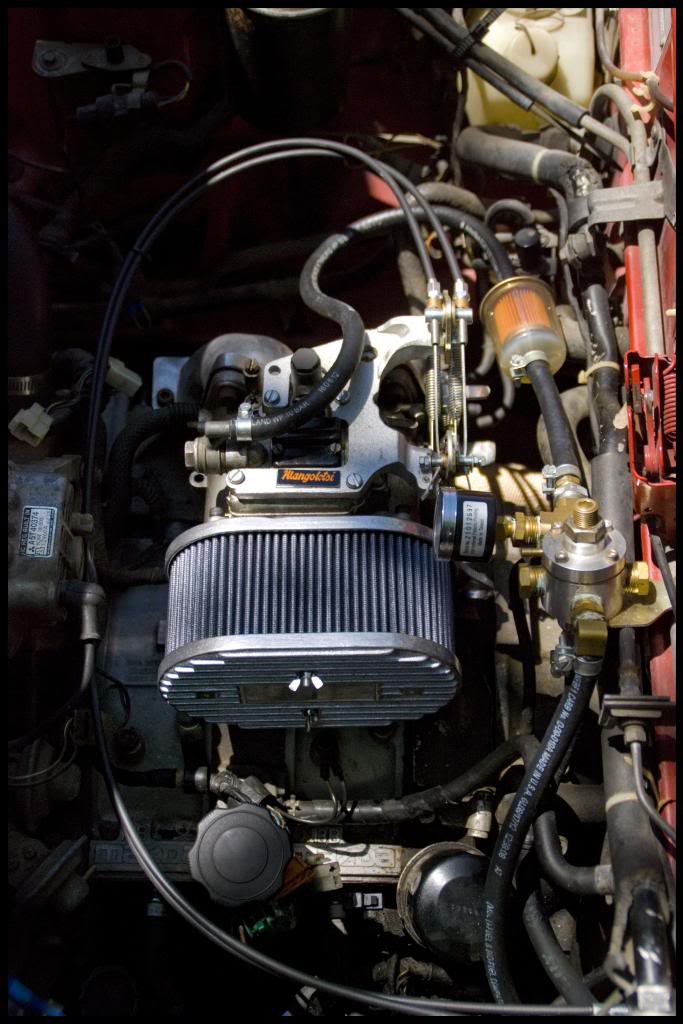

You could do that, or you could do what I did and buy a really really nice, adjustable throttle linkage kit. Here is my setup (my engine is currently blown as **** and the ca is 1700 miles away in pieces, but I digress). I didn't get to drive the car much, but the throttle feel was really good with this kit and it's highly adjustable (i think there are 9 separate adjustments)





Mine uses two throttle cables and the installation was slightly tricky but not too bad.

Available from here:
http://www.mangoletsimanifolds.com/linkages.html

I think they are about $100. Not cheap, but high quality.

Edit: I converted to premix, so I can't offer any OMP suggestions, sorry.

t_g_farrell

iTrader: (1)

A coat hanger makes a great source for the right sized wire to do the OMP linkage fab.

350xfire

iTrader: (1)

Damn, that looks nice, where did you source the parts?
Thanks for sharing
