lemonade

how can i use a 4 port turbo 13b block with my dellort. what lower intak manifold will bolt up to my racingbeat upper intake? can i use the 70's 4 port 13b 4 port manifold?

1984se

i would think so.

Im using the stock 6prt Lower mani with the RB upper mani.

I think the upper mani is the same for the 6 or 4 prt.

Good luck.

-Ryan

Re-Speed.com

iTrader: (3)

The RB upper manifold should bolt up to a GSLSE lower manifold -OR- the RB lower manifold. The old 4 port manifold will not work because it has a 4 bolt pattern for a carb where the GSLSE bolted to an upper manifold. I think RB still has the lower manifolds.

-billy

lemonade

i have a dellorty carb.
i have a corisponding racing beat upper intake manifold.
i need it to bolt to a lower manifold that bolts up to a 4 (4) port 13b. (as in, turbo II block)

i dont think im understanding you correctly, or you're not understanding me.

Re-Speed.com

iTrader: (3)

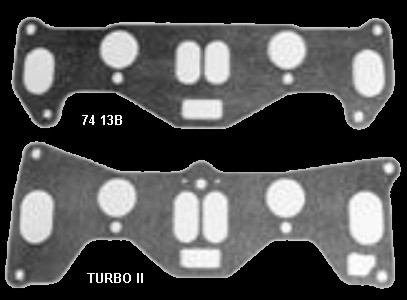

Here are the gaskets for the old school 13b and the turbo II 13b. The mounting holes do not line up.

Re-Speed.com

iTrader: (3)

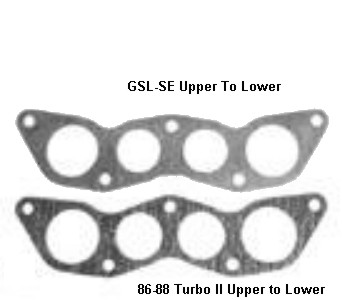

Here are the gaskets for the Upper to Lower manifold joints. Look more promising to me.

lemonade

yeah.....but the gsl-se is a 6 port.
the turbo II is a 4 port.

rwatson5651

iTrader: (5)

See if one of these is what you need


http://www.rotaryshack.com/Products/...sp?intView=100

Re-Speed.com

iTrader: (3)

Dude.......

You have the RB Dellorto carb.
You have the RB upper manifold.
The upper manifold will mount to a GSL-SE Stock lower manifold.
The GSL-SE stock lower manifold will not bolt up to the turbo motor. Look at 1st picture post
The GSL-SE mid gasket looks close to the mid gasket for the turbo mid gasket. Look at 2nd post.

If it were me I would go to the mazda dealer. Ask to see a 86-88 Turbo II upper to lower manifold gasket. Hold it up the the RB upper manifold and see if it matches. The you know all you need is a turbo II lower manifold to put it on your engine. Sometimes it take actually doing it to find out the answer.

-billy
