Checkball and weights
Hey guys taking the carb apart and cleaning it.
when i remove the accel pump circuit, the ball and weight came out of the middle hole...but only the ball came out of the other one..is it stuck in there? there shoudl be a weight in there as well right?
when i remove the accel pump circuit, the ball and weight came out of the middle hole...but only the ball came out of the other one..is it stuck in there? there shoudl be a weight in there as well right?
#6
Full Member
Thread Starter
Join Date: Sep 2007
Location: St Catharines, ON, Canada
Posts: 52
Likes: 0
Received 0 Likes
on
0 Posts
well, all done the rebuild and i pu the carb back on and turned the key to ON. No leaks outside the carb, but the jets are dripping gas. Any ideas where i should look.
Trending Topics
#9
Nikki-Modder Rex-Rodder
Join Date: Feb 2001
Location: Trying to convince some clown not to put a Holley 600 on his 12a.
Posts: 2,890
Likes: 0
Received 14 Likes
on
6 Posts
I said on my forum to you that the flooding could be vent related. But there's something else; The richer solenoid circuit. Have a look on my site under troubleshooting. It shows how to block it off, which is not what I'm suggesting you need to do, but the photos demonstrate where the fuel might be coming from if it's hemorrhaging and the float bowls are at the half way mark.
If the solenoid is stuck open (the assembly has been put back together in the incorrect order), then that circuit could be open and allowing fuel from the firewall fuel bowl to enter the throttle body.
#10
1st-Class Engine Janitor
iTrader: (15)
Stirling, you've got my interest here: Is the richer circuit able to allow fuel delivery absent vacuum?
If so, you may have provided me with a useful clue to a post-shutdown flooding issue that has been plaguing me for months. My richer solenoid and its needle is 30 years old ...
If so, you may have provided me with a useful clue to a post-shutdown flooding issue that has been plaguing me for months. My richer solenoid and its needle is 30 years old ...
#11
Full Member
Thread Starter
Join Date: Sep 2007
Location: St Catharines, ON, Canada
Posts: 52
Likes: 0
Received 0 Likes
on
0 Posts
well whoever built the carb before me had no idea what he was doing. When i took the carb apart the weight was in first and then the ball for the accel pump. Also, when i removed the floats there was no spring and that liitle brass pin in the seat.

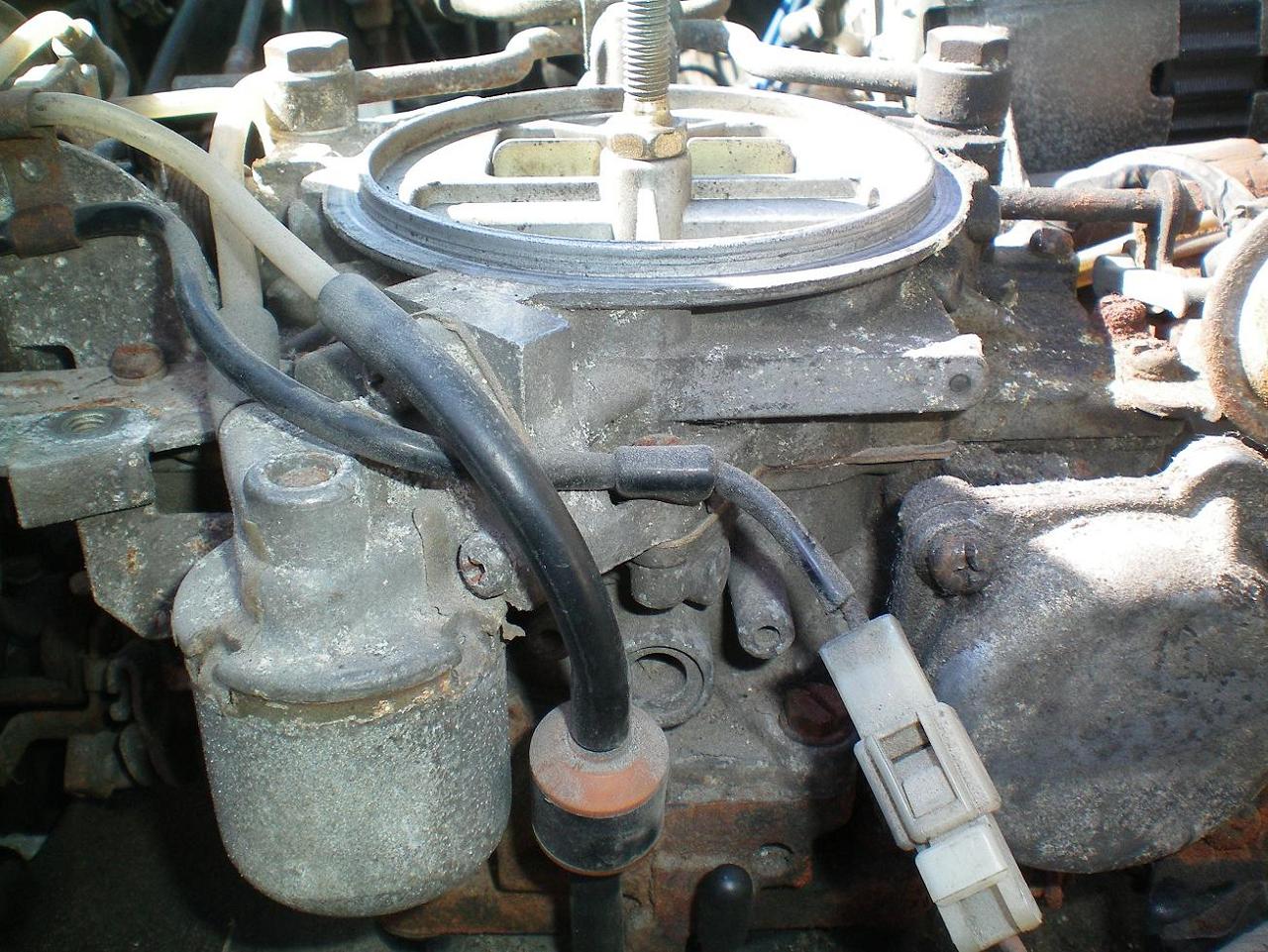

Sterling, this is how the carb was beofre i rebuilt it. There is no richer solenoid in place......what can i do now??
Sterling, this is how the carb was beofre i rebuilt it. There is no richer solenoid in place......what can i do now??
#12
Full Member
Thread Starter
Join Date: Sep 2007
Location: St Catharines, ON, Canada
Posts: 52
Likes: 0
Received 0 Likes
on
0 Posts
also, my bowls were FULL, but i put the needles and seats back the way they were (above post), so that explains it i think
One more thing, i noticed that my kit came with 2 gaskets that didnt seem to fit anywhere. Could one be for the bottom of the carb??? There is this plastic thing with a thick rubber pad bthat the carb sits on....should i use the bottom gasket form the kit??
One more thing, i noticed that my kit came with 2 gaskets that didnt seem to fit anywhere. Could one be for the bottom of the carb??? There is this plastic thing with a thick rubber pad bthat the carb sits on....should i use the bottom gasket form the kit??
#13
1st-Class Engine Janitor
iTrader: (15)
You don't need those two gaskets (most kist come with a few extras because applications vary) - - the plastic (phenolic) carb spacer and its two PERMANENT gaskets do the trick. Don't wreck it by trying to peel those two rubberized gaskets off.
Some kits also come with two bowl gaskets that have only a small difference between them. Important that you use the right one, and use it rightside up!
Some kits also come with two bowl gaskets that have only a small difference between them. Important that you use the right one, and use it rightside up!
#14
Nikki-Modder Rex-Rodder
Join Date: Feb 2001
Location: Trying to convince some clown not to put a Holley 600 on his 12a.
Posts: 2,890
Likes: 0
Received 14 Likes
on
6 Posts
Originally Posted by DivinDriver
the plastic (phenolic) carb spacer and its two PERMANENT gaskets do the trick. Don't wreck it by trying to peel those two rubberized gaskets off.
Paligap, your carb doesn't have the richer circuit drilled out, so scratch that whole theory.
Driver, if the richer solenoid malfunctions or is not hooked up properly, somehow keeping the circuit open all of the time, it is very possible that fuel in the firewall side bowl can rise and overwhelm the circuit. The trouble is really a matter of simple siphoning, but it is probably induced by vacuum pressure changes inside the carb. For example, if the float bowl vent solenoid works, closing off the ventilation to the carb, but that richer circuit is in the open position, well, out goes the fuel.
Read about it here:
http://www.sterlingmetalworks.com/troubleshooting.htm
#15
Full Member
Thread Starter
Join Date: Sep 2007
Location: St Catharines, ON, Canada
Posts: 52
Likes: 0
Received 0 Likes
on
0 Posts
you guys have been very helpfull

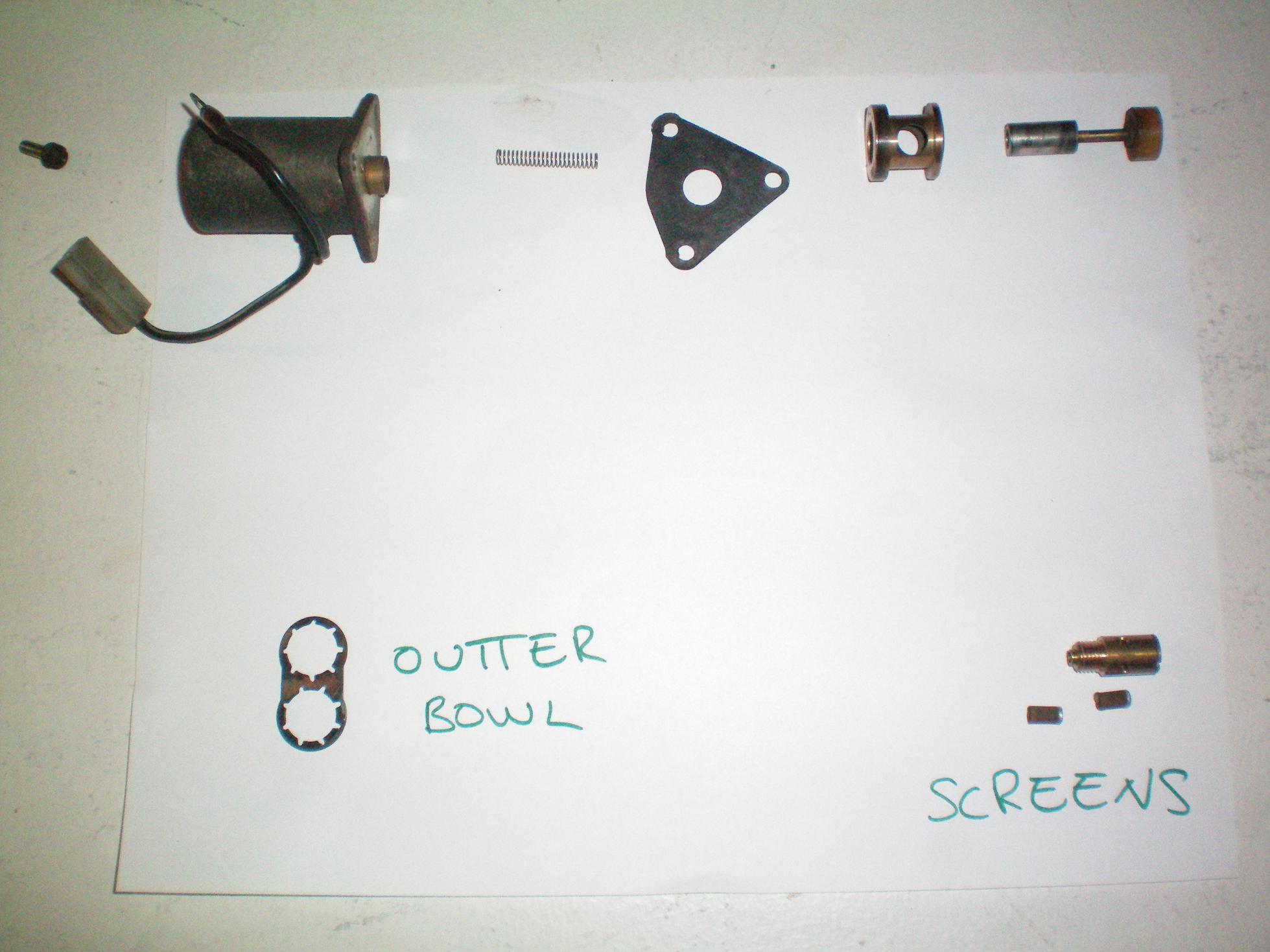

I have a few more question so i thought i would ask all 3 and post some pics

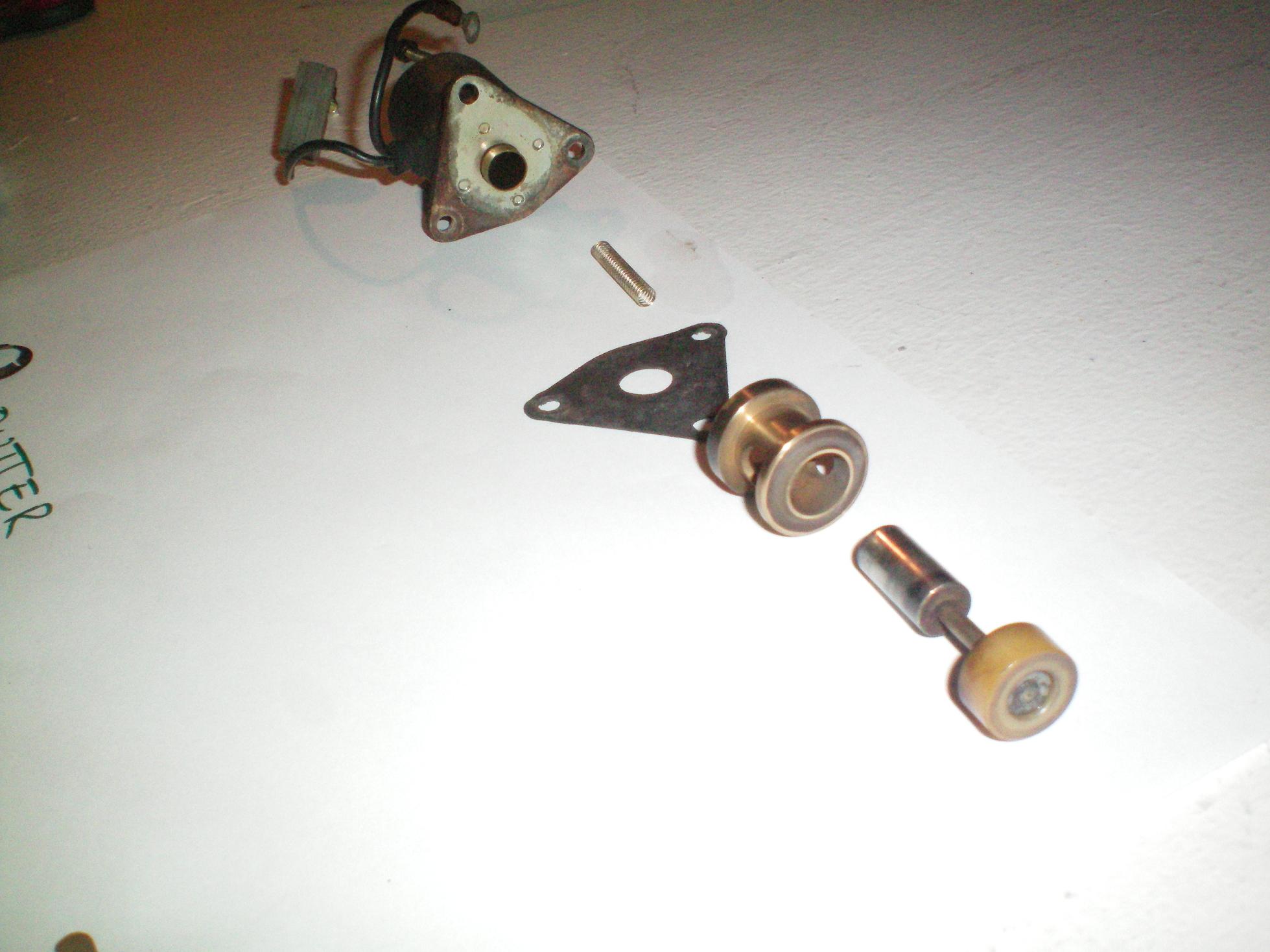

1] Is the oder correct with the air vent solenoid?
2] is the brass thing facing the right way? Should the 2 large holes be horizontal?
3]Should i reuse the screens? They were in seated in where the brass seat sits...
4]Should i reuse the outter bowl thing? If so, teeth facing the carb or teeth facing me?
I have a few more question so i thought i would ask all 3 and post some pics
1] Is the oder correct with the air vent solenoid?
2] is the brass thing facing the right way? Should the 2 large holes be horizontal?
3]Should i reuse the screens? They were in seated in where the brass seat sits...
4]Should i reuse the outter bowl thing? If so, teeth facing the carb or teeth facing me?
#16
Lives on the Forum
Stirling, you've got my interest here: Is the richer circuit able to allow fuel delivery absent vacuum?
If so, you may have provided me with a useful clue to a post-shutdown flooding issue that has been plaguing me for months. My richer solenoid and its needle is 30 years old ...
If so, you may have provided me with a useful clue to a post-shutdown flooding issue that has been plaguing me for months. My richer solenoid and its needle is 30 years old ...
To the O.P. sounds like you're making progress, and now that Sterling is here you are in good hands.
#18
Nikki-Modder Rex-Rodder
Join Date: Feb 2001
Location: Trying to convince some clown not to put a Holley 600 on his 12a.
Posts: 2,890
Likes: 0
Received 14 Likes
on
6 Posts
Originally Posted by Paligap
1] Is the oder correct with the air vent solenoid?
2] is the brass thing facing the right way? Should the 2 large holes be horizontal?
3]Should i reuse the screens? They were in seated in where the brass seat sits...
4]Should i reuse the outter bowl thing? If so, teeth facing the carb or teeth facing me?
#19
Full Member
Thread Starter
Join Date: Sep 2007
Location: St Catharines, ON, Canada
Posts: 52
Likes: 0
Received 0 Likes
on
0 Posts
Thanks again sterling.....i was just measuring the floats according the the Factory rebuild manual on foxed.....and upside down the float was 21mm from the gasket....i just ajusted it to 16mm, and rightside up it measures 51mm right on.
Ill post when im all done....
Ill post when im all done....
#23
Full Member
Thread Starter
Join Date: Sep 2007
Location: St Catharines, ON, Canada
Posts: 52
Likes: 0
Received 0 Likes
on
0 Posts
i know , iknow, but this was my last option. I read the troubleshooting for full bowls on Sterling's site...anbd everything checked out. The FBVS was working, the pressure is good (stock pump clicking), and i had not changed anything post rebuild and my bowls were always at 1/2.
