Looking for some Camden SC pictures. Not in the car and installed, but of the SC itself, mainly the intake part and the engine manifold. Does it come with a manifold already integrated with the supercharger, or does it have a bolt on manifold?
#3
Lives on the Forum
iTrader: (5)

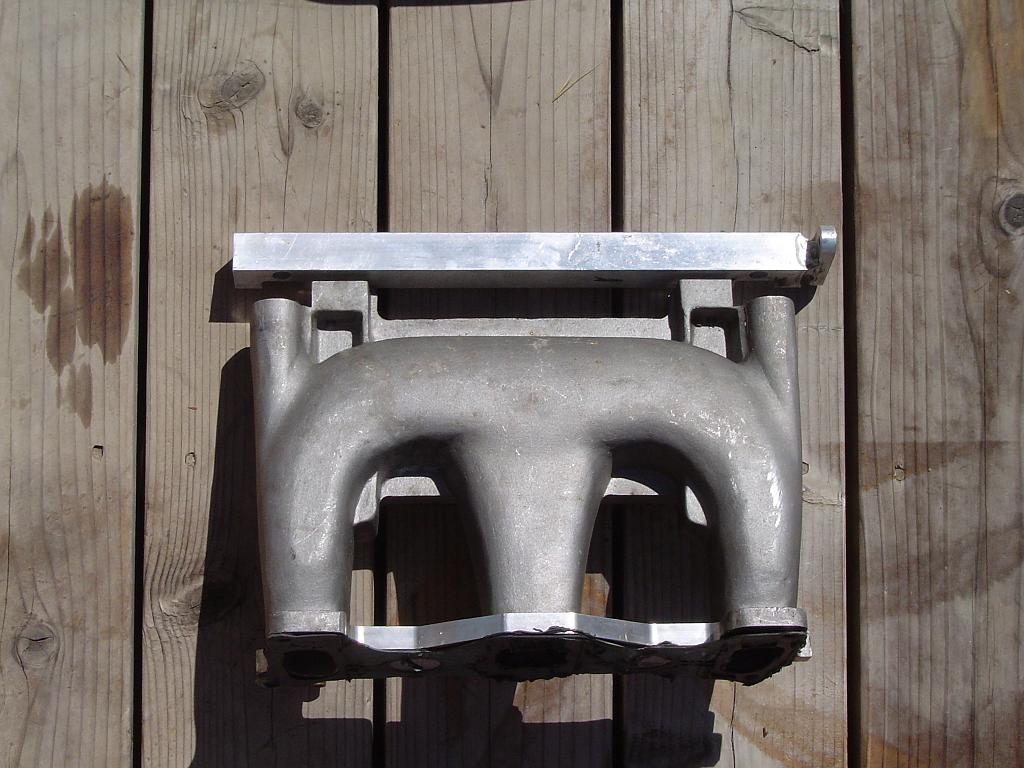

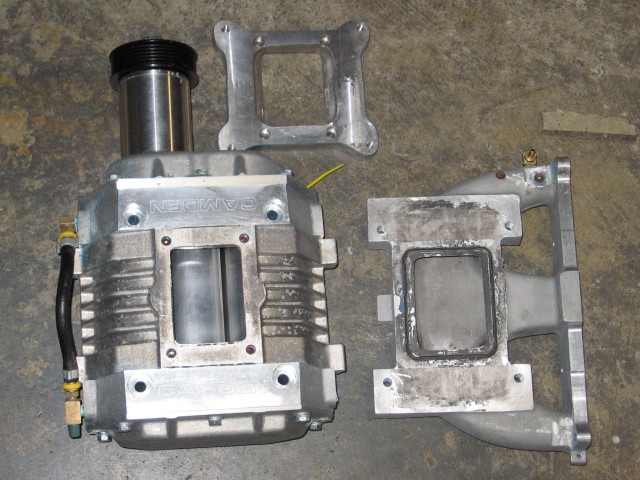

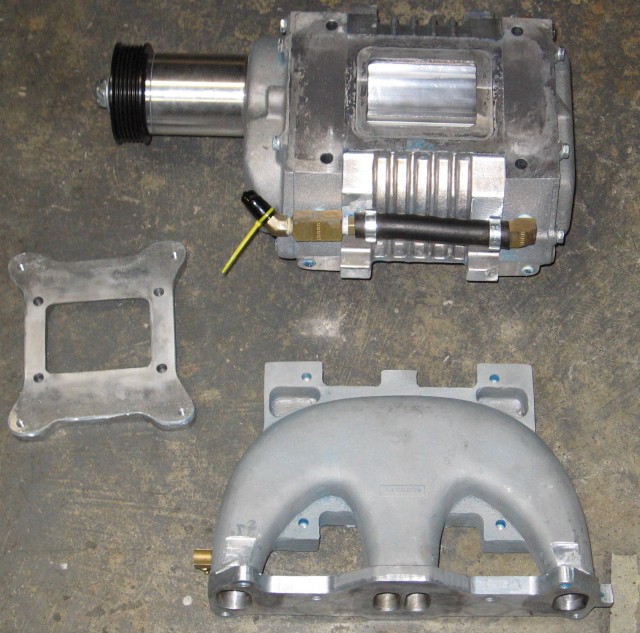

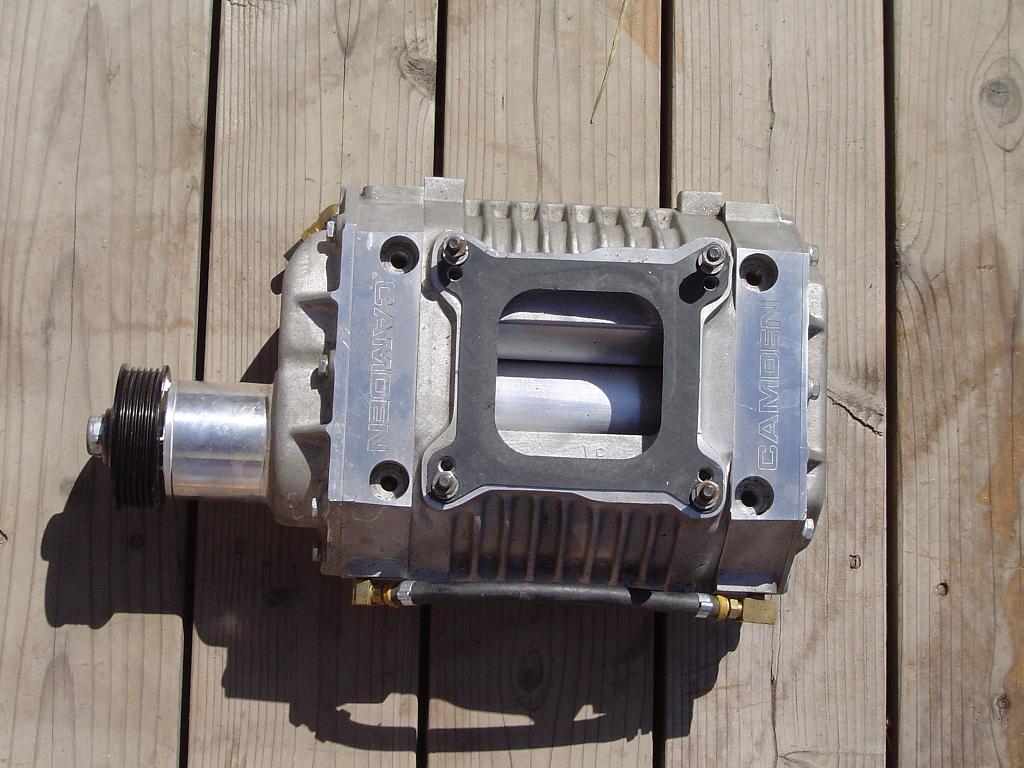

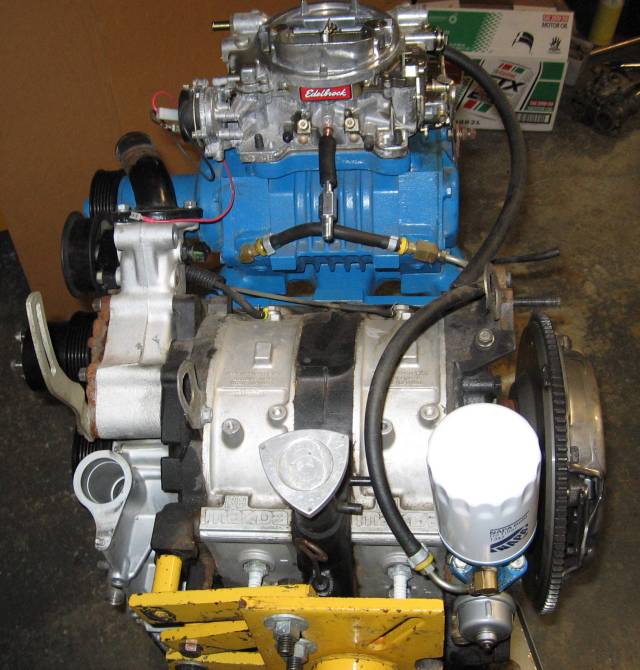

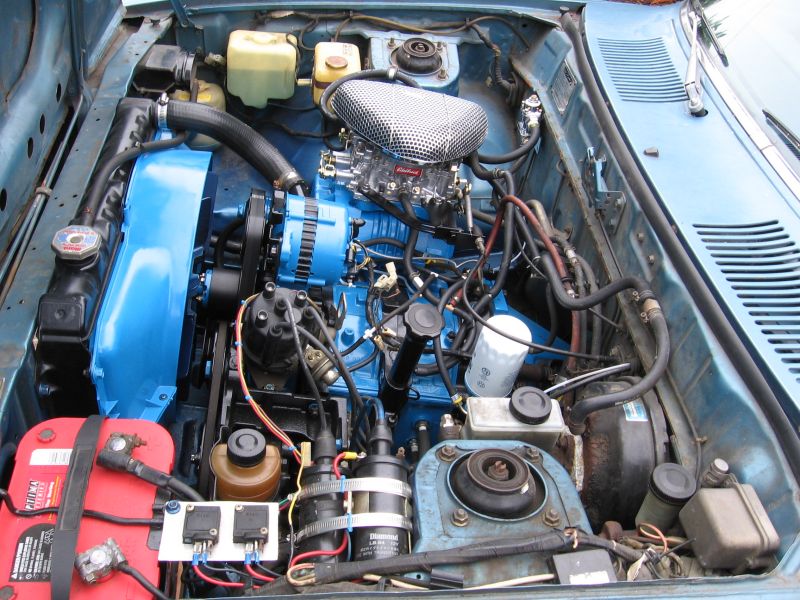

The blower sits on top of a manifold with is bolted to the engine. It is held down with 4 bolts.

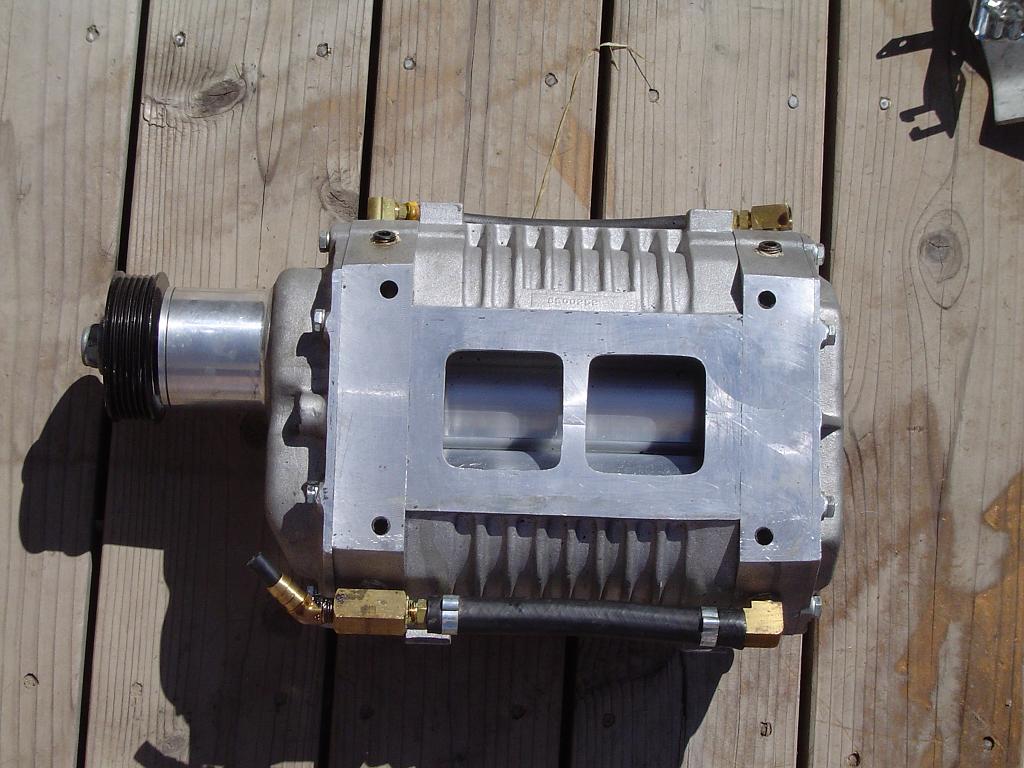

This is another view of the intake
This is what the rotors look like when spinning http://s222.photobucket.com/albums/d...ryrotation.flv

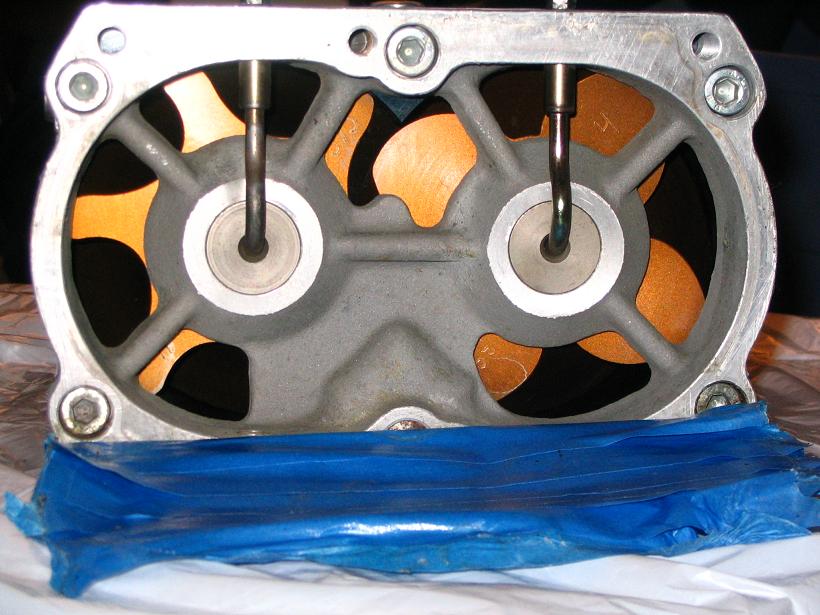

This is what the rotors look like inside once take apart.
And this is what a rotor looks like when a retaining pin snaps and they make contact at 8000+ rpm

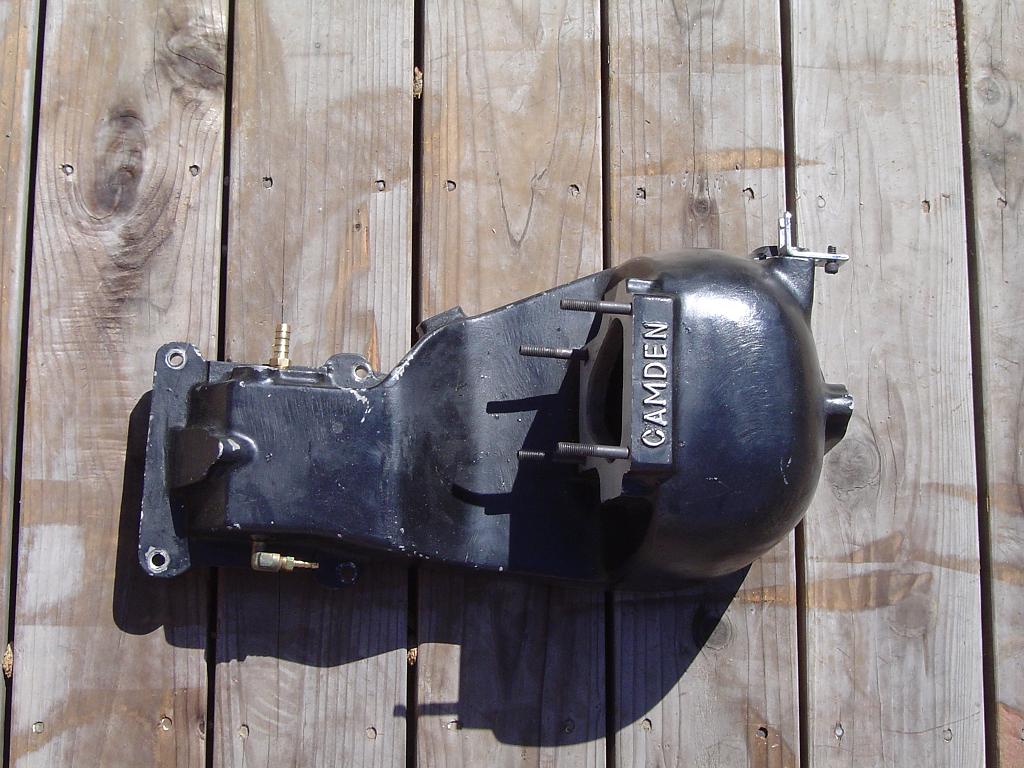

and the charger without the intake
and finally an animation (takes a minute to download) http://natasha.eng.usf.edu/gilbert/h...ts_blower.html
This is another view of the intake
This is what the rotors look like when spinning http://s222.photobucket.com/albums/d...ryrotation.flv

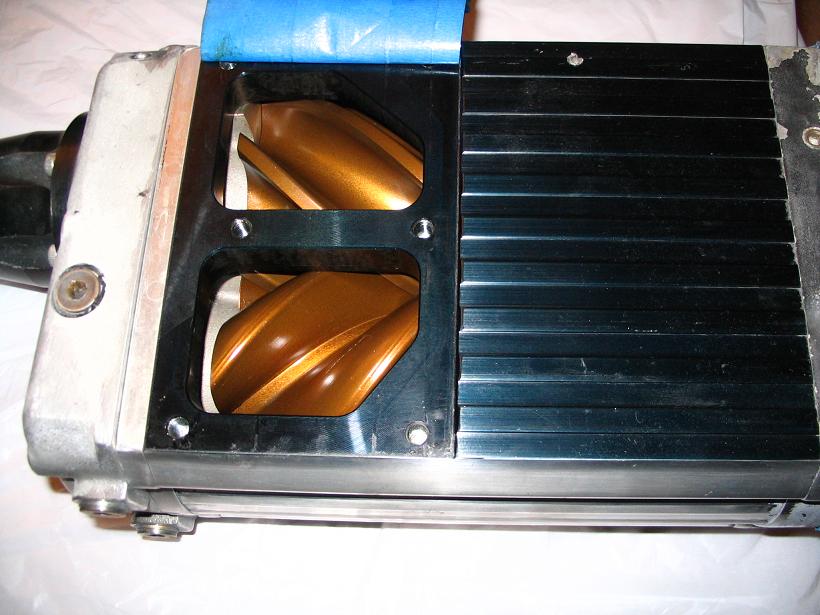

This is what the rotors look like inside once take apart.
And this is what a rotor looks like when a retaining pin snaps and they make contact at 8000+ rpm
and the charger without the intake
and finally an animation (takes a minute to download) http://natasha.eng.usf.edu/gilbert/h...ts_blower.html
#6
Does anyone have the specs on a camden? How much CFM it pushes, max boost, etc? I know going too high will cause too hot of a temperature.
The only other SC for a first gen are these babies:
And those tend to have bearing failures, since they were meant for a low revving mustang engine.
The only other SC for a first gen are these babies:
And those tend to have bearing failures, since they were meant for a low revving mustang engine.
Trending Topics
#10
common sense prevails....
iTrader: (7)
Join Date: Jul 2008
Location: Chino and Lake Arrowhead Calif
Posts: 1,669
Likes: 0
Received 9 Likes
on
9 Posts
If someone wanted to do a cheap supercharger project, look into using an OEM blower from either a 3.8 Buick/Pontiac motor or a blower from a 3.8 Ford Thunderbird supercoupe. Those blowers are Eaton (roots style) blowers.
I have seen them sell for $75-150 on ebay.
I have researched it a little. It seems like the Ford supercoupe version might be easier to adapt.
If someone had access to tools to fabricate brackets, etc. it coulb be a neat project to try!
I have seen them sell for $75-150 on ebay.
I have researched it a little. It seems like the Ford supercoupe version might be easier to adapt.
If someone had access to tools to fabricate brackets, etc. it coulb be a neat project to try!
#11
Thats the ones I was looking at. I am in a thunderbird forum but cannot find how much cfms it pushes and whatnot. I found one on ebay for dirt cheap which I am bidding on right now. Hopefully he will throw in the intercooler, but I might just put it together with the W/A intercooler I have at the house.
#13
®
iTrader: (4)
if your looking for an inexpensive setup then at least go with the 112 eaton

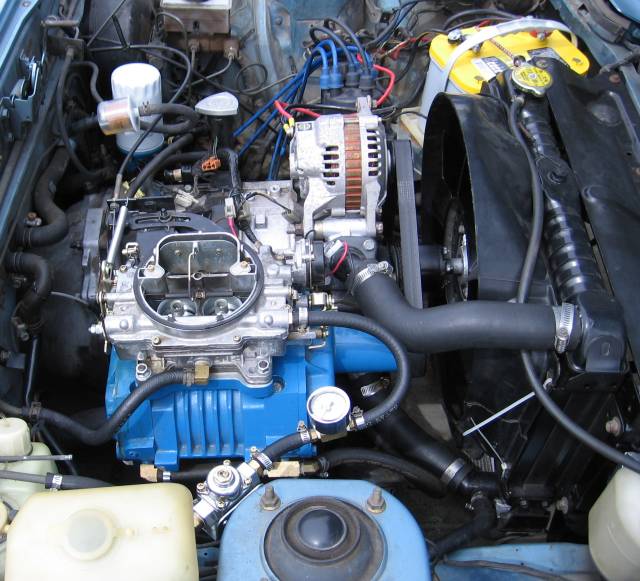

I attached some pictures of a Lysholm Opcon Autorotor 3150 unit I have. These used to be imported by both Kenne Bell and Whipple... This has the axial inlet which means the air inlet is in the back http://www.textiform.se/autorotor.pdf I got it off craigslist for 250 bucks
I attached some pictures of a Lysholm Opcon Autorotor 3150 unit I have. These used to be imported by both Kenne Bell and Whipple... This has the axial inlet which means the air inlet is in the back http://www.textiform.se/autorotor.pdf I got it off craigslist for 250 bucks
#14
common sense prevails....
iTrader: (7)
Join Date: Jul 2008
Location: Chino and Lake Arrowhead Calif
Posts: 1,669
Likes: 0
Received 9 Likes
on
9 Posts
Thats the ones I was looking at. I am in a thunderbird forum but cannot find how much cfms it pushes and whatnot. I found one on ebay for dirt cheap which I am bidding on right now. Hopefully he will throw in the intercooler, but I might just put it together with the W/A intercooler I have at the house.
Go here and you can download the performance maps of the m-90
http://www.eaton.com/EatonCom/Market...tion/index.htm
I was thinking it would be cool to mount the blower on the driver side....go through an intercooler and then blow through a carb.
Would be a cool project.
#20
common sense prevails....
iTrader: (7)
Join Date: Jul 2008
Location: Chino and Lake Arrowhead Calif
Posts: 1,669
Likes: 0
Received 9 Likes
on
9 Posts
I really would like a Camden supercharger for my project old school. It is very old school hot rodding and would make for good driveability. I just hate the fact that you don't get more bang for the buck out of the Camden.
Thread
Thread Starter
Forum
Replies
Last Post
ray green
1st Gen General Discussion
2
09-02-15 06:35 AM
