Touring

iTrader: (1)

when i used to push it it would engage by clicking itself in the halfway position but now it dosent click anymore. if i hold it in i hear the a/c click on and i can see the bluw light but it dosent stay engaged. anyone???

nff

i dont have that problem.. my ac is 2x60 aircon

DerrickS

There is typically a mechanism inside the switch/button housing that works like an ink pen clicker. Most likely the plastic "catch" has broken and you will need a new button. I've never replaced one of these though, so I have no advice. Maybe you could take some pictures when/if you do it so that others can see what it takes?

Luck!

Touring

iTrader: (1)

so you think its the button itself and not the actual metal ****? ill take pics as soon as it gets lighter out.

Banzai

iTrader: (13)

You have to remove the shift surround then the stereo surround (the flat center pannel) to get to the ventalation controlls and the AC / fan control switch in question. It's not that involved. The buttons are plastic and just pull off. The switch mechanism itself is behind the dash ***** and where the problem would be. If you can diagnois the problem you may be able to fix it but used switches are not hard to come by.

Touring

iTrader: (1)

OK here is a question i should have asked initially. when you take your a/c **** off and you push it does it engage/click or does it pop back out?

Banzai

iTrader: (13)

When you push on your center AC button, it stays depressed and the blue light comes on. The mechanism beneath the button is what is actually doing the fuctioning and should work the same regardless if the plastic button is in place or not. Thats just a cover.

Touring

iTrader: (1)

cool thank you. i recently took all that off to wire in my stero system so im sure i broke/ moved something while i was in there

Touring

iTrader: (1)

looks like im going to need this whole assembly. how i could have messed that up... i have no idea...

DerrickS

I must be a bit confused about what you were describing. I don't know about earlier interiors, but on my 84 the AC is a button that you push in, and it clicks in the "down" position, and the AC comes on (with luck). Click it again and the AC turns off. I thought that was what you were describing, but from the picture above... I guess not.

Banzai

iTrader: (13)

The AC switch / fan speed control is the unit on the far right in your picture. It's held on by the thin jam nut. If anything is jacked, it's that one control unit and can be had seperately. The other controls pictured are for the vent routing (defroster, center vents or footwell) and the air temp.

Does that smallest brass stem on the AC switch not stay depressed when pushed? That is what has been described.

Banzai

iTrader: (13)

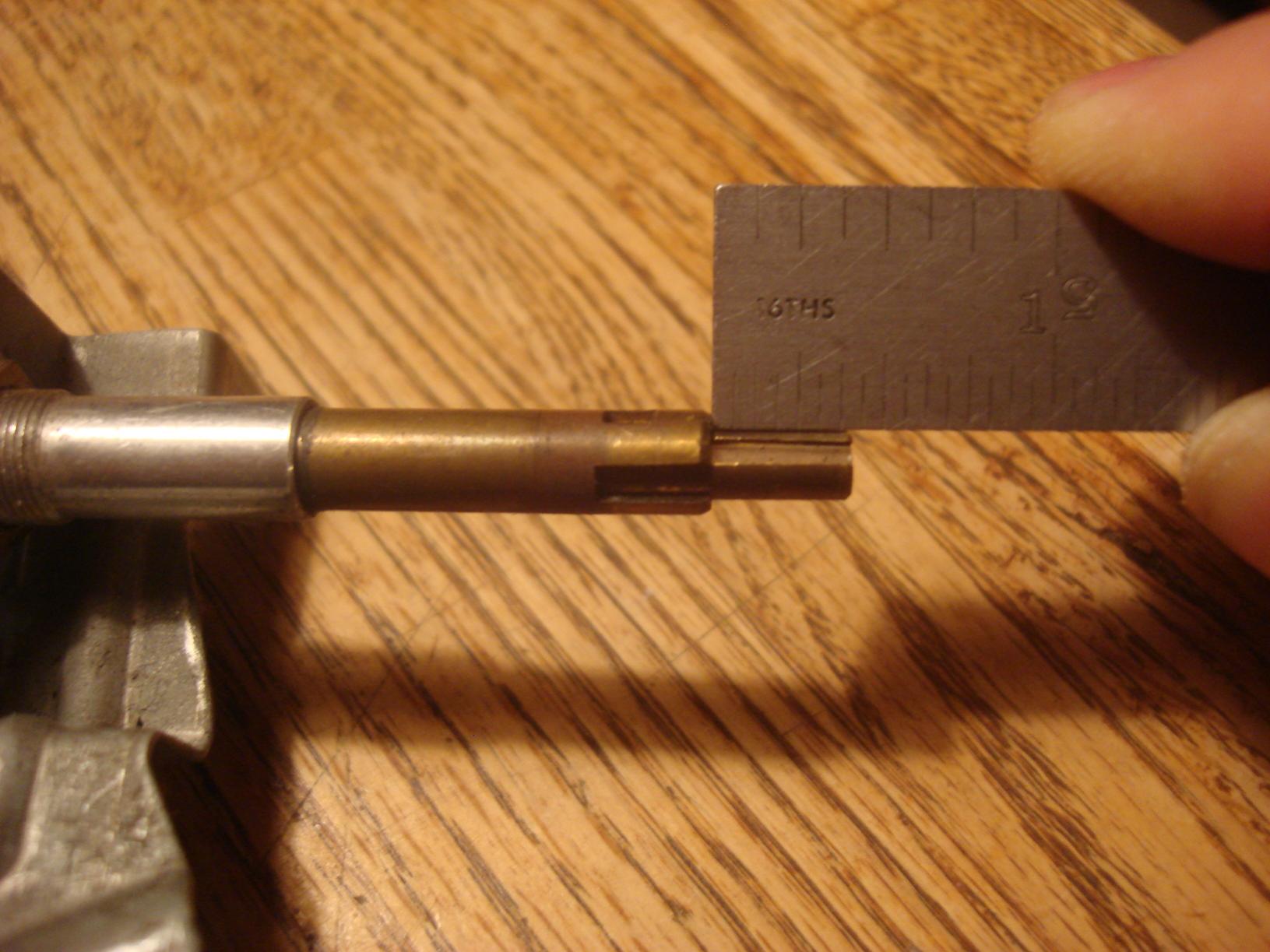

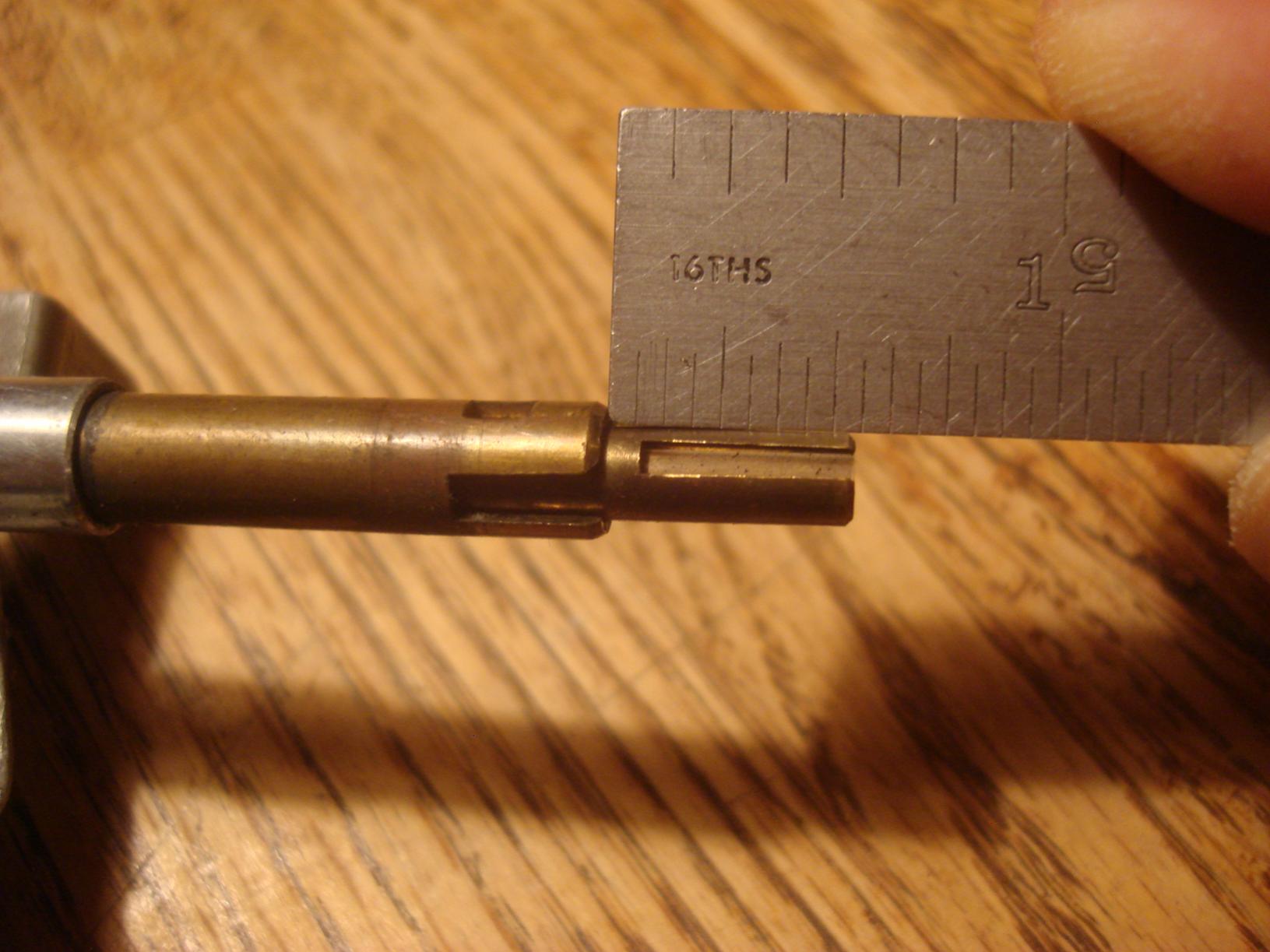

I took a couple pictures of the plunger in question. It only has about 2mm (slightly over 1/16) of travel between normal and depressed positions. If if does not stay depressed by itself, something internal to the switch is worn or broke.

Touring

iTrader: (1)

That is exactly what it is. Where can I find the clicker by itself?

Banzai

iTrader: (13)

An AC/fan controll switch can be had from fourm members here or on eBay. You need the center push button style as opposed to the earlier and more rare "always on" version. That one has no push button center. Jim Hull from rotary restorations should have some.

Touring

iTrader: (1)

Found one on eBay just have to wait till I get paid....

rwatson5651

iTrader: (5)

If they want more than a few bucks its a rip off.

Touring

iTrader: (1)

12$ for the whole thing pictured
