Battery relocation terminals under the hood
#1
Banned. I got OWNED!!!
Thread Starter
Join Date: Mar 2002
Location: Las Vegas, NV
Posts: 4,236
Likes: 0
Received 0 Likes
on
0 Posts
Battery relocation terminals under the hood

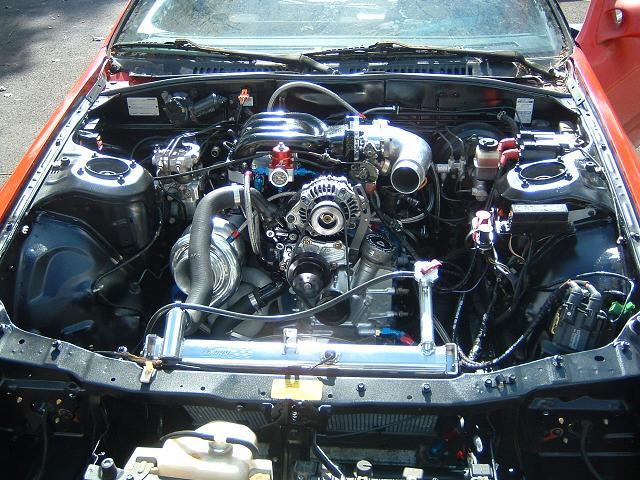

I relocated my batt to the bin. I need one of those remote terminals so i can use my timing light and other stuff under the hood. Where can i buy it at? I have attached a pic. It's near the fusebox.. thanks
#6
Banned. I got OWNED!!!
Thread Starter
Join Date: Mar 2002
Location: Las Vegas, NV
Posts: 4,236
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by trochoid
Where the + lead goes to the FC fuse block, either side, in or out, there is a nut under the cover that opens , under the main fuse. You might be able to clamp to that.
#7
Function > Form
Join Date: Nov 2002
Location: Catonsville MD (baltimore suburb)
Posts: 10,890
Likes: 0
Received 3 Likes
on
1 Post
I used a battery cable pass though... also will help when jumping. My cable is running inside the car on the passenger door seal. You can hook to this just like remote terms... here's a link of what I got http://www.jegs.com/webapp/wcs/store...chItemId=83333

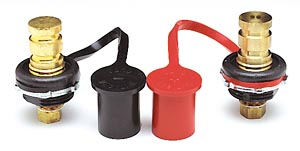

However here is a link for actual remote terminals...
http://www.jegs.com/webapp/wcs/store...tegoryId=21855
However here is a link for actual remote terminals...
http://www.jegs.com/webapp/wcs/store...tegoryId=21855
Trending Topics
#9
Banned. I got OWNED!!!
Thread Starter
Join Date: Mar 2002
Location: Las Vegas, NV
Posts: 4,236
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by REVHED
When doing the timing I just pop one of the fuses and connect to the blade terminal on the fusebox.
#10
Banned. I got OWNED!!!
Thread Starter
Join Date: Mar 2002
Location: Las Vegas, NV
Posts: 4,236
Likes: 0
Received 0 Likes
on
0 Posts
#11
Personally, I'd just buy a self-powered timing light. A couple AA batteries will keep it running for years, plus you don't have those annoying power cables dangling in your way. At the shop, we have a genuine Kowa Seiki (same company that makes the Mazda rotary compression testers) timing light that is just about the handiest tool ever made.
They are relatively expensive (>$100), but oh so nice. Notice how the inductive pickup retracts into the body and the lens extends to focus the light.
A cheaper thing to try, however, is to add a 12V (cig lighter) outlet inside the engine bay and convert the timing light to a cig lighter plug. Then you can also use the plug for other power needs in the engine bay, like plugging in a light or running an electric air compressor.
They are relatively expensive (>$100), but oh so nice. Notice how the inductive pickup retracts into the body and the lens extends to focus the light.
A cheaper thing to try, however, is to add a 12V (cig lighter) outlet inside the engine bay and convert the timing light to a cig lighter plug. Then you can also use the plug for other power needs in the engine bay, like plugging in a light or running an electric air compressor.
#13
Originally Posted by aws140
^^ where can you buy this?
#15
RX for fun
iTrader: (13)
just hook up the timing gun's + to the alternator's b-terminal.
Originally Posted by gonzz
I relocated my batt to the bin. I need one of those remote terminals so i can use my timing light and other stuff under the hood. Where can i buy it at? I have attached a pic. It's near the fusebox.. thanks
#16
Old [Sch|F]ool
For a *jumper cable* terminal, the alternator stud or the stud on the fusible links block just won't cut it.
Find a Stratus or a 2nd-gen LH car in the junkyard, they made zillions of them so they are common and they all had "hidden" batteries, and nice simple remote jumper-cable terminals. Run a 4 gauge cable from it to the starter and done. Now you can jumpstart the car without having to take your interior apart.
Find a Stratus or a 2nd-gen LH car in the junkyard, they made zillions of them so they are common and they all had "hidden" batteries, and nice simple remote jumper-cable terminals. Run a 4 gauge cable from it to the starter and done. Now you can jumpstart the car without having to take your interior apart.
