backfire on a 12A?
03-08-19, 07:41 PM
#26
Can Post Only in New Member Section
Join Date: Mar 2019
Location: Big bear lake
Posts: 1
Likes: 0
Received 0 Likes
on
0 Posts

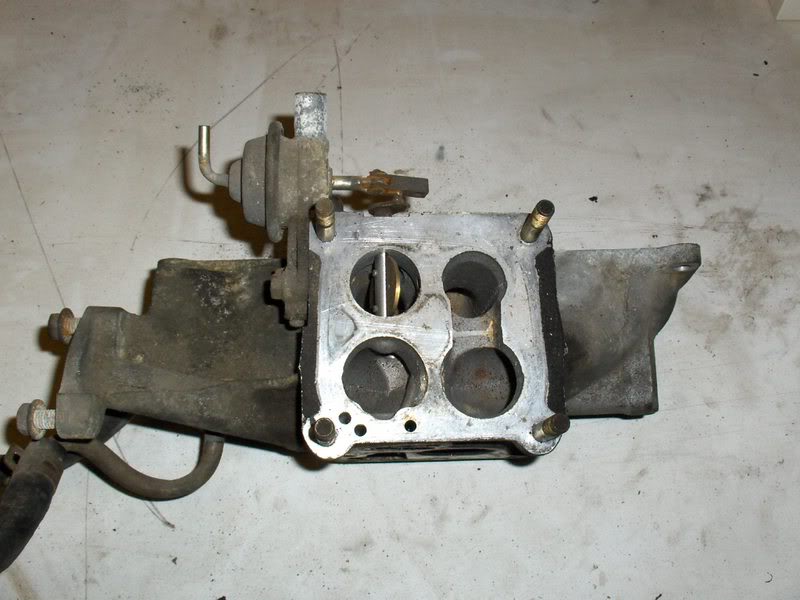

That's what I was going to say drivin... The stock intake has a shutter valve. Not sure which way it actually works, but I do know it prevents backfiring during deceleration on a stock set-up. Anyways, I'd look into that too. I think I have a pic of it.... It's the brass disc top left barrel. I believe it's controlled by vacuum, maybe check the hose that goes to it to see if it's cracked or if the mechanism is in moving order.
Attachment 722901
Attachment 722901
This is part of the carburator right?
03-09-19, 09:20 AM
#27
3D Printed
Incorrect. The shutter valve is mounted in the rear primary runner of the intake. Like that quote says, it's controlled by vacuum, although like the others, I can't remember where from off the top of my head (it's from one of the solenoids on the rack, but I don't recall which - the rack also differs from year to year). Essentially, the valve closes when you let off the gas as an extra means to stop air/fuel from going to the rear rotor, preventing backfiring (afterburning). These can get stuck sometimes in any position and it's a good idea to check it if you're running a stock FB set up and having issues. SA's have a different system built into the Air Control Valve (ACV) that accomplishes the task instead.
Also, this is a rather old thread, so, just a heads up.
Also, this is a rather old thread, so, just a heads up.
03-09-19, 09:53 AM
#28
ancient wizard...
A little correction on the operation of shutter valve. It is controlled by ecu/tps/solenoid rack. The shutter valve is normally closed. The tps tells the ecu when the throttle angle is decreased either full deceleration to return to idle or while letting off to shift.
The ecu monitors engine speed and receives a closed throttle signal from tps,ecu energizes solenoid on rack to supply vacuum to shutter valve which opens to allow clean filtered air from air cleaner to flow into rear rotor to make mixture there so lean it cannot backfire on closed throttle decel. When rpm is just above idle speed,ecu turns solenoid off,cutting vacuum to shutter valve which restores balance of air/fuel to rear rotor so engine does not stall when engine speed comes back to idle.
The ecu monitors engine speed and receives a closed throttle signal from tps,ecu energizes solenoid on rack to supply vacuum to shutter valve which opens to allow clean filtered air from air cleaner to flow into rear rotor to make mixture there so lean it cannot backfire on closed throttle decel. When rpm is just above idle speed,ecu turns solenoid off,cutting vacuum to shutter valve which restores balance of air/fuel to rear rotor so engine does not stall when engine speed comes back to idle.
Last edited by GSLSEforme; 03-09-19 at 09:56 AM.
03-09-19, 10:30 AM
#29
3D Printed
A little correction on the operation of shutter valve. It is controlled by ecu/tps/solenoid rack. The shutter valve is normally closed. The tps tells the ecu when the throttle angle is decreased either full deceleration to return to idle or while letting off to shift.
The ecu monitors engine speed and receives a closed throttle signal from tps,ecu energizes solenoid on rack to supply vacuum to shutter valve which opens to allow clean filtered air from air cleaner to flow into rear rotor to make mixture there so lean it cannot backfire on closed throttle decel. When rpm is just above idle speed,ecu turns solenoid off,cutting vacuum to shutter valve which restores balance of air/fuel to rear rotor so engine does not stall when engine speed comes back to idle.
The ecu monitors engine speed and receives a closed throttle signal from tps,ecu energizes solenoid on rack to supply vacuum to shutter valve which opens to allow clean filtered air from air cleaner to flow into rear rotor to make mixture there so lean it cannot backfire on closed throttle decel. When rpm is just above idle speed,ecu turns solenoid off,cutting vacuum to shutter valve which restores balance of air/fuel to rear rotor so engine does not stall when engine speed comes back to idle.
Gotta love it when I'm wrong
, gives me a chance to learn even more. I had always figured the operation I detailed was how it worked, but since I've got an SA (albeit with an FB motor, modded intake, carb, yada yada...) my theory was really just that; a theory. Nice to know how it actually works.
