Axle seals for GSL-SE?
Thread Starter
Junior Member
Joined: Mar 2016
Posts: 40
Likes: 0
From: Ohio
Axle seals for GSL-SE?

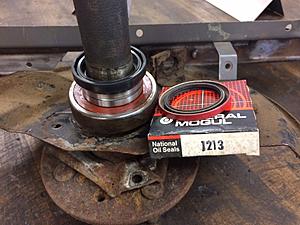

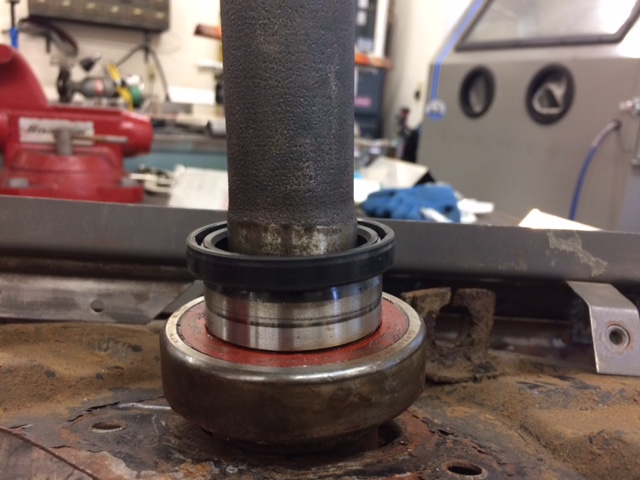

I can't seem to find axle seals for GSL-SE axles. The old axle seems to have the seals ride on the lock collar, but the axle seals I can find seem to be for smaller axles. But it is equally possible I'm an idiot. I found the Federal Mogul number as for 84-85, and I assumed all big-bearing axles the same. Rockauto has the centric 41791004 listed, it is the black one in the photo, and it also seems too small. Does the axle seal not have to ride on the lock collar where it appears to have done previously? Is there a source for GSL-SE axle seals if I don't have the right one?CENTRIC41791004
Joined: Mar 2001
Posts: 31,863
Likes: 3,245
From: https://www2.mazda.com/en/100th/
the Mazda number is 1011-26-154.
National is 710320, *** Canada is 413 2939 100, BCA is NS7 10320, Beck Arnley is 052-2540, *** USA is SS2939, SKF is 18862 and Timken is 710320
i forget where the seal, um seals, but i think it is on the lock collar
National is 710320, *** Canada is 413 2939 100, BCA is NS7 10320, Beck Arnley is 052-2540, *** USA is SS2939, SKF is 18862 and Timken is 710320
i forget where the seal, um seals, but i think it is on the lock collar
84SE-EGI helpy-helperton
Joined: Oct 2002
Posts: 3,591
Likes: 549
From: Phoenix, AZ
Mazdatrix sells the factory OEM part which is the correct size, obviously. The FSM states NOT to remove the axle seal unless it was leaking, as the likelihood of damaging the new one on installation is pretty high. Better to roll with the known-good seal thats in there, and thats what I chose a few months back when I did rear bearings.
Joined: Mar 2001
Posts: 31,863
Likes: 3,245
From: https://www2.mazda.com/en/100th/
for install, unless you have the right size seal driver, do the following;
put the seal on the axle, install axle, and then when you remove the axle the seal will be installed
put the seal on the axle, install axle, and then when you remove the axle the seal will be installed
Trending Topics
The seal actually taps into the axle housing. It shouldn't float on the axle itself. There's a good chance that the seal will pop out when the axle is removed. Install the seal on the housing before the axle is installed. Be sure to grease the seal before you tap it in place and ensure you rub some gear oil on the lip that seals against the bearing to ensure the bearing doesn't snag the seal when installing the axle.
Joined: Aug 2011
Posts: 3,078
Likes: 42
From: Cambridge, Minnesota
Are you doing the rear bearings at the same time while you're in there? It wouldn't be a bad idea while you're in there already. Be careful with that retaining ring, I screwed that install up my first time doing the rear bearings...never again.
