Anyone have 15" FC Convertible Wheels on their 1st Gen?
#1
ERTW
Thread Starter
iTrader: (2)
Join Date: Nov 2004
Location: Waterloo, Ontario
Posts: 880
Likes: 0
Received 0 Likes
on
0 Posts
Anyone have 15" FC Convertible Wheels on their 1st Gen?
Hey guys/gals,
I really like the look of the BBS mesh style wheels used on the FC Convertibles and I'd love to be able to install them on my GSL-SE. I know one person on here has these wheels on their FB, but I don't know their username. It's the brownish RX7, that had a video of it running on the dyno (beautiful car by the way). I'm hoping he'll be able to help out in this post.
Anyway, I see two different ways of going about doing this. The first, is redrilling the wheels themselves to the 4x4.5" bolt circle. This may be possible if there is enough material in between the existing holes already drilled into the wheel.
The second option is to convert the FB to the 5x114.3" bolt circle that the wheels use. Now I haven't been around FB RX7s for too long, so I don't know if parts from an FC could be used, but am hoping that this is possible. For example, instead of redrilling the front FB hubs, is it possible to use an FC 5 lug hub on the FB spindle? And for the rear, I'm assuming that the axle shafts will have to be pulled out of the differential and re-drilled in a machine shop (which I have access to).
Anyway, help is very much appreciated!
I really like the look of the BBS mesh style wheels used on the FC Convertibles and I'd love to be able to install them on my GSL-SE. I know one person on here has these wheels on their FB, but I don't know their username. It's the brownish RX7, that had a video of it running on the dyno (beautiful car by the way). I'm hoping he'll be able to help out in this post.
Anyway, I see two different ways of going about doing this. The first, is redrilling the wheels themselves to the 4x4.5" bolt circle. This may be possible if there is enough material in between the existing holes already drilled into the wheel.
The second option is to convert the FB to the 5x114.3" bolt circle that the wheels use. Now I haven't been around FB RX7s for too long, so I don't know if parts from an FC could be used, but am hoping that this is possible. For example, instead of redrilling the front FB hubs, is it possible to use an FC 5 lug hub on the FB spindle? And for the rear, I'm assuming that the axle shafts will have to be pulled out of the differential and re-drilled in a machine shop (which I have access to).
Anyway, help is very much appreciated!
#2
Rotary Freak
Join Date: Sep 2004
Location: Kitchener, Ont. Canada
Posts: 1,901
Likes: 0
Received 0 Likes
on
0 Posts
the guy is "directfreak" but i don't think those are BBS wheels, im not sure. he acutlally sold them to another forum member, not sure who....but if you get the FC 4 lug wheels they will fit. hope that helps a little
#3
Retired Moderator, RIP
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts
the four lug FC pattern is 4 x114.3 ..and the stock phone dials are 14 INCH,If that helps at all..and if you need them ..I got them for sale..EDIT..found this...https://www.rx7club.com/showthread.php?t=512664 is that what you wanted?
Last edited by misterstyx69; 02-24-06 at 04:44 PM.
#5
I can has a Hemi? Yes...
iTrader: (2)
I believe the FC Convertible wheels are BBS or Enkei. I don't remember.
The front I did with a TII Brake swap, as well as a full 1" spacer to clear the calipers.
The rear I did with a Ford 8.8 Rear End Swap, as well as a full 1.25" spacer to clear the calipers.
Good Luck.
Trending Topics
#8
I can has a Hemi? Yes...
iTrader: (2)
Originally Posted by Modified85
Ive always been afraid of spacers and adapters, am I wasting my time worrying about nothing?
is currently doing 492 to the wheels at 20psi.
So far so good. I also went to the track a couple of weeks ago, with no problems.
Edit: Oh, and I got em from Ebay.
#9
Rotary Freak
iTrader: (5)
Join Date: Sep 2004
Location: Hagerstown, MD
Posts: 1,583
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Directfreak
I believe the FC Convertible wheels are BBS or Enkei. I don't remember.
The front I did with a TII Brake swap, as well as a full 1" spacer to clear the calipers.
The rear I did with a Ford 8.8 Rear End Swap, as well as a full 1.25" spacer to clear the calipers.
Good Luck.
What size tires are you running ?
#10
I can has a Hemi? Yes...
iTrader: (2)
Originally Posted by Juiceh
They are BBS. My vert had 16 inch BBS wheels. I may be sellin them soon too.
Originally Posted by BigPimpin'
What size tires are you running ?
225/50/15 rear
But don't go by that. My rear is not stock.
#11
ERTW
Thread Starter
iTrader: (2)
Join Date: Nov 2004
Location: Waterloo, Ontario
Posts: 880
Likes: 0
Received 0 Likes
on
0 Posts
Thanks for the help! Directfreak's car was the one I had in mind.
What is involved in swapping the TII brakes on the front? What Mazda parts do you use and what parts need to be fabricated/bought? Sorry if this has been asked before, I just wanted to ask while we were on the topic.
What if I didn't want to run the TII brakes on the front? Could I get away with re-drilling the FB hubs, or are the FC Vert wheels an incorrect offest, and need the added width of the spacer?
Thanks!
What is involved in swapping the TII brakes on the front? What Mazda parts do you use and what parts need to be fabricated/bought? Sorry if this has been asked before, I just wanted to ask while we were on the topic.
What if I didn't want to run the TII brakes on the front? Could I get away with re-drilling the FB hubs, or are the FC Vert wheels an incorrect offest, and need the added width of the spacer?
Thanks!
#12
Can You Wankel?
iTrader: (12)
Respeed makes a conversion kit for the FC 4 pot calipers and it allows you to use the 5x114 bot pattern I will look up there web site in one minute. And I also have a set of vert wheels in great hape that I am selling for $175 PM if you want picks.
I will post what you need for the conversion when I find the site.
This is the old group by thread and will answer some of your questions https://www.rx7club.com/group-buy-center-69/first-generation-big-brake-kit-respeed-461164/ But you will also need to by some spacers that are not sold in the kit.
This is there web site http://www.mrcmfg.com/respeed/catalo...df6f4d21163b0e
I will post what you need for the conversion when I find the site.
This is the old group by thread and will answer some of your questions https://www.rx7club.com/group-buy-center-69/first-generation-big-brake-kit-respeed-461164/ But you will also need to by some spacers that are not sold in the kit.
This is there web site http://www.mrcmfg.com/respeed/catalo...df6f4d21163b0e
Last edited by Rx Seven; 02-24-06 at 09:35 PM.
#13
Rotary Enthusiast
Join Date: Aug 2001
Location: Memphis, TN - wishin' i was back in Ft Worth
Posts: 1,024
Likes: 0
Received 1 Like
on
1 Post

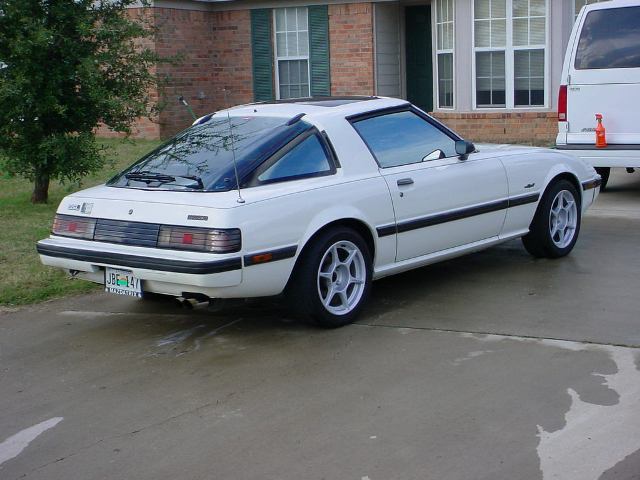

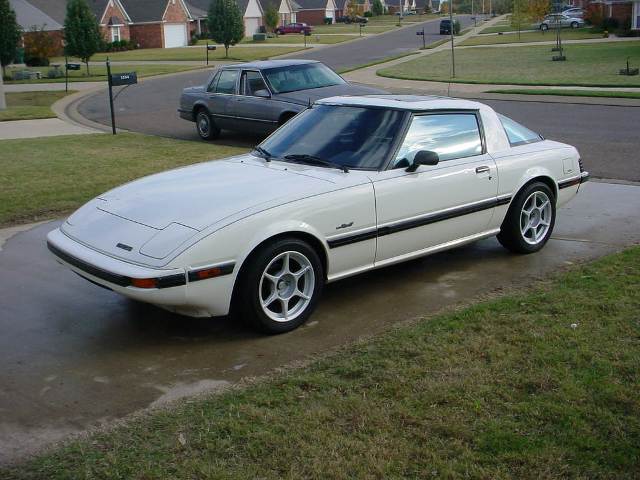

ive got a set of the '83 14x6" limited edition mesh wheels that give a similar look.....just not as big. i plan on putting them on just to mix things up a bit. i have the kosei k1's on it right now.

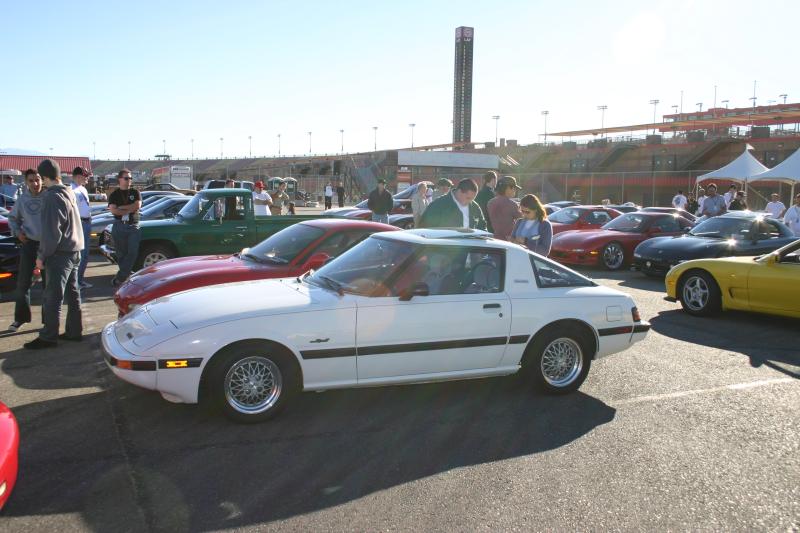

DISCLAIMER: this is NOT my car, but i do have a white 85 GSL and the same wheels. mine is the second car
DISCLAIMER: this is NOT my car, but i do have a white 85 GSL and the same wheels. mine is the second car
Last edited by spoolin; 02-25-06 at 09:34 PM.
#14
No, it is not stock!
iTrader: (1)
Go with the 2nd Gen Brakes

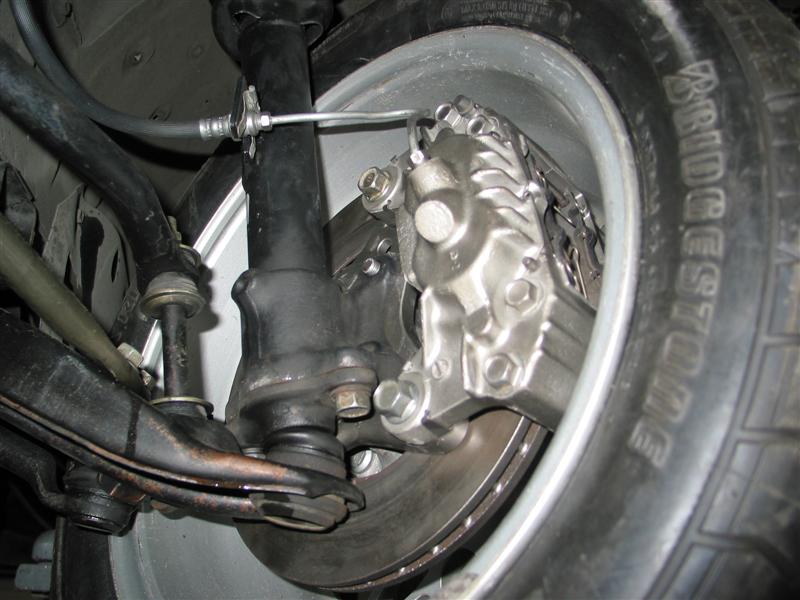

You need to search around a bit - some people have recently installed the Respeed front brake adapter kit, and can comment on the quality. It looks good in the photos. I designed my own conversion and had my machinist make the parts.

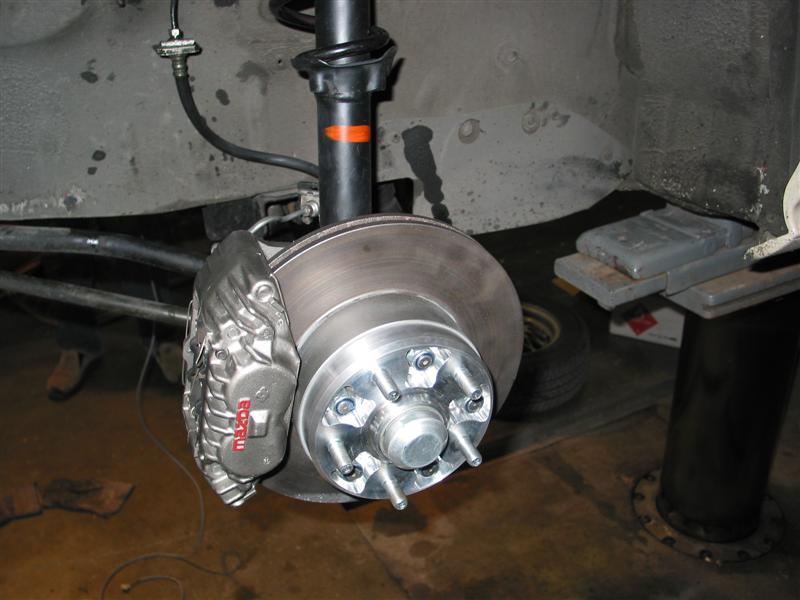

I used the 1990 RX-7 convertible wheels, and they are definitely 15 inch BBS alloys. I am not sure about the width, I think they are 6 1/2 inch. The offset will require a spacer to work with the front conversion parts. We used a 1 1/4 inch spacer which my machinist designed. The cheap way is just a spacer with long studs, but we did it the right way, with the spacer bolted to the hub, and a set of wheel studs protruding from the spacer. My machinist still has the CAD program to make these on his NC mill, but they would cost you about $250 for the pair.
I am running 205-50 front, 225-50 rear, no problem with clearance in the rear. You can just redrill the rear axles and rotors. Any machinist who does narrowed axles for drag cars can do it for you. The rear brake conversion is a real hassle if you don't have good fabrication skills, and I have not seen any kit for it.
I used the 1990 RX-7 convertible wheels, and they are definitely 15 inch BBS alloys. I am not sure about the width, I think they are 6 1/2 inch. The offset will require a spacer to work with the front conversion parts. We used a 1 1/4 inch spacer which my machinist designed. The cheap way is just a spacer with long studs, but we did it the right way, with the spacer bolted to the hub, and a set of wheel studs protruding from the spacer. My machinist still has the CAD program to make these on his NC mill, but they would cost you about $250 for the pair.
I am running 205-50 front, 225-50 rear, no problem with clearance in the rear. You can just redrill the rear axles and rotors. Any machinist who does narrowed axles for drag cars can do it for you. The rear brake conversion is a real hassle if you don't have good fabrication skills, and I have not seen any kit for it.
