another mikuni thread!!
everyone that runs mikuni 44phh post your engine set up (stock/street port) and jetting.
i have an unknown setup with the top two 57.5, the lower ones 04, and the ones inside the 04's are 30. anyone have a guess stock or street?
if its street i need help finding jets for stock setup.
i have an unknown setup with the top two 57.5, the lower ones 04, and the ones inside the 04's are 30. anyone have a guess stock or street?
if its street i need help finding jets for stock setup.
04-05-06, 05:32 PM
#2
The 57.5s are your pilot jets, which is what I have in one set up for a GSL-SE. The 12A has 52.5 The rest of you #s are off, they should be 3 digits on the jets themselves . Pull the jet block out, the large pair and check the #s on the bottom jets too.
04-05-06, 05:55 PM
#3
sellout
Thread Starter
iTrader: (4)
Join Date: Jan 2005
Location: Lawrence KS
Posts: 3,078
Likes: 0
Received 0 Likes
on
0 Posts
the big ones say 200 on the bottom.
the ones inside those say 30.
so with the 57.5 its probably setup for a 12a street port.
thats what the guy that sold it to me thought, but i wanted to make sure.
anyone have some spare jets they want to sell?
the ones inside those say 30.
so with the 57.5 its probably setup for a 12a street port.
thats what the guy that sold it to me thought, but i wanted to make sure.
anyone have some spare jets they want to sell?
04-06-06, 08:39 AM
#4
Full Member
iTrader: (1)
Join Date: Aug 2003
Location: MIAMI,FL
Posts: 206
Likes: 0
Received 0 Likes
on
0 Posts
Call Wolfcreek Racing 516-635-6775.... He Has Mostly All The Jets In Stock.... I Just Bought Like $80.00 Worth Of Jets From Him.....
And I Think You're Still Off On The Jet ###
And I Think You're Still Off On The Jet ###
04-06-06, 10:08 AM
#5
sellout
Thread Starter
iTrader: (4)
Join Date: Jan 2005
Location: Lawrence KS
Posts: 3,078
Likes: 0
Received 0 Likes
on
0 Posts
^^ hey scott,
i need to set this thing up for a stock 12a. could you tell me how the 52.5 carb is all jetted, like what jets i need to order from the guy in the above post?
i need to set this thing up for a stock 12a. could you tell me how the 52.5 carb is all jetted, like what jets i need to order from the guy in the above post?
04-06-06, 10:56 AM
#6
sellout
Thread Starter
iTrader: (4)
Join Date: Jan 2005
Location: Lawrence KS
Posts: 3,078
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by TOYOROTOR
Call Wolfcreek Racing 516-635-6775.... He Has Mostly All The Jets In Stock.... I Just Bought Like $80.00 Worth Of Jets From Him.....
And I Think You're Still Off On The Jet ###
And I Think You're Still Off On The Jet ###
what are people talking about when they say mikuni stuff is hard to find?!@?
04-06-06, 02:34 PM
#7
The 2 carbs I have are for a 12A and 13B SE The jet #s for both are listed 12A/13B below. The starter jet is a 760 in both of them.

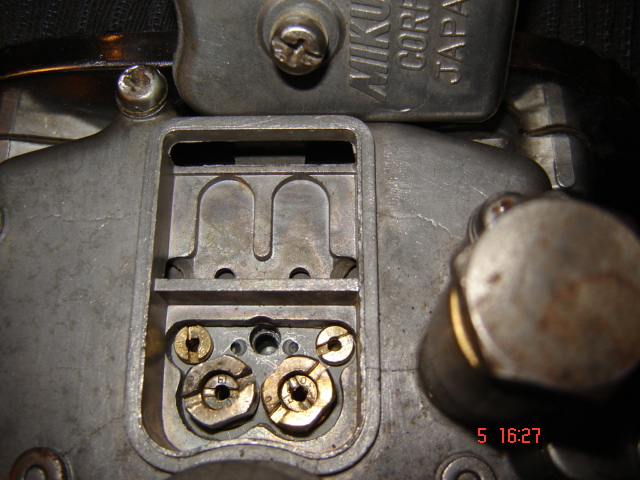

The large tube you took out is the jet block. The jet in the top is the main air jet 190/240, the one at the bottom of the jet block is the main fuel jet 200/175. Pilot jet 52.5/57.5.
The pilot jets fuel the carb from idle to about 20% throttle, then the mains take over.
I've been playing with the listed jets in the bp and have had afrs as low as 10. I can't really tune the carb until I get the exhaust redone and opened up.
The large tube you took out is the jet block. The jet in the top is the main air jet 190/240, the one at the bottom of the jet block is the main fuel jet 200/175. Pilot jet 52.5/57.5.
The pilot jets fuel the carb from idle to about 20% throttle, then the mains take over.
I've been playing with the listed jets in the bp and have had afrs as low as 10. I can't really tune the carb until I get the exhaust redone and opened up.
Trending Topics
04-06-06, 06:48 PM
#9
First suggestion is to install it and see how it runs. That will give you an idea of what needs to be changed. It will probably run, even with those jets, how well is another question. If you have access to a wideband, that will make tuning easier.
04-06-06, 06:52 PM
#10
sellout
Thread Starter
iTrader: (4)
Join Date: Jan 2005
Location: Lawrence KS
Posts: 3,078
Likes: 0
Received 0 Likes
on
0 Posts
did a search and this was what was most popular for a stock setup.
39mm venturi
pilot 62.5
air 240
fuel 200
pump jets 90
choke 760
where are the pump and choke jets located?
39mm venturi
pilot 62.5
air 240
fuel 200
pump jets 90
choke 760
where are the pump and choke jets located?
04-06-06, 09:54 PM
#13
sellout
Thread Starter
iTrader: (4)
Join Date: Jan 2005
Location: Lawrence KS
Posts: 3,078
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by trochoid
Choke is the starter jet, it is under the big cover. Pumps are on each side of the starter lever, one is right next to the vacuum tube that comes out of the top.
04-08-06, 01:28 PM
#15
Full Member
Join Date: Feb 2003
Location: fort walton beach fl
Posts: 63
Likes: 0
Received 0 Likes
on
0 Posts
Jetting per Manaul
12a
Venturi 39mm
main fuel #200 jet
main air #240
pilot jet #62.5
accel pump #90 aka idle jet
jet block OA
13b
Venturi 39mm
main fuel #240 jet
main air #180 or 190
pilot jet #62.5
accel pump #90 aka idle jet
jet block OA
these are for stock or mildly ported engines with race exhaust
Venturi 39mm
main fuel #200 jet
main air #240
pilot jet #62.5
accel pump #90 aka idle jet
jet block OA
13b
Venturi 39mm
main fuel #240 jet
main air #180 or 190
pilot jet #62.5
accel pump #90 aka idle jet
jet block OA
these are for stock or mildly ported engines with race exhaust
04-08-06, 06:16 PM
#16
i wanna get in on the question asking. im gonna either street port or maybe even race port my 12a and wanna know what size air and fuel jets ill need to get? ive never been up to date on carb info, so any help would be great! also will have rb exhaust and headers, presilencer, and a few ignition mods. thanks
also i dunno if i missed it on the last page or not, but does anyone have the stock mikuni 44 jet sizes? i wanna see how much of difference in jet size there will be.
also i dunno if i missed it on the last page or not, but does anyone have the stock mikuni 44 jet sizes? i wanna see how much of difference in jet size there will be.
06-28-06, 02:22 PM
#17
Okay, didn't want to start another thread, so I'll post here. I need some jetting reccomendations for the following setup:
44PHH
12a
big-*** street port, like, you can't go any bigger
RB headers
RB full exhaust
Comp 70 FP
Anybody who's run such a set-up, please tell what worked best for you
44PHH
12a
big-*** street port, like, you can't go any bigger
RB headers
RB full exhaust
Comp 70 FP
Anybody who's run such a set-up, please tell what worked best for you
