image 1

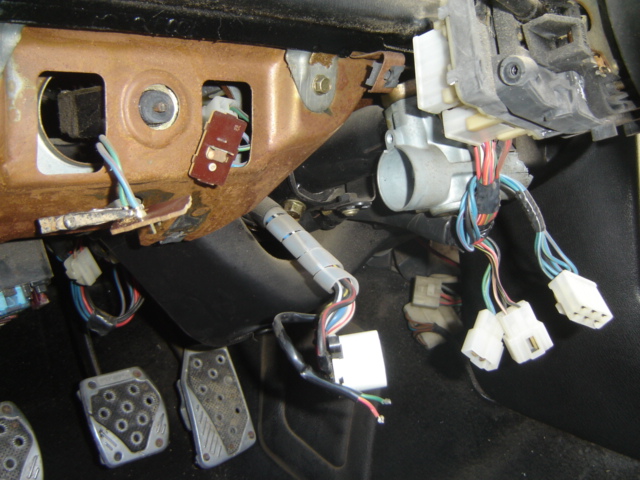

ok, here it goes help me indentify all of the stuff under the string column and to the side.
image 2 and 3

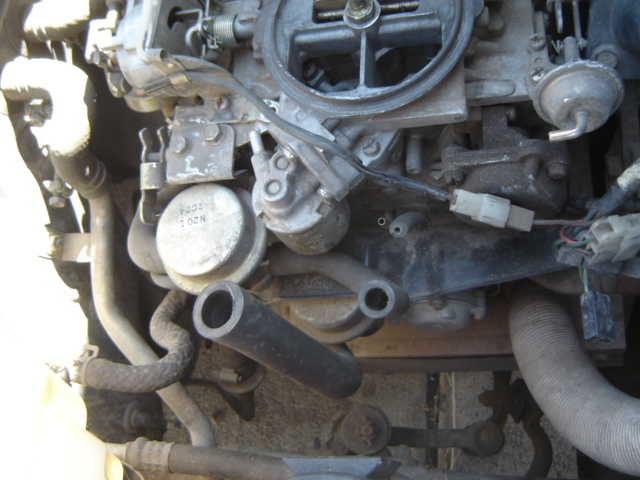

Also what goes where on this carb, if i look at my 84 will it be the same (has same motor)?
image 4

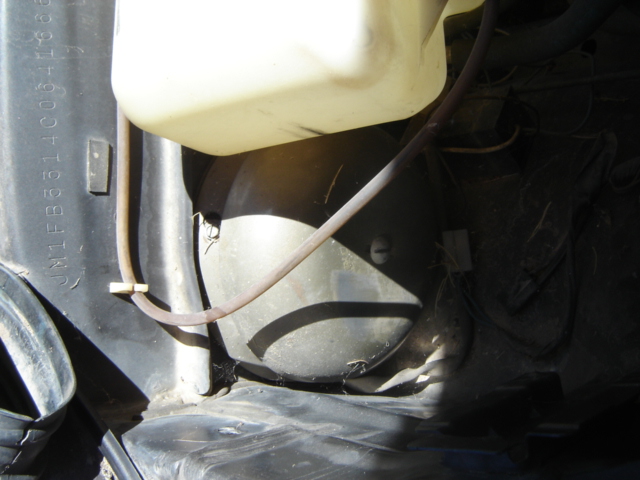

And wtf is this never seen any thing like it? LOL



Aight for #1 you should be able to use this to help ya out, helped me out. http://www.iluvmyrx7.com

#2 alot of it is for the carb cover, the blue filter holding box. but there is 1 off the nest that should be connected to the carb. the 2 y looking pipes comming off the top are for the gas lines. i suggest ripping the rats nest out once you get it to pass emissions.

#3 its the same as #2, most of that goes to the blue filter box.

#4 dont ask me i have no f'in clue that that is. that has to be after market and still dont know what it is.



Thanks for the help,

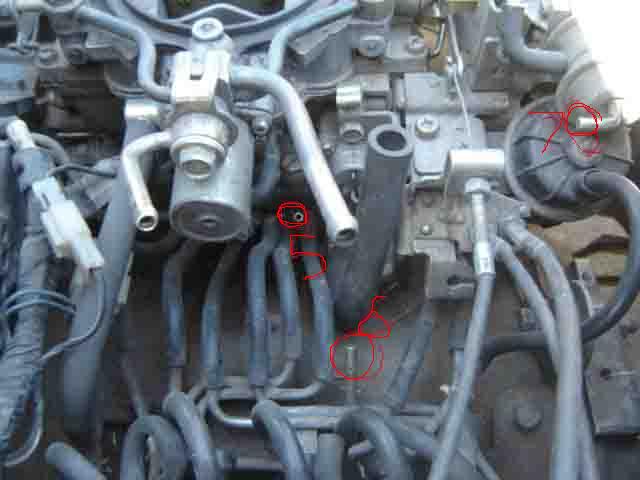

Ok I made some changes to the pic now i need to know where they go. They are numbererd so just take the pic and draw on it or tell me what numbers go to what.



pic 4 looks like a school bell, maybe some hillbilly style alarm. just take it off.
as for the other's, cap off 3,5,6 and don't worry about 1,2,4,7. when i ran a stock carb, i never used those. but like the previous post, remove all that ****. u'll probably later on get an aftermarket carb anyway.



5 and 7 attach to each other ... (there should be a hose that looks like the thats comming off of 7.

Also I think that there's another one that you're missing that should be going from beside 5 to the back where the other end of 7 attaches (also in the same style hose)



4 should attacht to 3 ( seems like you're pointing to 2 holes in 3 though)



2 should attach to the other whole i mention in my first post beside 5



thanks all hoked up



is your car running better now ? if not what's happening



#4 is a rare Bolted Back Turtle. They are endangered. You must have picked him up somewhere. Did you remove your undershields ? Do NOT let him bite you. He will not let go until RX-8's have stock Savannah mirrors.



(dj55b) no I cant even get power to the car all iv gotten it to do is flip up the lights so I have to de bug the electrical now and go from there but wanted to get all the carb stuff hooked up if I can get it to try to start

(DAVID GRIMES) lol that is too funny I found the control box in the glove box it’s an old school alarm



So, I had a bad fusable link and I just went down and got some 2nd gen fuses out of a junk yard and replaced a few fuses under the dash. I have power now and it turns over, the water pump I believe is seized but I haven't tried to break it free but it does turn over. The front rotor I get three good whooshes and the back rotor I got nothing so I went down and got some MMO and just put it in the engine to sit overnight. I am going to drain the oil in the morning and then put some fresh oil and gas in it. Is there anything else I might want to do before attempting to start?



cleaning the spark plugs, (might want to also check if there's spark coming out too or not.) might want to also cehck if the fuel pump works or not (when you try to crank it, you should hear a little ticking sound coming from underneath the car right under the driver side bin. umm ... if the engine doesn't want to run regularly, then you might want to pour some gas down the carb and see if that would get you anything (or you could also spray down some carb cleaner that usualy jump starts it better.
