15x8 offset

Ok guys I've searched and couldnt find anything. (I thought it would have been in the archive) Anyway I'm wanting to use Enkei 92s like these.
Name:  KGrHqIOKkQE1p5zCmWBNbVyNQPw_12.jpg
Views: 678
Size:  39.5 KB I want to run the 8 wide front and rear what offset do I need for them to be flush with zg flares? should I go wider in the rear to match the zgs.?

Thanks
-Austin
slidewithstyle is offline
Old 02-07-12, 07:34 AM
  #2
RX for fun
iTrader: (13)

Siraniko's Avatar

Join Date: Aug 2001
Location: Socal
Posts: 15,912
Likes: 0
Liked 3 Times in 3 Posts
4.5" backspace
Siraniko is offline
Old 02-07-12, 08:43 AM
  #3
Junior Member
5 Year Member

ih8dsm's Avatar

Join Date: Oct 2008
Location: tennessee
Posts: 35
Likes: 0
Liked 0 Times in 0 Posts
Zero offset on the front is pretty much flush back needs about - 5 to sit flush.
ih8dsm is offline
Old 02-07-12, 08:53 AM
  #4
GSL-SE YA!!!
iTrader: (13)

lx_machado's Avatar

Join Date: Oct 2005
Location: Atlanta, GA
Posts: 1,647
Likes: 0
Liked 0 Times in 0 Posts
Here is 15x8 zero offset









lx_machado is offline
Old 02-07-12, 01:04 PM
  #5
Work in Progress
iTrader: (9)

82FanTC's Avatar

Join Date: Aug 2006
Location: Minneapolis
Posts: 566
Likes: 0
Liked 0 Times in 0 Posts
You must have a pretty wide tire on those wheels because a 15x8 zero offset/4.5 backspacing does not set that far outside the fender. The wheels with sit almost flush, just a touch wider, with the fender and some 205x50s fit quite nicely.
82FanTC is offline
Old 02-08-12, 08:53 AM
  #6
RX for fun
iTrader: (13)

Siraniko's Avatar

Join Date: Aug 2001
Location: Socal
Posts: 15,912
Likes: 0
Liked 3 Times in 3 Posts
0 offset is 4"? I want to see pix of the inner tires n wheel well
Siraniko is offline
Old 02-08-12, 10:14 AM
  #7
hoycee$$$$$
iTrader: (3)

Rotarx7's Avatar

Join Date: Jun 2004
Location: pasadena
Posts: 932
Likes: 0
Liked 1 Time in 1 Post
i have the ZG flares on my car but im running 16x8.5s with a -6 offset. They sit pretty flush but on 205s. Running a 0 offset would allow you to run a wider tire. 0 offset with 225s should fit perfect. Im planning on running wider flares soon just so I can run something wider than a 205 without rubbing.

check these out:
http://www.zforceproductions.com/ind...d=15&Itemid=60
Rotarx7 is offline
Old 02-08-12, 11:06 AM
  #8
Older I get/Faster I go!

Kentetsu's Avatar

Join Date: Jun 2004
Location: Grand Rapids Michigan
Posts: 11,347
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by lx_machado View Post
Here is 15x8 zero offset









Yep, that looks about identical to my 13x8 Revolutions (4" BS) and my 13x8 Diamond Racing (4" BS).



.

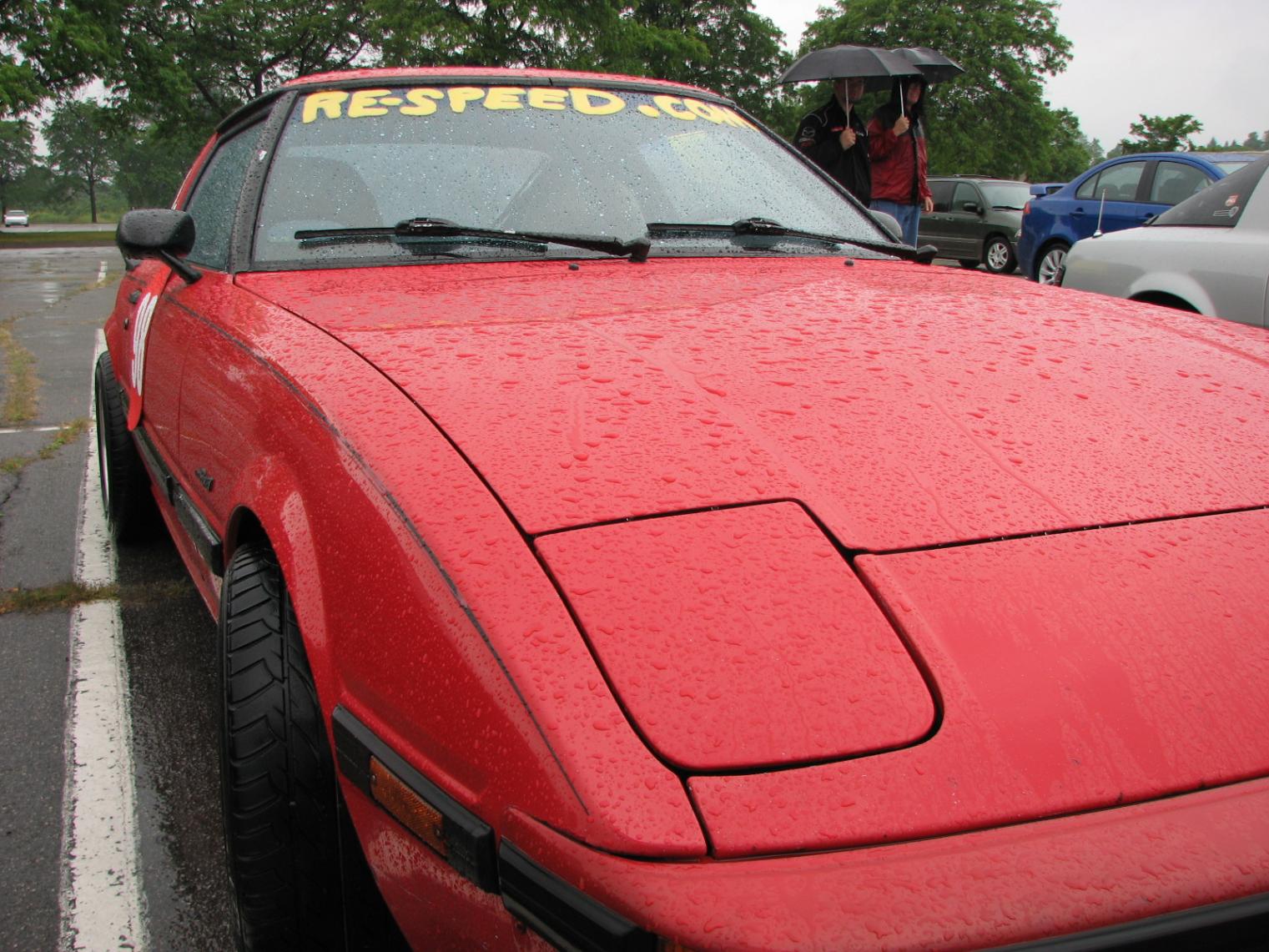

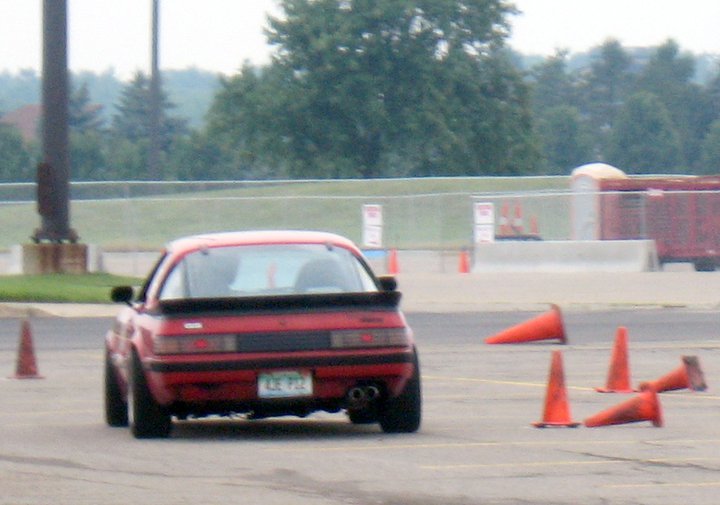

Attached Thumbnails 15x8 offset-262134_201145899938034_159960587389899_630746_3343594_n.jpg   15x8 offset-picture-173.jpg
Kentetsu is offline
Old 02-09-12, 09:46 PM
  #9
Rotary Enthusiast
iTrader: (3)

mustanghammer's Avatar

Join Date: Nov 2006
Location: Parkville, Mo
Posts: 1,092
Likes: 0
Liked 12 Times in 10 Posts
A zero offset 8" wide wheel generally has 4.5" of back spacing in my experience. Put a tape measure on a 8" wheel and you will see that they are pretty close to 9" wide from outer edge to outer edge.

From the pictures it looks like a +15mm or +25mm would be a better choice. Also some camber on the front would pull the tire in better.

Thanks for posting. I will be running 15x8 wheels on my race car and I have been trying to figure out the proper off-set. I will be running a 225/45 tire.
mustanghammer is offline
Old 02-09-12, 10:57 PM
  #10
now 17 with 2 cars **)
iTrader: (1)

snowbreaker's Avatar

Join Date: Apr 2011
Location: grand rapids, michigan
Posts: 262
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by lx_machado View Post
Here is 15x8 zero offset

thats pretty badass just saying
snowbreaker is offline
Old 02-10-12, 03:22 PM
  #11
Full Member
Thread Starter

slidewithstyle's Avatar

Join Date: Jul 2009
Location: louisville ky
Posts: 120
Likes: 0
Liked 0 Times in 0 Posts
Thanks guys for the response mhat is the widest tire possible in the rear with ZG flares?
slidewithstyle is offline
Old 02-10-12, 03:41 PM
  #12
Armchair engineer
iTrader: (2)

j9fd3s's Avatar

Join Date: Mar 2001
Location: http://www.k2rd.com
Posts: 24,384
Likes: 0
Liked 107 Times in 97 Posts
Originally Posted by slidewithstyle View Post
Thanks guys for the response mhat is the widest tire possible in the rear with ZG flares?
if you're not doing at least 245's you're wasting your time.... 225/45/15's fit the stock fenders with no rolling....
j9fd3s is offline
Old 02-10-12, 06:41 PM
  #13
Full Member
Thread Starter

slidewithstyle's Avatar

Join Date: Jul 2009
Location: louisville ky
Posts: 120
Likes: 0
Liked 0 Times in 0 Posts
Thanks I need as much rubber on the back as I can get.
slidewithstyle is offline
Old 02-11-12, 12:32 AM
  #14
My 7 is my girlfriend.
10 Year Member
iTrader: (5)

orion84gsl's Avatar

Join Date: Feb 2006
Location: London, Ontario, Canada
Posts: 3,162
Likes: 0
Liked 0 Times in 0 Posts
I had a 15x8 +20 Rota RB on the rear and it sat JUST inside the fender. Rubbed a tad but nothing to sweat over. The front was another story. Using 15mm spacers with the same size wheel the tire poked outside the fender a bit and was able to rub the set screw on the coilover sleeve perch if it was clocked the right (wrong?) way. It's tight up front. A 7.5 inch +14 (which I have now) fits damn near perfectly. A slightly narrower tire will keep it from tearing up my fenders any more than they have been.

PS, I have ZG rear flares that I bought but won't be using, if your interested.
orion84gsl is offline
Old 02-11-12, 06:26 PM
  #15
Full Member
Thread Starter

slidewithstyle's Avatar

Join Date: Jul 2009
Location: louisville ky
Posts: 120
Likes: 0
Liked 0 Times in 0 Posts
PM sent
slidewithstyle is offline
Old 02-11-12, 07:31 PM
  #16
GSL-SE YA!!!
iTrader: (13)

lx_machado's Avatar

Join Date: Oct 2005
Location: Atlanta, GA
Posts: 1,647
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by 82FanTC View Post
You must have a pretty wide tire on those wheels because a 15x8 zero offset/4.5 backspacing does not set that far outside the fender. The wheels with sit almost flush, just a touch wider, with the fender and some 205x50s fit quite nicely.
The tire size on that car is 205/50/15

I would have kept the wheels it they were flush

lx_machado is offline
Old 02-11-12, 09:36 PM
  #17
RX for fun
iTrader: (13)

Siraniko's Avatar

Join Date: Aug 2001
Location: Socal
Posts: 15,912
Likes: 0
Liked 3 Times in 3 Posts

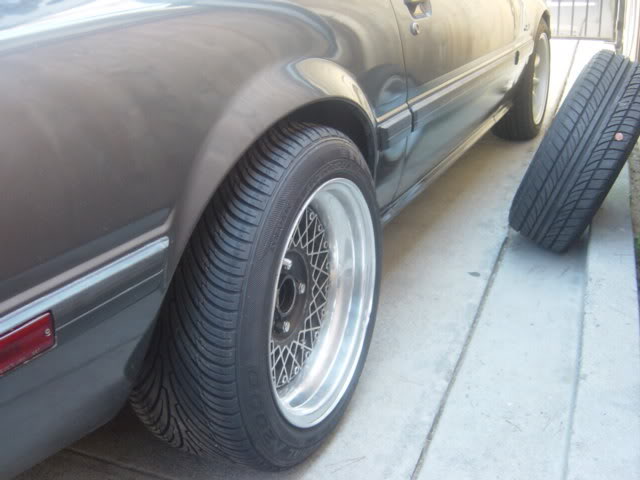

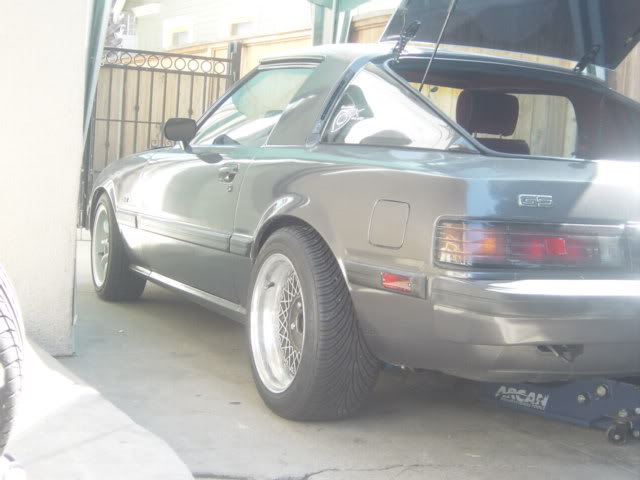

15x8, 4.75 backspace but have been better if I were to run 225-45 series instead of 205-50
Name:  DSC07292.jpg
Views: 913
Size:  38.9 KB
Name:  DSC07296.jpg
Views: 982
Size:  37.2 KB

same rims in my tender blue RX-3 with VW Cabriolet fender flares
Name:  SDC10653.jpg
Views: 519
Size:  81.8 KB
Siraniko is offline
