12a turbo begining to take shape
#1
Senior Member
Thread Starter
Join Date: Nov 2004
Location: Oregon
Posts: 458
Likes: 0
Received 0 Likes
on
0 Posts
12a turbo begining to take shape
hey guys I have decided to turbo the 12a I have in my vw baja. I have a pretty healthy "nissan motors" turbo from a 1985 300zx 3.0 liter. now the exhaust merges on the drivers side so all 6 cylinders push the turbo. I was wondering if this would be a good start on my project. it can push the 3.0 to 300hp no problem, but will it be enough for my 12a? or to much? I can do the fabrication part for the header easily. I don't care if it lags some I just don't want it to run outta breath. I am shooting for 250 hp. would a external wastegate be the way to go also? my engine only has 3000 miles on it since the rebuild.
I also have access to a mustang dyno, so tuning will be mandatory once setup. I found a friend with a cheap wideband for sale also so it will be instllaed also.
I also have access to a mustang dyno, so tuning will be mandatory once setup. I found a friend with a cheap wideband for sale also so it will be instllaed also.
#2
Suicidal Death Missile
Join Date: Mar 2004
Location: Newport News, Virginia
Posts: 1,782
Likes: 0
Received 0 Likes
on
0 Posts
Seems like it will be a pretty good beginner starter, but unless someone know's the A/R's of the turbo, then it's hard to say. 250 hp is achievable with a turbo, but make sure you pump enough fuel in, or it'll pop quick.
On the wastegate, you'll have to look at the turbo and see if it's already got an internal wastegate. Most factory turbos do, but check to make sure. If it doesn't, then you're going to have to go external wastegate. 40mm should suffice rather well.
On the wastegate, you'll have to look at the turbo and see if it's already got an internal wastegate. Most factory turbos do, but check to make sure. If it doesn't, then you're going to have to go external wastegate. 40mm should suffice rather well.
#3
Senior Member
Thread Starter
Join Date: Nov 2004
Location: Oregon
Posts: 458
Likes: 0
Received 0 Likes
on
0 Posts
it has a internal wastegate set up at 5-6 lbs, so I will keep it at that level for now. I will try and get the A/R's for the turbo and post em here. I will probably make a external wastegate pipe centered between the two exhaust ports and just cap it for now. I am just using a flang, two pieces of thick stainless pipe made into a "V" shpae and exit into the turbo. It will be about a foot long.
just trying to get an idea if this is a good start for a turbo.
just trying to get an idea if this is a good start for a turbo.
#4
Senior Member
Thread Starter
Join Date: Nov 2004
Location: Oregon
Posts: 458
Likes: 0
Received 0 Likes
on
0 Posts
here is a link to some maps. on the one page it says the turbo is good for smalldisplacement engines with lower boost levels. mine is not a garrett, it is the nissan (hitachi???)turbo.
http://www.mygen.com/users/dbruce/my...sor%20Maps.htm
http://www.mygen.com/users/dbruce/my...sor%20Maps.htm
Trending Topics
#8
Senior Member
Thread Starter
Join Date: Nov 2004
Location: Oregon
Posts: 458
Likes: 0
Received 0 Likes
on
0 Posts

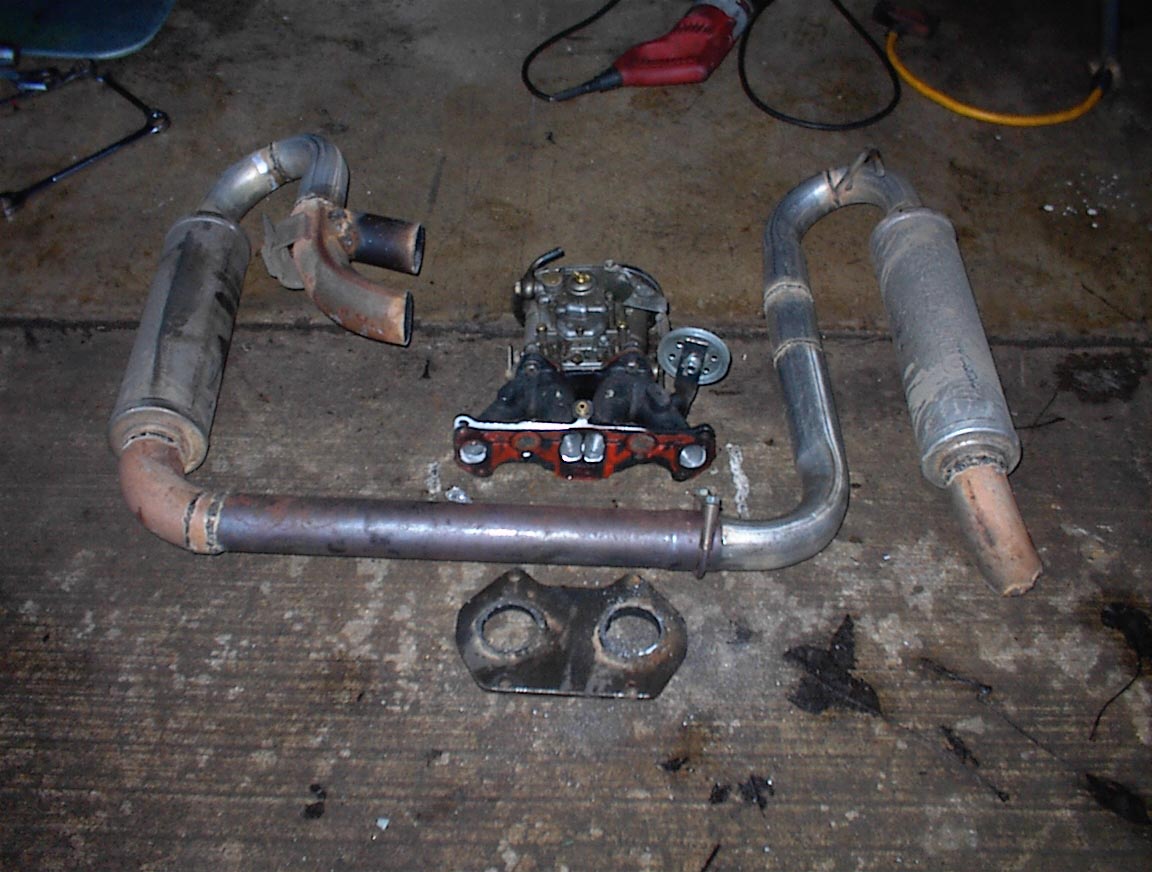

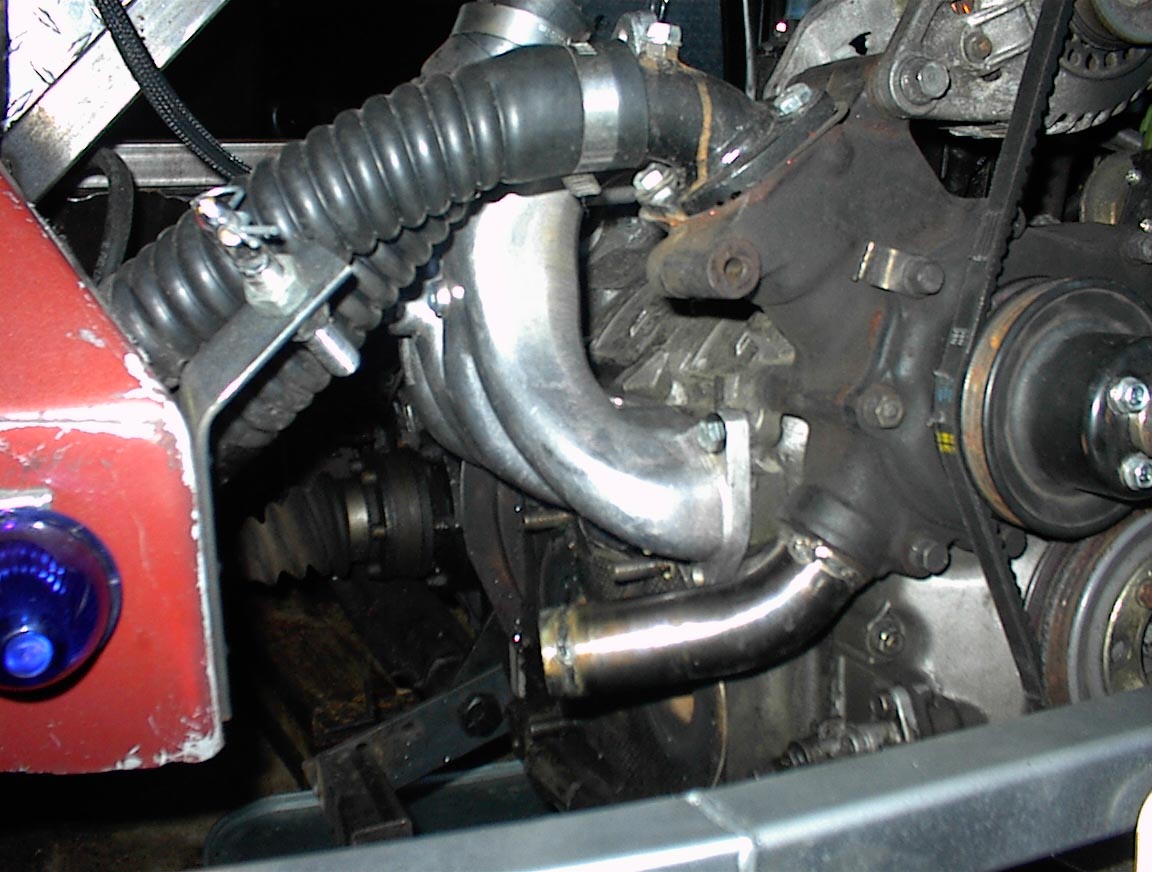

here is a couple pics of the intake and old exhaust.
I got my homemade boost referenced FPR made.
the turbo flang is going to come off and be about 6 inches from the engine flang. both pipes joining together to make a "V" looking manifold.
1; will 2" stainless be ok for making the turbo manifold??
2; will the turbo be to close to the engine? there is alot of air blowing by being it is out and exposed not like under the hood.
I got my homemade boost referenced FPR made.
the turbo flang is going to come off and be about 6 inches from the engine flang. both pipes joining together to make a "V" looking manifold.
1; will 2" stainless be ok for making the turbo manifold??
2; will the turbo be to close to the engine? there is alot of air blowing by being it is out and exposed not like under the hood.
#10
buzzzzz!-ook!-buzzzzz!
Join Date: Apr 2005
Location: Toronto/Can.
Posts: 354
Likes: 0
Received 0 Likes
on
0 Posts
i feel gypped! there aint a single picture of a turbo in dis thread!
air blowing across the turbo is a good thing, those snails get REALLLY hot... cooling will improve the longevity (though not by much if youre just blowing air on top of it.. but every bit helps), and it will help keep heat away from the engine.
here's something crazy: take a smaaaaalll oil cooler from an auto transmission and place it in series with the turbo's oil supply, in the vehicles airstream. on the feed side it will help cool your turbo bearings with cool oil, on the drain side it will help keep oil temps down improving engine soft seal longevity and preventing oil breakdown. thoughts?
air blowing across the turbo is a good thing, those snails get REALLLY hot... cooling will improve the longevity (though not by much if youre just blowing air on top of it.. but every bit helps), and it will help keep heat away from the engine.
here's something crazy: take a smaaaaalll oil cooler from an auto transmission and place it in series with the turbo's oil supply, in the vehicles airstream. on the feed side it will help cool your turbo bearings with cool oil, on the drain side it will help keep oil temps down improving engine soft seal longevity and preventing oil breakdown. thoughts?
#11
Senior Member
Thread Starter
Join Date: Nov 2004
Location: Oregon
Posts: 458
Likes: 0
Received 0 Likes
on
0 Posts

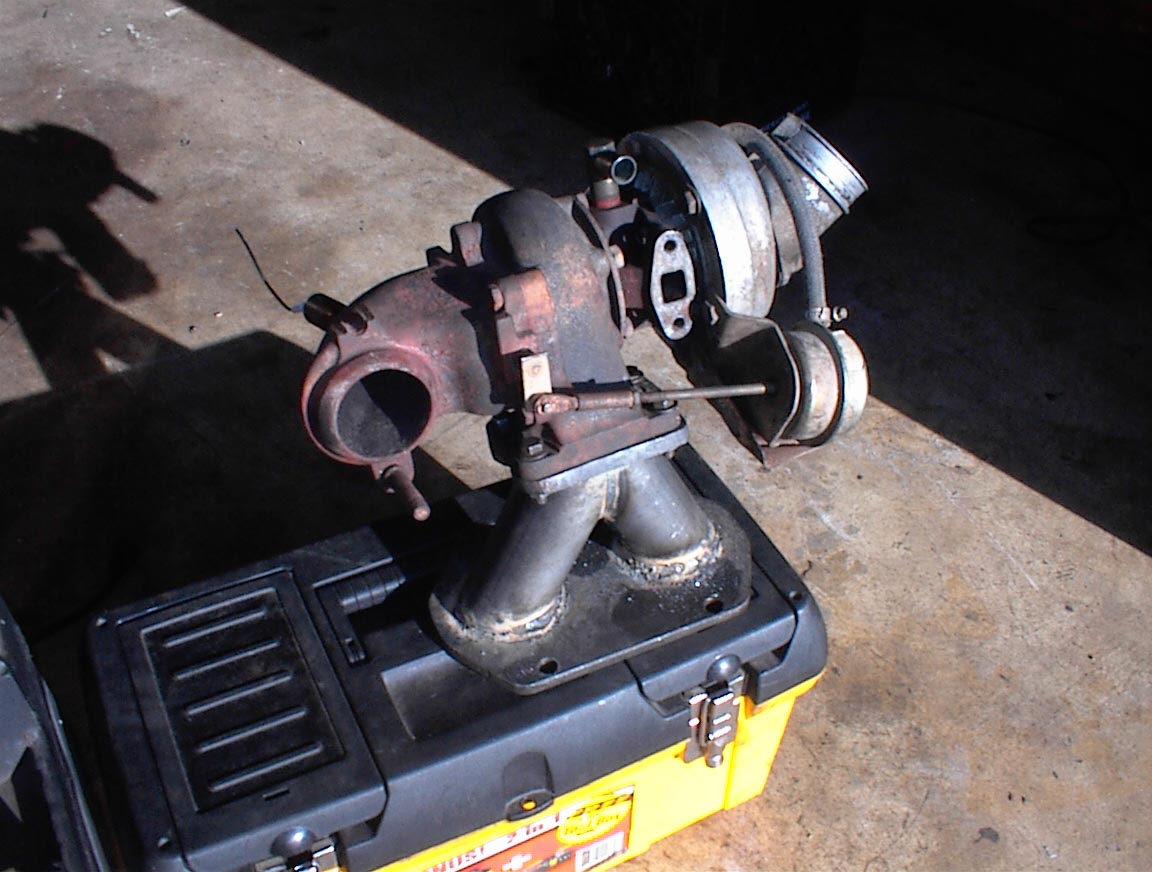

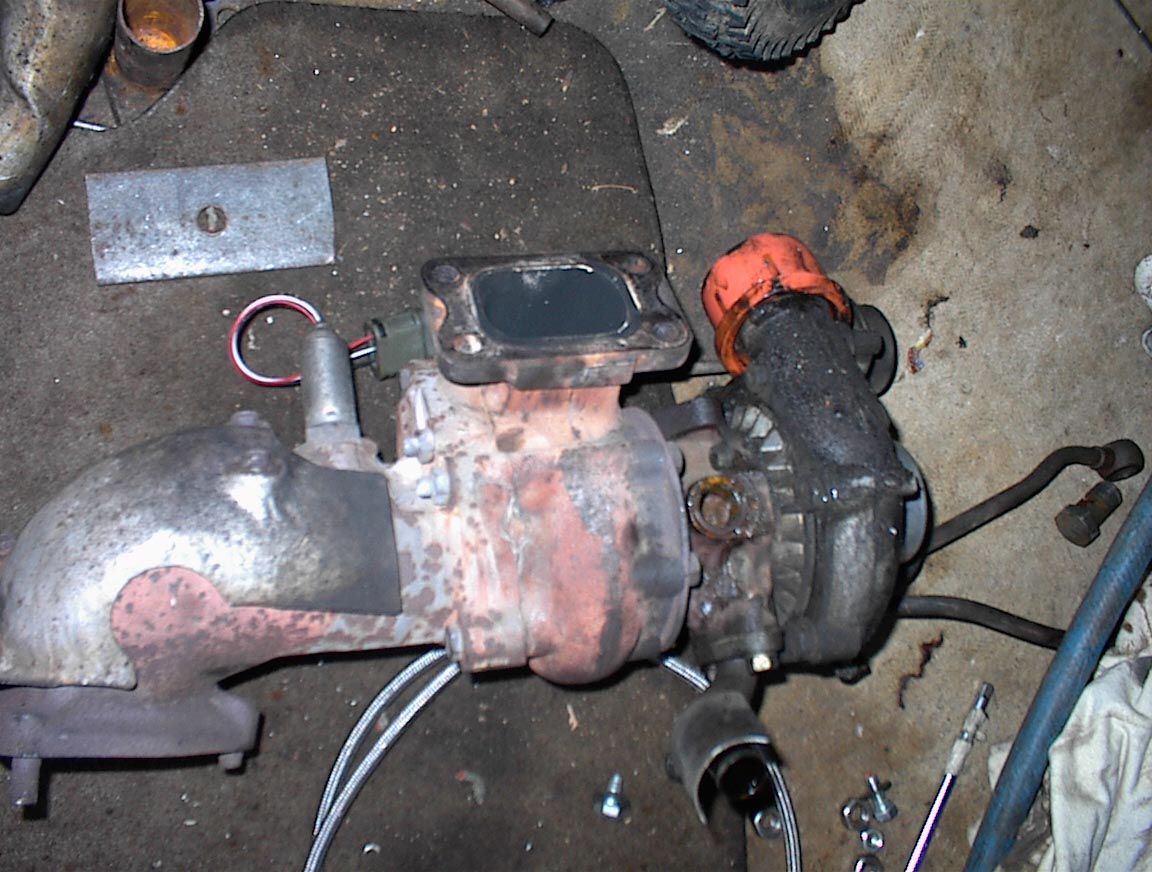

sorry about no pics man, heres one.

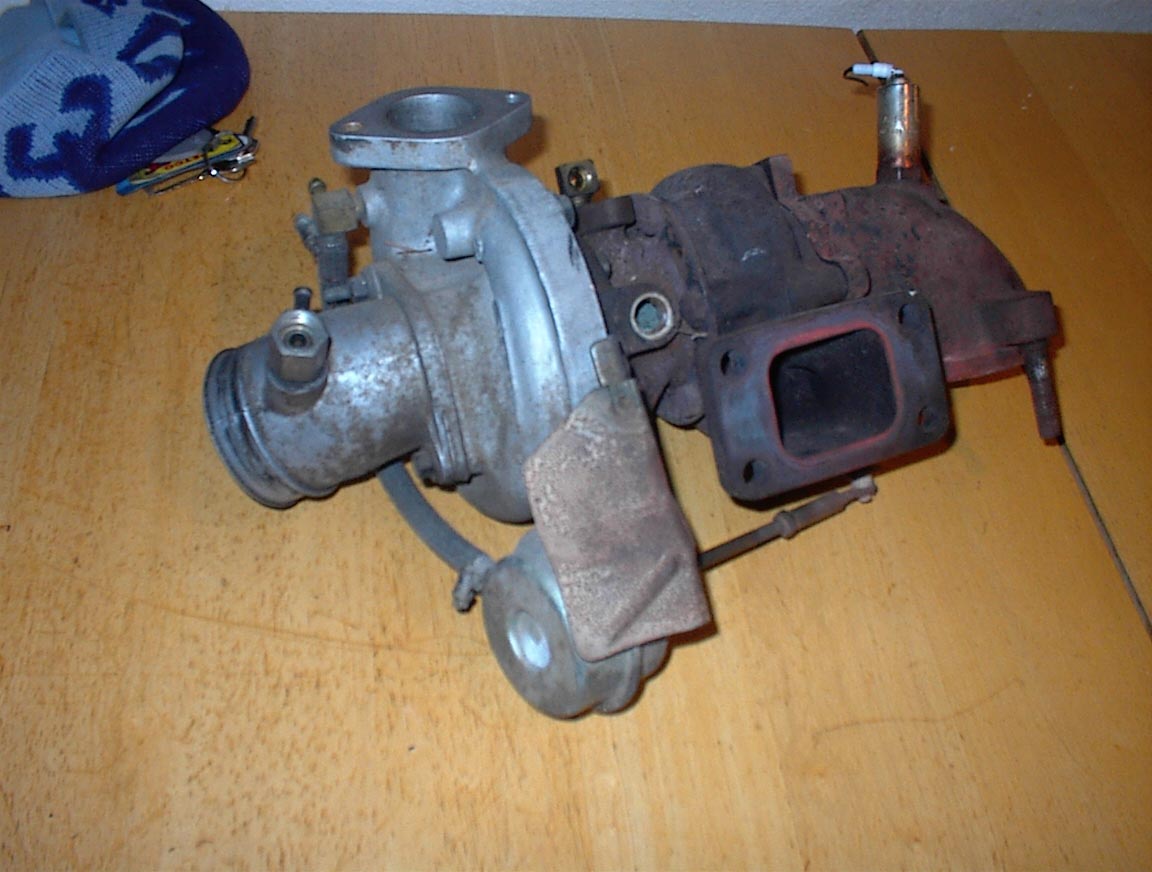

Hey I just got a thunderbird turbo off the 2.3 engine. Looks to be in great shape. The compressor side reads 60ar. The exhaust side doesn't have the ar. It looks to have the t4 flang I belive?? spins good and fins look great. I am not sure if it was auto or stick, great price though $20.
Would this be better flow wise from the garrett t3 from the nissan?
This is a major on the buget turbo project. I mean homemade **** budget.
Vw bug buget even, the worse kind.
Hey I just got a thunderbird turbo off the 2.3 engine. Looks to be in great shape. The compressor side reads 60ar. The exhaust side doesn't have the ar. It looks to have the t4 flang I belive?? spins good and fins look great. I am not sure if it was auto or stick, great price though $20.
Would this be better flow wise from the garrett t3 from the nissan?
This is a major on the buget turbo project. I mean homemade **** budget.
Vw bug buget even, the worse kind.
#14
Senior Member
Thread Starter
Join Date: Nov 2004
Location: Oregon
Posts: 458
Likes: 0
Received 0 Likes
on
0 Posts
I will show a pic of it, you need a check valve also to make it work. the vw guys swear by it.
will the 2.3 turbo be enough for a 12a though? It is a stock port 12a.
will the 2.3 turbo be enough for a 12a though? It is a stock port 12a.
#16
Originally Posted by FB II
it's gonna choke the motor up top, but i wouldn't really worry about it. give it a shot. if you don't like it then grab another turbo
#17
Banned. I got OWNED!!!
Join Date: Dec 2002
Location: wishing i was back in FL
Posts: 4,192
Likes: 0
Received 0 Likes
on
0 Posts
it's not a T4. still a T3.
here is the compressor map for it http://www.turbocharged.com/catalog/compmaps/fig4.html
gonna be the same deal as the nissan.
stock w/ alot of work. hahaha
here is the compressor map for it http://www.turbocharged.com/catalog/compmaps/fig4.html
gonna be the same deal as the nissan.
Originally Posted by Tatterjuice_771
hey what kind of intake/carb setup you got going on there?
#18
Senior Member
Thread Starter
Join Date: Nov 2004
Location: Oregon
Posts: 458
Likes: 0
Received 0 Likes
on
0 Posts
^^yeah alot,lol
cool, thanks man. It uses a different bolt pattern for the hot inlet so now I gotta fab up another flang. The good thing is the stock nissan turbo can go back on.
cool, thanks man. It uses a different bolt pattern for the hot inlet so now I gotta fab up another flang. The good thing is the stock nissan turbo can go back on.
#19
Senior Member
Thread Starter
Join Date: Nov 2004
Location: Oregon
Posts: 458
Likes: 0
Received 0 Likes
on
0 Posts

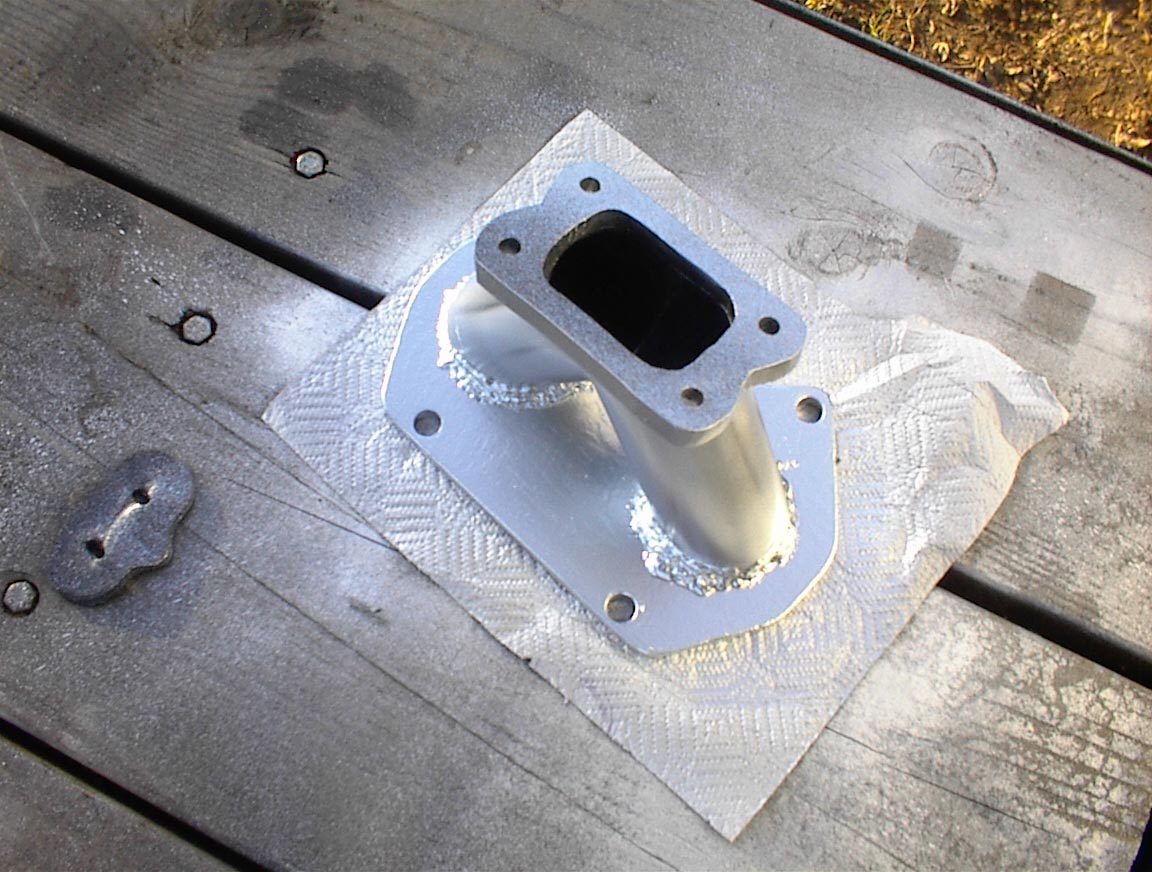

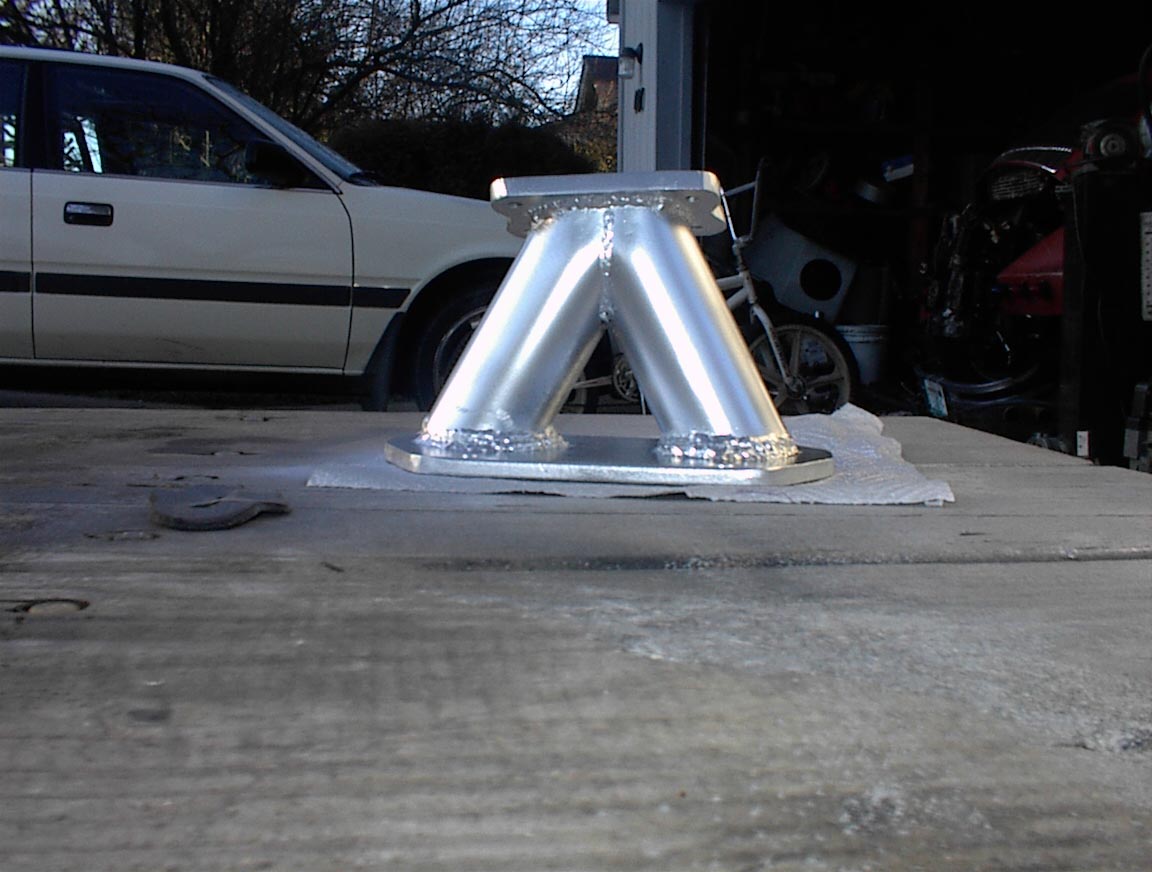

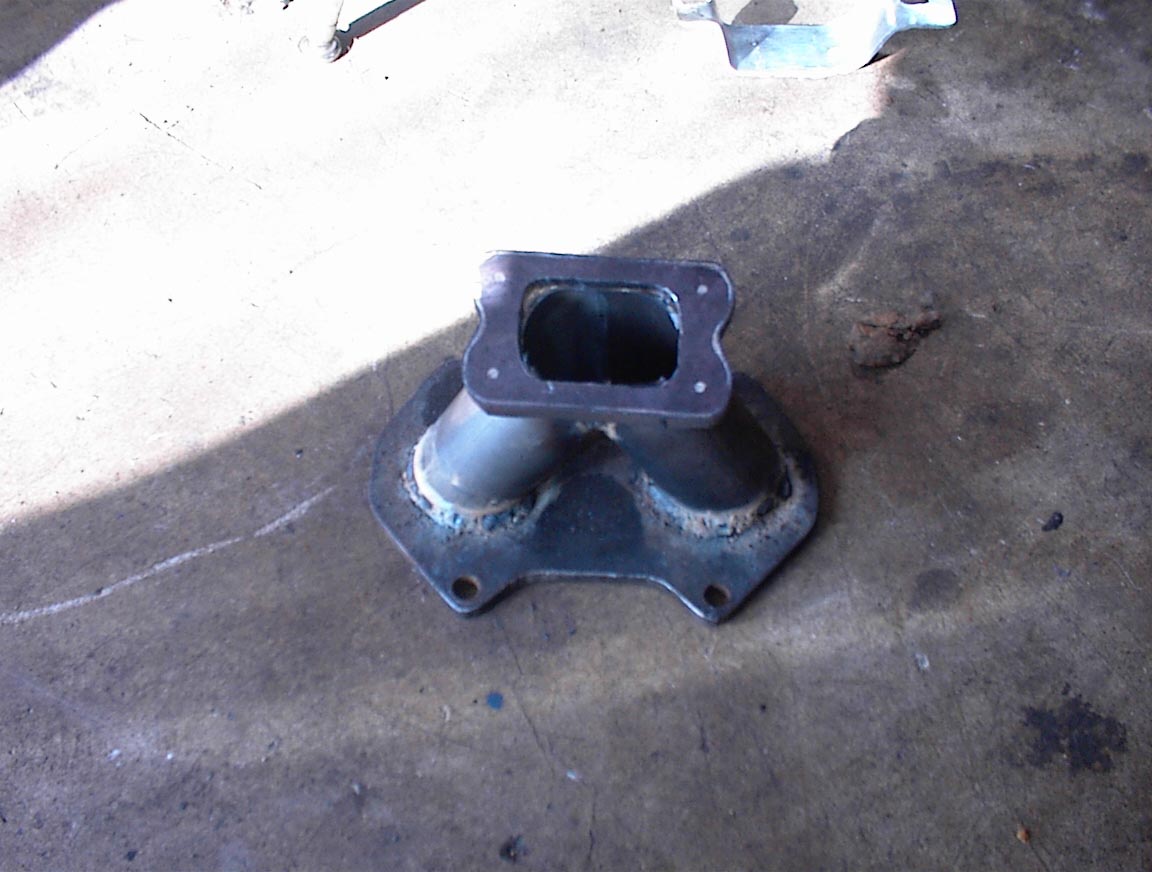

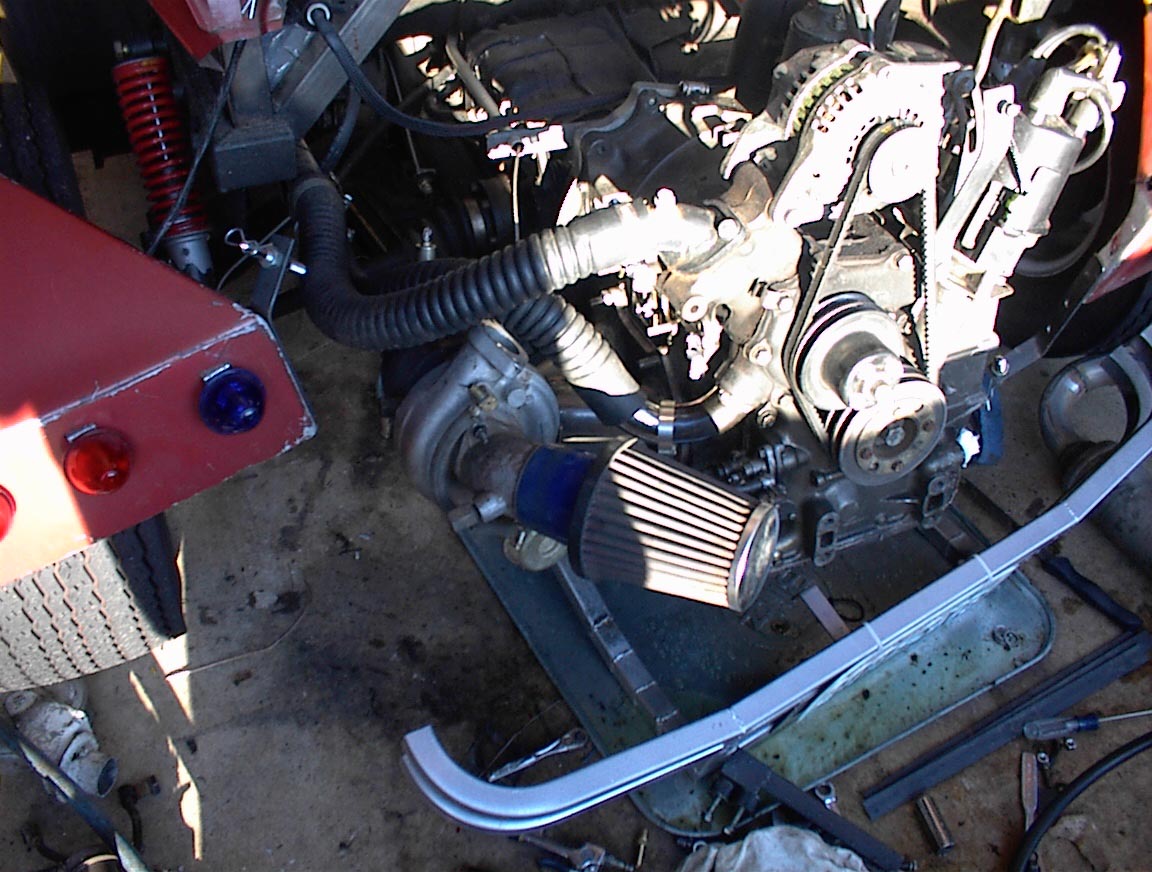

exhaust manifold finished for now.
I might drill a hole and run a external wg later. Its some tight fittin **** but hopefully well worth it.
thats my $200 burn box welding there. I cleaned it enough to use.
I might drill a hole and run a external wg later. Its some tight fittin **** but hopefully well worth it.
thats my $200 burn box welding there. I cleaned it enough to use.
#22
Banned. I got OWNED!!!
Join Date: Dec 2002
Location: wishing i was back in FL
Posts: 4,192
Likes: 0
Received 0 Likes
on
0 Posts
did you leak test those welds? also, the flange that bolts up to the engine looks a bit on the thin side.... other than that tho, it should work great. looks identical to the manifold i made for an s4 turbo a long time ago
#23
Senior Member
Thread Starter
Join Date: Nov 2004
Location: Oregon
Posts: 458
Likes: 0
Received 0 Likes
on
0 Posts

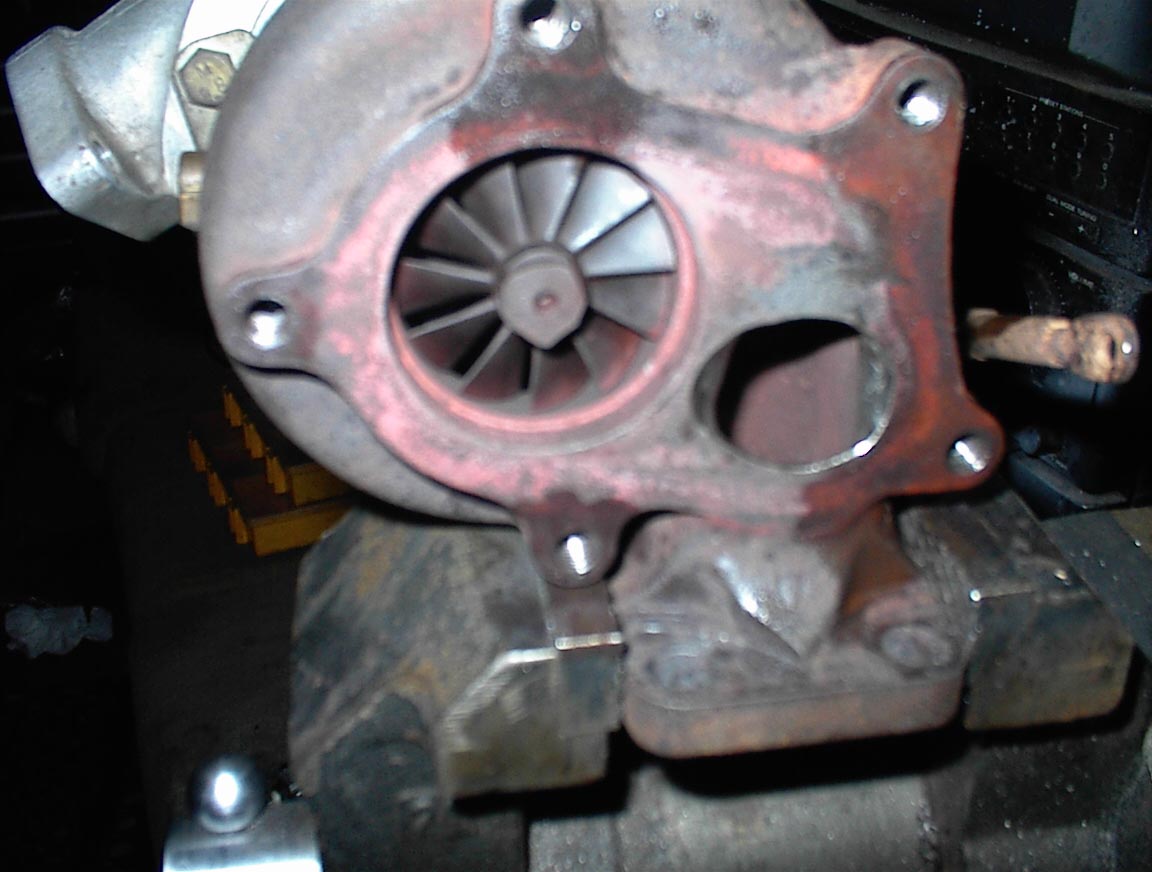

hey FB here is the wastegate ported out. I cannot get it much bigger due to the flapper it uses. I will make the flapper door tommorow, I got too drunk last night and any loud noises are not gonna be cool today. I had to hold onto the ground just so I wouldn't fall off the earth last night,lol.
