Wow. An actual 3-rotor RENESIS

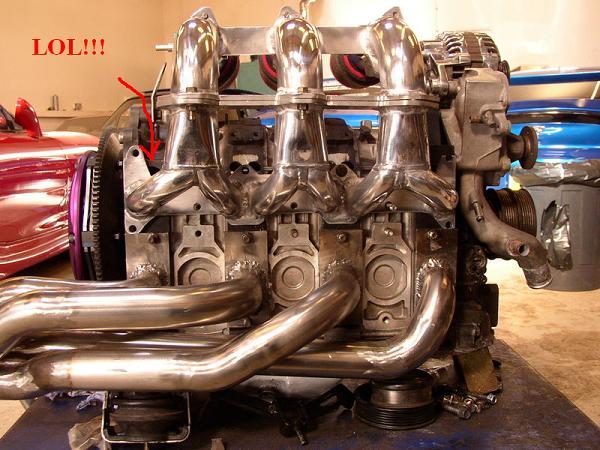

I just saw this on ausrotary.com.
Apparently it holds up well, and I don't see an extra-long intermediate plate, which implies that it might be made without super-unobtanium parts. Very cool.
Original thread HERE
Apparently it holds up well, and I don't see an extra-long intermediate plate, which implies that it might be made without super-unobtanium parts. Very cool.
Original thread HERE
#7
I need a new user title
Join Date: Oct 2005
Location: Yaizu, Japan
Posts: 2,646
Likes: 0
Received 0 Likes
on
0 Posts
Must be a 4-port.
I've never really looked at Renesis irons before. Are the front and rear port runners (both intake and exhaust) the same size as the intermediate ones? Or could they be ported enough to be? Otherwise you're going to end up with less power from the center rotor.
I've never really looked at Renesis irons before. Are the front and rear port runners (both intake and exhaust) the same size as the intermediate ones? Or could they be ported enough to be? Otherwise you're going to end up with less power from the center rotor.
Trending Topics
#10
Censored
iTrader: (14)
Crit don't feel bad, they moved my turbo photo off the tech section too. I think our "tech" buddies are becoming a little elitist, only their "tech" is tech.
Anyway, time to reveal my ignorance. If that is a three rotor, why does it have four exhaust pipes? Peripheral exhaust perhaps?
And if so, does that mean the middle pipes share exhaust from two rotors? And why doesn't the regular Renesis have three exhaust pipes, all the RX-8's I've seen have two (although adding a third in the middle might have made the car interesting at least).
Anyway, time to reveal my ignorance. If that is a three rotor, why does it have four exhaust pipes? Peripheral exhaust perhaps?
And if so, does that mean the middle pipes share exhaust from two rotors? And why doesn't the regular Renesis have three exhaust pipes, all the RX-8's I've seen have two (although adding a third in the middle might have made the car interesting at least).
#12
Zuuuummmmm Zuuuummmmm
Join Date: Oct 2006
Location: King, NC
Posts: 1,450
Likes: 0
Received 0 Likes
on
0 Posts
#14
InsaneRotaries.com
#16
Senior Member
Join Date: Apr 2003
Location: Owasso, OK
Posts: 530
Likes: 0
Received 0 Likes
on
0 Posts
In the Renesis the intake and exhaust are both in the end/intermediate housings. There are no external ports on the rotor housings. There are actually 6 exhaust ports, it's just that the middle four are consolidated into two because they are beside each other. It's just like the intake, except runners 2 and 3 are combined and runners 4 and 5 are combined. The following picture is of a Renesis block. Notice the rectangular ports on the bottom of the front, intermediate, and rear housings. These are exhaust ports. If you look carefully you can see that the middle port has a split in it where the two runners meet. The only holes on the rotor housings are for intake coolant, like 12As and 13Bs.
Last edited by Misthael; 05-27-08 at 07:52 PM.
#17
I need a new user title
Join Date: Oct 2005
Location: Yaizu, Japan
Posts: 2,646
Likes: 0
Received 0 Likes
on
0 Posts
Uh, the Renesis doesn't have peripheral exhaust ports. Those are stock rotor housings.
Edit: see above.
Edit: see above.
Last edited by PercentSevenC; 05-27-08 at 08:01 PM.
#19
packin' heat
iTrader: (15)
Join Date: Nov 2005
Location: by some mountains
Posts: 663
Likes: 0
Received 0 Likes
on
0 Posts
There are three exhaust pipes on a Renesis. The spots where the peripheral exhaust port of a 13B would be, are cast like that in a Renesis. Here is a diagram of what the Renesis exhaust ports are like:
Now I would think that the middle rotor of the 20B Renesis would make less power because it has smaller exhaust ports. If you look at the front and rear plates of the two rotor Renesis, you can see that the exhaust ports are larger than that of the shared middle port, which evens out since both rotors have one large port for exhaust, and then a shared port in the middle. But in the case of the 20B Renesis, I would assume that the other intermediate plate also shares ports, meaning that the middle rotor has two smaller shared exhaust ports, whereas the front and rear rotors have one large port, and a shared port.
Now I would think that the middle rotor of the 20B Renesis would make less power because it has smaller exhaust ports. If you look at the front and rear plates of the two rotor Renesis, you can see that the exhaust ports are larger than that of the shared middle port, which evens out since both rotors have one large port for exhaust, and then a shared port in the middle. But in the case of the 20B Renesis, I would assume that the other intermediate plate also shares ports, meaning that the middle rotor has two smaller shared exhaust ports, whereas the front and rear rotors have one large port, and a shared port.
Last edited by rotarymandan; 05-27-08 at 08:16 PM.
#21
Rotary Enthusiast
iTrader: (14)
Join Date: May 2004
Location: Drifting a Roundabout near you!
Posts: 1,366
Likes: 0
Received 10 Likes
on
10 Posts
Ok, remember the Renesis does not have any ports on the rotor housings, everything, intake and exhaust pass through the irons, 2 sides to each housing, the 2nd and 3rd exhaust pipes are shared exhaust by all 3 rotor housings.
These are not like our rotary engines, they are different and yet the same...kinda.
Looking forward to a dumbed down Renesis motor with no ecu....just a carb and spark.
Ok, in the time it took me to find...and fail, others above found illustrations to what I am talking about...
These are not like our rotary engines, they are different and yet the same...kinda.
Looking forward to a dumbed down Renesis motor with no ecu....just a carb and spark.
Ok, in the time it took me to find...and fail, others above found illustrations to what I am talking about...
#23
Rotary Enthusiast
iTrader: (14)
Join Date: May 2004
Location: Drifting a Roundabout near you!
Posts: 1,366
Likes: 0
Received 10 Likes
on
10 Posts
Here's a great thread on the break down of a Renesis motor, lot's of good pics.
You are able to see clearly the intake and exhaust porting on the irons.
Thrashed motor....
http://www.rx8club.com/showthread.php?t=146186
You are able to see clearly the intake and exhaust porting on the irons.
Thrashed motor....
http://www.rx8club.com/showthread.php?t=146186
#25
InsaneRotaries.com
^ check the original thread, this motor runs and their are several video's of it running with the same intake...
This is the first time someone made a 3 rotor from renesis parts, so don't expect the guy to find off the shelf parts to make it work... all the manifolds had to be custom, so the pic above looked like it was still being sorted and lined up..
I also don't see the sarcarsm or the need for "lol" in your comment
Lets see your custom 1 off 3rotor mr funny guy
This is the first time someone made a 3 rotor from renesis parts, so don't expect the guy to find off the shelf parts to make it work... all the manifolds had to be custom, so the pic above looked like it was still being sorted and lined up..
I also don't see the sarcarsm or the need for "lol" in your comment
Lets see your custom 1 off 3rotor mr funny guy
Last edited by RoTaRyBoYz; 05-27-08 at 10:12 PM.
