new coils

i have searched all the first gen threads and only find info on dfis systems, my question is will my stock fb run better and get better spark if i replace the coils with brand new ones. the car does run ok as i am heat cycling it after a rebuild. im just curious if i should spend 80 bucks on coils, to see if it runs better or stronger spark.
Old 05-13-24, 01:02 PM
  #2
Full Member


Silver82's Avatar

Join Date: Oct 2007
Location: Aurora, Co
Posts: 75
Likes: 0
Received 6 Likes on 5 Posts
I just replaced my ignition coils and spark plug wires a couple of weeks ago. Car starts easier and seems to rev easier.
The following 2 users liked this post by Silver82:
Toruki (05-13-24), VA RX7 (05-15-24)
Old 05-15-24, 06:09 AM
  #3
Slow Car Fast

VA RX7's Avatar

Join Date: Sep 2020
Location: Southwestern Virginia
Posts: 158
Received 69 Likes on 44 Posts
Originally Posted by Silver82
I just replaced my ignition coils and spark plug wires a couple of weeks ago. Car starts easier and seems to rev easier.
I'm curious, what brand/type of coil did you install?
Old 05-15-24, 08:28 AM
  #4
Junior Member

lil12abp's Avatar

Join Date: May 2024
Location: Florida
Posts: 22
Received 13 Likes on 9 Posts
I did the MSD ingnition system and I could tell a difference, next will be to replace the 2 coils for sure.

I'll be going with MSD black coils


.

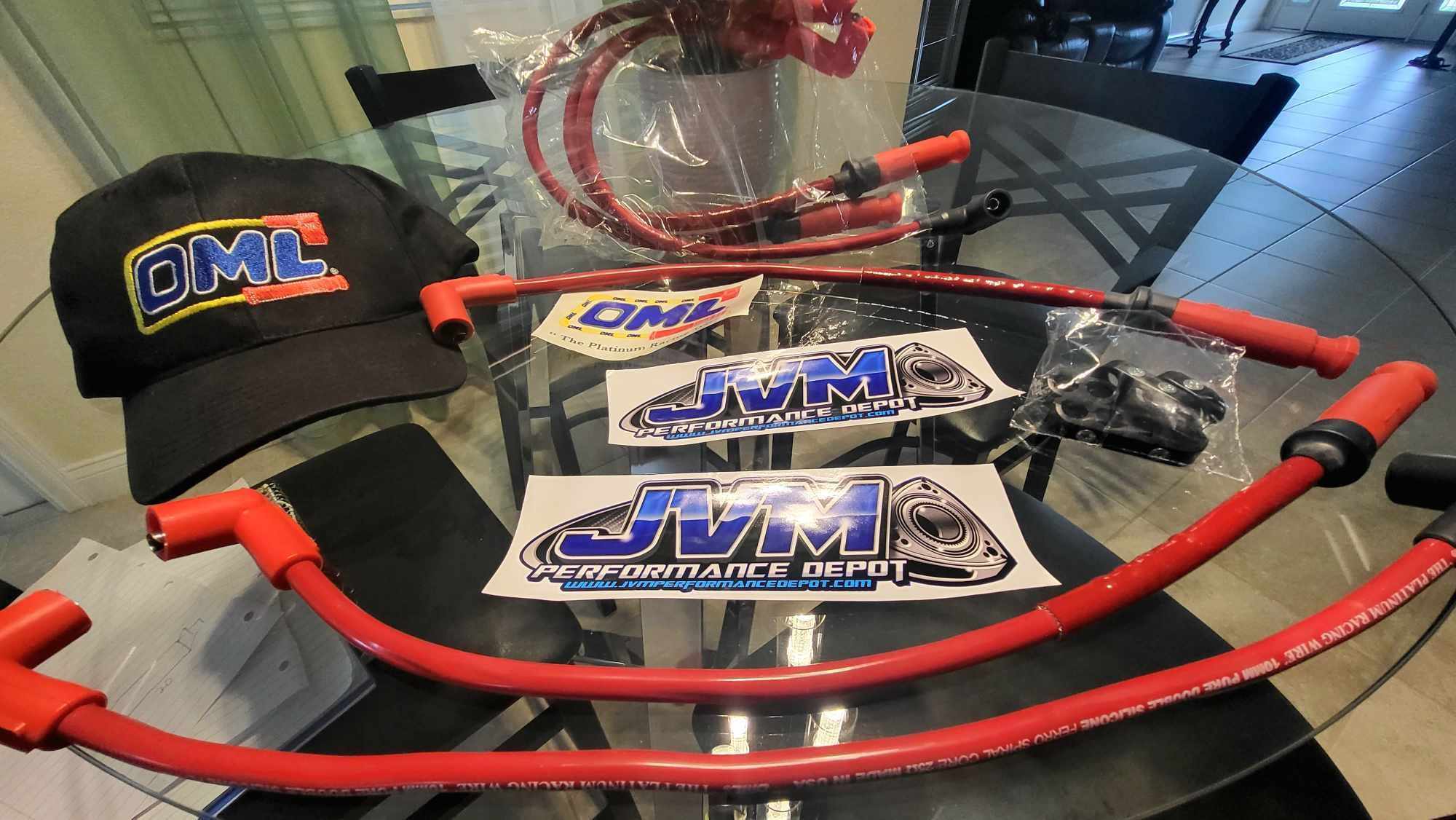

I also got these wire


The following users liked this post:
VA RX7 (05-15-24)
Old 05-15-24, 04:37 PM
  #5
Full Member


Silver82's Avatar

Join Date: Oct 2007
Location: Aurora, Co
Posts: 75
Likes: 0
Received 6 Likes on 5 Posts
Here is the link for the coils that I bought.
https://www.atkinsrotary.com/Ignitio...45-18-100.html

And the Spark Plug wires I went with.
https://mazdatrix.com/product/ign-pl...10mm-magnecor/
The following users liked this post:
VA RX7 (05-15-24)
Old 05-16-24, 09:15 AM
  #6
Moderator

iTrader: (2)

rxtasy3's Avatar

Join Date: Jun 2002
Location: Spartanburg, SC
Posts: 9,336
Likes: 0
Received 261 Likes on 242 Posts
lol when i read the last line in the description.

The Mazda OEM coils are no longer available, these are aftermarket NGK units. these are whatever we can find at this point.
Old 05-16-24, 09:23 AM
  #7
Junior Member

lil12abp's Avatar

Join Date: May 2024
Location: Florida
Posts: 22
Received 13 Likes on 9 Posts
Near future for me, MSD 8222

The following users liked this post:
VA RX7 (05-17-24)
Old 05-17-24, 01:04 PM
  #8
Slow Car Fast

VA RX7's Avatar

Join Date: Sep 2020
Location: Southwestern Virginia
Posts: 158
Received 69 Likes on 44 Posts
Paulieboy72 To answer your question about replacing coils, you can use a multimeter to test the resistance (ohm's) of your coils. Spec is 1.35 ohms give or take 10%. I have found that most of my original rx7 coils are often out of spec by multiple ohms. So I ordered some coils with the proper amount of resistance.
