I finally managed to fit the LS1onto the respeed R&P kit
Well, months of math and weeks of wondering and DAYS of moving it around by fractions of an inch and finally I got the motor in for good.
I said that I would post pictures and measurements here but decided against it and will let anyone else who wants to go this route figure out on their own. In case you think this is simple let me inform you it isn't. What most V8 guys do is get grannies kit with the stock pitman arm or they get a grannies kit for a second gen and do the second gen swap. Me? I wanted the quick ratio and the bling of respeed parts. So, I went this route. In the end the motor sits 1/2" higher than a grannies kit would and about 1" further back against the firewall. I can live with that. I also had to remove the alternator becasue it didnt like the rack. I found a f-body High mount for $150 that will put it in a better position.
The amazing thing is the hood closes with 1/4" clearance with no grinding at support structure. I know the TB will smack the hood when under load so I will figure that out later.
Anyway to the pics

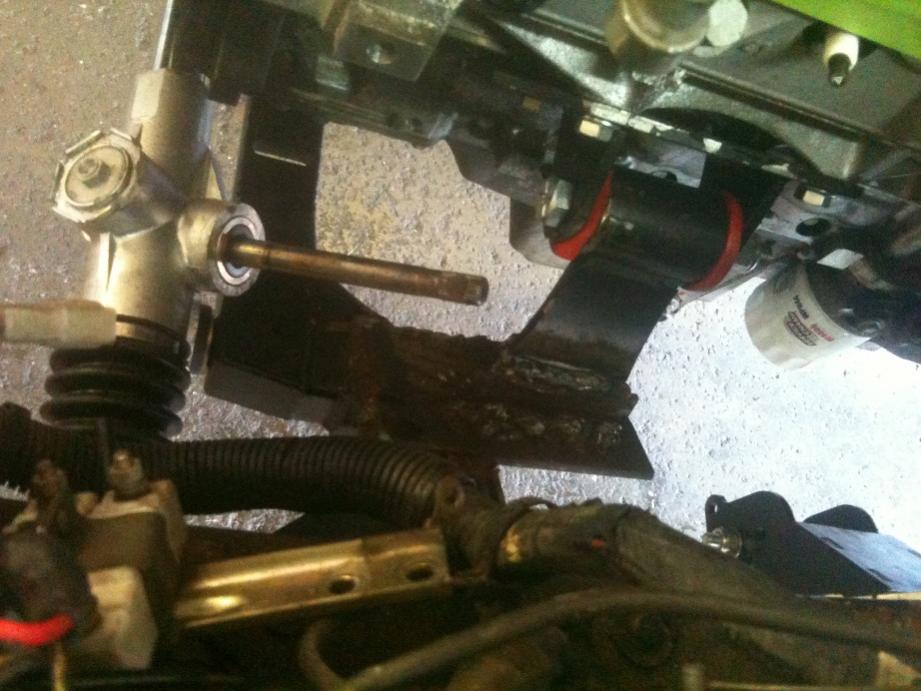

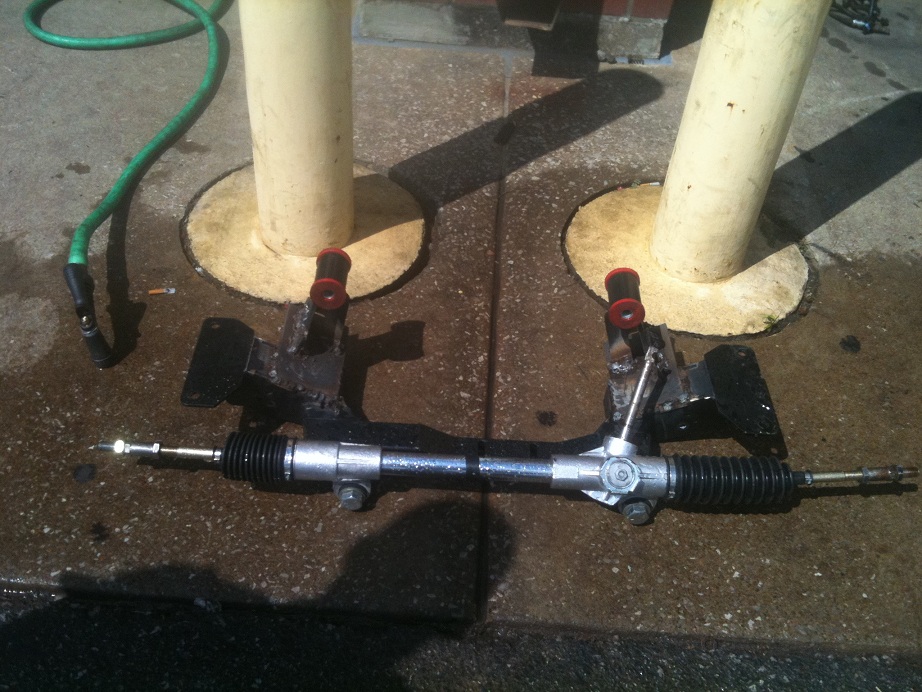

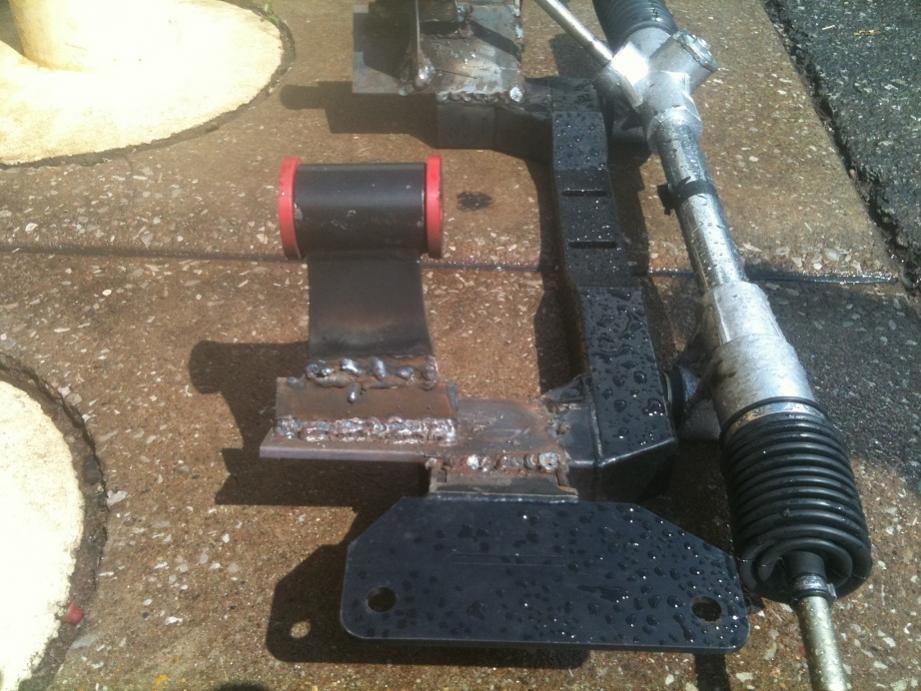

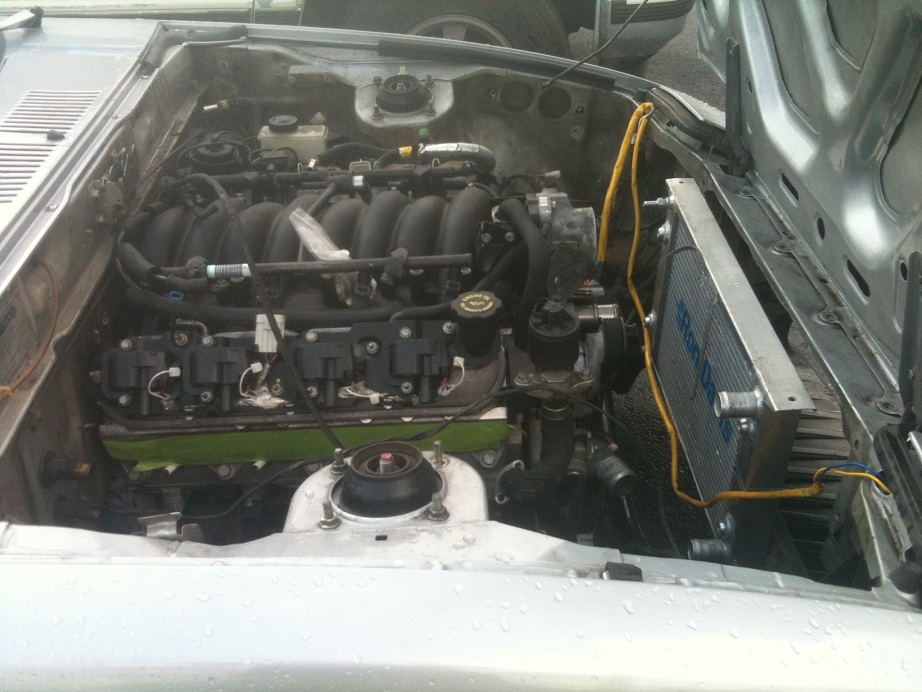

First picture is of the rack welded up and ready to go in. Second picuter is of the clearance at it's tightest point. Thir picture is of the final fitment of the motor. and the third is showing off how beautiful the car is now.
I said that I would post pictures and measurements here but decided against it and will let anyone else who wants to go this route figure out on their own. In case you think this is simple let me inform you it isn't. What most V8 guys do is get grannies kit with the stock pitman arm or they get a grannies kit for a second gen and do the second gen swap. Me? I wanted the quick ratio and the bling of respeed parts. So, I went this route. In the end the motor sits 1/2" higher than a grannies kit would and about 1" further back against the firewall. I can live with that. I also had to remove the alternator becasue it didnt like the rack. I found a f-body High mount for $150 that will put it in a better position.
The amazing thing is the hood closes with 1/4" clearance with no grinding at support structure. I know the TB will smack the hood when under load so I will figure that out later.
Anyway to the pics
First picture is of the rack welded up and ready to go in. Second picuter is of the clearance at it's tightest point. Thir picture is of the final fitment of the motor. and the third is showing off how beautiful the car is now.
