1st Gen General Discussion The place for non-technical discussion about 1st Gen RX-7s or if there's no better place for your topic

How do you remove rear louvre hardware?

Thread Tools

Search this Thread

Old Feb 11, 2025 | 05:20 PM
  #1
Oddworx's Avatar
Thread Starter
Newbie

Joined: Oct 2021
Posts: 2
Likes: 0
From: Los Angeles
How do you remove rear louvre hardware?

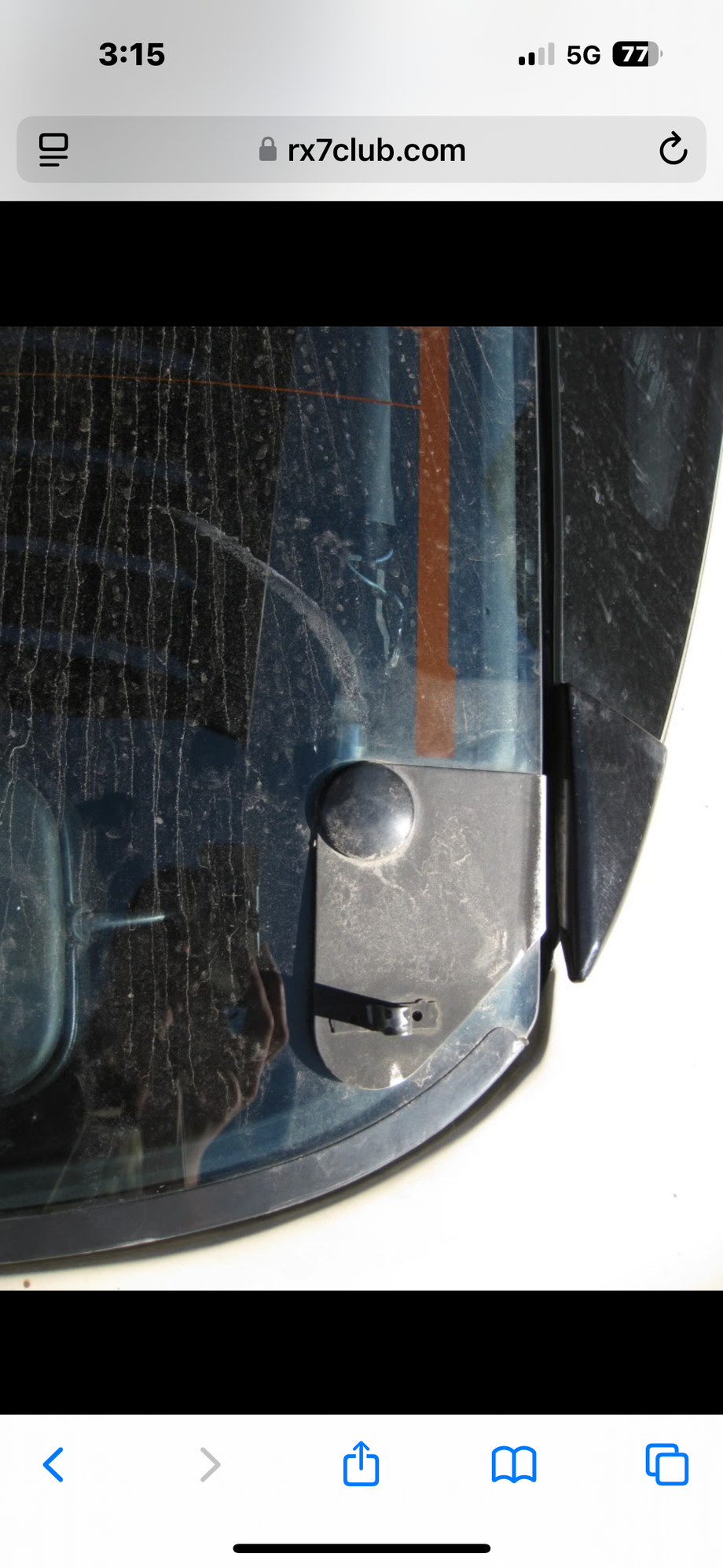

I took the nuts and the clips off. I think there is some sort of adhesive to the hardware that connects it to the glass. I took a flathead and tried to nudge it off, but it didn’t budge..
I took the nuts and the clips off. I think there is some sort of adhesive to the hardware that connects it to the glass. I took a flathead and tried to nudge it off, but it didn’t budge..

Reply
Old Feb 12, 2025 | 08:54 AM
  #2
Richard Miller's Avatar
Damn, it did start!
Tenured Member: 25 Years
Liked
Loved
Community Favorite

Joined: Feb 2001
Posts: 2,771
Likes: 470
From: washington
Try a guitar string and floss it between the mount and glass
Reply
Old Feb 12, 2025 | 09:17 AM
  #3
Seniorchief's Avatar
seniorchief
Veteran: Navy
Tenured Member: 25 Years
Liked
Community Favorite

Joined: Feb 2001
Posts: 622
Likes: 360
From: Indianapolis, IN
Originally Posted by Richard Miller
Try a guitar string and floss it between the mount and glass
Using a heat gun or hair dryer to soften it before using Richard's tip may help too.
Reply
Old Feb 12, 2025 | 10:13 AM
  #4
KansasCityREPU's Avatar
Out In the Barn
Tenured Member: 20 Years
Liked
Loved
Community Favorite
iTrader: (9)

Joined: Mar 2005
Posts: 6,704
Likes: 1,250
From: KC

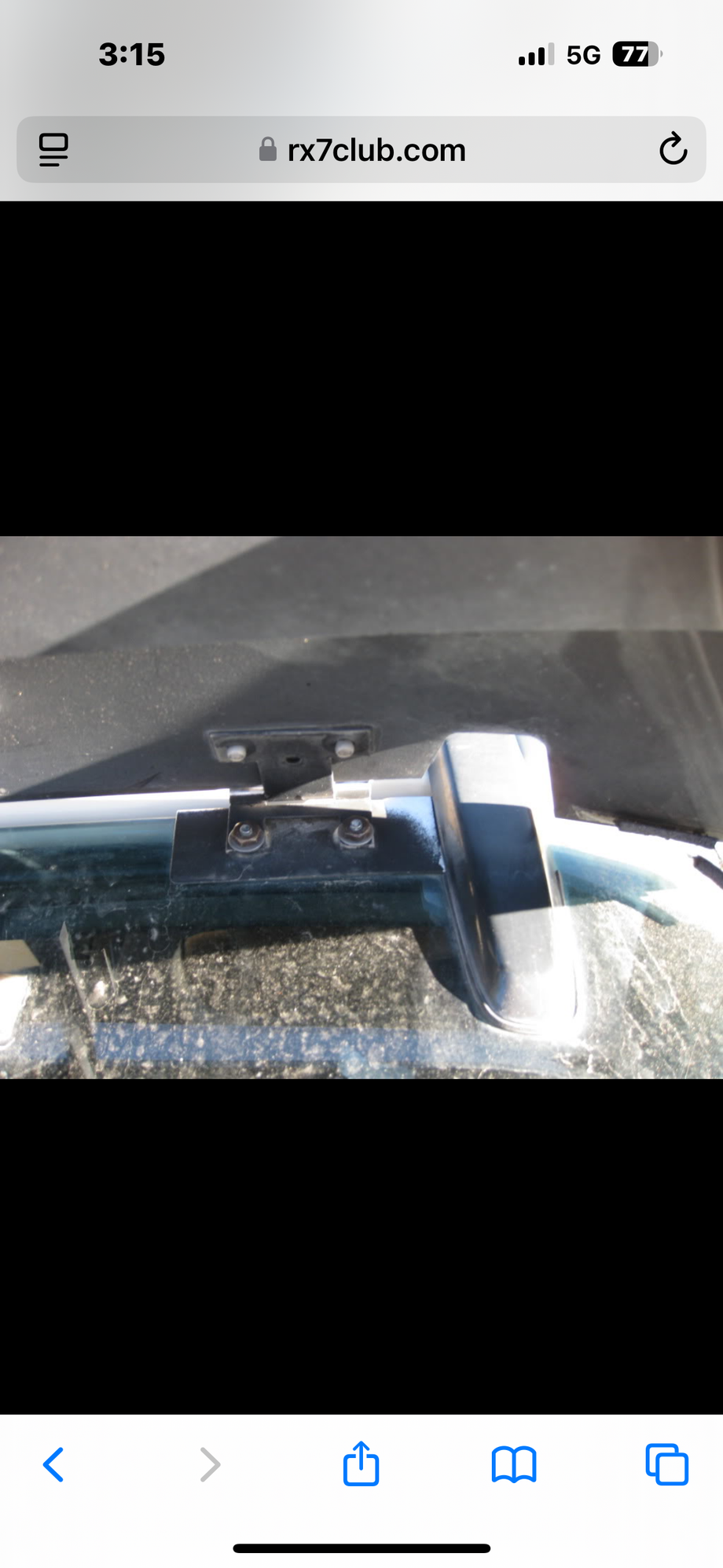

Looks like the top one might be attached to the upper hinge. Did you take the upper hinge cover off?

For the bottom one, did you take that big struct bolt out?
Reply
Old Feb 12, 2025 | 10:19 AM
  #5
LongDuck's Avatar
84SE-EGI helpy-helperton
Tenured Member: 20 Years
Liked
Loved
Community Favorite

Joined: Oct 2002
Posts: 3,584
Likes: 542
From: Phoenix, AZ
If I remember right, there's a flange edge that clamps the underside of the glass, so prying is going to break the hatch glass. That flange clamp was used to locate the hinge and gate latches at the bottom during install so they'd be the right distance from the glass edge. A razor blade should slice through the dried up adhesive, but lift the hatch glass up to see what else might be holding it.
Reply
Old Feb 12, 2025 | 10:36 AM
  #6
elwood's Avatar
Rotary Freak
Tenured Member: 20 Years
iTrader: (1)

Joined: Mar 2003
Posts: 1,589
Likes: 46
From: Michigan
Originally Posted by Richard Miller
Try a guitar string and floss it between the mount and glass
And if you don't play guitar, try dental floss. If you saw it back and forth, it's works well to remove badges.
Reply
Old Feb 14, 2025 | 03:00 PM
  #7
1BADRX7's Avatar
Rotary Enthusiast
Tenured Member: 25 Years

Joined: Mar 2001
Posts: 878
Likes: 98
From: somewhere
Fishing line also works.
It should be double sided tape between the bracket and the glass.

Last edited by 1BADRX7; Feb 14, 2025 at 03:02 PM.
Reply
Old Feb 14, 2025 | 04:42 PM
  #8
Oddworx's Avatar
Thread Starter
Newbie

Joined: Oct 2021
Posts: 2
Likes: 0
From: Los Angeles
Originally Posted by Oddworx
I took the nuts and the clips off. I think there is some sort of adhesive to the hardware that connects it to the glass. I took a flathead and tried to nudge it off, but it didn’t budge..
I took the nuts and the clips off. I think there is some sort of adhesive to the hardware that connects it to the glass. I took a flathead and tried to nudge it off, but it didn’t budge..
guitar wire worked like a charm. Easy! Thanks all
