Air Cleaner question
First off, merry late Christmas to everyone, and sorry for the awful phone pictures, it's all I had at the moment.

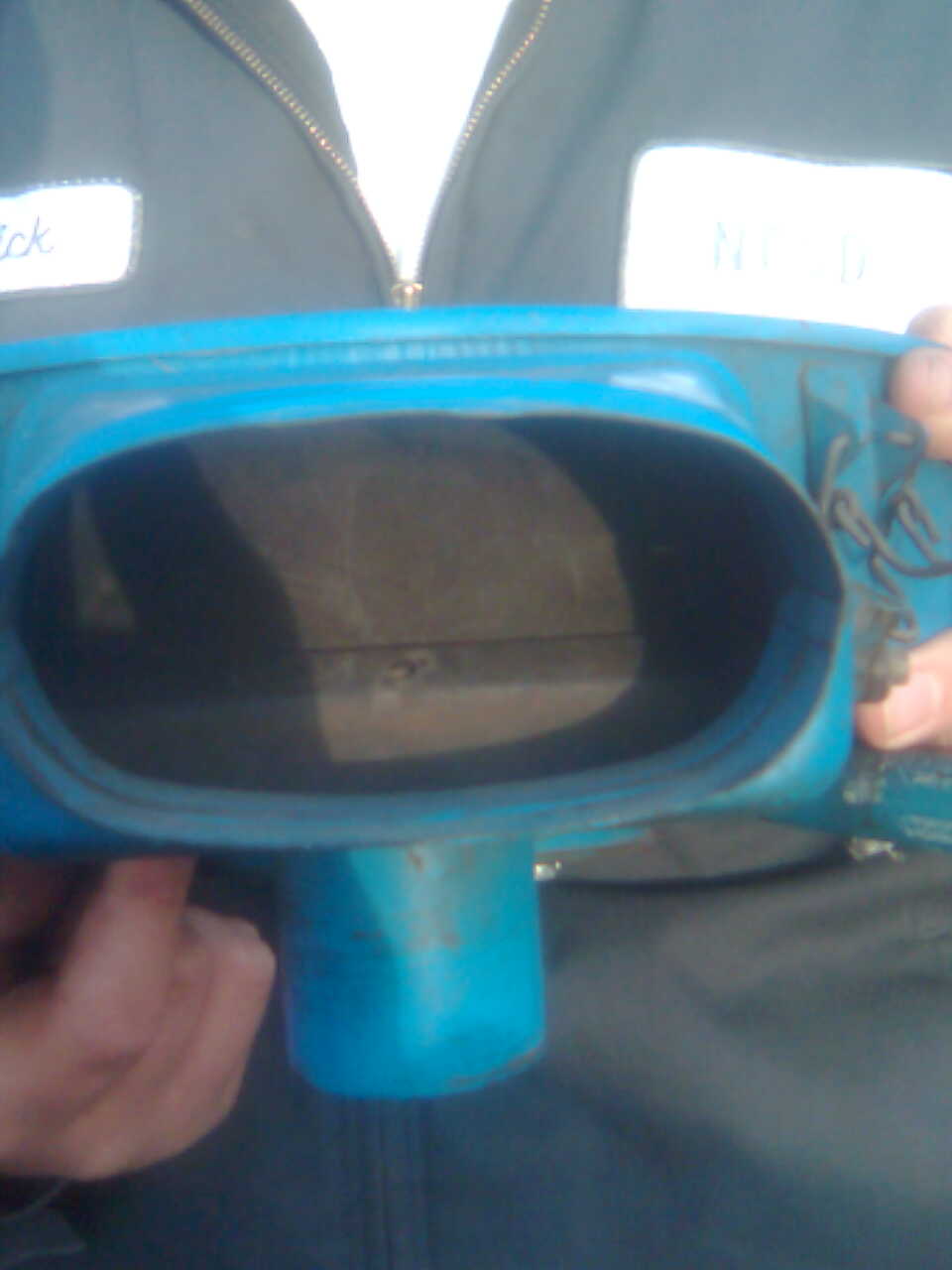

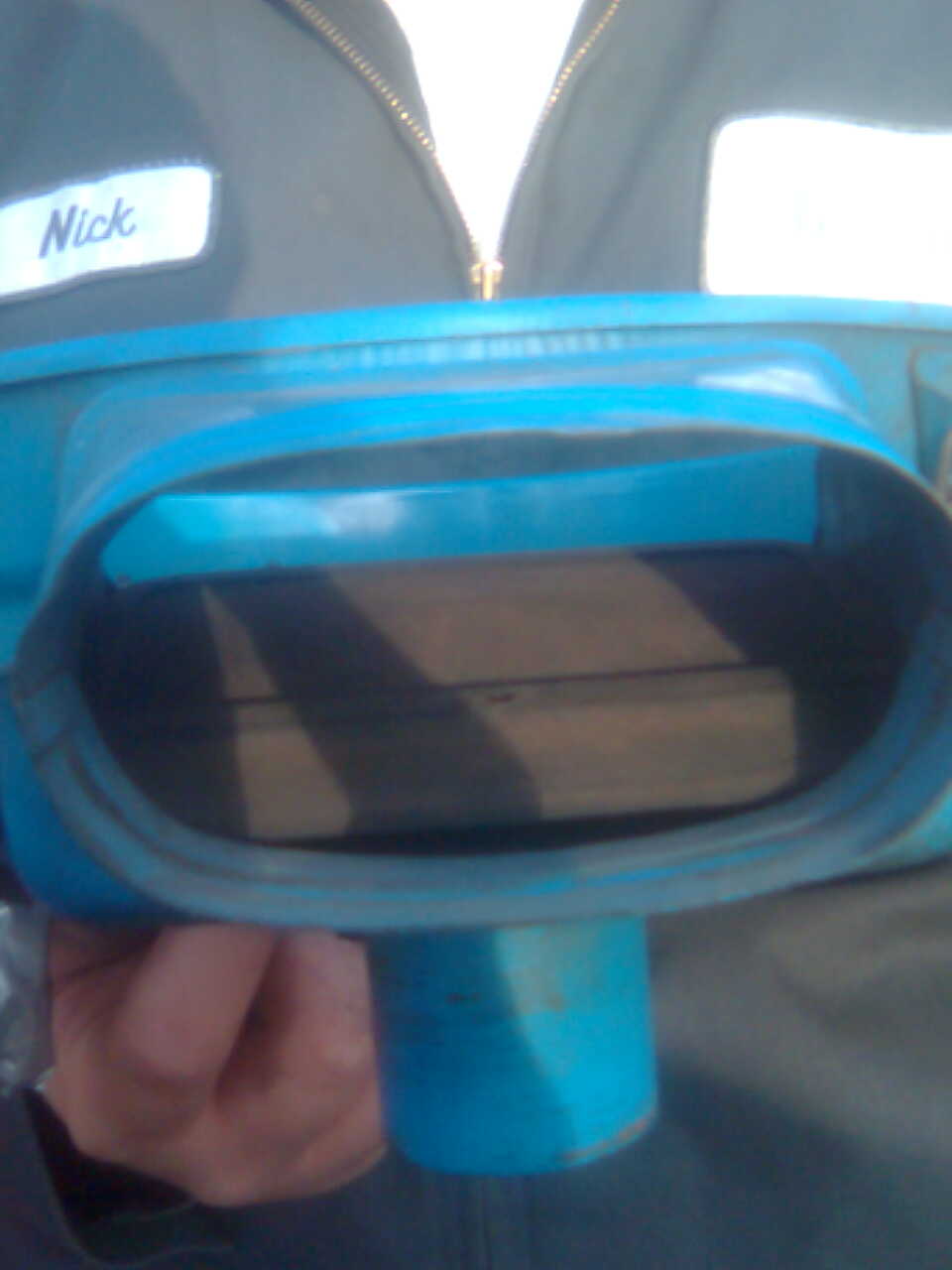

I pulled the air cleaner off today, and noticed a valve that opens and closes near the end of it. It's connected to a rod, which is connected to something that sits on the inside of the air cleaner.
Does anyone have any idea what it is? I'm curious and don't know why it's there, or how it opens, etc. The best idea my friend or I could think of is that it had something to do with the air pump, but seeing as I got the car without one, I'm not sure.
Any help would be appreciated.
~Devon
I pulled the air cleaner off today, and noticed a valve that opens and closes near the end of it. It's connected to a rod, which is connected to something that sits on the inside of the air cleaner.
Does anyone have any idea what it is? I'm curious and don't know why it's there, or how it opens, etc. The best idea my friend or I could think of is that it had something to do with the air pump, but seeing as I got the car without one, I'm not sure.
Any help would be appreciated.
~Devon
#2
My 7 is my girlfriend.
iTrader: (5)
Join Date: Feb 2006
Location: London, Ontario, Canada
Posts: 3,162
Likes: 0
Received 1 Like
on
1 Post
It's been a while since I've had that on so I'm kinda guessing from memory here. That flapper has a hose leading to it that comes from the stock exhaust manifold heat shield. I believe it's to provide a higher intake temp during warmup, or in cold weather.
#3
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,841
Received 2,604 Likes
on
1,847 Posts
american cars call this a TAC, or thermosomething air cleaner. its a very simple system, when the car is cold, one way of helping it run better, and warm up quicker is if the engine can suck air off of something hot like the exhaust manifold. but when the engine is warm the engine runs best on cold air
so what they did in the 70's (pretty much every car had this, not just the rx7) was have a small duct going down to the exhaust manifold, and the flap can switch between hot and cold.
at this juncture, you just want to make sure it works, if its not you're sucking hot air, rotary looses power, piston engines used to ping.
so what they did in the 70's (pretty much every car had this, not just the rx7) was have a small duct going down to the exhaust manifold, and the flap can switch between hot and cold.
at this juncture, you just want to make sure it works, if its not you're sucking hot air, rotary looses power, piston engines used to ping.
#4
JDM as fuuuuuu
Thread Starter
iTrader: (1)
Join Date: Oct 2009
Location: Charleston, SC
Posts: 94
Likes: 0
Received 0 Likes
on
0 Posts
well, I see where the tube would connect to the air cleaner, but the car came with an aftermarket header, so.......yeah. I'll let it run tomorrow and see if it opens at all. Since it's not hooked up, would it be safe to just try and get the valve out? at the moment it's just pulling cold air through the hole on the bottom anyway, so what's the harm, right?
#5
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,841
Received 2,604 Likes
on
1,847 Posts
well, I see where the tube would connect to the air cleaner, but the car came with an aftermarket header, so.......yeah. I'll let it run tomorrow and see if it opens at all. Since it's not hooked up, would it be safe to just try and get the valve out? at the moment it's just pulling cold air through the hole on the bottom anyway, so what's the harm, right?
Trending Topics
#8
JDM as fuuuuuu
Thread Starter
iTrader: (1)
Join Date: Oct 2009
Location: Charleston, SC
Posts: 94
Likes: 0
Received 0 Likes
on
0 Posts
It came out, after some prodding and bending and such, but it's out. i may take the bimetallic spring out, but it's not really harming anything or in the way or visible, so....maybe later.
